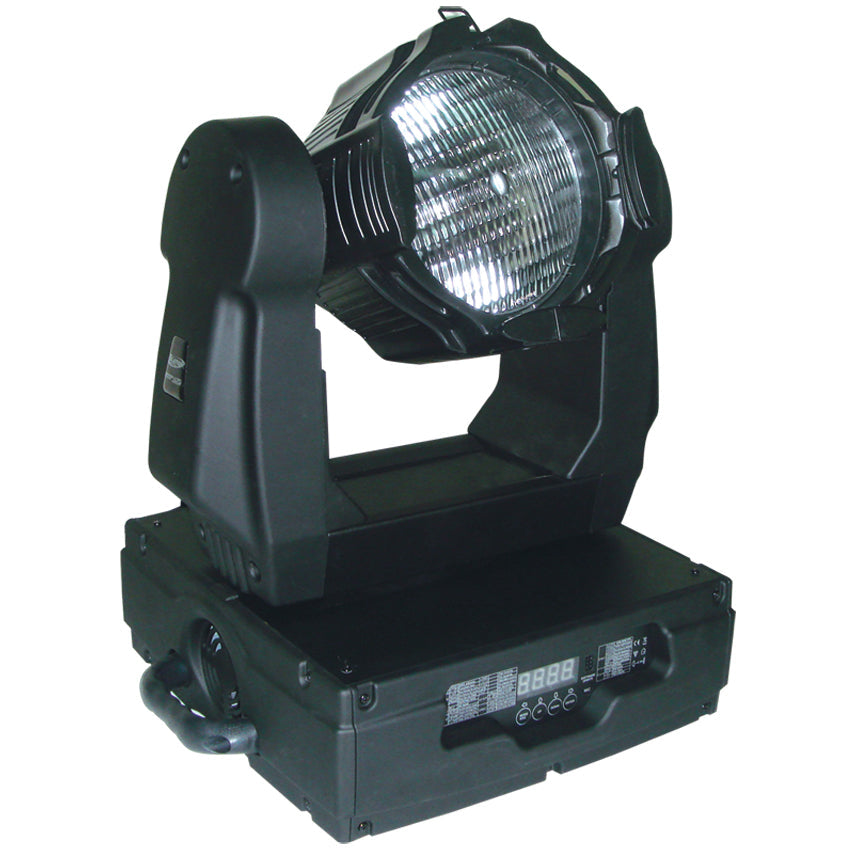

DESIGN PAR 575DETL

 Colors
 . Gel frame holder included

 Light Source
 . 5,460 Lux / 507 FC @ 16 feet / 5 meters
 . Lamp life: 1000hrs 7,200°k, 575W
 . Lamp: ZB-MSR 575/2 575W Discharge (not included)

 Optical System
 . 40° beam angle
 . Includes 4 lens options: very narrow, narrow, medium wide
 . Glass dichroic reflector for even lamp output
 . Anti-reflective coated lenses

 Movement
 . Pan 630° or 540° (User selectable) / Tilt 265°
 . Fine Pan Tilt, Built-in programs
 . Automatic repositioning
 . Automatic Pan/Tilt Correction

 Control
 . 6 DMX channels default or 4 DMX channel user selectable
 . Control board with 4-digit display and foil-keyboard
 . Value of each DMX-channel can be displayed
 . Digital display can be turned 180° to fit different installation positions
 . USSIT DMX-512
 . Built In lamp control via DMX
 . RDMX - remote DMX addressing
 . Internal programs
 . Auto test for all functions
 . 3 operation modes: DMX controlled, stand alone or sound activated
 . 16 bit mode

 Operation Parameters
 . IP Rating: IP 20
 . Quick out omega clamps
 . Silent fan operation

 Power Supply
 . Electronic ballast
 . User Selectable Switching Power Supply (Internal)
 . Voltage: 98V 50hz
 . Power consumption: 700W

 Connectors
 . 3 pin XLR serial in/out

 Dimensions and Weight
 . Dimensions (L x W x H): 14.25” x 17” x 19.4” / 429 x 362 x 492mm
 . Weight: 51 lbs / 23 kg

 Approvals
 . cETLus approved
