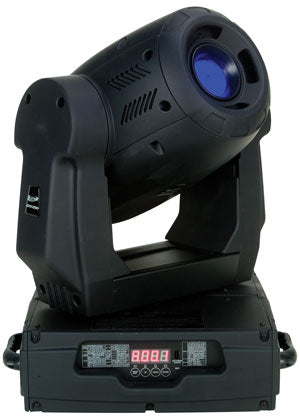

Design Spot 250
Discontinued
Design Spot 250 is a professional-grade lighting solution. HYBRID (INTELLIGENT SPOT WASH IN ONE) CONTROL FEATURES • RDMX - Remote DMX Addressing • USITT DMX-512 (16-bit resoultion) • 16 DMX Channels • 4 Digit L.E.D.
Design Spot 250
Sale price$0.00
Design Spot 250
HYBRID (INTELLIGENT SPOT WASH IN ONE)
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
Specifications
OPTICAL SYSTEM
• High output luminous-parabolic dichroic reflector
• Beam Angle 17°
• Replacable Beam 14°, 20° angles (included)
• All lenses are anti-reflection coated
COLORS
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
• 7 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small
FROST
• Variable Frost Control
• Hard edge to soft edge
PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations
FOCUS
• Motor driven focus from near to far
LAMP
• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
PAN/TILT
• Automatic Pan / Tilit position correction
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
DIMENSIONS WEIGHT
• 14”L x 14”W x 22.5”H
• 51 lbs.
POWER SUPPLY
• Fuse: 8A (120V) or 4A (220V)
• Magnetic Ballast
• Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
• Power Consumption 400W
• Optional Roadcase Available - Model: DRC 250 DS
• High output luminous-parabolic dichroic reflector
• Beam Angle 17°
• Replacable Beam 14°, 20° angles (included)
• All lenses are anti-reflection coated
COLORS
• 8 Dichroic filters, 7 color, UV + White
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
• More color combinations possible by overlaying the multi-color dichroic gobo and the colors on the color wheel
GOBOS
• 2 gobo wheels, 14 total gobos, 11 metal, 3 glass
• 7 interchangeable, indexable, rotating gobos plus open
• 7 interchangeable, static gobos plus open
• Metal Gobo Size: 26.9mm outside diameter, 23mm image diameter
• Glass Gobo Size: 26.7mm outside diameter, 23mm image diameter
• Gobo Overlay (Gobo Morphing)
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
IRIS
• Beam narrow to wide (5% - 100%)
• Variable speed iris macros
• Small to large and large to small
FROST
• Variable Frost Control
• Hard edge to soft edge
PRISM
• 3-facet rotating/Indexing Prism
• Both directions at variable speeds
• Macro-function for rotating gobos/rotating prisim combinations
FOCUS
• Motor driven focus from near to far
LAMP
• Phillips MSD 250/2 (250W, 8500°K, 3000 HRS)
PAN/TILT
• Automatic Pan / Tilit position correction
• Maximum PAN-movement 630° in 2.0 secs (default) or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
DIMENSIONS WEIGHT
• 14”L x 14”W x 22.5”H
• 51 lbs.
POWER SUPPLY
• Fuse: 8A (120V) or 4A (220V)
• Magnetic Ballast
• Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
• Power Consumption 400W
• Optional Roadcase Available - Model: DRC 250 DS
APPROVALS
• ETL Approved
