Design Wash 300E
Discontinued

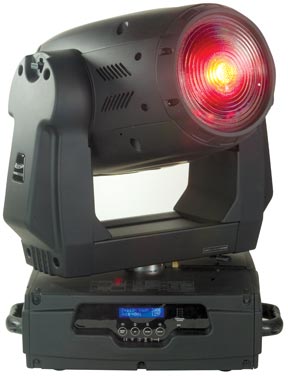

Design Wash 300E is a professional-grade lighting solution. 300W CMY Wash Moving Head.
CONTROL FEATURES
- RDMX - Remote DMX Addressing
- USITT DMX-512 (16-bit resolution)
- 16 DMX Channels
- Blue LCD Display
- On board menu settings
- 3-pin & 5-pin XLR serial input/output.
Design Wash 300E
Sale price$0.00
Design Wash 300E
300W CMY Wash Moving Head
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• Blue LCD Display
• On board menu settings
• 3-pin & 5-pin XLR serial input/output
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• Blue LCD Display
• On board menu settings
• 3-pin & 5-pin XLR serial input/output
Specifications
OPTICAL SYSTEM
• New advanced high luminous-efficiency parabolic reflector
• 150 mm Fresnel lens
• Lux 28,000 @ 18º @ 2.5M
MOTORIZED ZOOM
• Remote DMX adjustable 18° to 28° beam angle
CMY - COLOR MIXING SYSTEM
• The CMY color mixing system is based on graduated cyan, magenta, and yellow color filters.
• A continuous range of colors may be achieved by varying the amount of each filter from 0 to 100% 30 CMY color macros.
COLORS
• 8 dichroic-filters plus white Red, green, blue colors and 3200K, 5600K, UV filters
• Continuous, variable speed, color scrolling in both directions (rainbow effect)
BEAM EFFECTS
• New 360° beam shaper
• Wide and flat beam can be rotated by 90°
• Frost filter for softer beam
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
• Flicker free
LAMP
• Philips “Fast Fit” MSR300 (300W, 8500°K, 1000 HRS)
PAN/TILT
• Automatic Pan / Tilt position correction
• Pan/Tilt Lock
• Maximum PAN-movement 630° in 2.0 secs (default)
or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
RIGGING
2 X 1/4 turn fastening Omega Clamps
POWER SUPPLY
• Electronic Power Supply - Multi-voltage: AC 98~240V 50/60Hz
DIMENSIONS WEIGHT
• (LxWxH): 14” x 14” x 22.5” / 356x356x572mm
• 59 lbs. 27 kgs.
Approvals
• ETL approved
