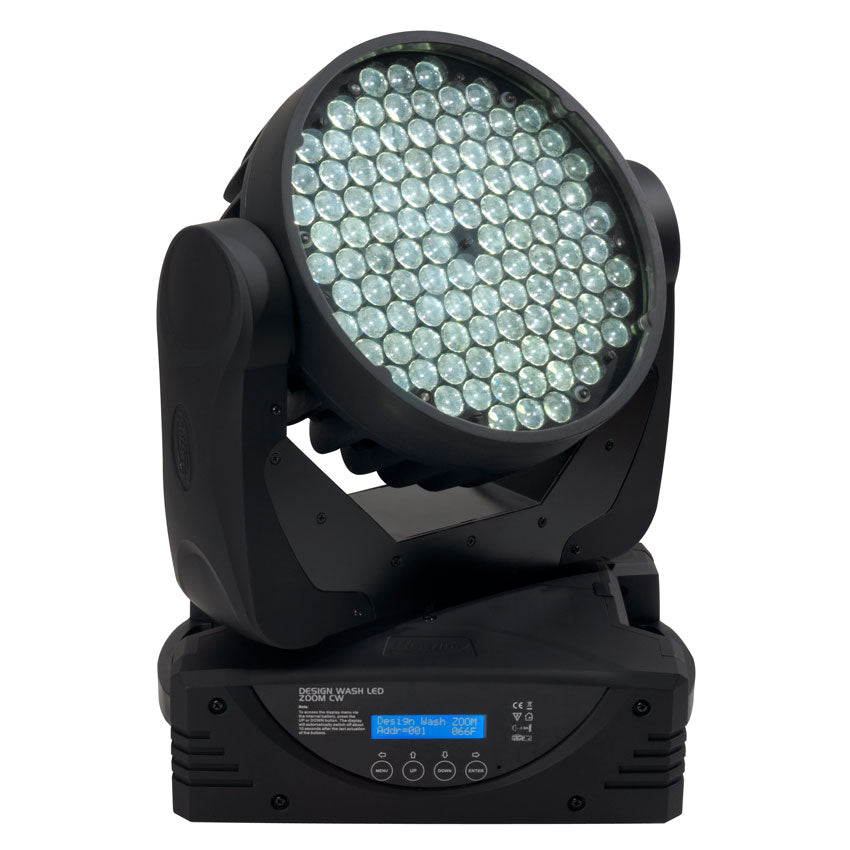

DESIGN WASH LED ZOOM CW
Design Wash LED Zoom CW is a professional-grade lighting solution.
DESIGN WASH LED ZOOM CW
The Design Wash LED Zoom CW™ is a high output pro grade cool white zoom wash LED luminaire featuring (108) 3W Osram™ 7,500K Cool White LEDs, producing 8,300 lumens with a 6° to 19° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and FILM, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
The Design Wash LED Zoom CW™ is a high output pro grade cool white zoom wash LED luminaire featuring (108) 3W Osram™ 7,500K Cool White LEDs, producing 8,300 lumens with a 6° to 19° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and FILM, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- SEE ALSO
- DESIGN WASH LED ZOOM™
- RGBW Version (click for more info)
- DESIGN WASH LED ZOOM WH™
- White Painted Exterior (click for more info)
- FEATURES
- High Output Pro Grade Zoom Wash LED Luminaire
- 8,300 Total Lumens
- 6° - 19° Motorized Zoom
- Flicker Free Operation for Broadcast TV and FILM
Specifications
(108) 3W Osram™ 7,500K Cool White LEDs
50,000 Hour Average LED Life
PHOTOMETRIC DATA
Distance @8.2 ft (2.5m)
68,380 LUX 6,353 FC (6° Min Zoom Full ON)
7,202 LUX 669 FC (19° Max Zoom Full ON)
EFFECTS
Dimming: 0% - 100%
Strobe: 1-18fps
CONTROL / CONNECTIONS
(10) DMX Channels
(4) Button Control Panel
LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin and 5pin DMX In/Out
SIZE / WEIGHT
Length: 13.4” (341mm)
Width: 8.7” (220mm)
Vertical Height: 17.5” (445)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(1) Omega Bracket
(1) 3pin DMX Cable
(1) Safety Cable
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
Downloads
Dimensional drawings
Dmx traits
Ies files
Photometrics
- Design Wash LED Zoom CW Photometric Data
- Design Wash LED Zoom CW Photometric Test Report Zoom In
- Design Wash LED Zoom CW Photometric Test Report Zoom Out
