DMX-BRANCH/419

Discontinued

DMX-Branch/419 is a professional-grade lighting solution.

UPC: 837874003895SKU: DMX BRANCH-419

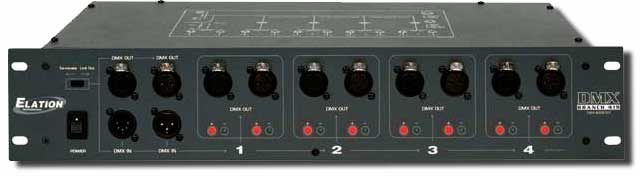

DMX-BRANCH/419

4 Way DMX Distributor

Data + & Data "“ LED indicators. Linkable with other DMX Branch x 4 units via 3 or 5 pin XLR.

  • 19"Rack mountable!
  • 4-way DMX distributor
  • 1 x DMX Input, 4 x DMX outputs & 1 DMX thru
  • Electronic & Opto isolated
  • 3 & 5 pin XLR DMX connectors
  • Link out/Terminate button
  • 50mA internal fuse
  • 3/16"Threaded hole for clamp
  • Dimensions: 19"x 7.25"x 3"(483 x 184 x 76 mm)
  • Weight: 7 lbs (3.18 kgs)
  • Voltage: 120V / 220V
  • Internal Fuse: .5A 250V 5x20mm

Downloads

User manual
