DMX10-3
DMX10-3 is a professional-grade lighting solution. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
Replaced By
DMX10-3

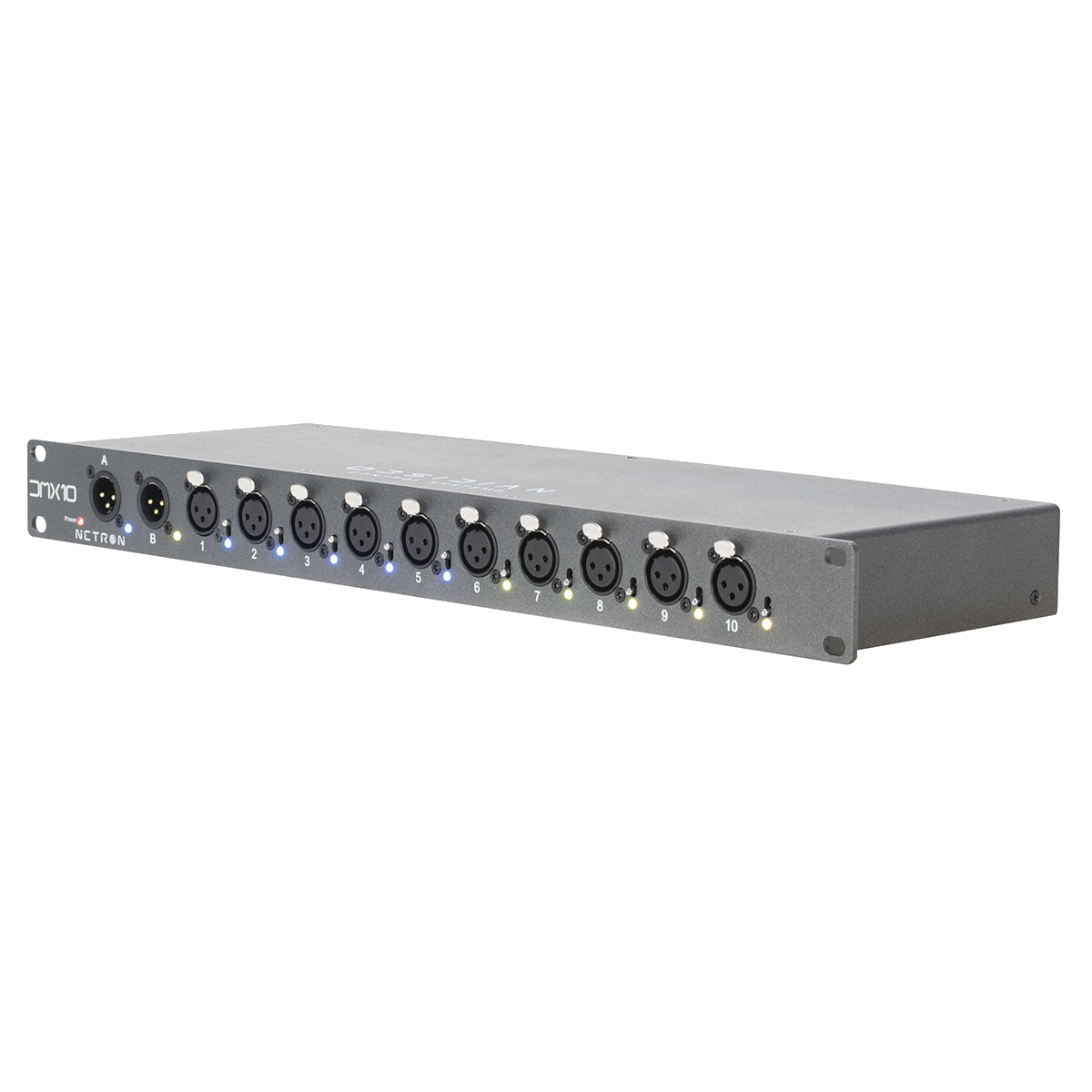

The DMX10-3 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 3pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
- Dual A/B 3pin XLR DMX Input
- 10 isolated 3pin XLR DMX Outputs
- A/B routing per output port
- LED feedback for In/Out/A/B/Power
- Industrial strength powder-coated finish
- Lightweight and rugged rackmount housing
- For all technical details and documentation for NETRON devices please visit
- https://obsidiancontrol.com/netron
Specifications
- Rackmount
- (2) 3pin DMX Input
- (10) 3pin Opto-Isolated DMX Outputs

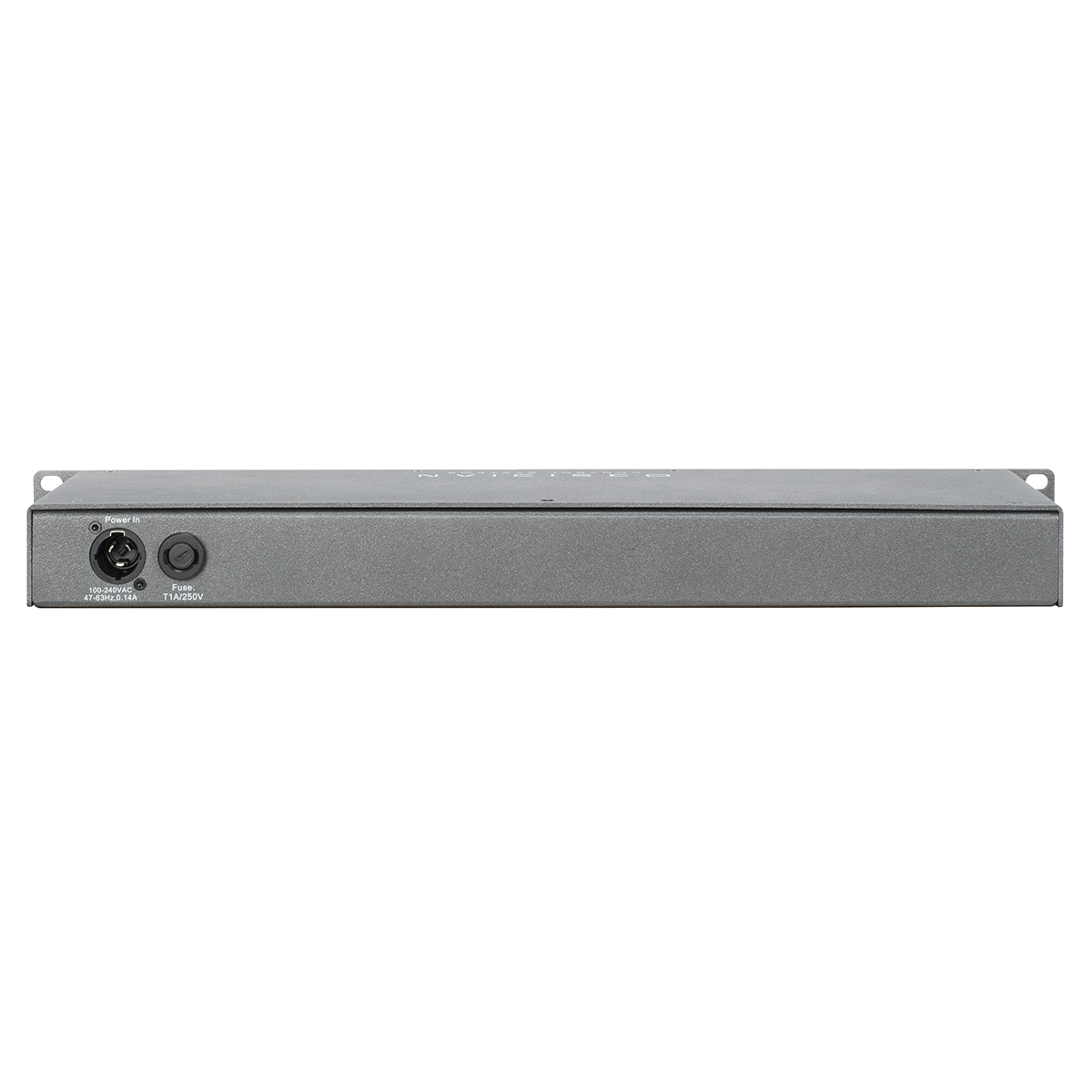

- Locking Power In
- Length: 482.0 mm (19 in.)
- Width: 155.9 mm (6.1 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.50kg ( 3.31 lbs)
- 100-240 V nominal, 50/60 Hz
- cETLus / CE / UKCA / IP20
- 1.5m Locking power cable (EU version)
- EU #: 1330000070
