DMX 10-5

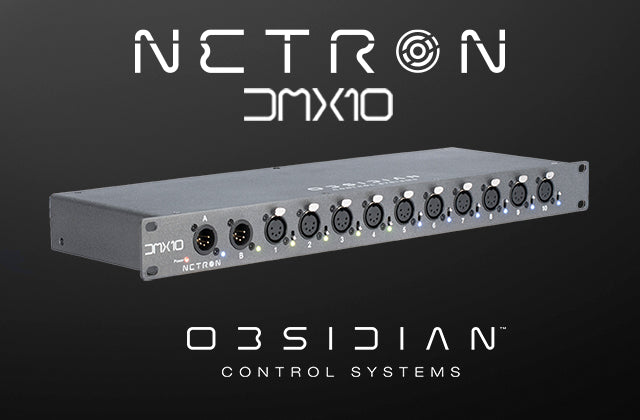

The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
DMX 10-5
Sale price$0.00
DMX 10-5
The DMX10-5 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5 and 3pin XLR configurations.
- Dual A/B 5pin XLR DMX Input
- 10 isolated 5pin XLR DMX Outputs
- A/B routing per output port
- LED feedback for In/Out/A/B/Power
- Industrial strength powder-coated finish
- Lightweight and rugged rackmount housing
Specifications
Mounting
- Rackmount
Connections

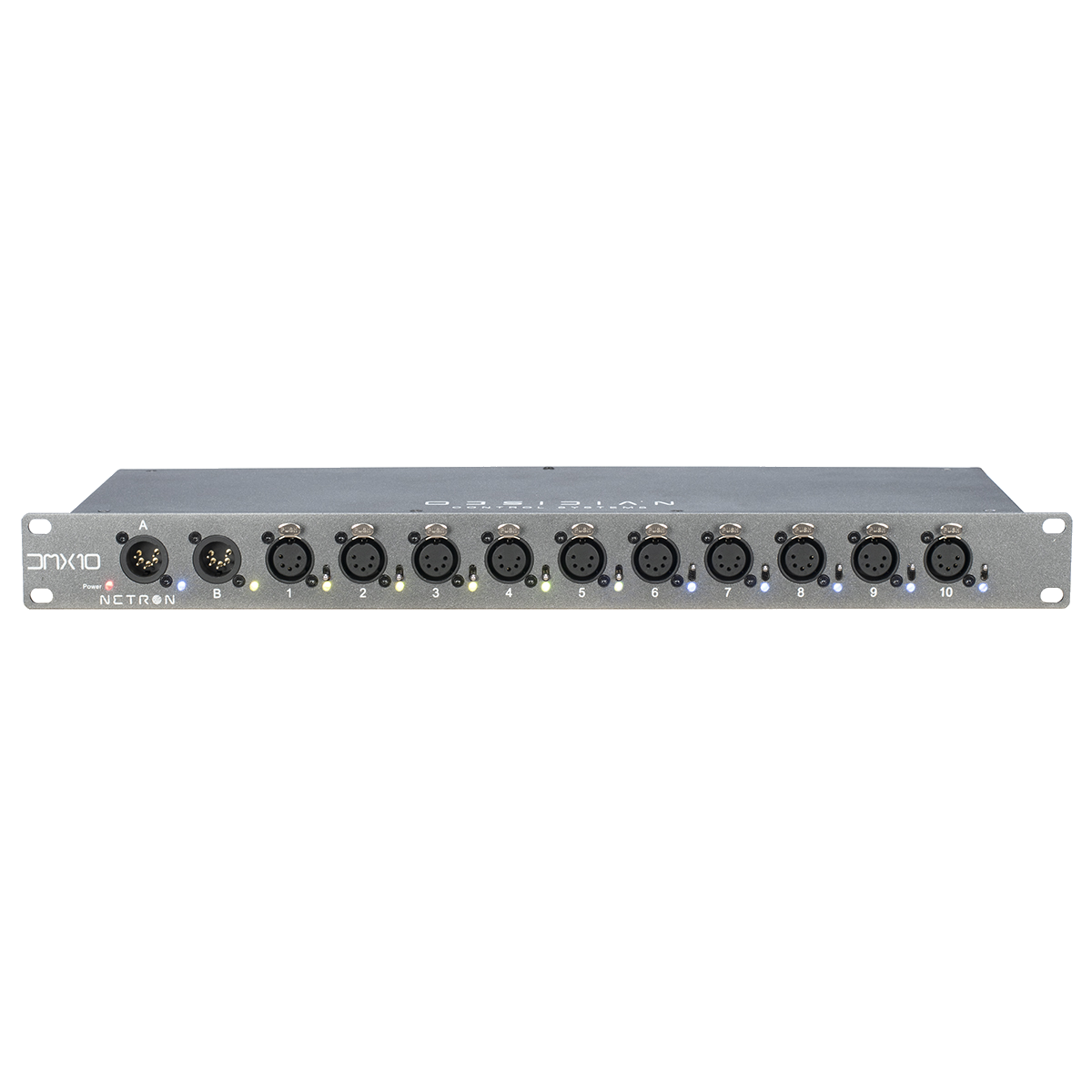

Front
- (2) 5pin DMX Input
- (10) 5pin Opto-Isolated DMX Outputs

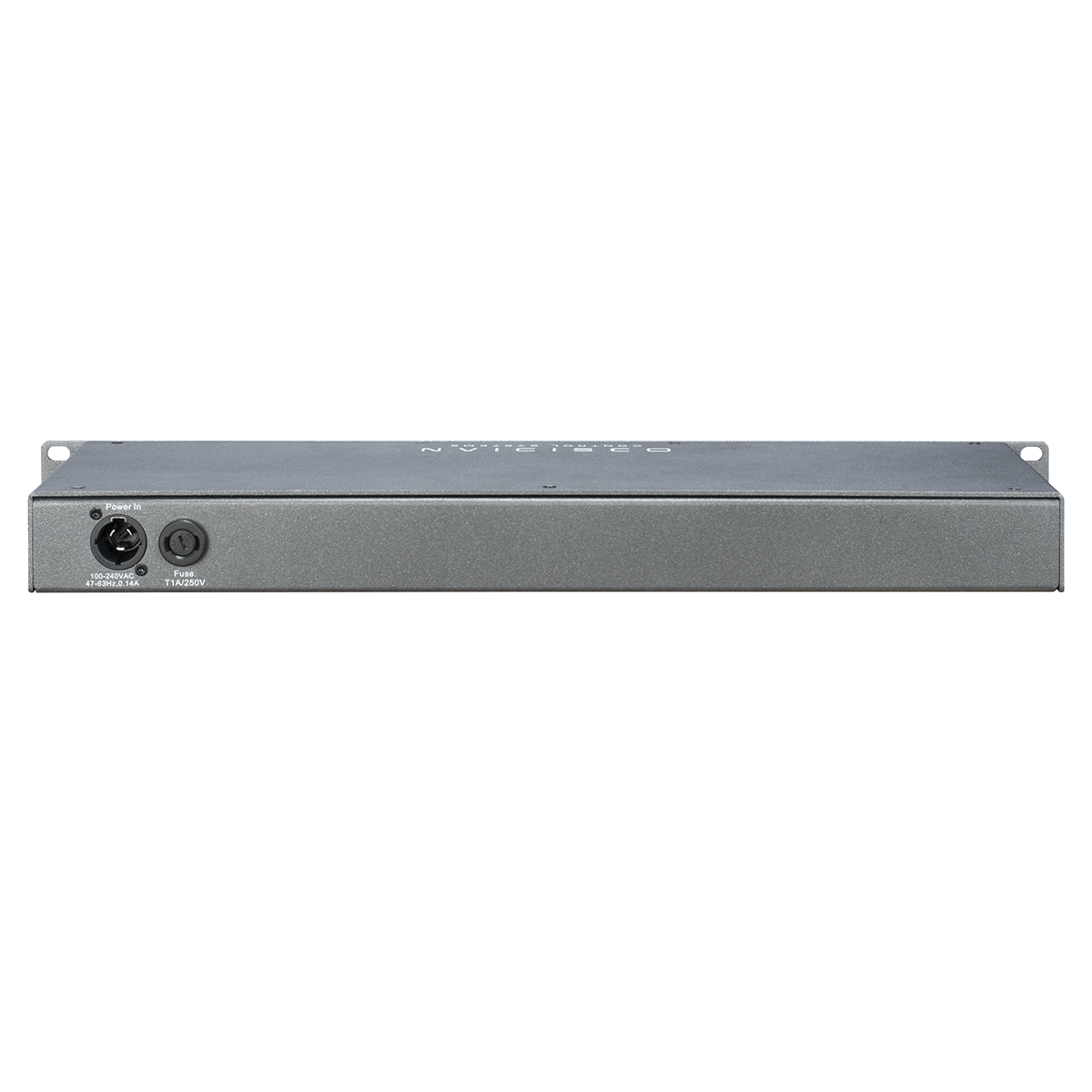

Back
- Locking Power In
Specifications
Physical
- Length: 482.0 mm (19 in.)
- Width: 155.9 mm (6.1 in.)
- Height: 44 mm (1.7 in.)
- Weight: 1.50kg ( 3.31 lbs)
Electrical
- 100-240 V nominal, 50/60 Hz
- cETLus / CE / UKCA / IP20 (pending)
Ordering
Included Items
- 1.5m Locking power cable (EU or US version)
SKU
- US # DMX105
- EU #: 1330000071
Downloads
Cad drawing
Dimensional drawings
Specification sheet
User guide
