DMX10-53

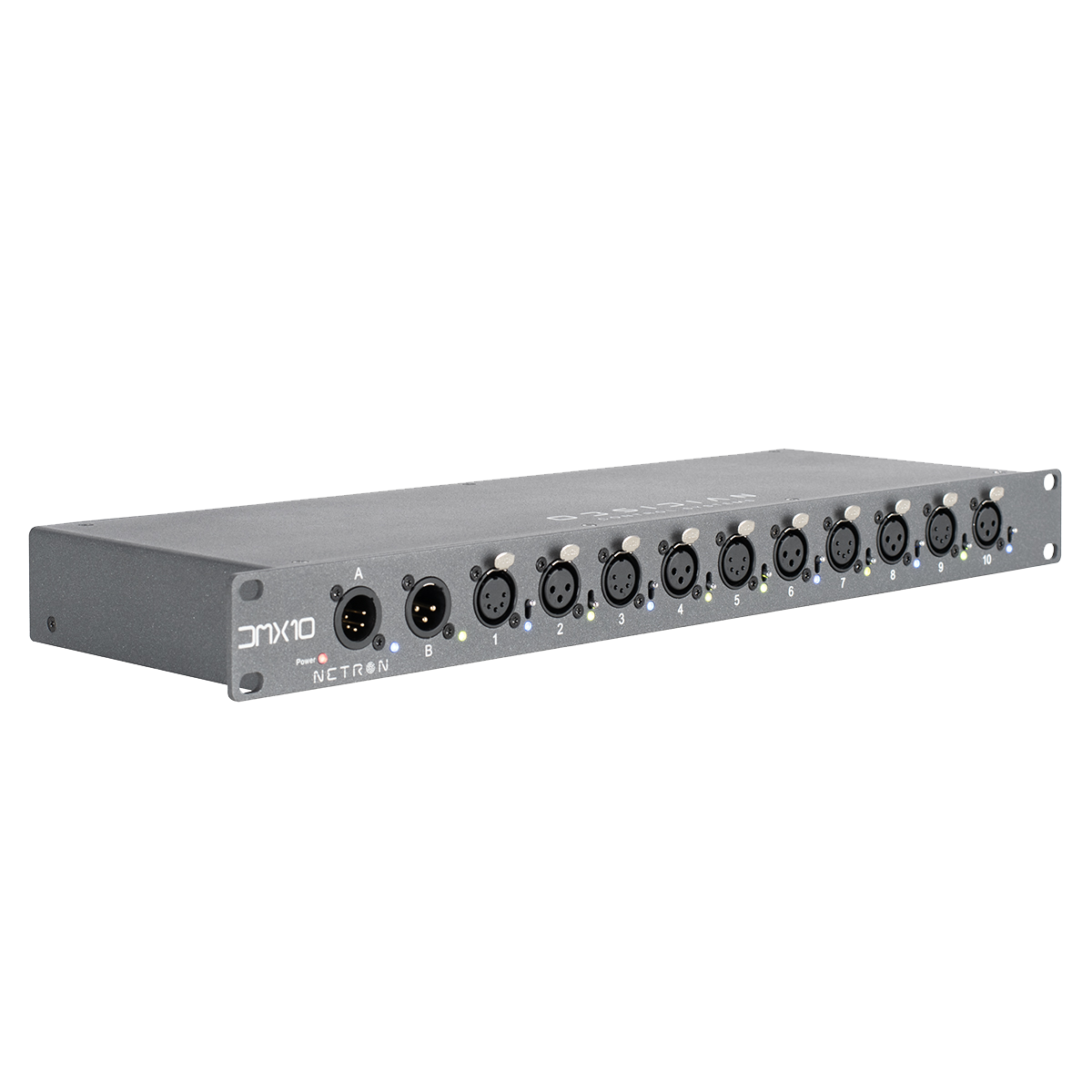

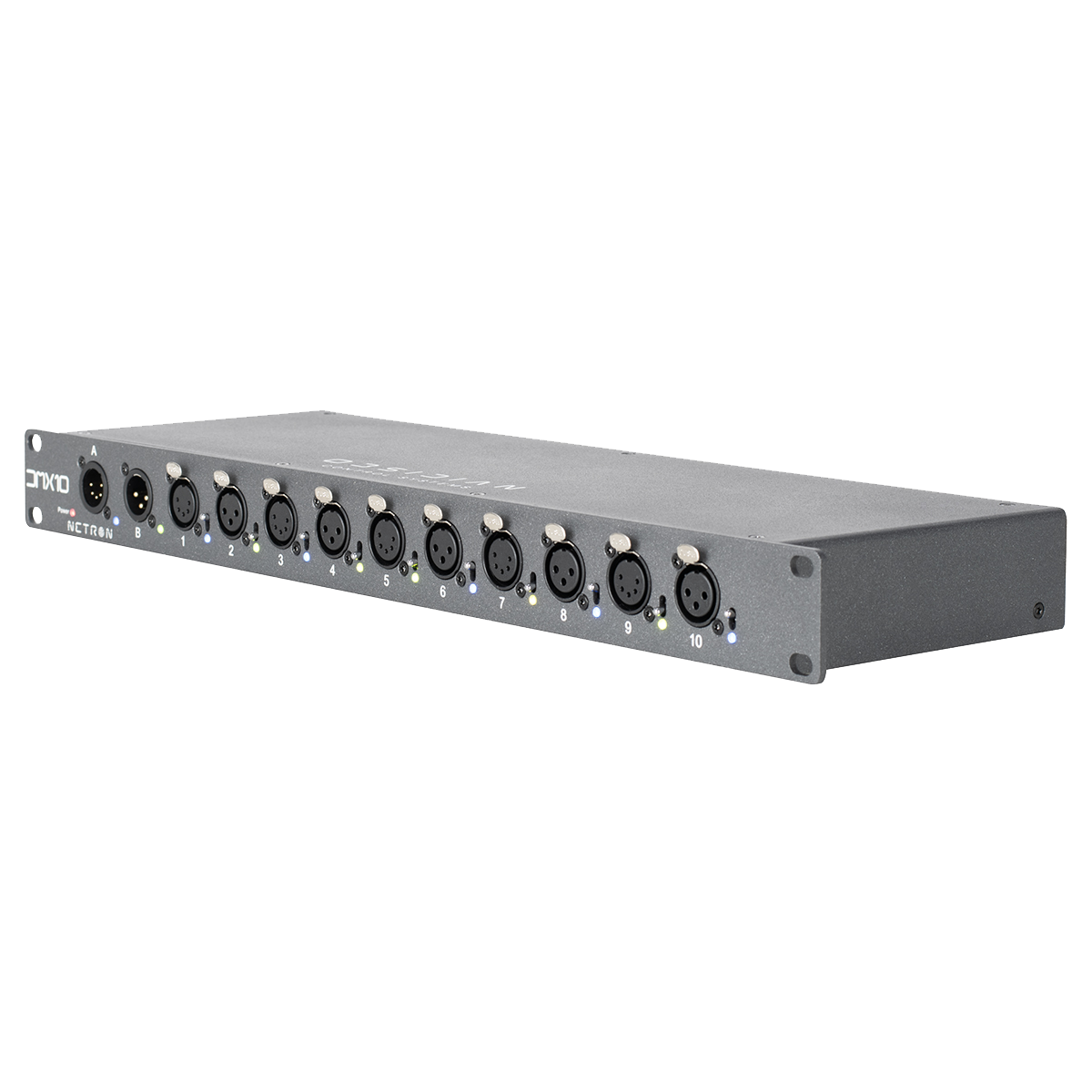

The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin and 5/3pin combo XLR configurations.
Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation.
The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin and 5/3pin combo XLR configurations.
DMX10-53
Sale price$0.00
DMX10-53
The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.
- 5pin (A) and 3pin (B) XLR DMX Input
- 10 isolated 5 and 3pin XLR DMX Outputs
- A/B routing per output port
- LED feedback for In/Out/A/B/Power
- Industrial strength powder-coated finish
- Lightweight and rugged rackmount housing
Specifications
Mounting
- Rackmount
Connections

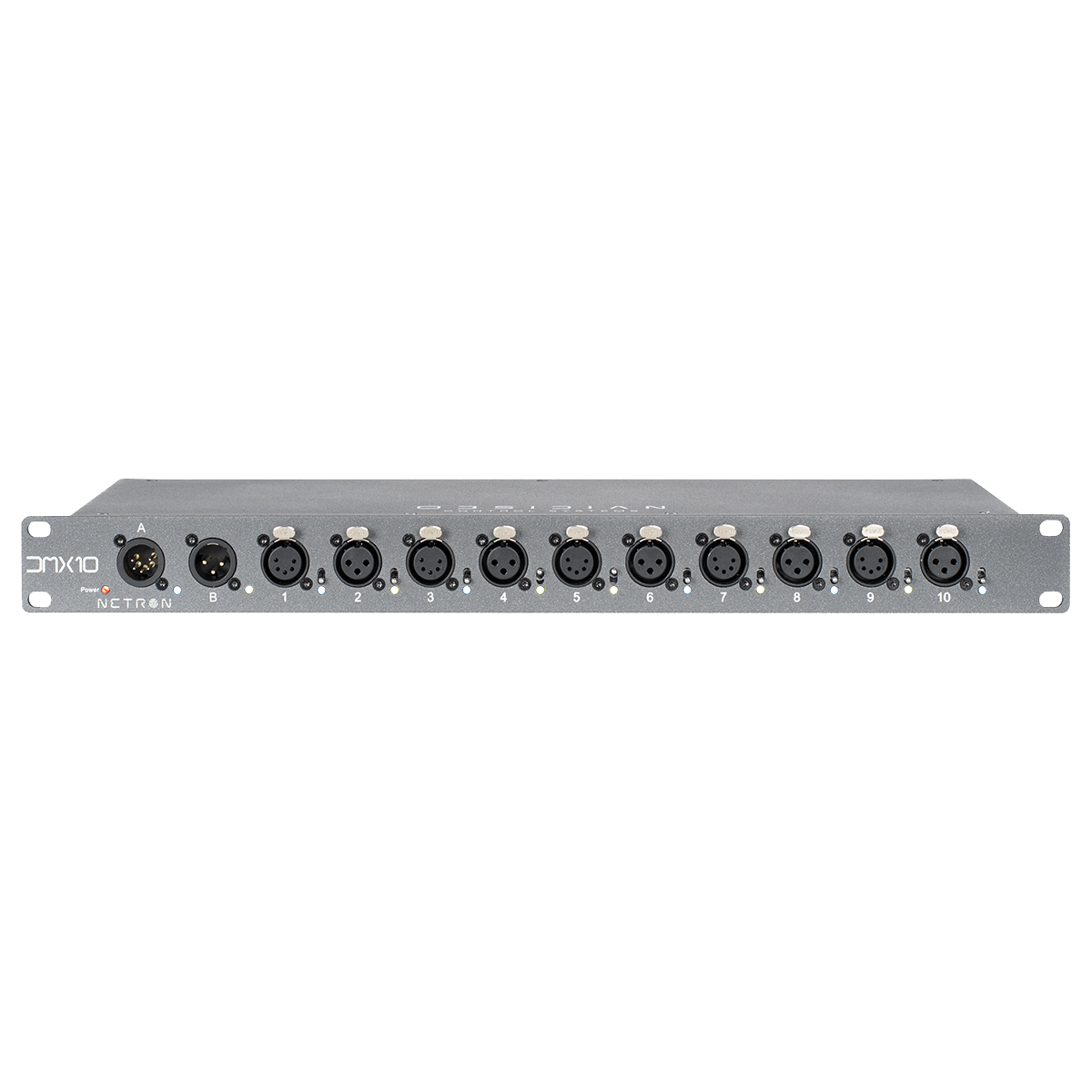

Front
- 5pin DMX Input (A)
- 3pin DMX Input (B)
- (5) 5pin Opto-Isolated DMX Outputs
- (5) 3pin Opto-Isolated DMX Outputs

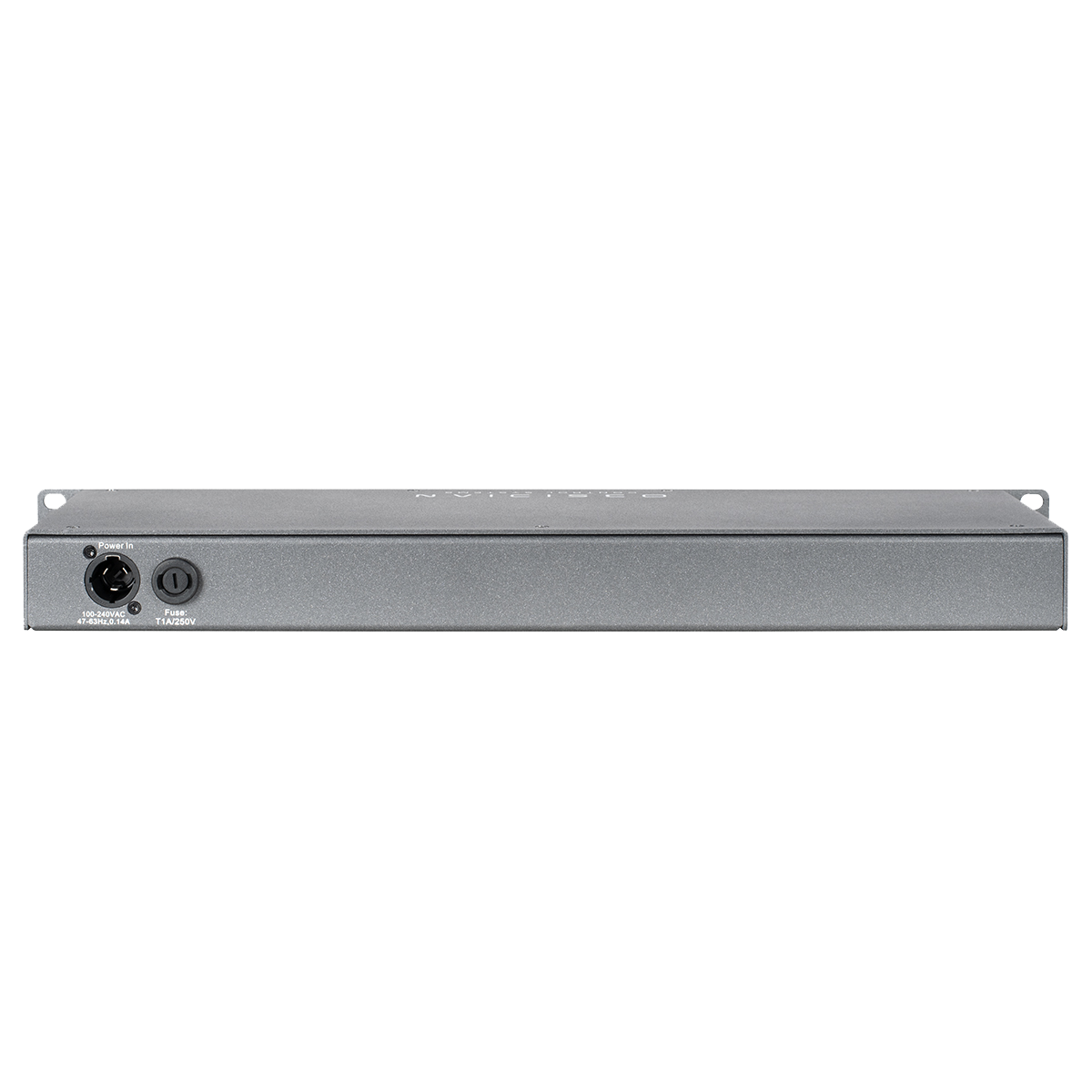

Back
- Locking Power In
Specifications
Physical
- Length: 6.1” (155.9mm)
- Width: 19.0” (482.0mm)
- Height: 1.7” (44.0mm)
- Weight: 1.50 kg (3.31 lbs)
Electrical
- 100-240 V nominal, 50/60 Hz
- cETLus / CE / UKCA / IP20
Ordering
Included Items
- 1.5m Locking power cable (EU or US version)
SKU
- US # DMX153
- EU #: 1330000080
Downloads
Cad drawing
Dimensional drawings
Specification sheet
User guide
