DW PROFILE
DW Profile is a professional-grade lighting solution.
DW PROFILE
The DW Profile™ features a 250W 100,000 hour average life dynamic LED engine, >93CRI, 17° to 27° manual zoom, manual and DMX controlled color temperatures and dimming, variable color temperatures (3,200K - 6,000K), variable dimming curves, (4) blade manual framing shutters, supports B size metal or HT transparency gobos, flicker free operation for TV and FILM, 3 and 5 pin in/out DMX and powerCON in connections, (4) button (2) dial control panel, 300W max power consumption, and a multi-voltage universal auto switching power supply (100 240v)
- 17° - 27° Manual Zoom
- (4) Blade Manual Framing Shutters
- Variable Color Temperature Settings (3,200K - 6,000K)
- Manual and DMX Controlled Strobe and Dimmer
- Flicker Free Operation for TV and FILM
Specifications
250W Dynamic LED Engine >93CRI
100,000 Hour Average Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
20,200 LUX 1877 FC @8.2’ (2.5M) (17° Full On 4,200K)
9,640 LUX 896 FC @8.2’ (2.5M) (27° Full On 4,200K)
EFFECTS
Variable Strobe Settings (1-18 fps)
Electronic Dimming (0% - 100%)
GOBOS
Supports B Size Metal or HT Transparency Gobos*
Gobo Size: OD 86mm / IA 64mm / Thickness 0.15mm
(*Gobos and Holder not included)
CONTROL / CONNECTIONS
(7) DMX Channel Modes (2 / 3 / 8)

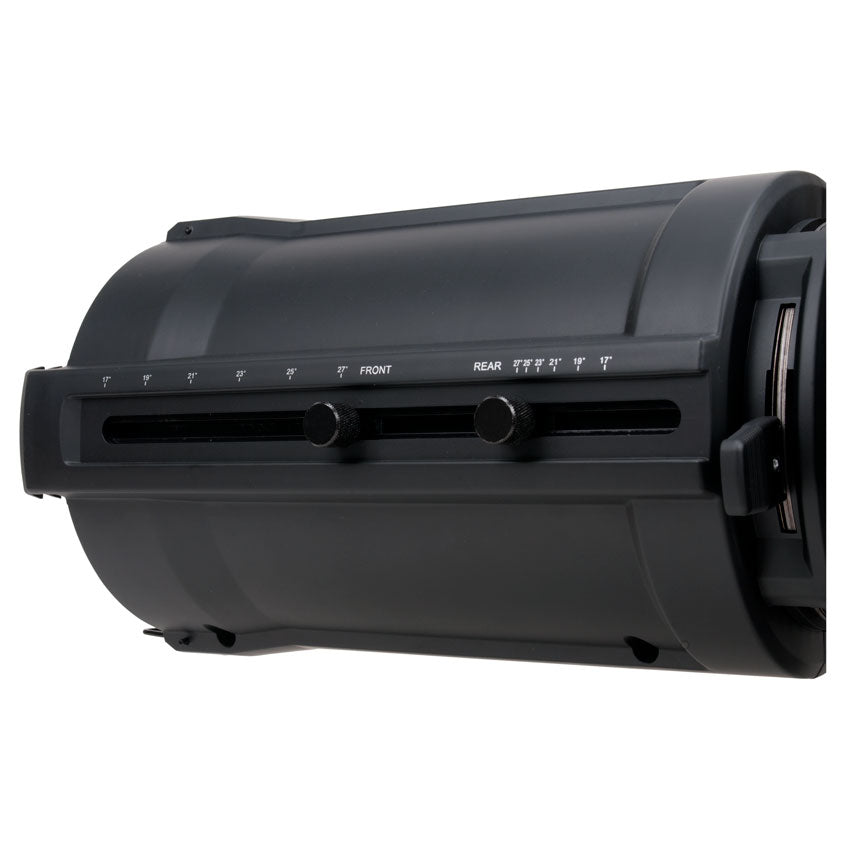

Manual Zoom
Manual and DMX Color Temperature and Dimmer

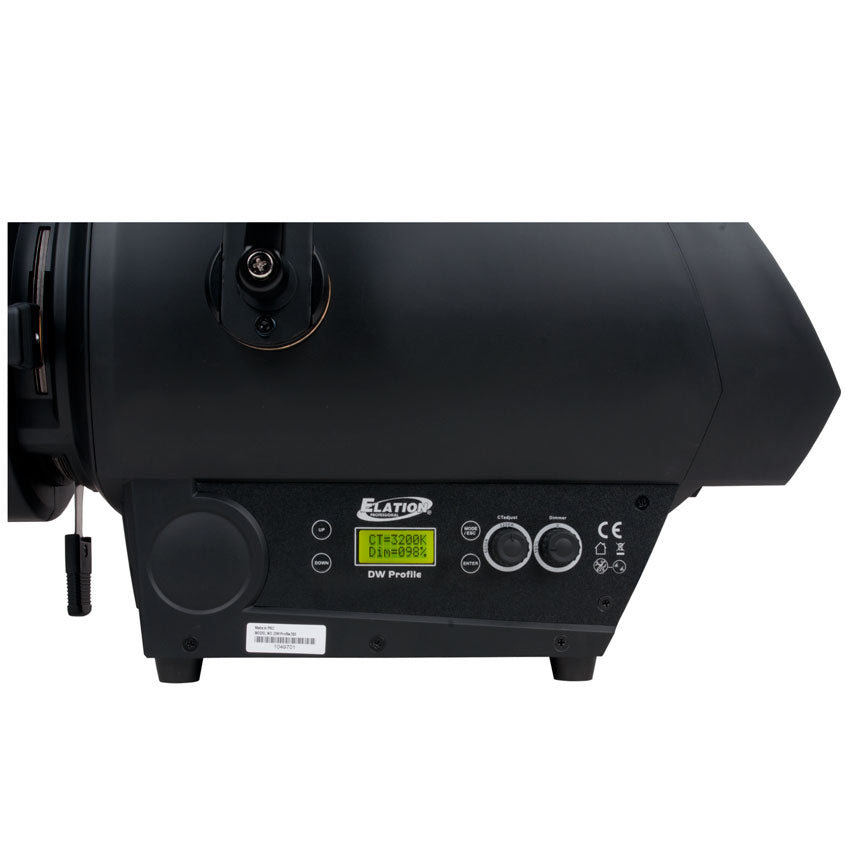

(4) Button and (2) Dial Control Panel
LCD Menu Display

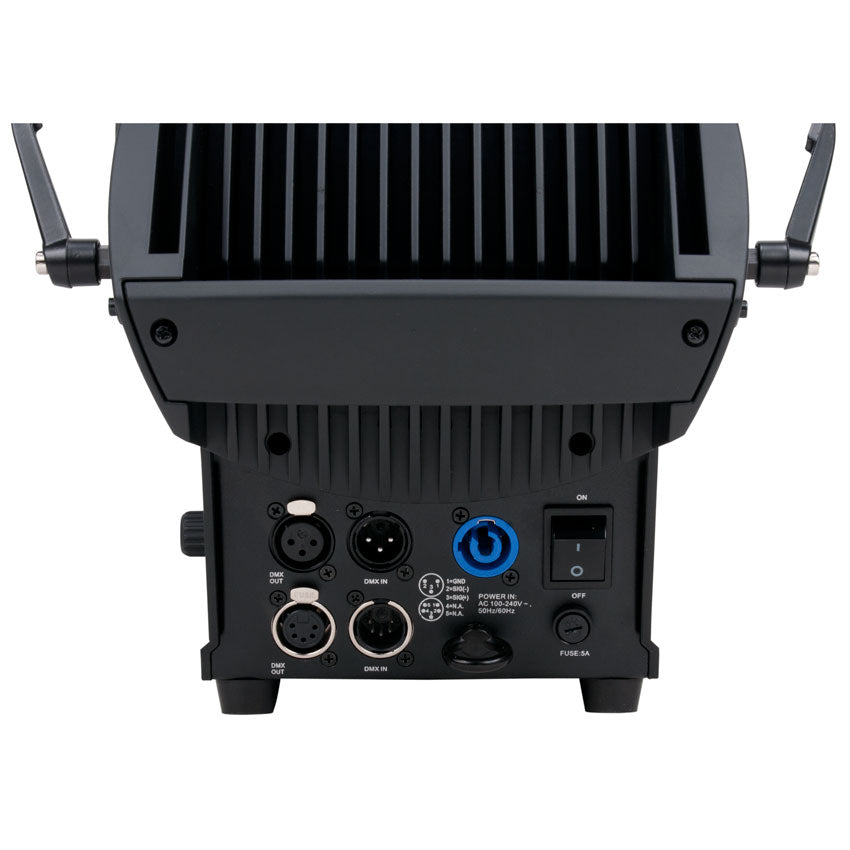

3pin and 5pin DMX In/Out
powerCON In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 30.1” (764mm)
Width: 12.8” (325mm)
Vertical Height: 18.0” (458mm)
Weight: 30.0 lbs. (13.6 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | cETLus| IP20
Specifications and documentation subject to change without notice.
