E-LOADER III Software Uploader is a professional-grade lighting solution.

UPC: 837874018561SKU: ELO601

E-LOADER III Software Uploader

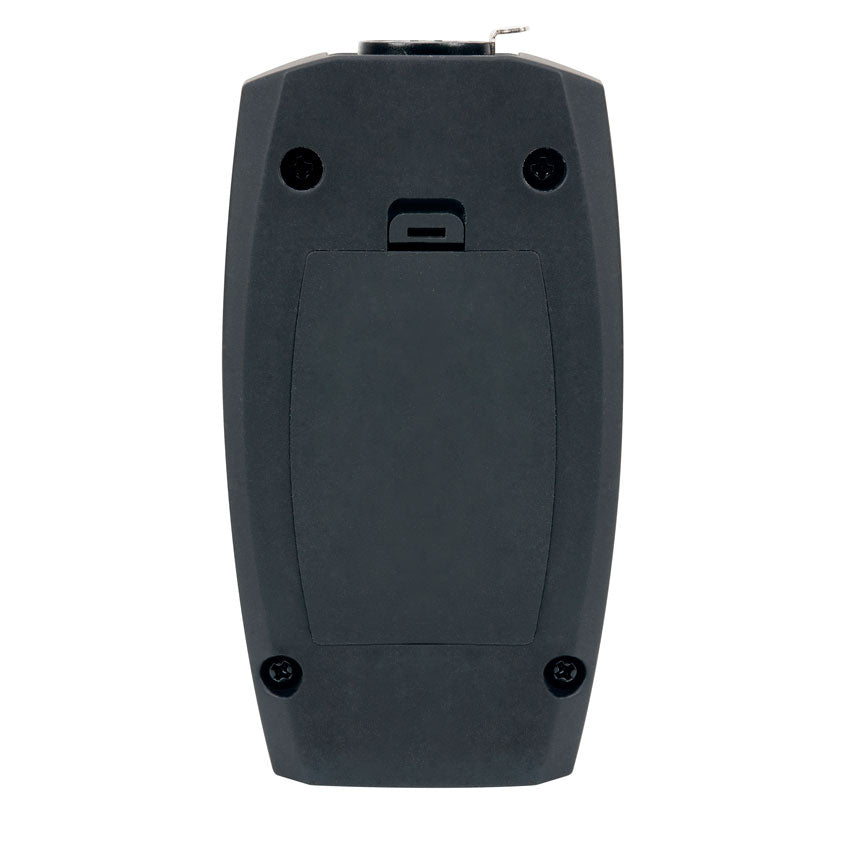

The E-LOADER III™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the E-LOADER III to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.
Contact Elation Service for available fixture software updates.

Click Here To Email Elation Service

Specifications

Contact Elation Service for available fixture software updates.

Click Here To Email Elation Service


CONTROL / CONNECTIONS
6 Button Touch Control Panel
LCD Menu Display

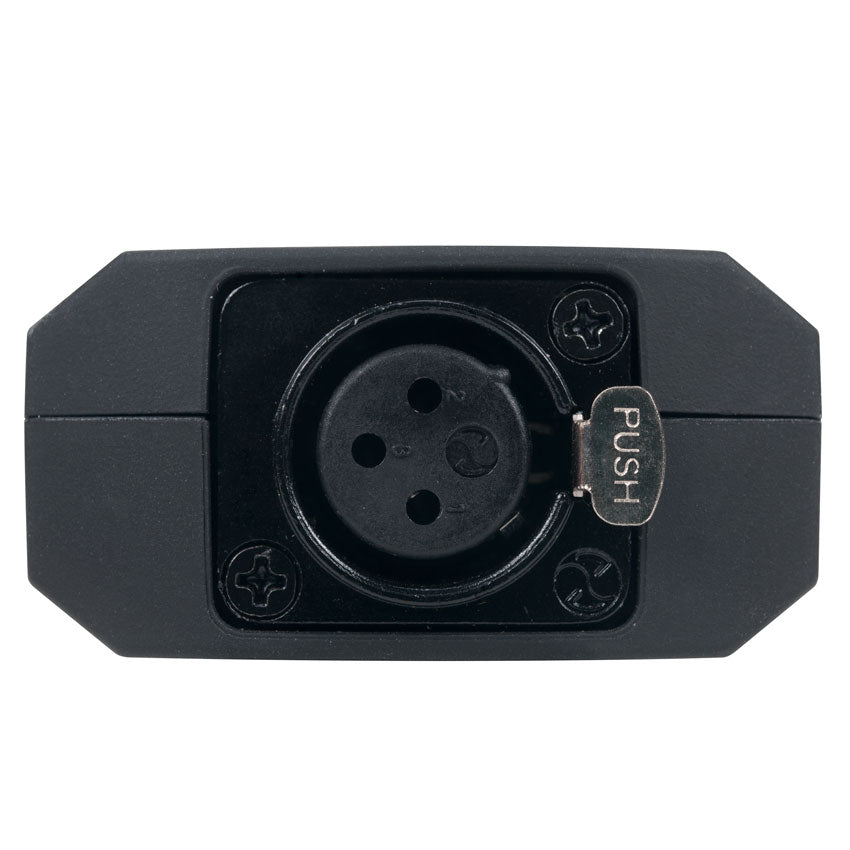

3pin DMX Out
MICRO SD Card Slot
Mini USB Input
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 5.0” (126.7mm)
Width: 2.6” (66.9mm)
Vertical Height: 1.2” (30mm)
Weight: 0.3 lbs. (0.13 kg)

ELECTRICAL
5VDC (Internal Battery)

INCLUDED ITEMS
3pin DMX Cable
USB Cable
USB AC Adapter
MICRO SD Card
USB to MICRO SD Card Adapter


COMPATIBLE ELATION MODELS:

PARAGON SERIES

PROTEUS SERIES

ARTISTE SERIES

RAYZOR SERIES

SATURA SERIES

PLATINUM SERIES

COLOUR 5 PROFILE

WW/CW PROFILE SERIES

DW FRESNEL


Approvals / Ratings
CE Certified


Specifications and documentation subject to change without notice.
