E SPOT III
Discontinued
E Spot III is a professional-grade lighting solution.
E SPOT III
Sale price$0.00
E SPOT III

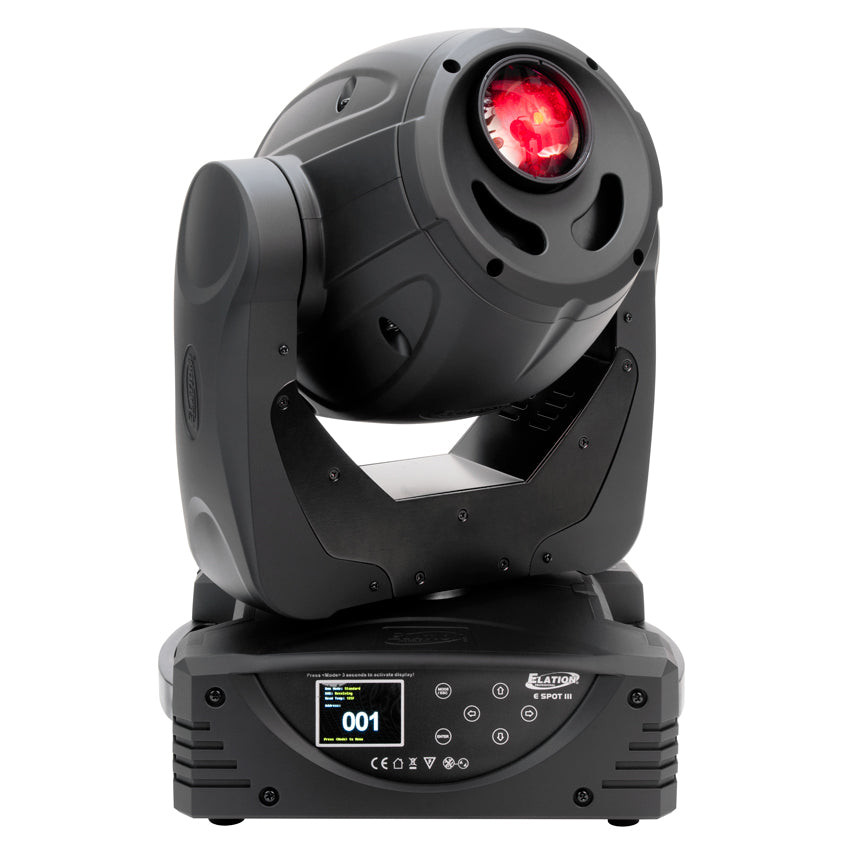

The E Spot III™ features a new 90W Cool White Solid State LED engine, a 19° beam, 8 dichroic colors, 7 rotating-interchangeable glass gobos, 3-facet and linear rotating prisms, frost filter, motorized iris and focus, variable dimming curves, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), 180° full color reversible LCD menu display with 6 button touch control panel, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).
- 90W Cool White Solid State LED Spot Luminaire
- 19° Beam, 8 Dichroic Colors
- 7 Rotating-Interchangeable Glass Gobos
- 3-Facet and Linear Rotating Prisms and Frost Filter
- High Speed Mechanical Shutter and Strobe
- Motorized Iris and Focus and Variable Dimming Curves
- Low Heat, Quiet Operation, Hibernation Mode
- Flicker Free Operation For Broadcast TV and FILM
Specifications
SOURCE
90W Solid State Cool White LED Engine
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,250 LUX 674 FC @8.2’ (2.5m) (19° Full ON)
EFFECTS
3-Facet and Linear Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Iris and Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
90W Solid State Cool White LED Engine
20,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
7,250 LUX 674 FC @8.2’ (2.5m) (19° Full ON)
EFFECTS
3-Facet and Linear Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Iris and Focus
High Speed Mechanical Shutter and Strobe
Variable Dimming Curves
Pan Angle 540°/630°
Tilt Angle 230°
COLOR
8 Dichroic Colors
GOBOS
7 Interchangeable-Rotating / Indexing Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 20)
RDM (Remote Device Management)
6 Button Touch Control Panel
180° Reversible Full Color LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

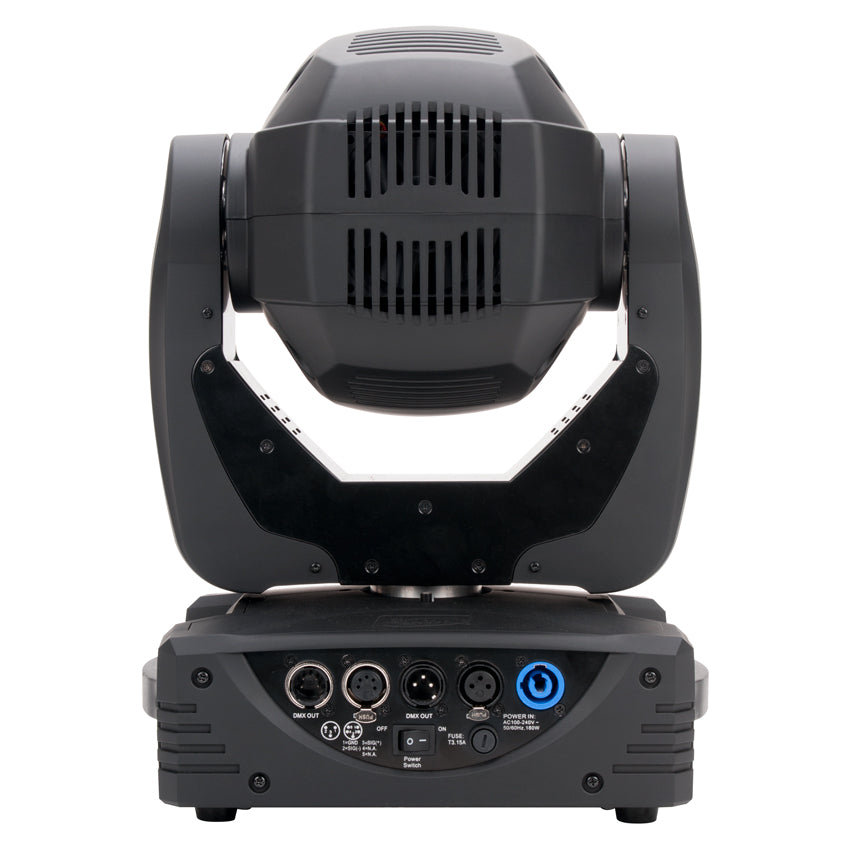

Locking 3pin amp; 5pin XLR DMX In/Out
Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9” (301mm)
Width: 9.6” (243mm)
Vertical Height: 17.1” (435mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
COLOR
8 Dichroic Colors
GOBOS
7 Interchangeable-Rotating / Indexing Glass Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (14 / 16 / 20)
RDM (Remote Device Management)
6 Button Touch Control Panel
180° Reversible Full Color LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Locking 3pin amp; 5pin XLR DMX In/Out
Locking Power In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 11.9” (301mm)
Width: 9.6” (243mm)
Vertical Height: 17.1” (435mm)
Weight: 23.0 lbs. (10.4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
180W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP20
FIRMWARE UPDATES
Current Version: V1.3.1
