ELAR EXQUAD PAR HP

Discontinued

ELAR EXQUAD PAR HP is a professional-grade lighting solution. The IP65 Rated ELAR EXQUAD PAR HP™ features (8) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, (7) DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, integrated adjustable yoke, multiple unit linkable, 45W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).

UPC: 837874015799SKU: ELA980

ELAR EXQUAD PAR HP

The IP65 Rated ELAR EXQUAD PAR HP™ features (8) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, (7) DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, integrated adjustable yoke, multiple unit linkable, 45W max power consumption, programmable IR remote (sold separately) and a multi-voltage universal auto switching power supply (100-240v).

  • IP65 Rated
  • 25° Beam Angle
  • Die-Cast Aluminum Housing / Tempered Glass
  • IR Remote Programmable
  • Flicker Free Operation for TV and FILM

Specifications

SOURCE
8 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
1542 LUX (143 FC) @9.8 ft. (3m) 25deg; Full ON

EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%

COLOR
RGBW (Red, Green, Blue, White)

CONTROL / CONNECTIONS
7 DMX Channel Modes (1 / 2 / 3 / 4 / 6 / 7 / 8)

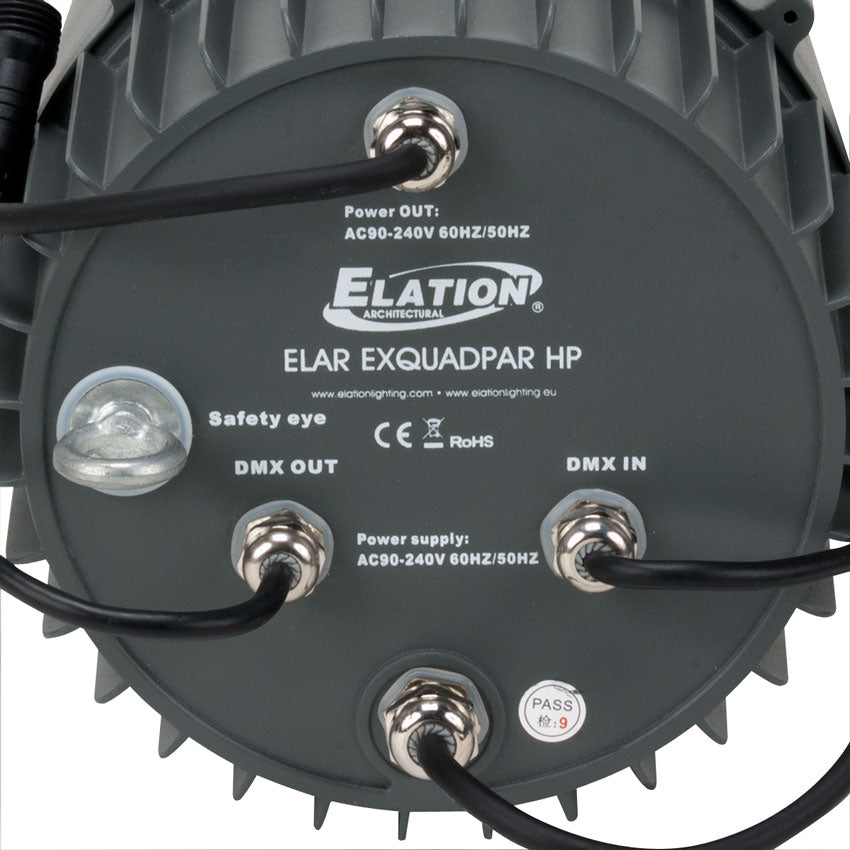

3pin IP DMX In/Out
4pin IP Power In/Out
Power Link Multiple Units - (12) Units Max

SIZE / WEIGHT
Length: 8.25" (205mm)
Width: 8.25" (205mm)
Vertical Height: 9.5" (235mm)
Weight: 11.0 lbs. (5.0kg)

ELECTRICAL
AC 100-240V - 50/60Hz
45W Max Power Consumption

INSTALLATION
Rigging: Integrated Adjustable Yoke
Working Position: Any (360deg;)

APPROVALS / RATINGS
CE | IP65

INCLUDED ITEMS
(1) 4pin Female IP to Edison Power Cable
(1) 3pin Male IP to 3pin Female DMX Cable
(1) 3pin Female IP to 3pin Male DMX Cable
(1) Bag of (2) DMX End Caps

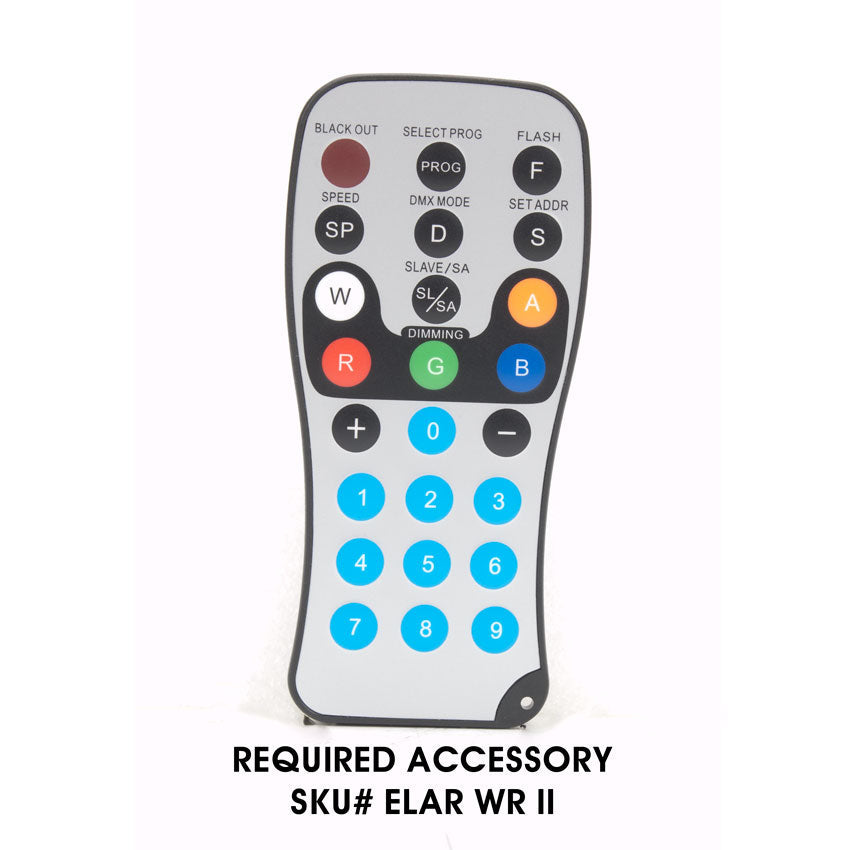

REQUIRED ACCESSORY:

ELAR WR II(click for more info)


OPTIONAL ACCESSORIES:

ELA958/3MPEC: 3m Power Ext/Link Cable

ELAR 3C-1M: ELAR 1m Extension Signal Cable

ELAR 3C-5M: ELAR 5m Extension Signal Cable


Specifications and documentation subject to change without notice.
