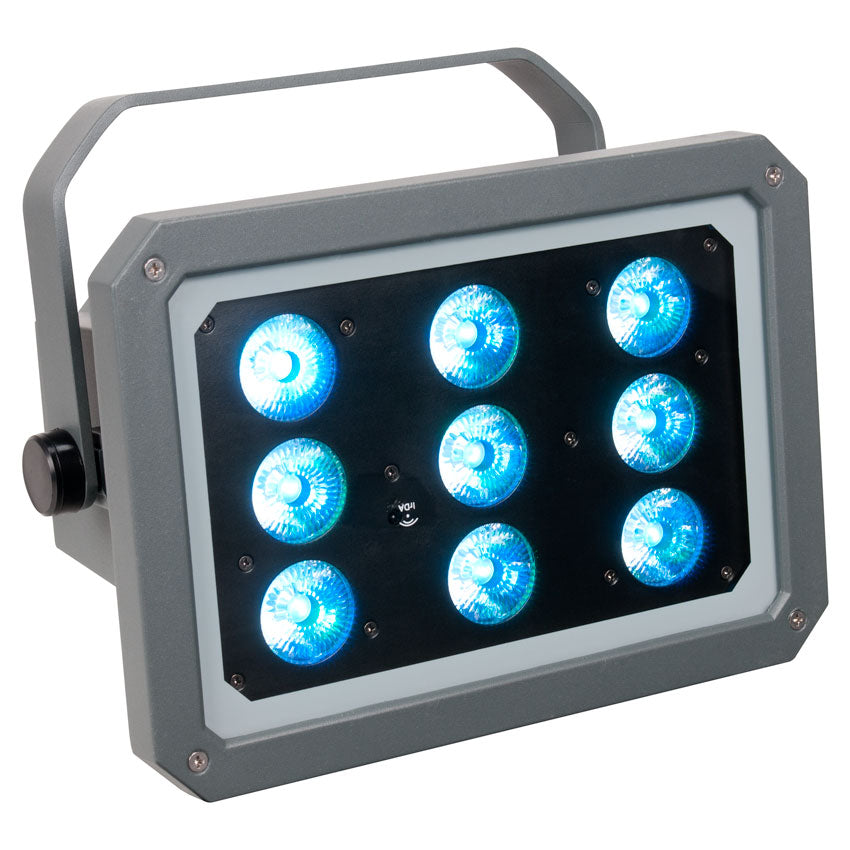

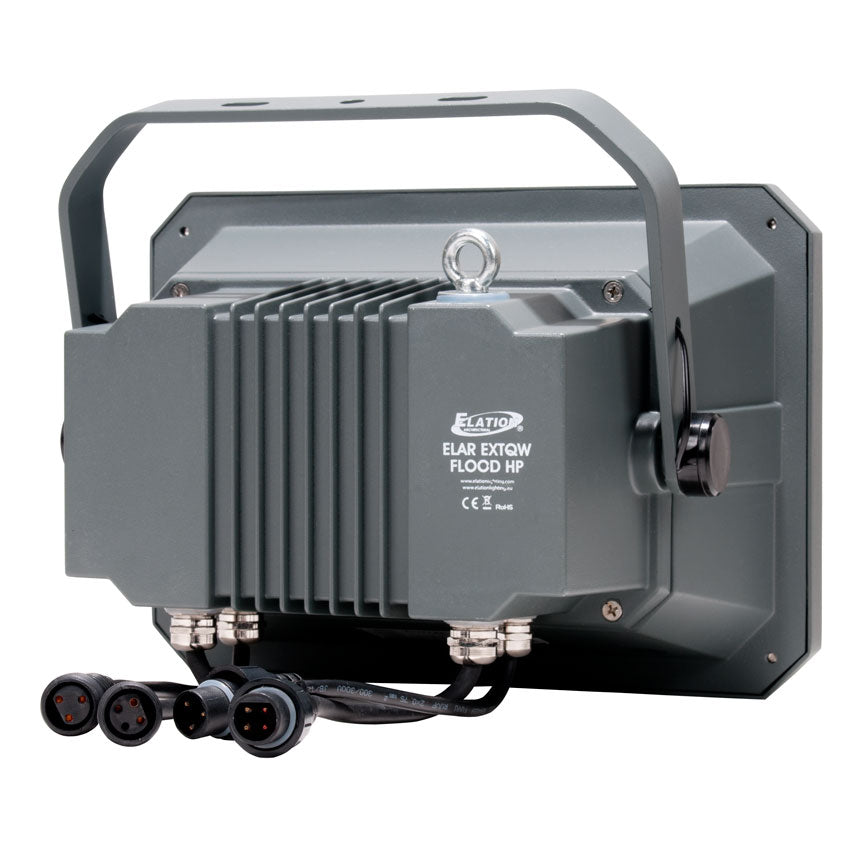

ELAR EXTQW FLOOD HP
ELAR EXTQW FLOOD HP is a professional-grade lighting solution. The IP65 Rated ELAR EXTQW FLOOD HP™ features (9) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, 8 DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, integrated rigging yoke, linkable power for up to (10) units at 120V and (20) units at 240V, 56W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Related Products
ELAR EXTQW FLOOD HP
The IP65 Rated ELAR EXTQW FLOOD HP™ features (9) 5W QUAD RGBW Color LEDs, a 25° beam angle, variable color and strobe effects, 8 DMX channel modes, flicker free operation for TV and FILM, 3pin in/out DMX and 4pin power in/out connections, integrated rigging yoke, linkable power for up to (10) units at 120V and (20) units at 240V, 56W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- IP65 Rated
- 25° Beam Angle
- Die-Cast Aluminum Housing / Tempered Glass
- IR Remote Programable
- Flicker Free Operation for TV and FILM
Specifications
9 x 5W QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
1736 LUX (161 FC) @9.8 ft. (3m) 25deg; Full ON
EFFECTS
Color + Variable Strobe Macros
Electronic Dimming: 0% - 100%
COLOR
RGBW (Red, Green, Blue, White)
CONTROL / CONNECTIONS
8 DMX Channel Modes (1 / 2 / 3 / 4 / 5 / 6 / 7 / 8)
3pin IP DMX In/Out
4pin IP Power In/Out
Power Link Multiple Units (10) at 120V (20) at 240V
SIZE / WEIGHT
Length: 11.8" (298mm)
Width: 8.3" (210mm)
Vertical Height: 9.8" (249mm)
Weight: 9.9 lbs. (4.5kg)
ELECTRICAL
AC 100-240V - 50/60Hz
56W Max Power Consumption
APPROVALS / RATINGS
CD | IP65
INSTALLATION
Rigging: Integrated Yoke
Working Position: Any (360deg;)
INCLUDED ITEMS
(1) 4pin Female IP to Edison Power Cable
(1) 3pin Male IP to 3pin Female DMX Cable
(1) 3pin Female IP to 3pin Male DMX Cable
(1) Bag of DMX End Caps
REQUIRED ACCESSORY:
ELAR WR II(click for more info)
OPTIONAL ACCESSORIES:
ELA958/3MPEC: 3m Power Ext/Link Cable
ELAR 3C-1M: ELAR 1m Extension Signal Cable
ELAR 3C-5M: ELAR 5m Extension Signal Cable
Specifications and documentation subject to change without notice.
