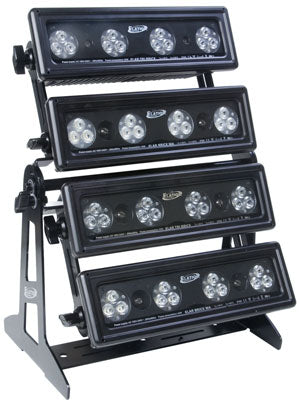

ELAR TRI BRICK
ELAR TRI BRICK is a professional-grade lighting solution. Product Features • Tri Color LED IP 66 Brick • 12 x 3W Tri Color LED’s • Smooth Color Mixing Flicker Free • Tri Color Technology • 18° Beam Angle/35° Field Angle (25° Lens) • IP 66 Rugged Design Par Die Cast Aluminum Case • Power / Data Link up to 16 fixtures • 3 Pin DMX 120v AC power cable adapters included • Built In Color Macros • Upgradable firmware via Elation “E-Loader” Data Pack • Electronic Switching Power Supply 100v~240v.
ELAR TRI BRICK
Product Features Tri Color LED IP 66 Brick 12 x 3W Tri Color LED's Smooth Color Mixing Flicker Free Tri Color Technology 18° Beam Angle/35° Field Angle (25° Lens) IP 66 Rugged Design Par Die Cast Aluminum Case Power / Data Link up to 16 fixtures 3 Pin DMX & 120v AC power cable adapters included Built In Color Macros Upgradable firmware via Elation "œE-Loader"Data Pack Electronic Switching Power Supply 100v~240v
Specifications
• DMX Channels: 5 DMX modes - 3/4/9/12/15 Channels DMX
• Control: USITT DMX-512
• Color: Tri color (RGB) LED technology, linear RGB Color Mixing, infinite color possibilities
• Strobe: Electronic strobe 0-18 flashes per second
• Dimmer: 0-100% Continuous Dimming
• Cooling: Conventional - no fans
• Cable Plug Type: Twist lock IP rated
• LEDrsquo;s Source: 12 x 3W Tri Color LEDs
• Total Lumens: 5,020 (all @ 1m)
• Lux: 692 lux / 64 fc @ 10rsquo;
• LED Life: 100,000 hours
Environmental Specifications
• Max Ambient Temperature: -20deg; +20deg;C
• IP Level: IP 66
Electrical Specifications
• Ballast: Electronic Power supply
• Power Supply: 100-240V 50/60Hz
• Power Consumption: 120W maximum
• Dimensions: (LxWxH) 9.3" x 8.66" x 10.24" / 232 x 220 x 260mm
• Weight: 15.2 lbs. (6 Kgs)
