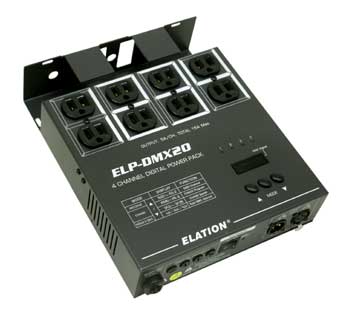

ELP-DMX20L

1,2, or 4 Channel DMX Power Pack

• 4 Channel power pack
• USITT DMX-512 (3-pin XLR)
• Digital LED display
• Switch able 1, 2 or 4 DMX Channels
• 2 - 3-prong Edison sockets per channel
• XLR in/out connectors
• Sleek case design
• On / Off power switch
• Easy to install by flipping the back plate
• 16 chase programs, Sound Active
• Chase speed settings
• Zero crossing circuitry
• Max Rating: 10A per channel
• 20 Amps Maximum draw
• 600W per ch. - 2400W Max
• Fuse: 4 x GMA 10A
• Dimensions: 10.25"x 8.25"x 2.25"(260 x 210 x 57 mm)
• Weight: 6 lbs (2.7 kgs)
• Power requirements: 120V
