EN12-45
Discontinued

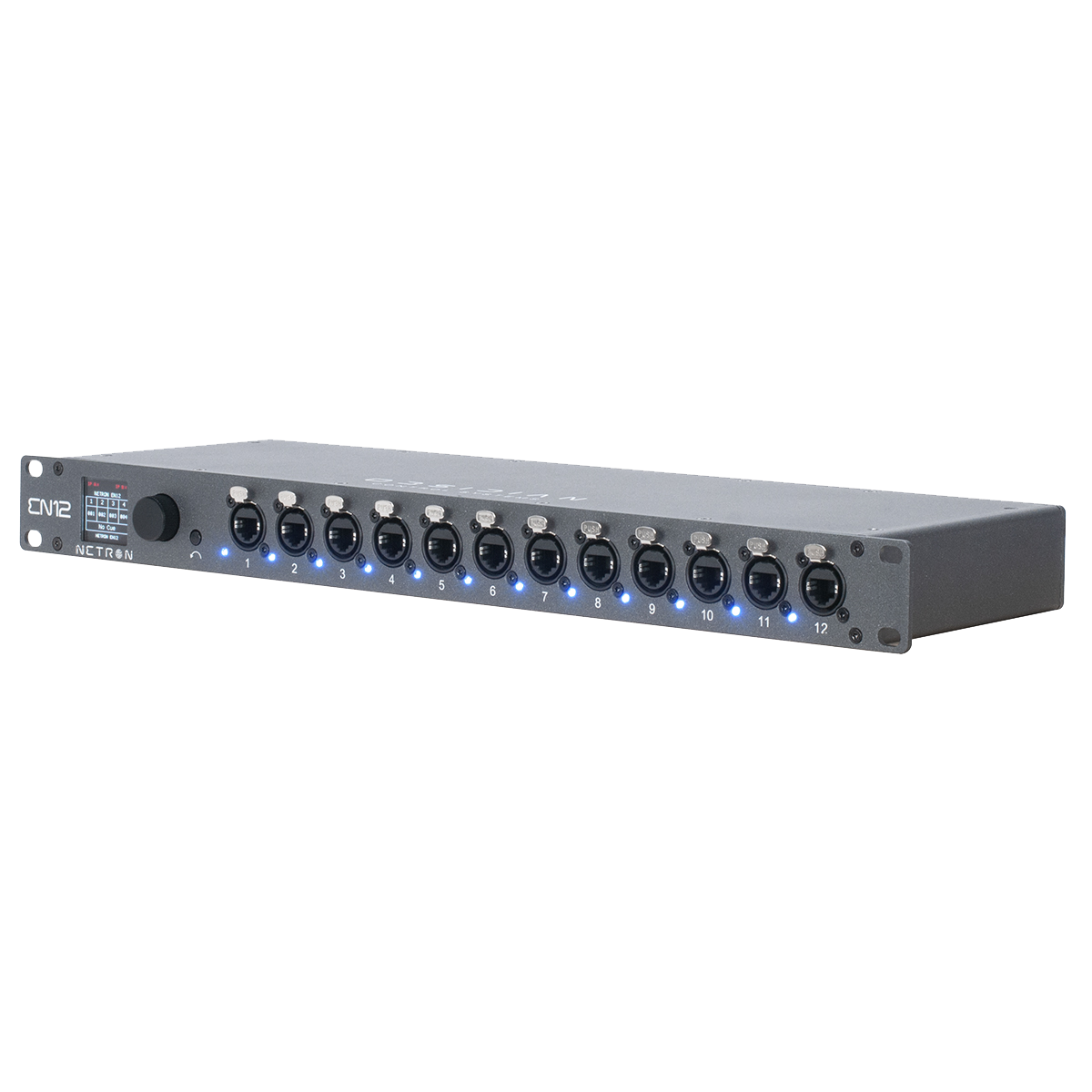

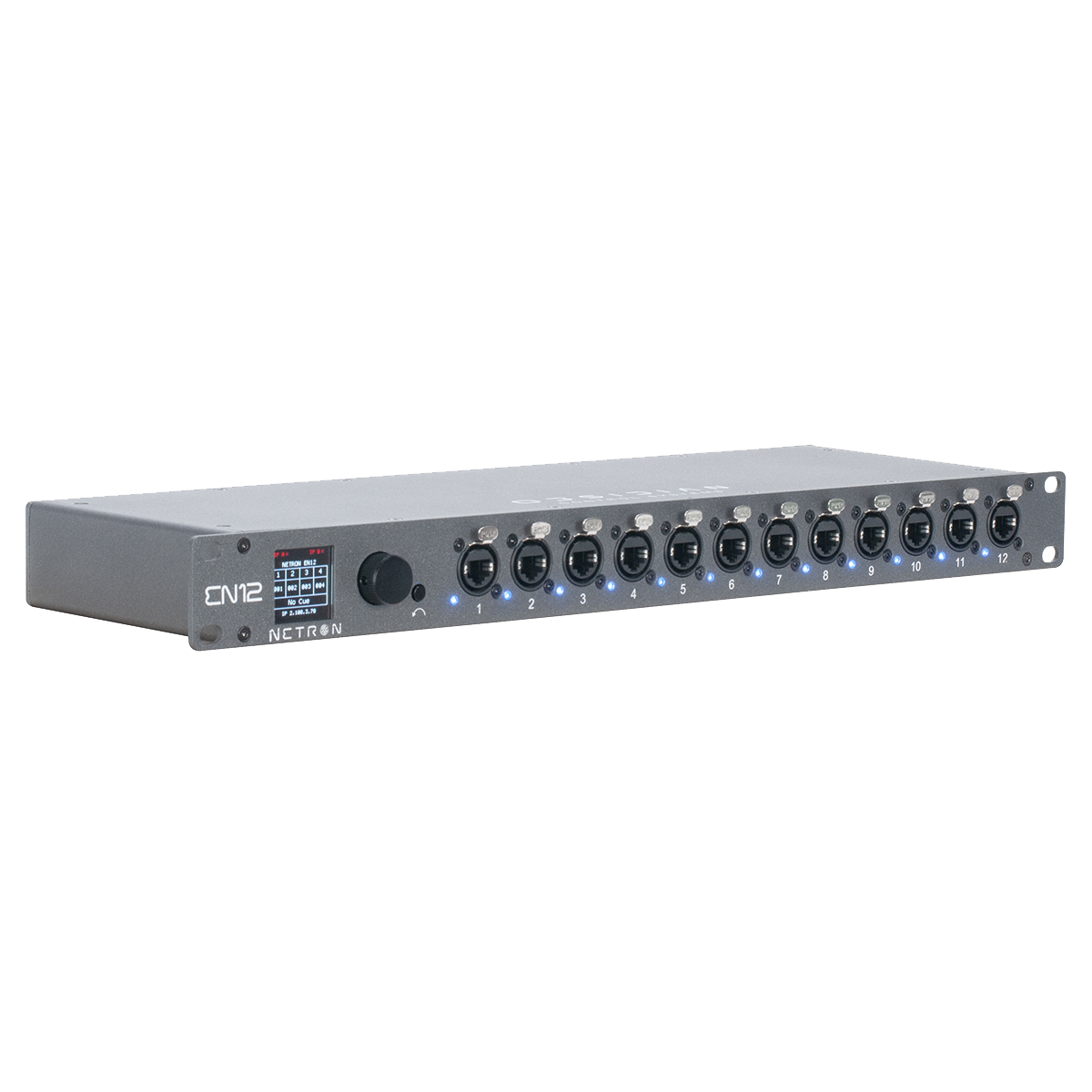

The Netron EN12-45 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible RJ45 DMX ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
EN12-45
Sale price$0.00

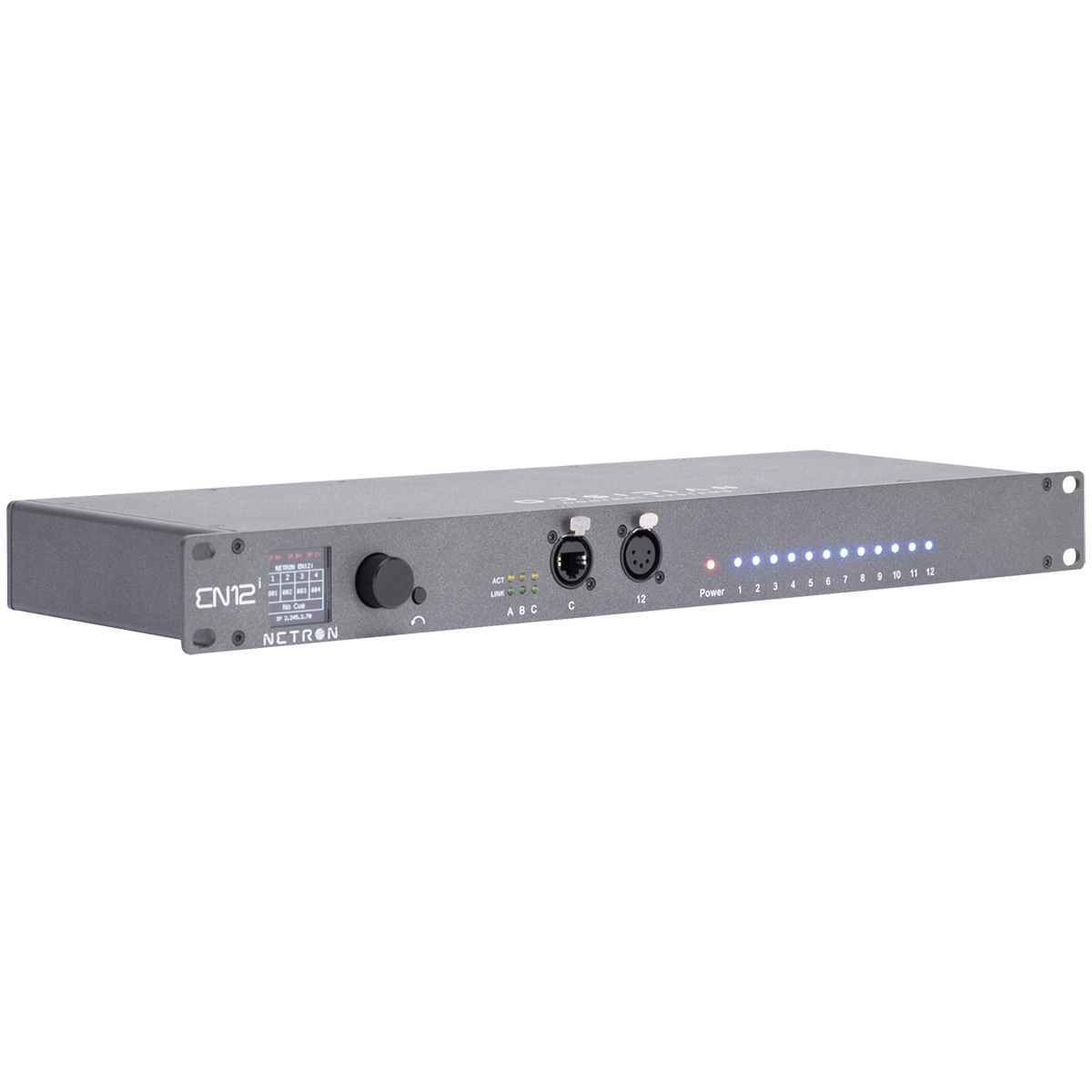

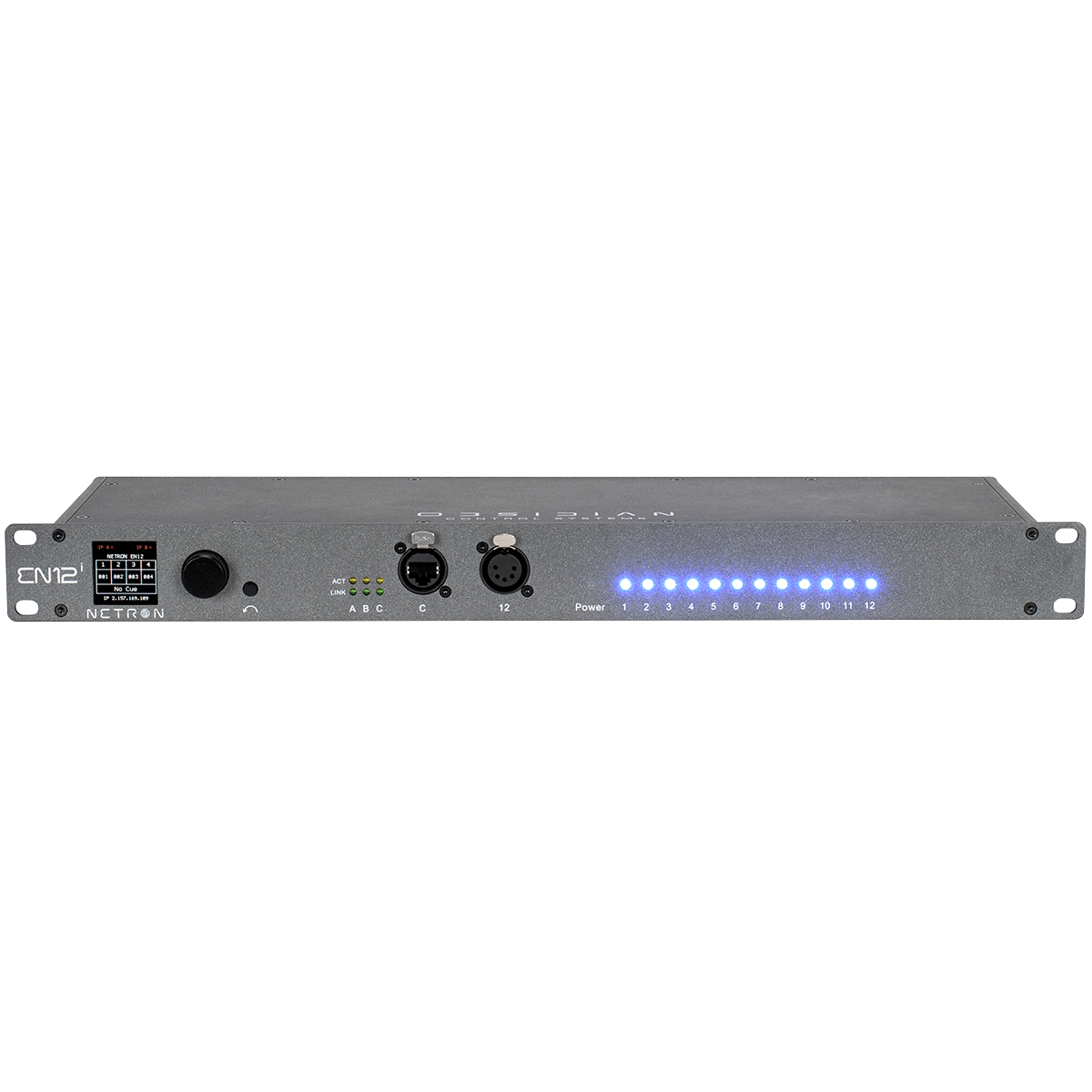

Replaced by
Related Products
EN12-45
The Netron EN12-45 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible RJ45 DMX ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
- RDM, Artnet and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or POE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Customizable routing and merging options
- Remote configuration via internal webpage
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
- NETRON CLU for remote configuration and firmware updates
Specifications
Mounting
- Rackmount
Connections

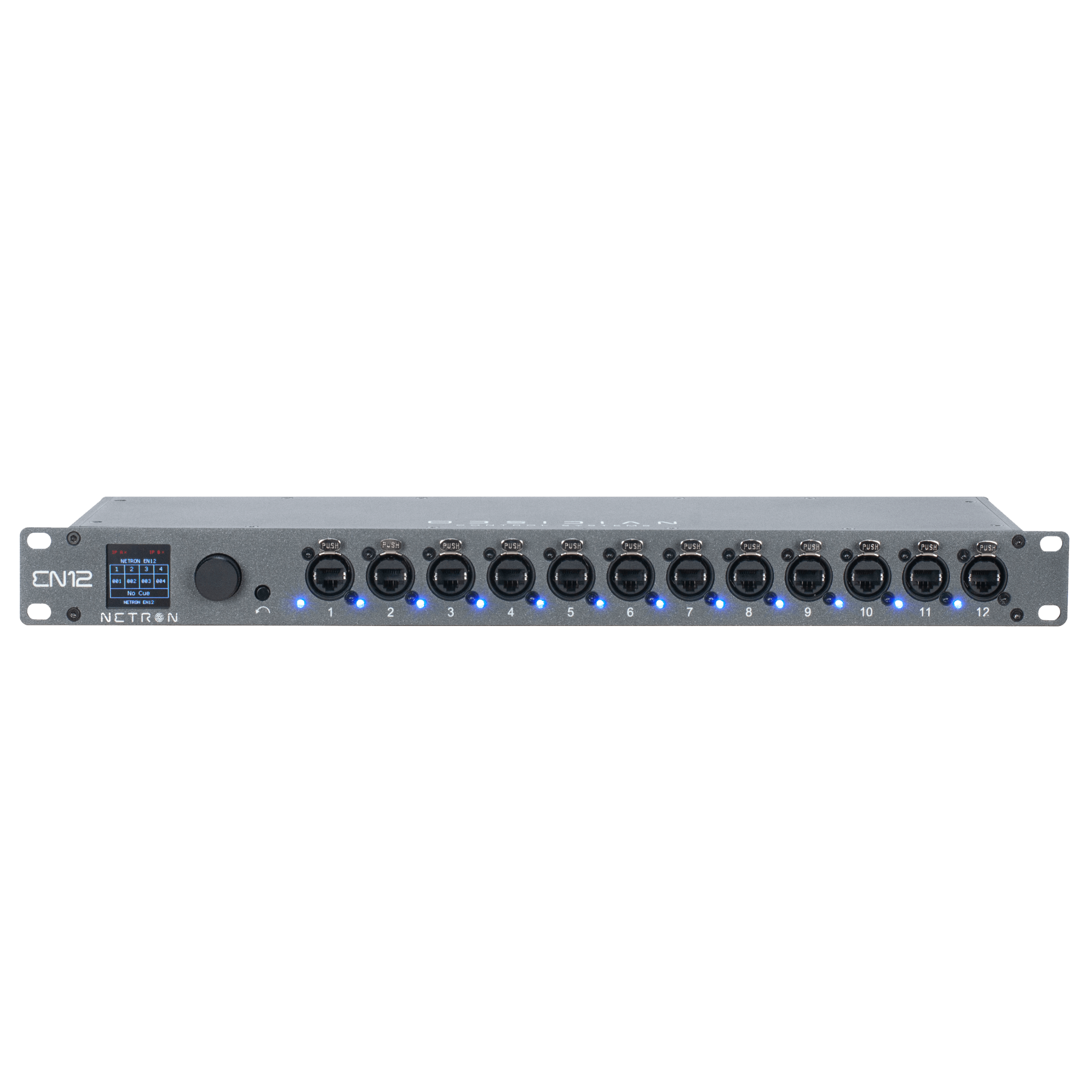

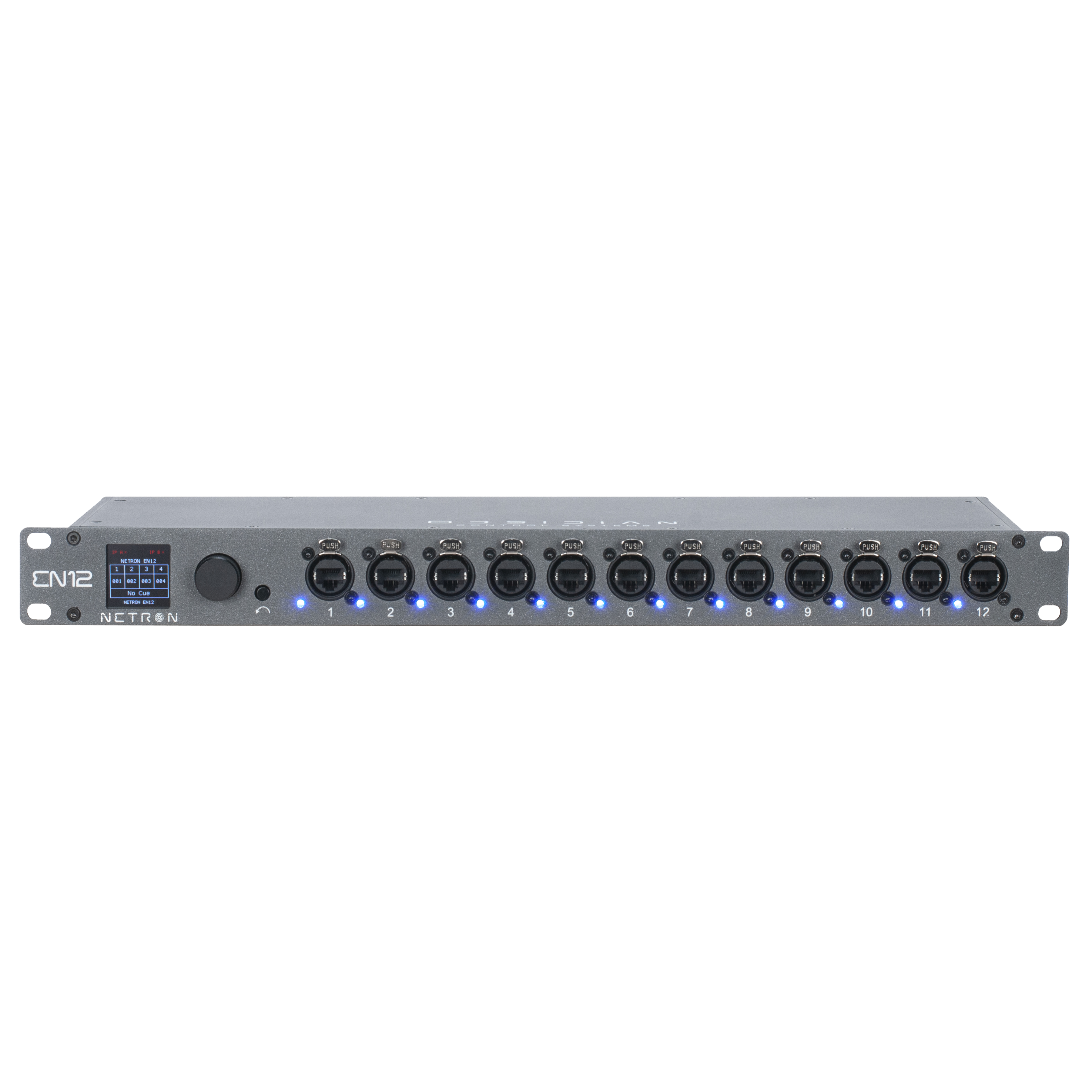

Front
- (12) RJ45 DMX/RDM optically isolated ports (ESTA Compliant)
- Ports are bidirectional for DMX In and Output
- Full color OLED display
- Encoder w. Push to Select / Exit Button

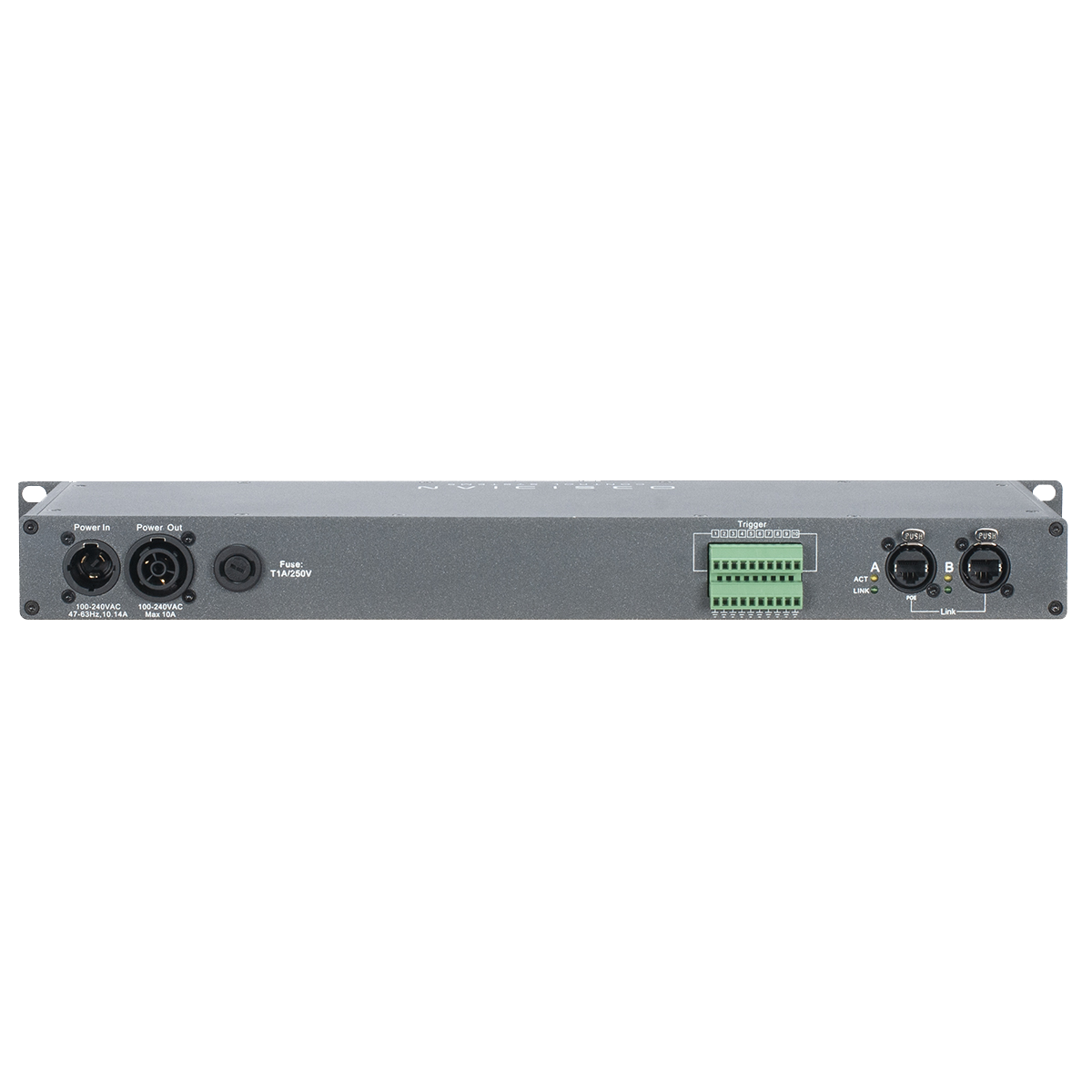

Back
- (2) Locking RJ45 Ethernet network In
- (10) Contact Closures (Terminal Block)
- Locking Power In/Thru
Specifications
Physical
- Length: 482.5 mm (19 in.)
- Width: 146.4 (5.8mm)
- Height: 44 mm (1.7 in.)
- Weight: 1.82 kg (4 lbs)
Electrical
- 100-240V nominal, 50/60 Hz
- POE 802.3af
- cETLus / CE / IP20
Ordering
Included Items
- 1.5m Locking power cable (EU version)
SKU
- EU #: 1330000068
Downloads
Cad drawing
Dimensional drawings
Specification sheet
EN12-45 Parts & Service
Our EN12-45 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your EN12-45. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
EN12-45 Parts & Service
