EVENT BAR
Discontinued
Event Bar is a professional-grade lighting solution. Full DMX Control .
EVENT BAR
Sale price$0.00
EVENT BAR

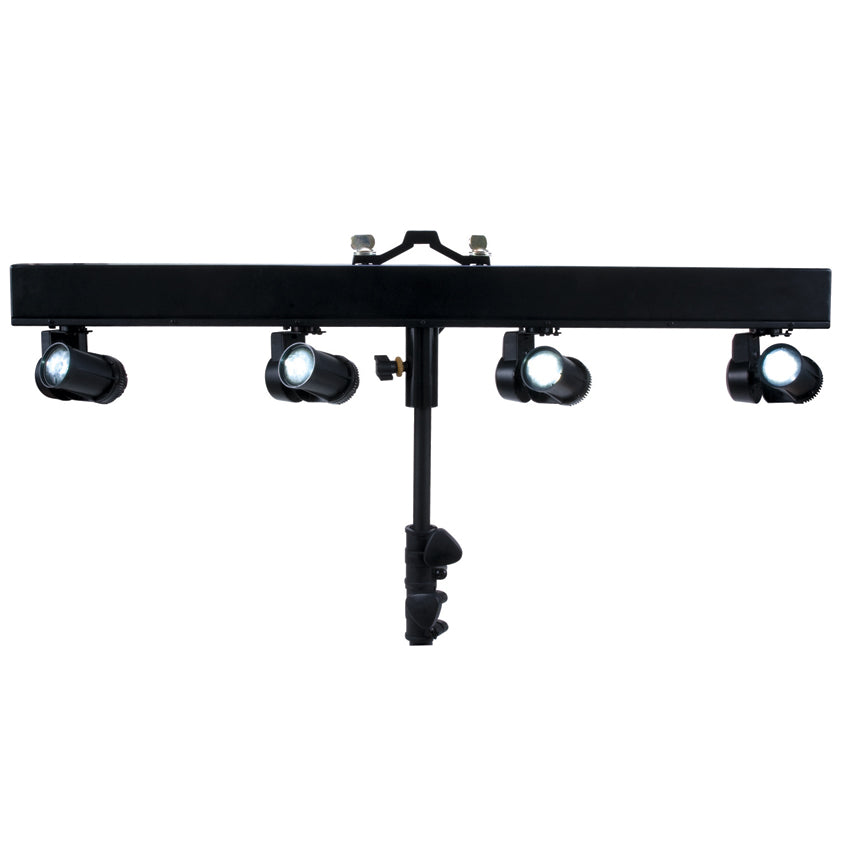

Features . LED Pinspot, 4 Head X-Y Bar . Full DMX Control . Full Dimming On Each Pinspot Head . Easy-To-Use Display For DMX or Internal Program Access
Specifications
Features
Colors
Shutter/Dimmer
Optical System
Control
Operation Parameters
Power Supply
Connectors
Dimensions and Weight
- LED Pinspot, 4 Head X-Y Bar
- Full DMX Control
- Full Dimming On Each Pinspot Head
- Easy-To-Use Display For DMX or Internal Program Access
Colors
- White LED
Shutter/Dimmer
- Strobe effect on each pinspot head
- Full dimming on each pinspot head
- Lamp: 4 x 3W White LED pinspots
- Lamp Life: 50,000 hours
Optical System
- 12° beam angle
- Optional 6° beam angle included
Control
- 17 DMX Channels / 1 DMX mode
- LED display. 360° Pan / 270° Tilt
- Primary/Secondary, stand alone and music activated
- 8 total motors
- Flicker free
Operation Parameters
- Fan cooling
- Maximum Ambient Temperature: 40°C/104°F
- Truss Mount With Clamp or Mount on a Light Stand
Power Supply
- Power Supply: 100V~240V, 50/60Hz
- Power Consumption 54W
- Power Cable Length: 1.5 meter (IEC)
Connectors
- 3-pin XLR connectors
- 4 piece daisy chain power connect
Dimensions and Weight
- Dimensions: 39” x 3” x 8” / 1000 x 80 x 202 mm
- Weight: 16.8 lbs. / 7.6 kgs
EVENT BAR Parts & Service
Our EVENT BAR Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your EVENT BAR. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
