Discontinued

EVHD5 is a professional-grade lighting solution. It’s light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. The EVHD5™ is ideal for any broadcast installations. Easy To Install 100% Serviceable From Front or Backsides Broadcast Quality 3840Hz EMC Certification Convex or Concave Design Capable MOM - Memory-on-Module (Saved#160;Pixel By Pixel Calibration).

UPC: 837874019889SKU: EVH459

Replaced By

Related Products

EVHD5

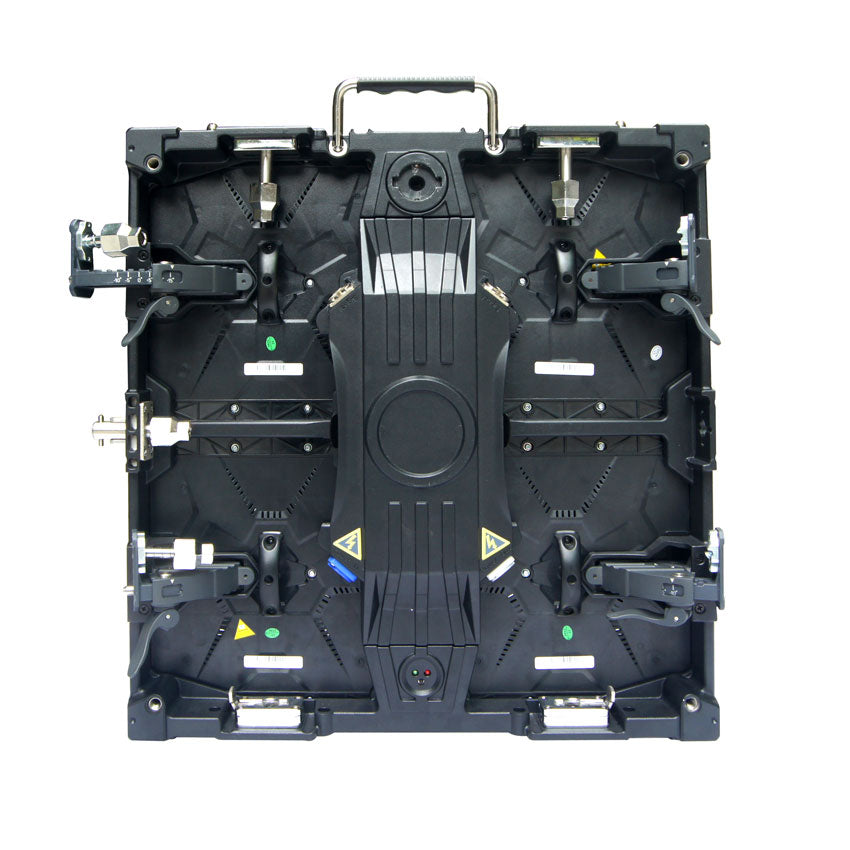

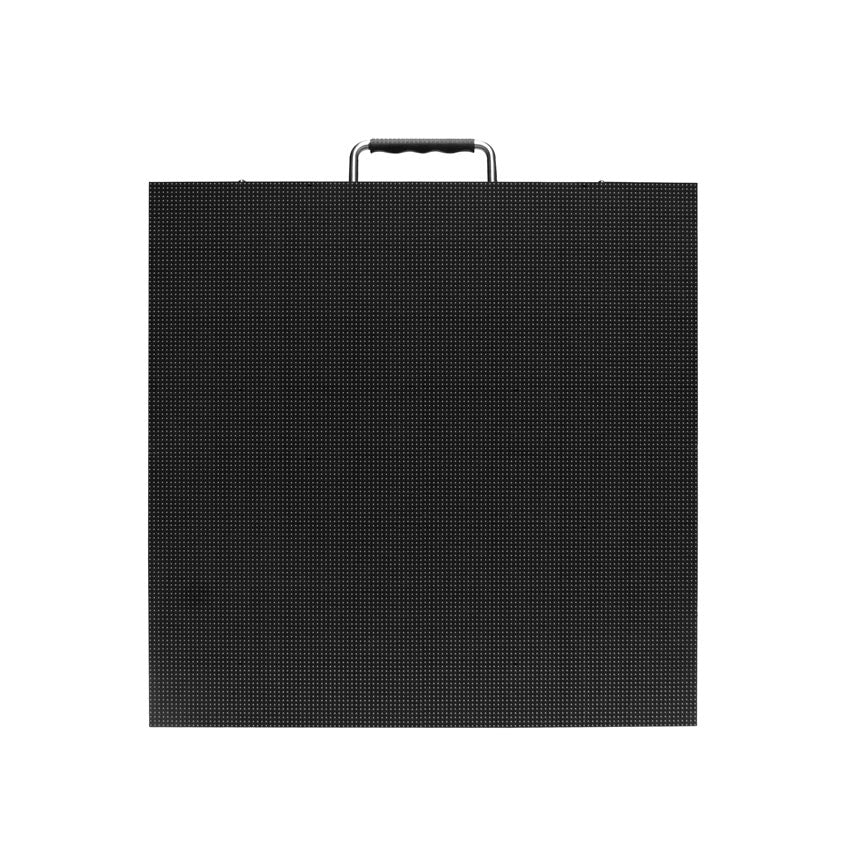

The EVHD5™ is a 5.9mm pixel pitch black face LED display. It's light weight durable die-cast aluminum frame and modular front maintenance design, allows for easy installation and service. Features include a seamless bezel-free design, no fan metal cooling structure, pixel by pixel calibration for optimized color rendering, uniformity and brightness, an ultra-wide viewing angle, and lockable curve adjustments for smooth convex or concave designs providing easy solutions for creative high-resolution video designs. The EVHD5™ is ideal for any broadcast installations.

  • Easy To Install

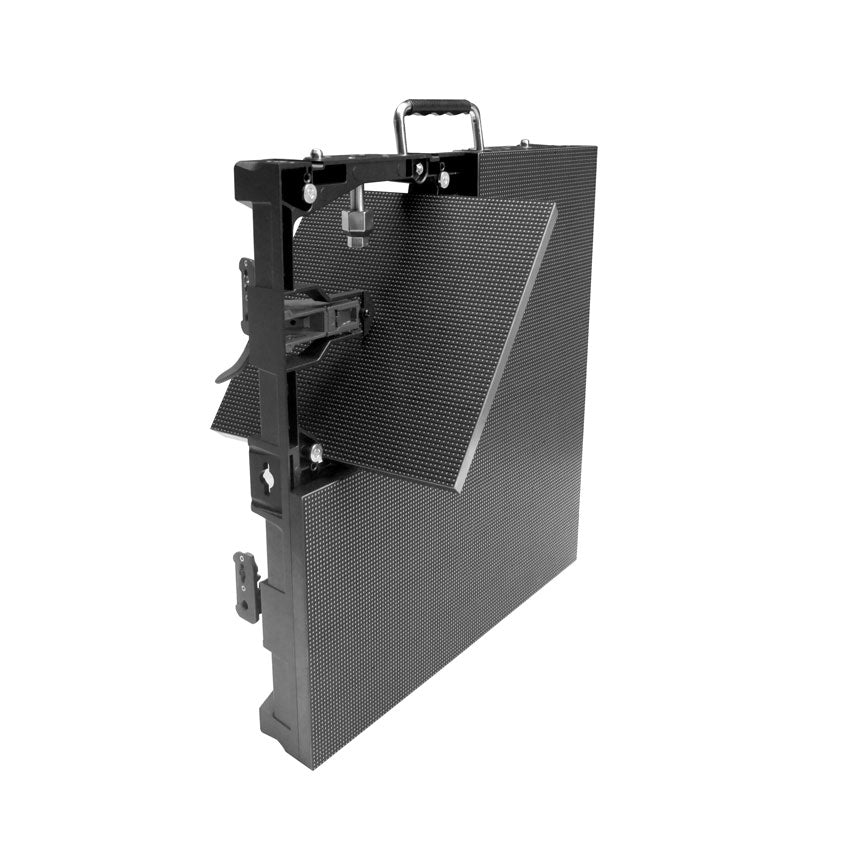

  • 100% Serviceable From Front or Backsides
  • Broadcast Quality 3840Hz
  • EMC Certification

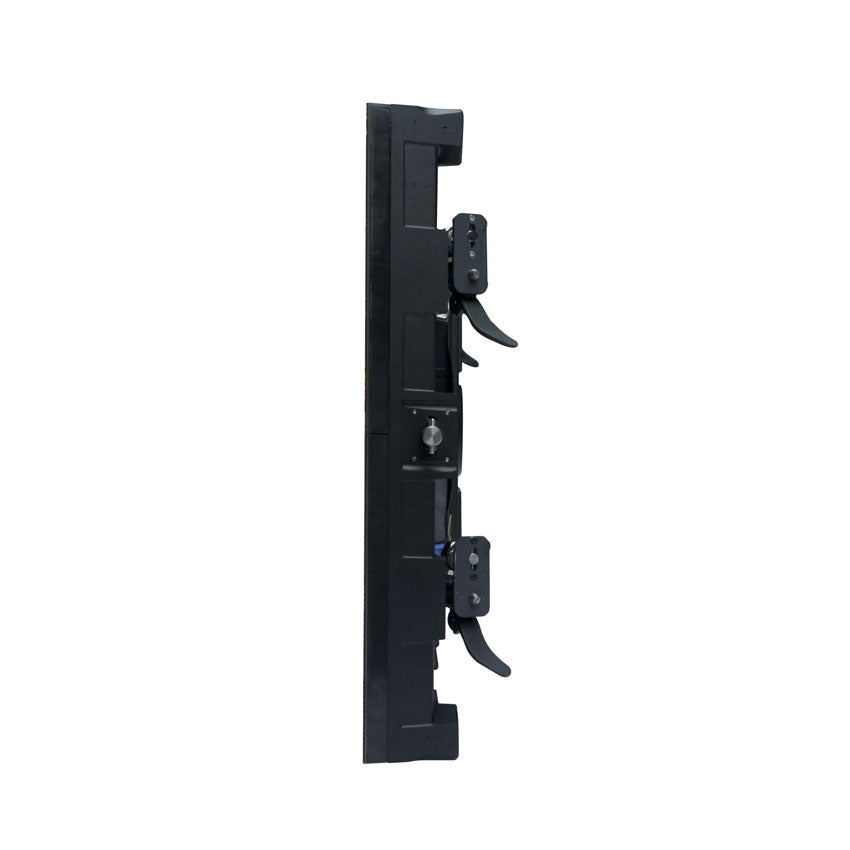

  • Convex or Concave Design Capable
  • MOM - Memory-on-Module (Saved Pixel By Pixel Calibration)

Specifications

Pixel Pitch: 5.9mm
Physical Density: 28,224 (dots/m2)
LED Type: SMD Chip
LED Size: SMD 2121
Module Size: 250 x 250mm
Module Resolution: 42 x 42 pixels
Drive Mode: Constant Current Drive
Horizontal and Vertical View angle: H:140° | V:120°
Scan Way: 1/7
Cabinet Size: 500 x 500mm
Cabinet Resolution: 84 x 84 pixels
Cabinet Weight: ≥18.7 lbs. (≥8.5 kg)
Cabinet Material: Die Cast Aluminum Alloy
Brightness: 1200 (cd/m2) (after calibration)
Gray Scale: 14bit
Refresh Rate: Variable Up To 3840Hz
Input Voltage: AC110V-220V, 50/60Hz
Cabinet Max Power Consumption: 135W
Cabinet Average Max Power Consumption: 48W
Protection Level: IP20
Environment: Indoors | -20° - 40° C | 10-90% RH
Life Span: ≥50,000 Hours

APPROVALS / RATINGS
CE | cETLus | IP20


OPTIONAL ACCESSORIES

EVH120 - EVHD Series Rear Support Bracket (Install Version)


EVH254 - EVHD Series Single Panel Rigging Bar


EVH270 - EVHD Series Rear Support Bracket


EVH286 - EVHD Series 8 Panel Transport Case


EVH302 - EVHD Series Rigging Bar Support Feet (Convert RB to Stacking Bar)


EVH484 - EVHD Series Ground Stack Clamp


EPV813 - 25 ft. (7.62m) powerCON Cable


PLC2 - 2 ft. (0.6m) powerCON Link Cable


CAT100 - 100 ft. (30m) CAT6 ETHER-CON Cable


CAT002 - 2 ft. (0.6m) CAT6 ETHER-CON Cable


CAT113 - 3 ft. (0.9m) CAT6 ETHER-CON Cable



Specifications and documentation subject to change without notice.
