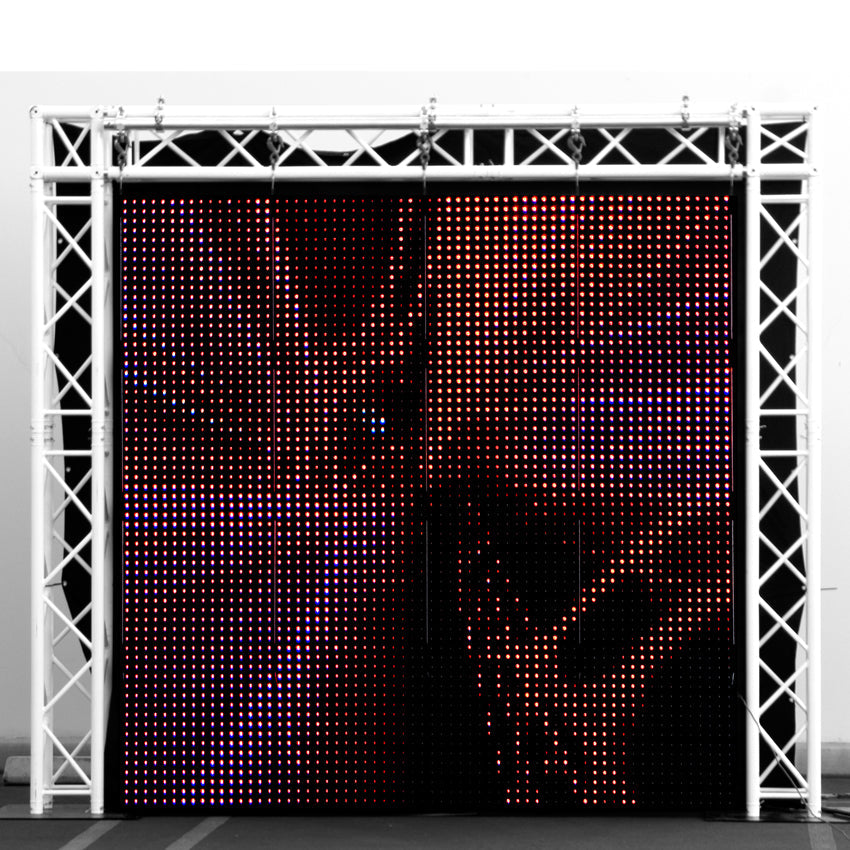

EVLED 256 - 37MM LED VIDEO SCREEN

37.5mm Pitch - Light Weight Low Resolution Transparent LED Video Screen

• 37.5mm Pitch - Light Weight Low Resolution Transparent LED Video Screen
• Pixel Pitch : 37.5 mm (1.5")
• Transparency: 55%
• Curtain Composition: Al-alloy frame, electronics onboard w/ rubber gasket for weatherproof IP 65 rating
• Tile Size: 600 X 600 X 75 mm/tile (2 x 2)
• Tile Weight: 4.5 kg/tile (10lbs.)
• Tile Area: 0.36m2/tile
• Luminosity: 2000 nits
• Color Temperature: 6500 k
• Visual Angle 110 / 50° (50% brightness)
• Visual Range: 160 / 120°
• Pixel Configuration: 1R 1G 1B (DIP)
• Tile Rsolution: 16 x 16 pixels/tile
• Pixel Resolution: 711 pixels/m2
• LED Quantity: 2133 LEDs/m2
• Color Number: 14 Trillion
• Processing Depth: 14 bits
• Contrast Ration: 2,000:1
• Life Span: 100,000 hours - LED: 50,000-70,000 hour - floor body
• Frame Rate : 60Hz
• Data Refresh Rate: 800Hz
• Display Mode: Synchronous with video source
• LED Failure Rate: 1/10,000
• MTBF: > 10,000 hours
• Drive Mode: Static, Constant Current Drive
• Power Supply: AC 100-240V, 50Hz or 60 Hz
• Working Voltage: DC 5V
• Power Consumption: 250 w/m2(max): 150 w/m2(average) / 60W per panel
• Ingress Protection: Front: IP65, Back: IP65
• Ambient Temperature: -20 to +50 Celsius Degree
• Relative Humidity: 10% to 99%
