EWDMX SYSTEM

Discontinued

EWDMX System is a professional-grade lighting solution.

UPC: 837874004274SKU: EWDMXSYSTEM

EWDMX SYSTEM

What is FHSS? W-DMX uses Adaptive Frequency Hopping Technology (FHSS), which changes frequency 1000 times per second and jumps only to channels that are not used by other W-LAN and/or any other products on the 2,45 GHz band. This together with TDMA (Time Division Multiple Access) gives the user a guarantee for a much safer technology without interference. The technology was invented by the US Army and is used in the GSM networks as well.

  • 512 USITT DMX channels per system

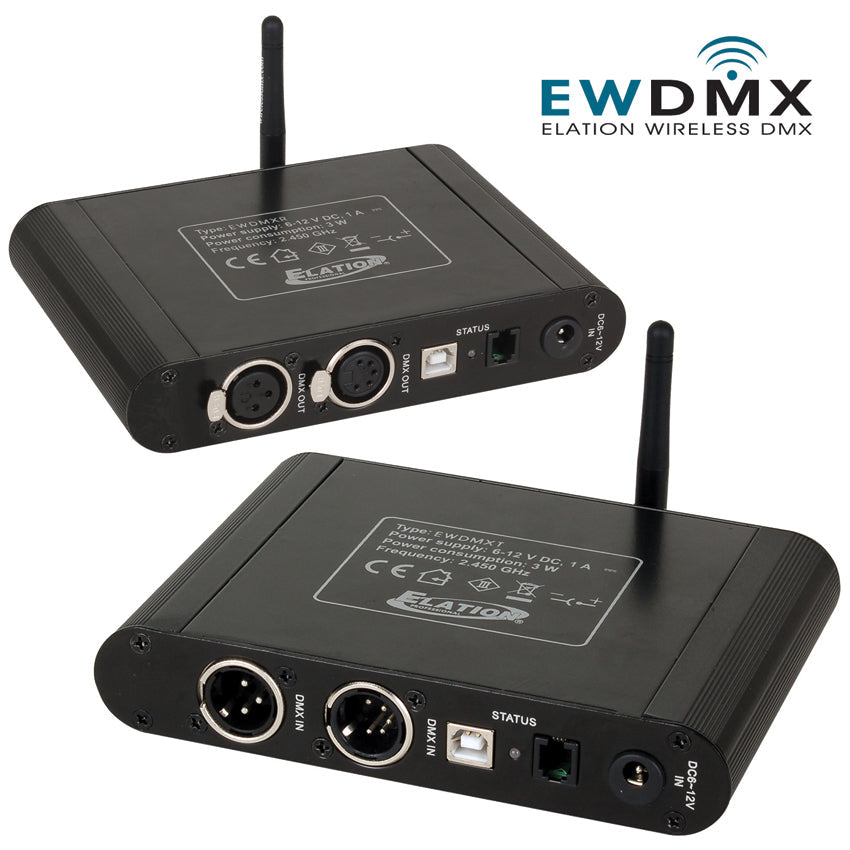

  • System includes 1 Transmitter & 1 Receiver
  • Multiple receivers can be used per transmitter
  • 1 button programming
  • Up to 16 universes (transmitters)
  • Up to 3000 wireless feet
  • FHSS Technology
  • 3 & 5 pin XLR

Specifications

System Components:

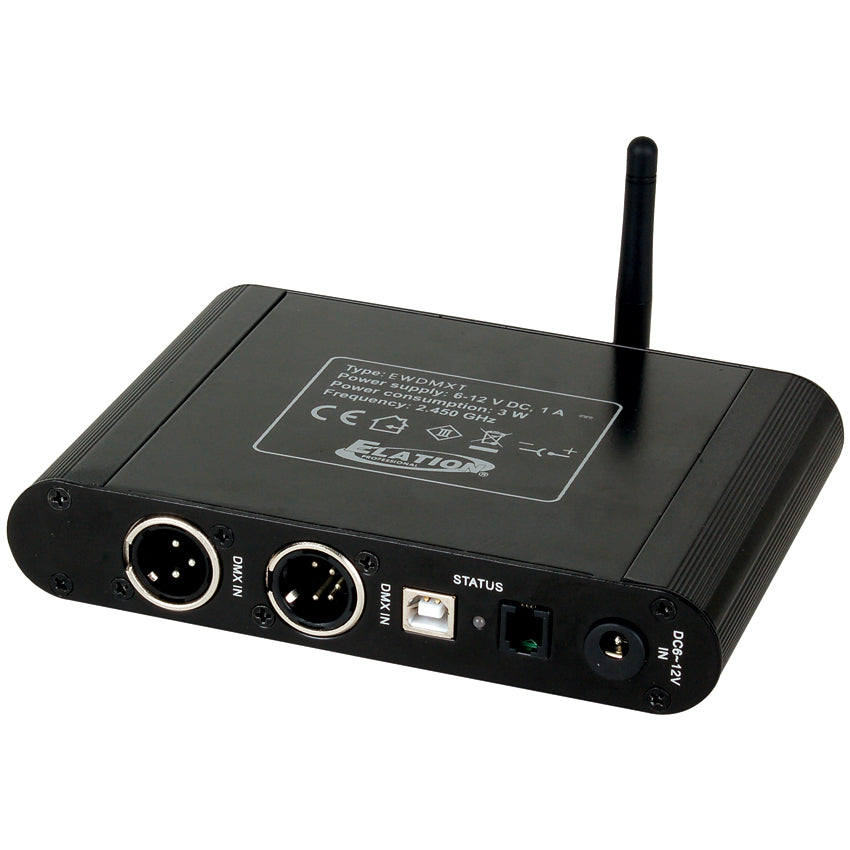

 1 EWDMX T-Transmitter

• 1 Antenna

• 1 120v power supply

• 1 brackets + safety cable

• 1 user manual

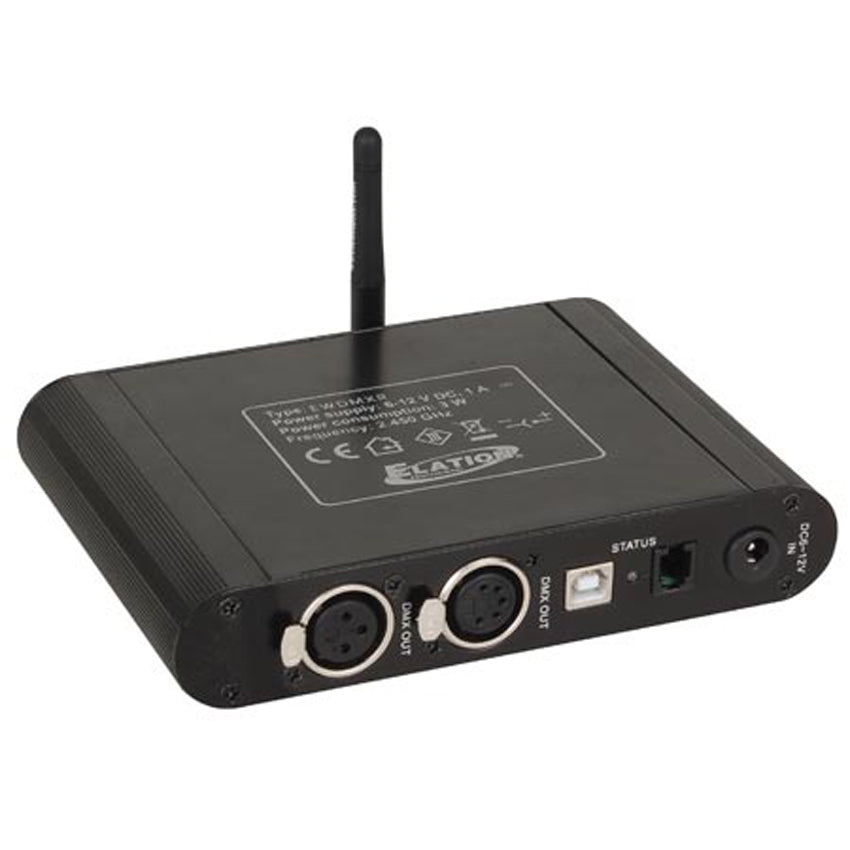

 1 EWDMX R-Receiver

• 1 Antenna

• 1 120v power supply

• 1 brackets + safety cable

• 1 user manual

 Technical Specifications:
 EWDMX T
 Size: 5” x 6.5” x 1.5”
 Weight: 1.6lbs
 Voltage: 90-250v

 EWDMX R
 Size: 5” x 6.5” x 1.5”
 Weight: 1.6lbs
 Voltage: 90-250v


Downloads

Cut sheet

User manual
