F-7 SMAZE ARENA FOG/FAZE HYBRID
F-7 SMAZE Arena Fog/Faze Hybrid is a professional-grade lighting solution. The Antari F-7 SMAZE™ is the ultimate all-in-one hybrid large venue touring atmospheric effect machine housed in an easily transported road case.
F-7 SMAZE ARENA FOG/FAZE HYBRID

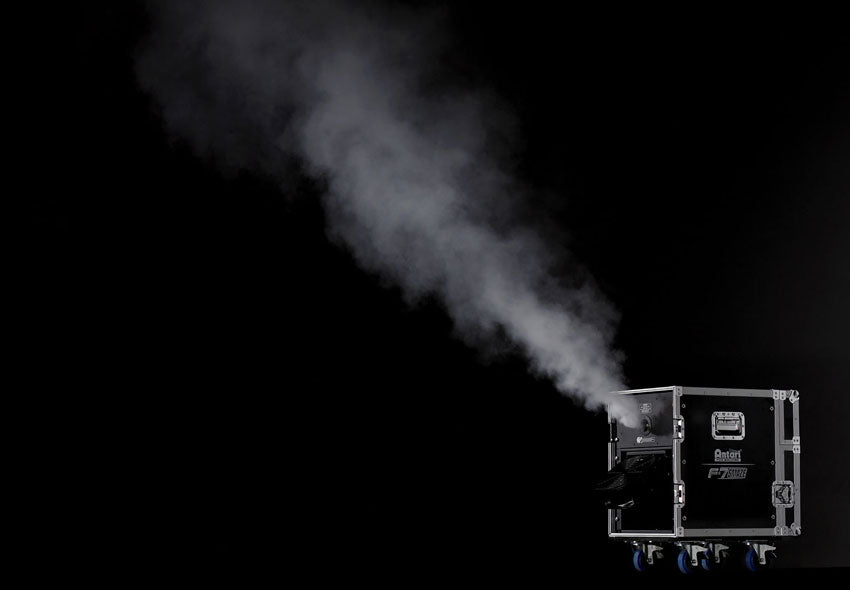

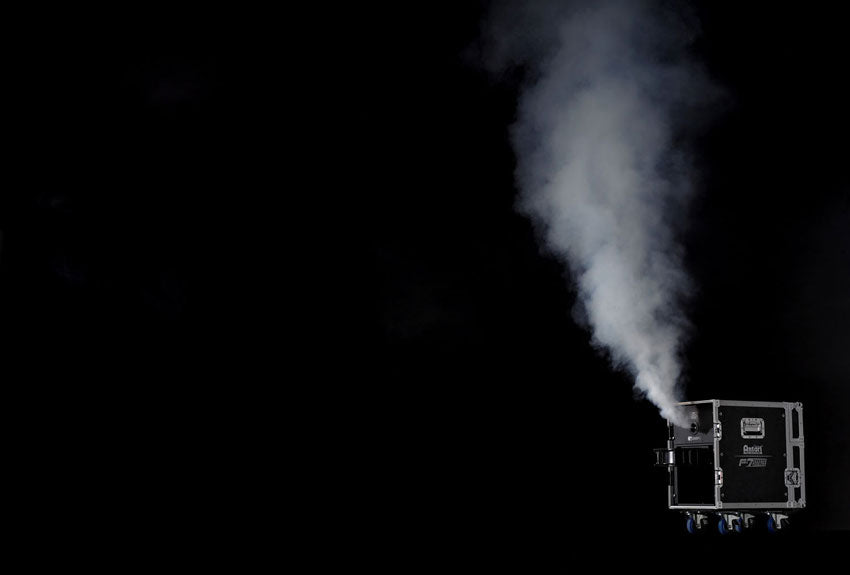

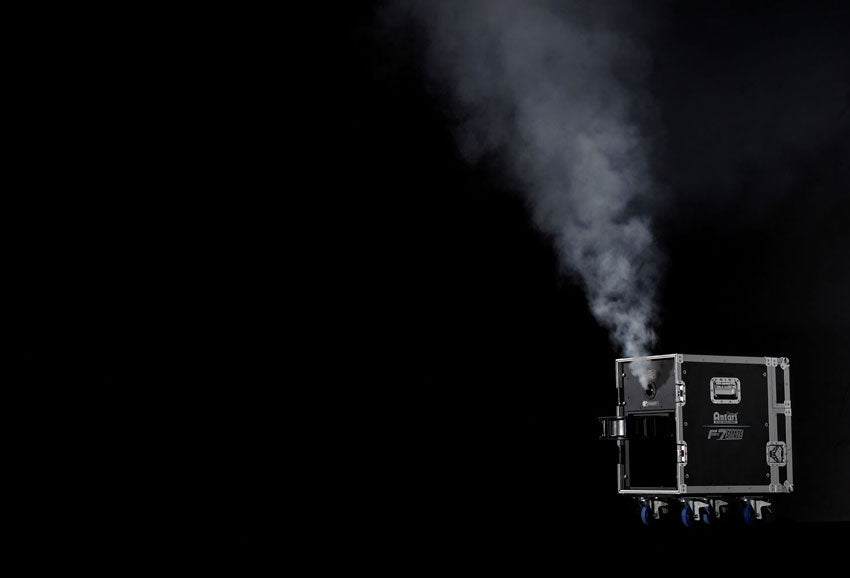

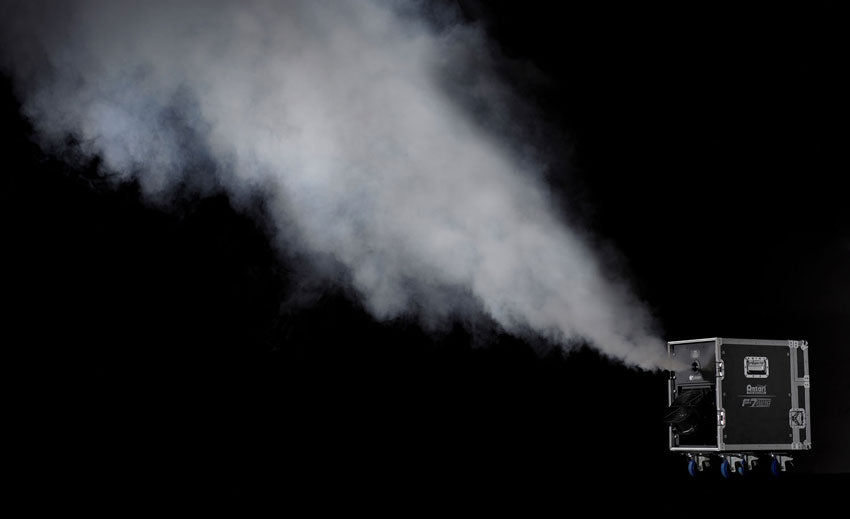

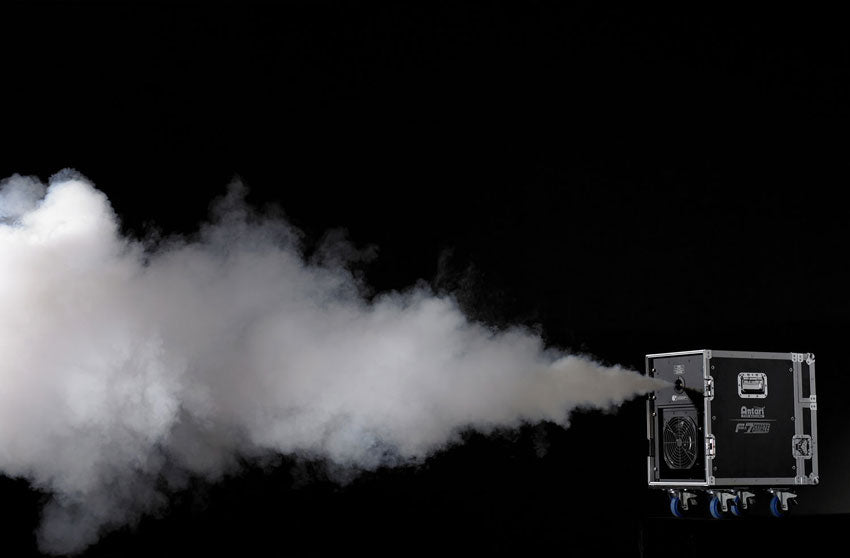

The Antari F-7 SMAZE™ is the ultimate all-in-one hybrid large venue touring atmospheric effect machine housed in an easily transported road case. Switchable Fog and Faze modes combined with the built-in adjustable AF-3™ fan, the Antari F-7 SMAZE is capable of producing fast and powerful arena size fog or a thin layer haze effects to fill most venues in just minutes.

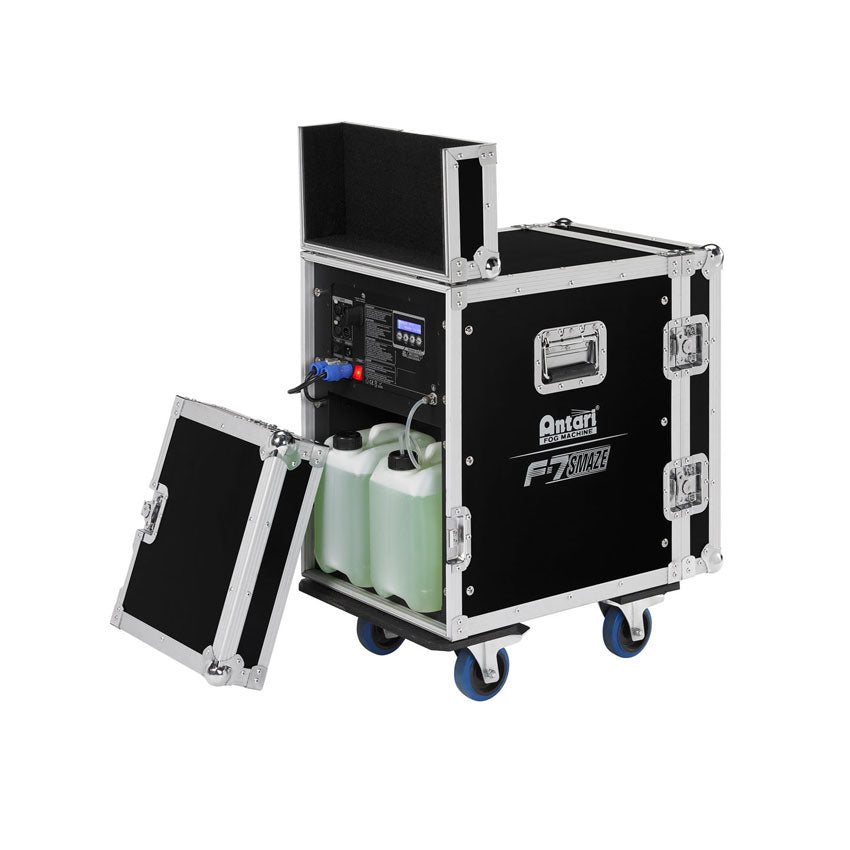

Antari's latest air pump technology which produces an extremely fine dry haze as well as enabling a self-cleaning feature not found on other fog or haze machines, built-in AF-3 fan with DMX controlled velocity and manual positioning to 9 different preset points providing easy direction of the fog and haze output, versatile control options such as an on-board digital control display, 3/5pin DMX in/out, Wireless DMX, a built-in electronic timer for stand alone usage, extra large storage area for (2) 5-liter fluid containers, and all housed in a durable road-case.
Antari F-7 SMAZE is Actors' Equity Approved when used in combination with Antari FLG Fog Fluid.
- Actors' Equity Approved when used with Antari FLG Fog Fluid
- Click Here For More Details
- All-in-One Fog & Faze Hybrid Atmospheric Effects Machine

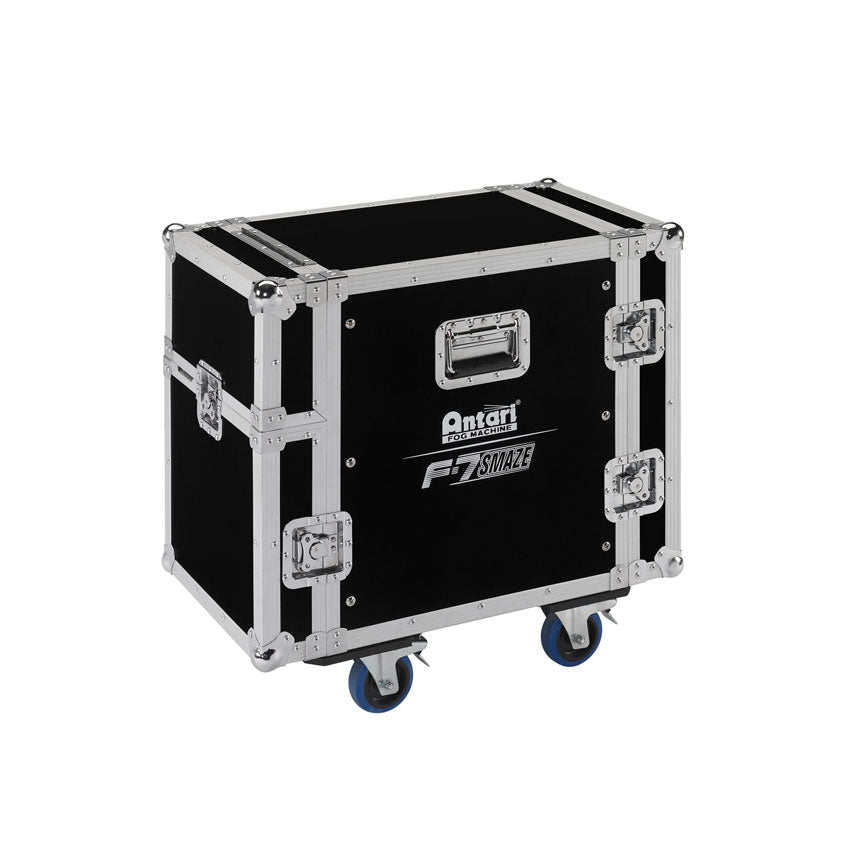

- Tour Ready Rugged Design

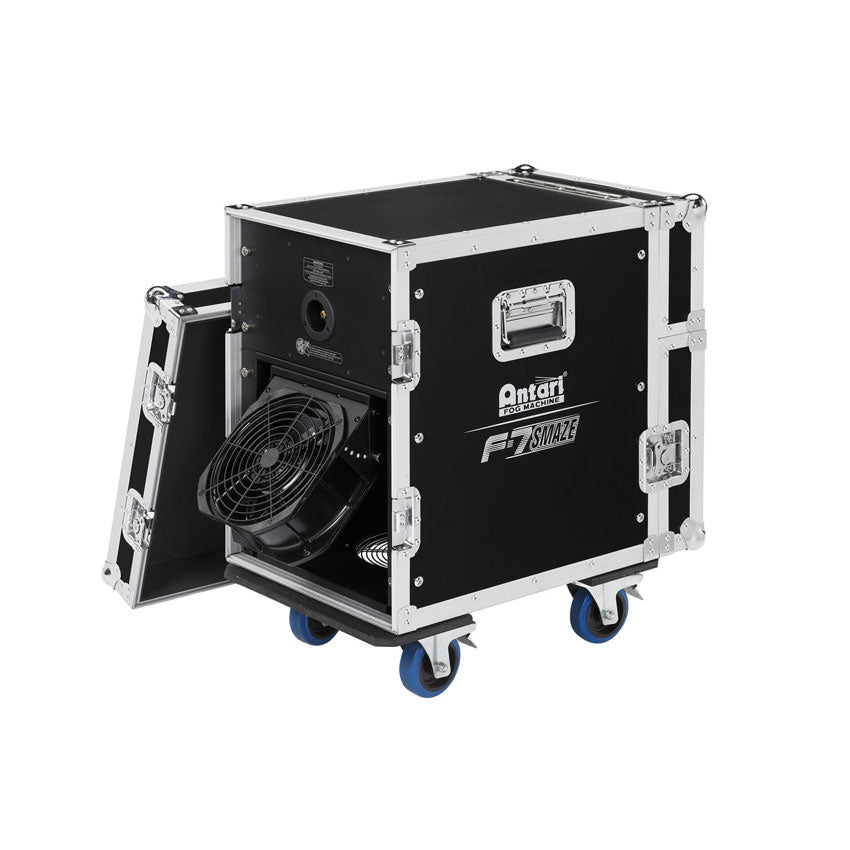

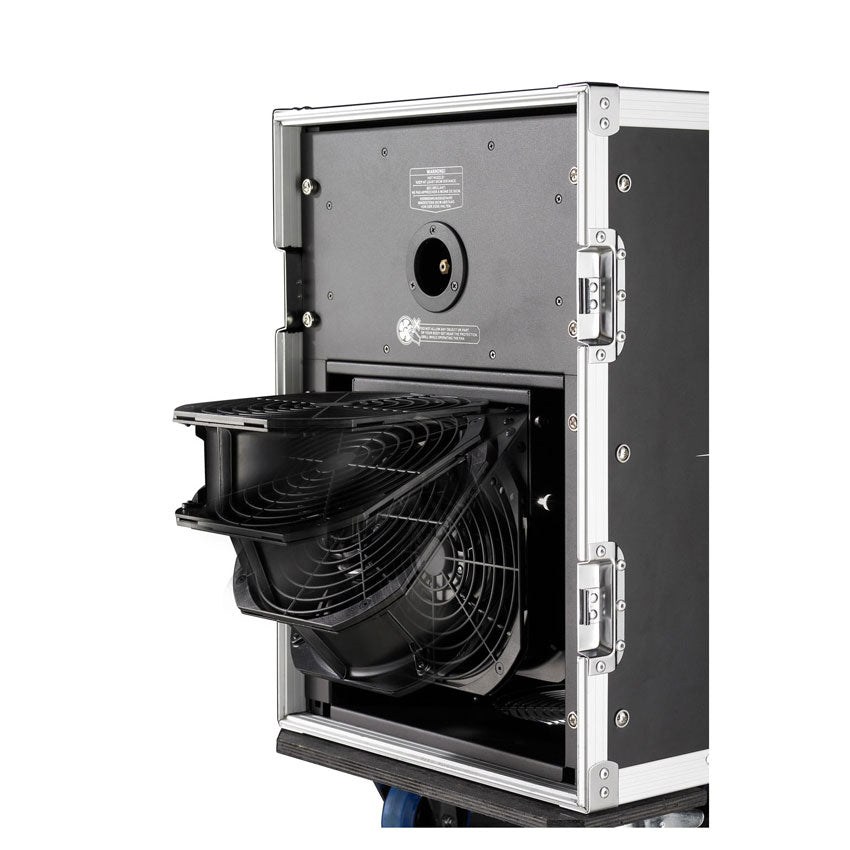

- Built-in High Velocity Adjustable Out Angle DMX Controlled AF-3 Fan
- State-of-the-Art Air Pump Technology with Self Cleaning Function
- Versatile Control Options Including Internal Wireless DMX
- Extra Large Fluid Area for (2) 5-Liter Containe
Specifications
Output:
Faze Mode: 6,000 Cu.Ft/min
Fog Mode: 20,000 Cu.Ft/min
Tank Capacity: (2) 5-Liter Containers
Fluid Consumption: 140 ml/min (Fog Mode) | 28 ml/min (Faze Mode)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (3 Total Channels)
Channel 1: Fog / Haze Mode
Channel 2: Output Volume
Channel 3: Fan Volume

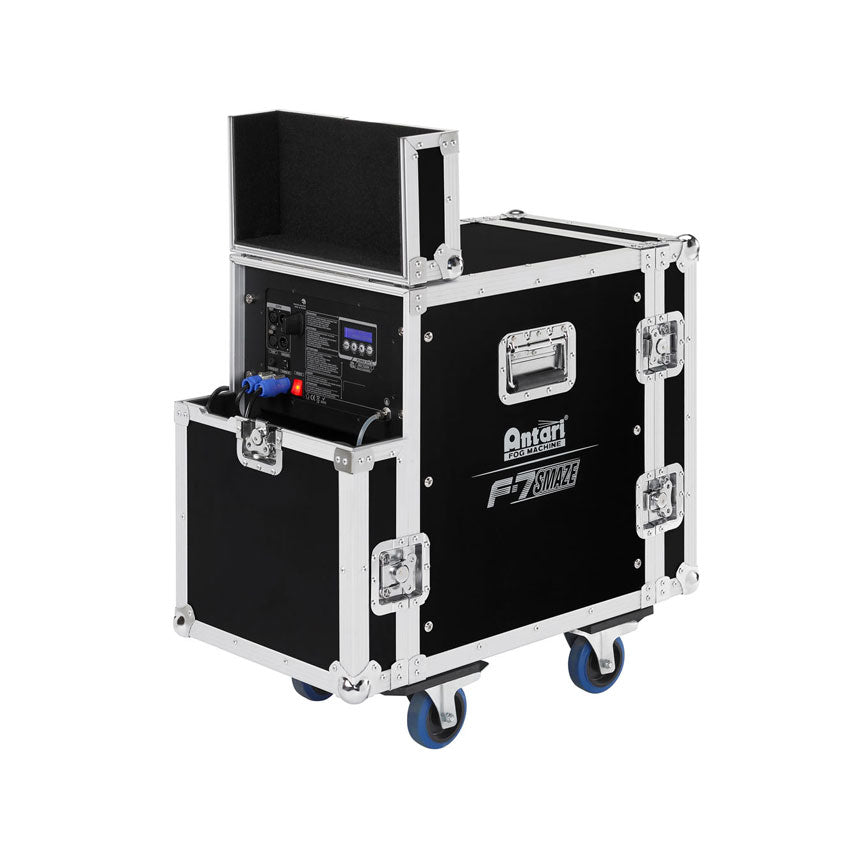

On-Board 4 Button LCD Control Display
On-Board Control Electric Timer (Stand Alone Mode)
3/5pin DMX In/Out
Wireless DMX
powerCON In
SIZE / WEIGHT
Length: 28.0” (710mm)
Width: 16.2” (412mm)
Vertical Height: 28.0” (710)
Weight: 115.7 lbs. (52.5 kg)
ELECTRICAL / THERMAL
AC 120V / 60Hz
1650W Max Power Consumption
Specifications and documentation subject to change without notice.
