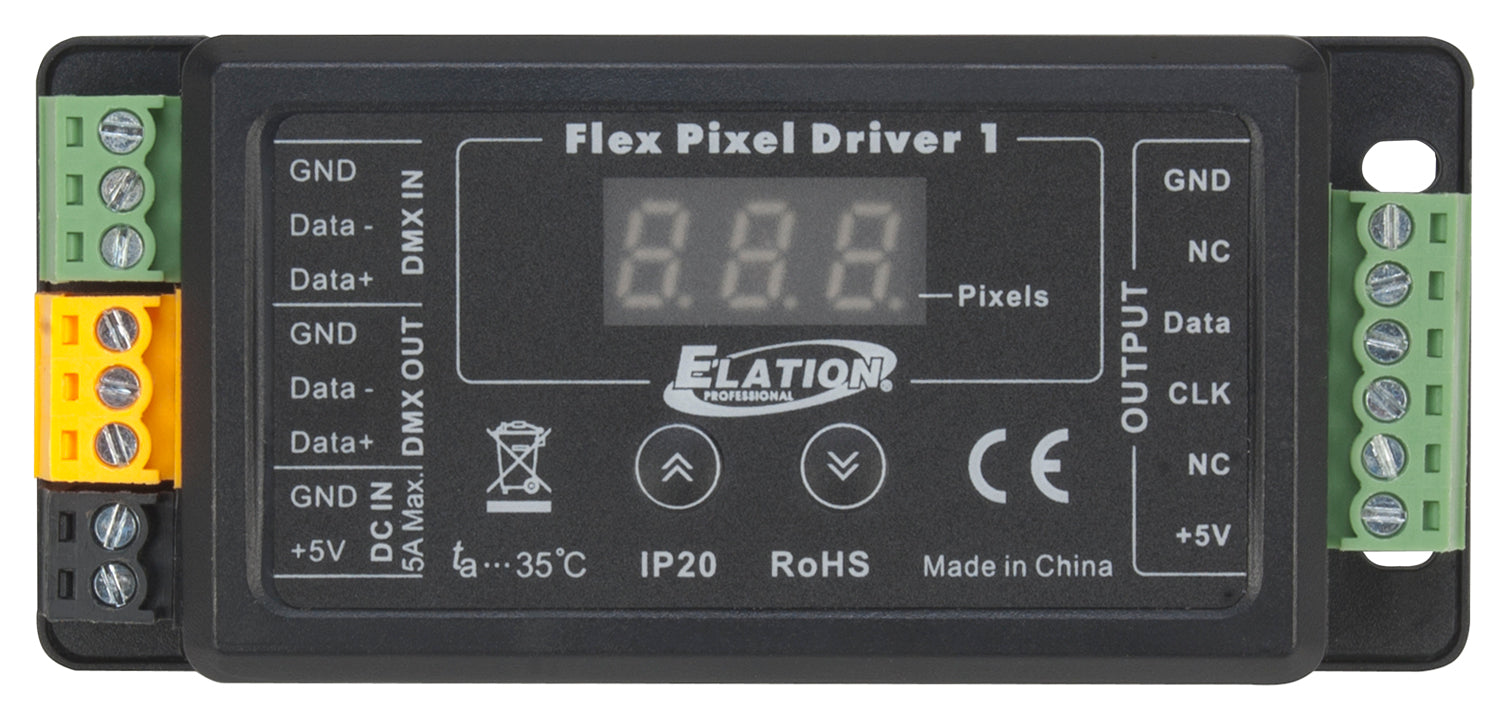

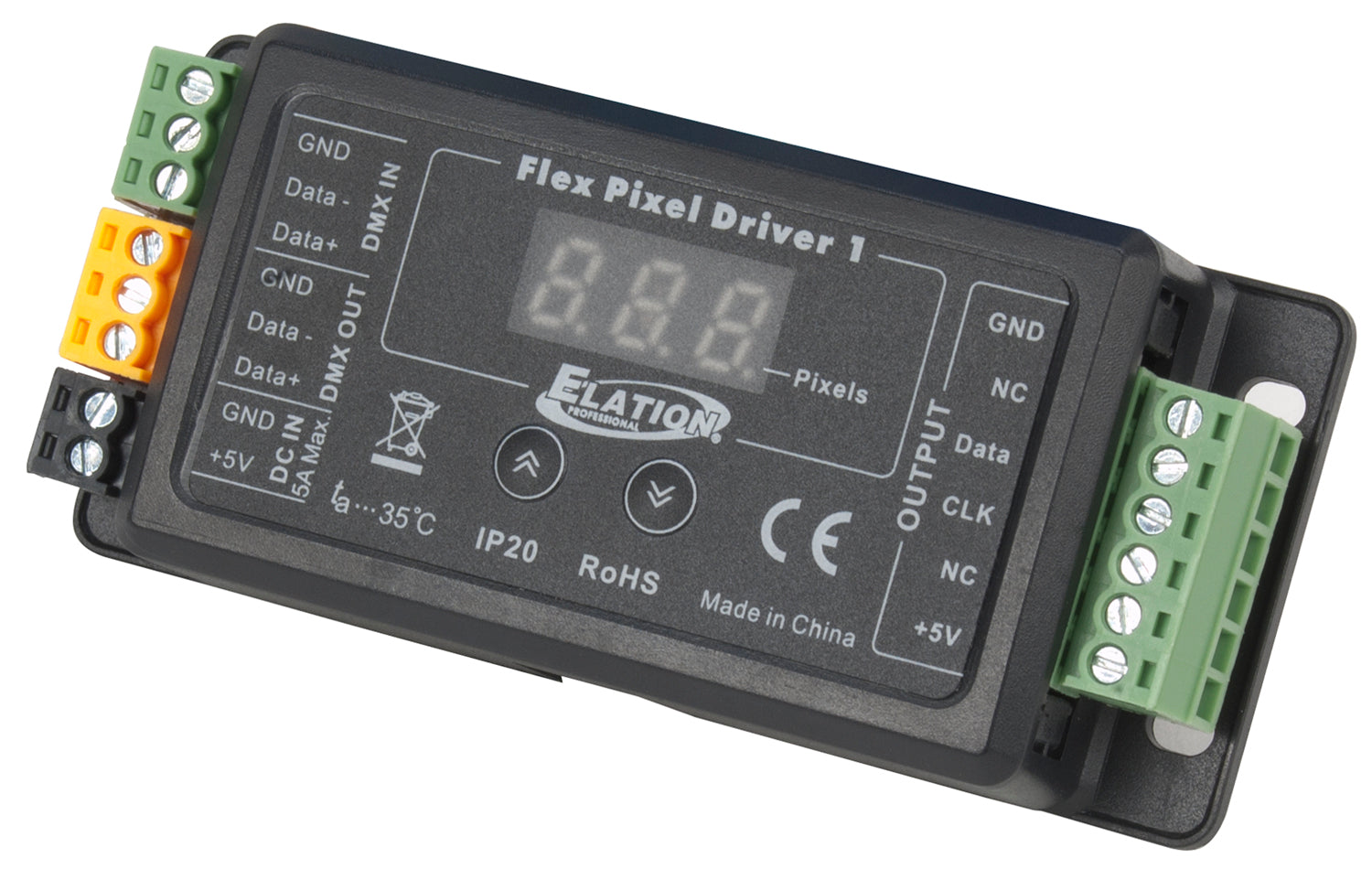

FLEX PIXEL DRIVER 1
FLEX PIXEL DRIVER 1 is a professional-grade lighting solution. The FLEX PIXEL DRIVER™ 1 is a professional dedicated 5VDC LED tape driver that supports up to 144 pixels, and up to 432 DMX channels of control. It features a 2-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 6pin terminal block for LED tape output, and a 2pin terminal block for 5VDC power IN.
Related Products
FLEX PIXEL DRIVER 1
The FLEX PIXEL DRIVER™ 1 is a professional dedicated 5VDC LED tape driver that supports up to 144 pixels, and up to 432 DMX channels of control. Its small compact design allows for easy mounting and integration into any system. It features a 2-button LED control display, separate 3pin terminal blocks for DMX IN and OUT, a 6pin terminal block for LED tape output, and a 2pin terminal block for 5VDC power IN.
- Professional Dedicated 5VDC LED Tape Driver
- Supports Up To 144 Total Pixels / 432 DMX Channels
- 2-Button LED Control Display
- 6pin Terminal Block LED Tape Output
- 3pin Terminal Block DMX In/Out
- 2pin Terminal Block Power In
Specifications
Up To 144 Pixels Max
Up To 432 DMX Channels
DMX IN via 3pin Terminal Block
DMX OUT via 3pin Terminal Block
LED Tape Output via 6pin Terminal Block
POWER IN via 2pin Terminal Block
SIZE / WEIGHT
Length: 3.5” (90mm)
Width: 1.6” (40mm)
Height: 0.8” (20mm)
Weight: 0.12 lbs. (0.055kg)
APPROVALS
CE | cETLus | RoHs | IP20
INCLUDED ACCESSORIES
(1) Flex Pixel Tape Jumper First Cable
(1) Flex Pixel Tape Power Cable
Specifications and documentation subject to change without notice.
