FLEX PIXEL WP

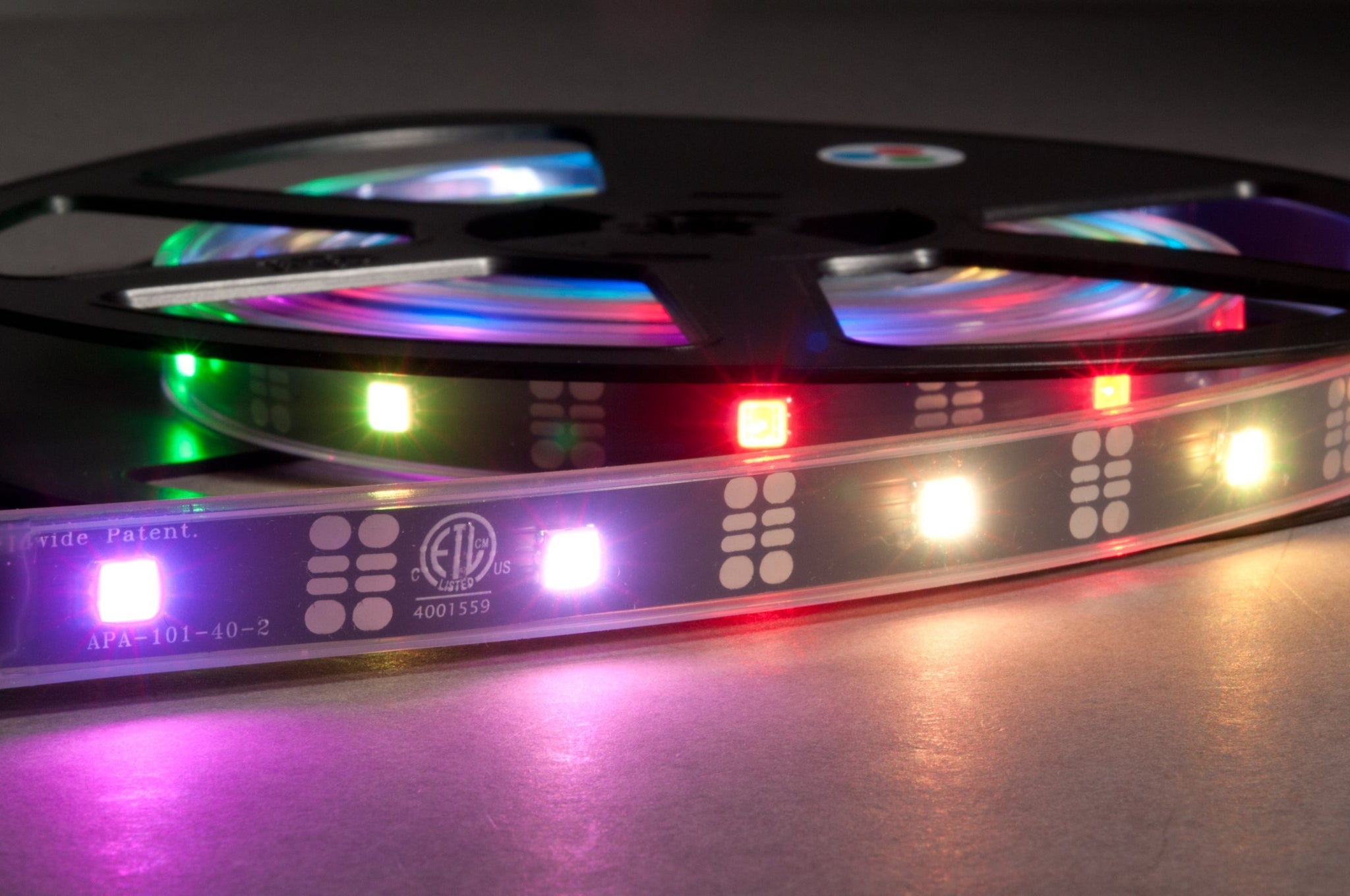

FLEX PIXEL WP is a professional-grade lighting solution. The FLEX PIXEL WP™ is an outdoor rated 10 foot (3m) flexible LED pixel tape featuring (72) RGB SMD tri-color LED pixels (216 total DMX channels) spaced on 1.6” (40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 4” (102mm), and mountable to most surfaces using Elation’s FLEX CHANNEL™ line of aluminum mounting tracks.
Related Products
FLEX PIXEL WP
The FLEX PIXEL WP™ is an outdoor rated 10 foot (3m) flexible LED pixel tape featuring (72) RGB SMD tri-color LED pixels (216 total DMX channels) spaced on 1.6"(40mm) centers, producing over 1 billion color possibilities with a 120° viewing angle, enclosed in an IP65 rated waterproof flexible cover which can be cut and extended every 4"(102mm), and mountable to most surfaces using Elation's FLEX CHANNEL™ line of aluminum mounting tracks.
Each FLEX PIXEL WP tape is powered by an optional FLEX PIXEL 5VPSU™ 5V universal auto switching power supply (110-240v), and can be controlled using one of Elation's optional LED tape drivers including FLEX PIXEL DRIVER™, FLEX PIXEL IRC™, or EZ KLING™, and is also compatible with Kling Force LED, DiGidot C4, and MediaMaster.
- IP65 Outdoor Rated Flexible LED Pixel Tape
- 10 foot (3m) Roll
- (72) RGB Tri-Color SMD LED Pixels
- (216) Total DMX Channels
- Pixels Spaced on 1.6"(40mm) Centers
- Cut and Extend Every 4"(102mm)
- 120° Viewing Angle
- Over 1 Billion Color Possibilities
Specifications
(72) RGB SMD LED Pixels
PHOTOMETRIC DATA
504 LUX 47 FC (per each 1m)
COLOR
Over 1 Billion Color Possibilities
CONTROL
(216) DMX Channels
ICS APA102 Protocol
SIZE / WEIGHT
Length: 10.0' (3m) Roll
Width: 0.57" (14.5mm)
Vertical Height: 0.18" (4.5mm)
Weight: 0.66 lbs (0.3 kg)
ELECTRICAL / THERMAL
DC 5V
15W Max Power Consumption
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
