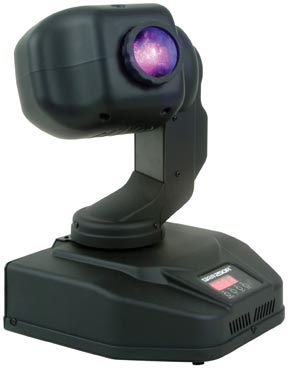

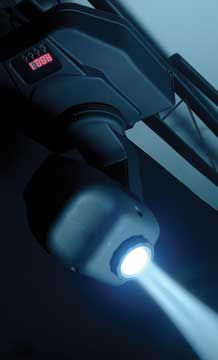

FOCUS SPOT 250R

Colors
. 8 Dichroic Colors + White
. Continuous Color Scroll

Gobos
. One gobo wheels
. 6 interchangeable, indexable, rotating gobos + spot;
. 3 metal gobos, 2 dichroic glass gobos, 1 textured glass gobo
. Gobo Size 27mm (outside dimensions) / 24mm (inside dimensions)
. Gobo shake effect
. Continuous gobo scroll

Shutter/Dimmer
. Variable speed strobe pulse effect
. Mechanical Dimmer 0-100%
. Mechanical high speed shutter

Light Source
. 4,800 Lux / 446 fc @ 16 feet / 5 meters
. Lamp life: 3,000hr 8,500deg;k, 250W
. Lamp: Philips MSD250/2

Optical System
. 18deg; beam angle
. Motor driven focus from near to far remote focus via DMX
. Dichroic Glass Reflector
. High luminous-efficiency axial reflector and double - condenser lens system cold dichroic reflector
. Anti-reflection coated lenses

Movement
. Maximum pan movement 580deg; in 3.5s / 16 bit
. Maximum tilt movement 265deg; in 2.0 s / 16 bit
. Fine Pan amp; Tilt (16 bit resolution)
. Automatic pan/tilt correction

Control
. 11 DMX channels
. 4 Digit Digital LED Display
. USITT DMX-512 (16-bit resolution)
. RDMX - Remote DMX Addressing
. Pre-programmed movements via DMX
. Self Test amp; Stand Alone settings

Operation Parameters
. Rigging: 2 x 1/4 turn fastener brackets, 1 x safety cable hole

Power Supply
. Magnetic ballast
. Voltage: 115/208/230/240V AC, 50/60 Hz
. Power consumption: 500W
. Fuse: 8A

Connectors
. 3 pin XLR serial input/output

Dimensions and Weight
. Dimensions (L x W x H): 13" x 13" x 22" / 320 x 338 x 559mm (Head up)
. Weight: 35lbs / 7.3kg
