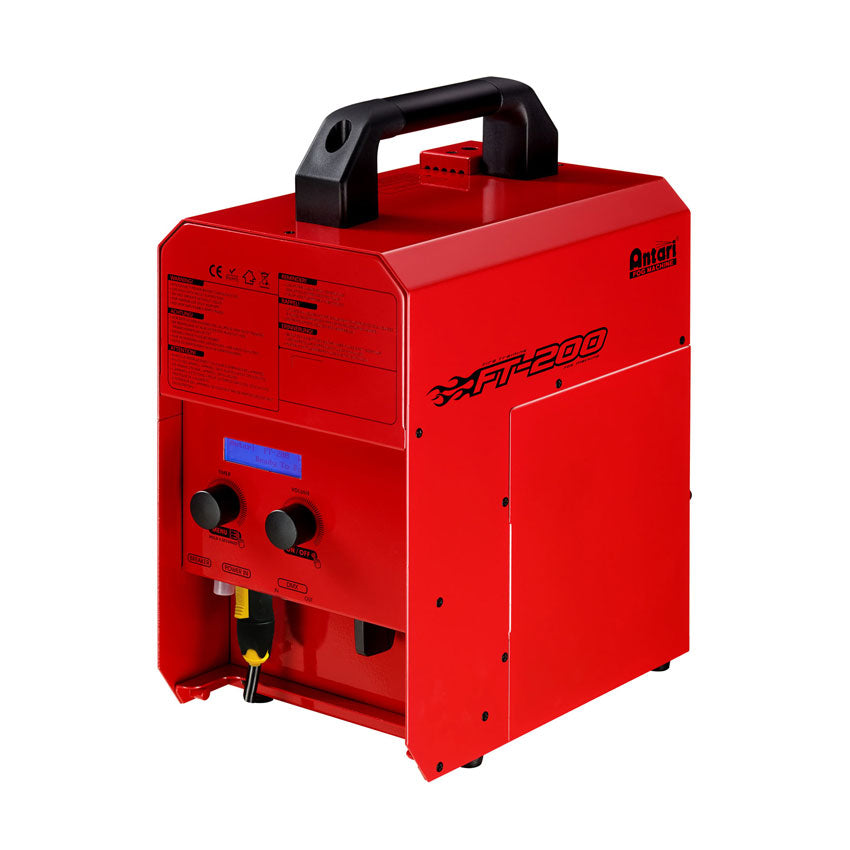

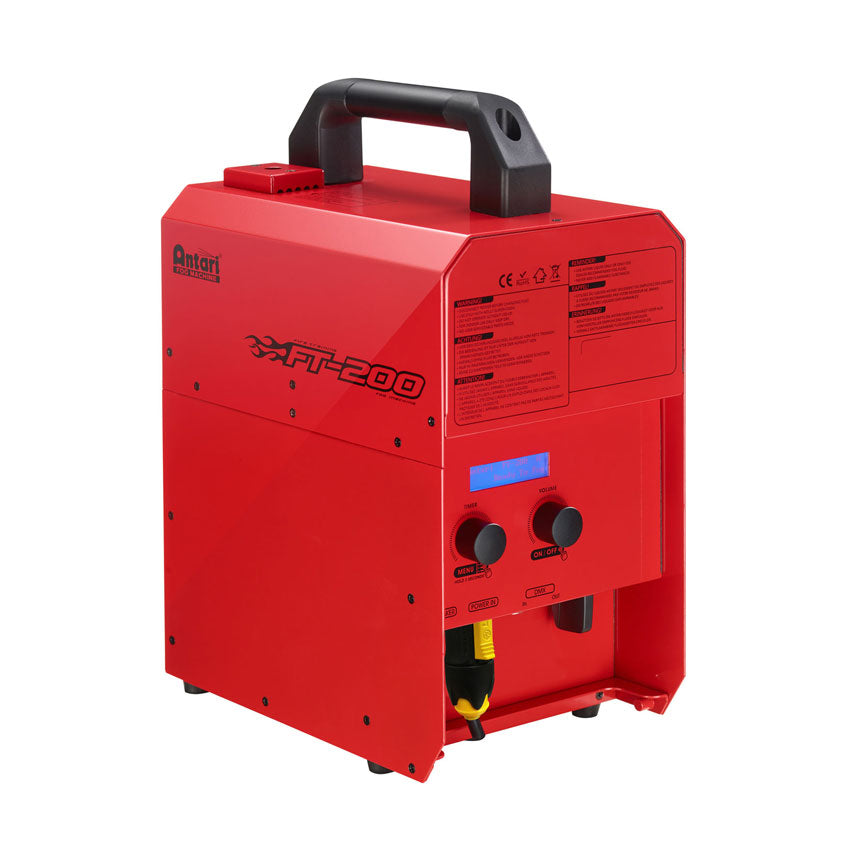

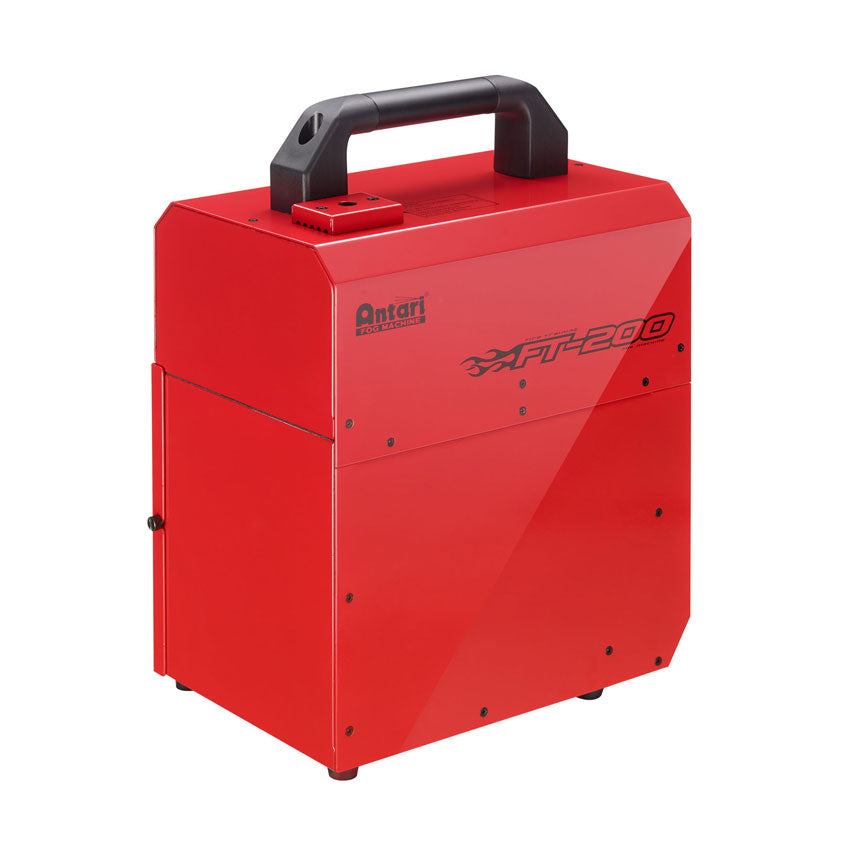

FT-200 FIRE TRAINING FOG MACHINE

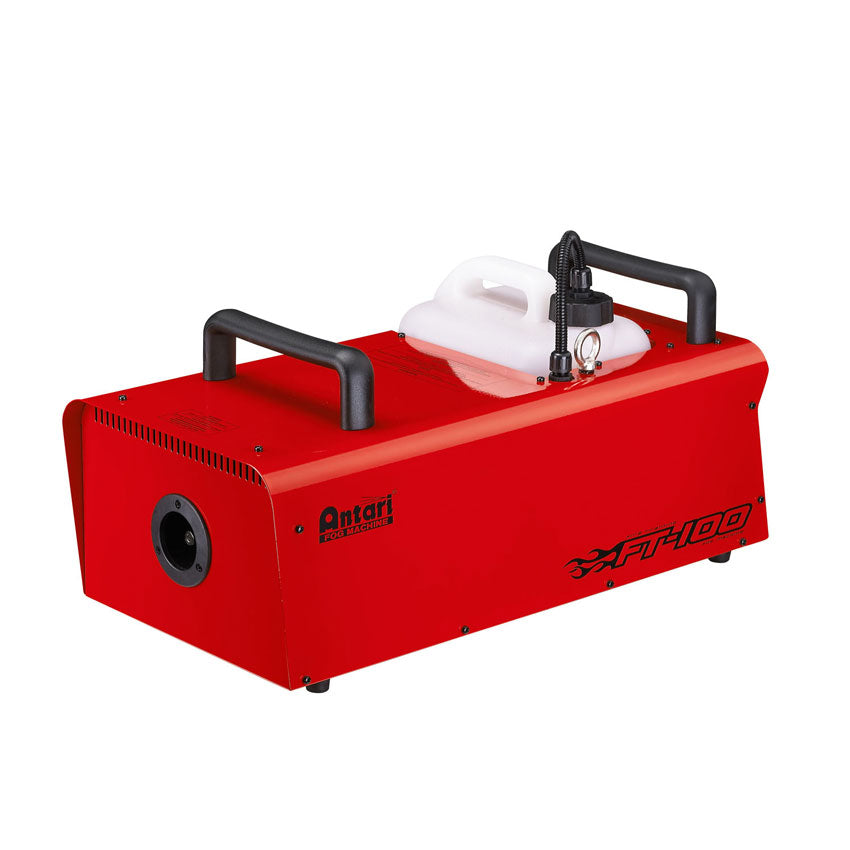

FT-200 Fire Training Fog Machine is a professional-grade lighting solution. Built on the success of Antari’s first smoke generator developed exclusively for fire and rescue training, the popular FT-100, the FT-200 introduces new technologies to offer one of the worlds most rugged and advanced smoke generators for fire and rescue training.
FT-200 FIRE TRAINING FOG MACHINE
Antari, a world renowned leader in entertainment atmospheric effects continues its' expansion into fire and rescue training with the introduction of the all new FT-200. Built on the success of Antari's first smoke generator developed exclusively for fire and rescue training, the popular FT-100, the FT-200 introduces new technologies to offer one of the worlds most rugged and advanced smoke generators for fire and rescue training.
- Advanced Steel Heater Block
- Double the Flow Rate of FT-100
- 200% Increased Output of FT-100
- IP33 Rated For Use in Wet Locations*
- Sleek and Compact Case Design with Heavy-Duty Handle
- Multi-Position Operation - Vertical or Horizontal Smoke Generation
- Internal Electronic Timer for Hands Free Operation
- *IP Rating Only When Operated in Upright/Vertical Position
Specifications
OUTPUT: 40,000 cu.ft / min
INITIAL HEAT-UP TIME: 7.5 mins (approx)
FLUID CONSUMPTION RATE: 270 ml/ min (100% output)

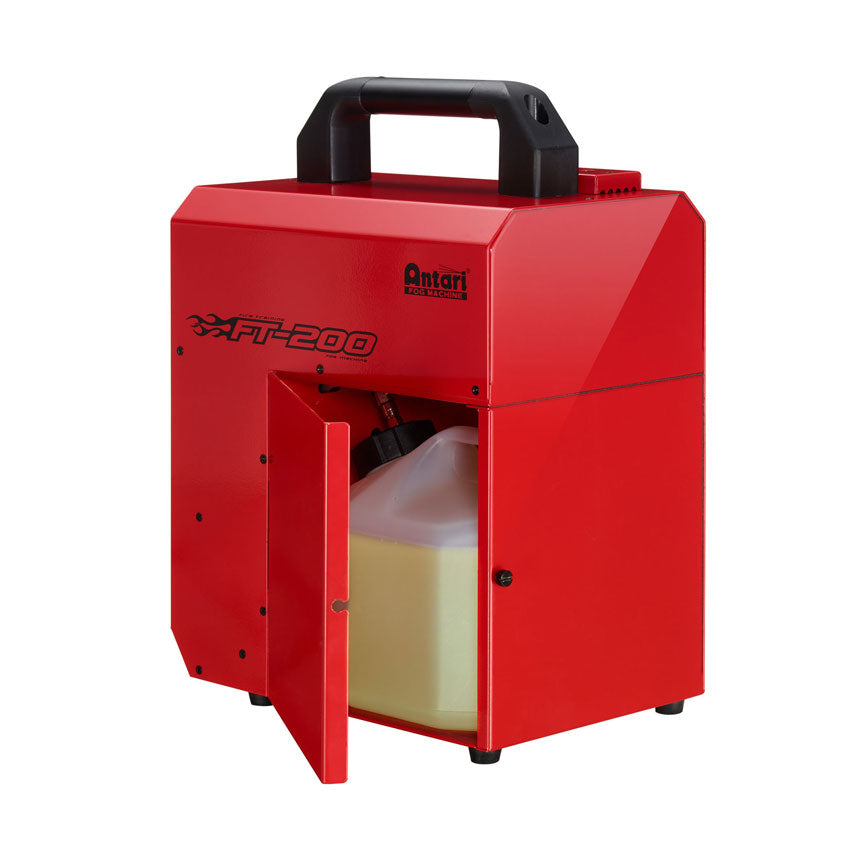

FLUID TANK CAPACITY: 2.4 Liters
OPERATING TIME: MAX Output 8 mins
COVERAGE: 16.4 ft. (5m) High x 3.3 ft. (1m) Wide
CONTROL / CONNECTIONS
Volume ad Timer Mode
DMX512
W-2 Wireless Remote Control (included)
Z-3 Optional Remote Control (not included)
Single DMX Channel Operation
2 Rotary Push-In Dial Control Panel (Menu | Timer, On/Off | Volume)
5pin DMX In
powerCON TRUE1 In
SIZE / WEIGHT
Length: 11.8” (301mm)
Width: 7.7” (194mm)
Vertical Height: 16.3” (414mm)
Weight: 35.3 lbs. (16kg)
ELECTRICAL / THERMAL
AC-120V 50/60Hz 13.5A
Max Power Consumption: 1,600W
APPROVALS / RATINGS
CE | RoHs | IP33*
*IP Rating Only When Operated in Upright/Vertical Position
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
User manual
Generic
