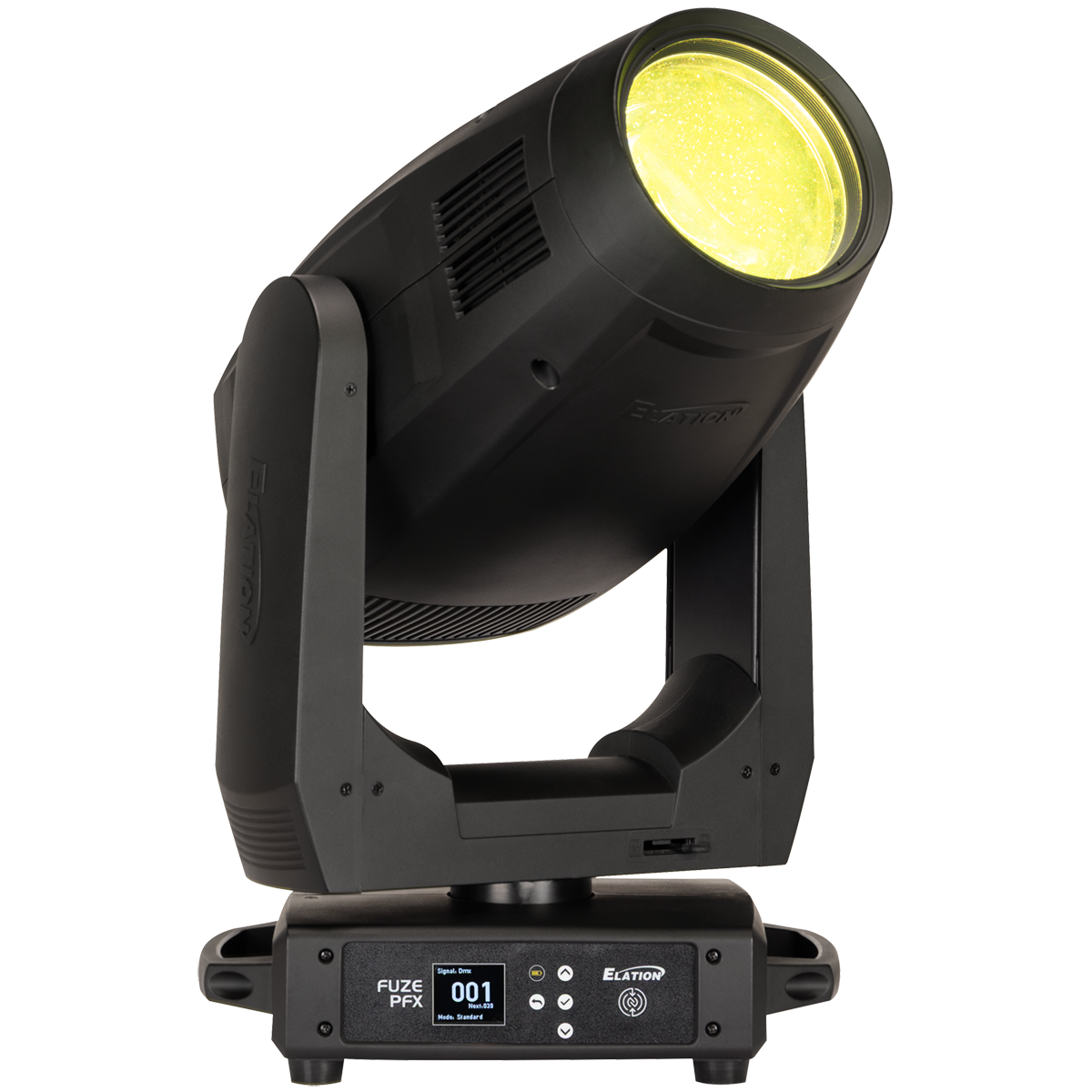

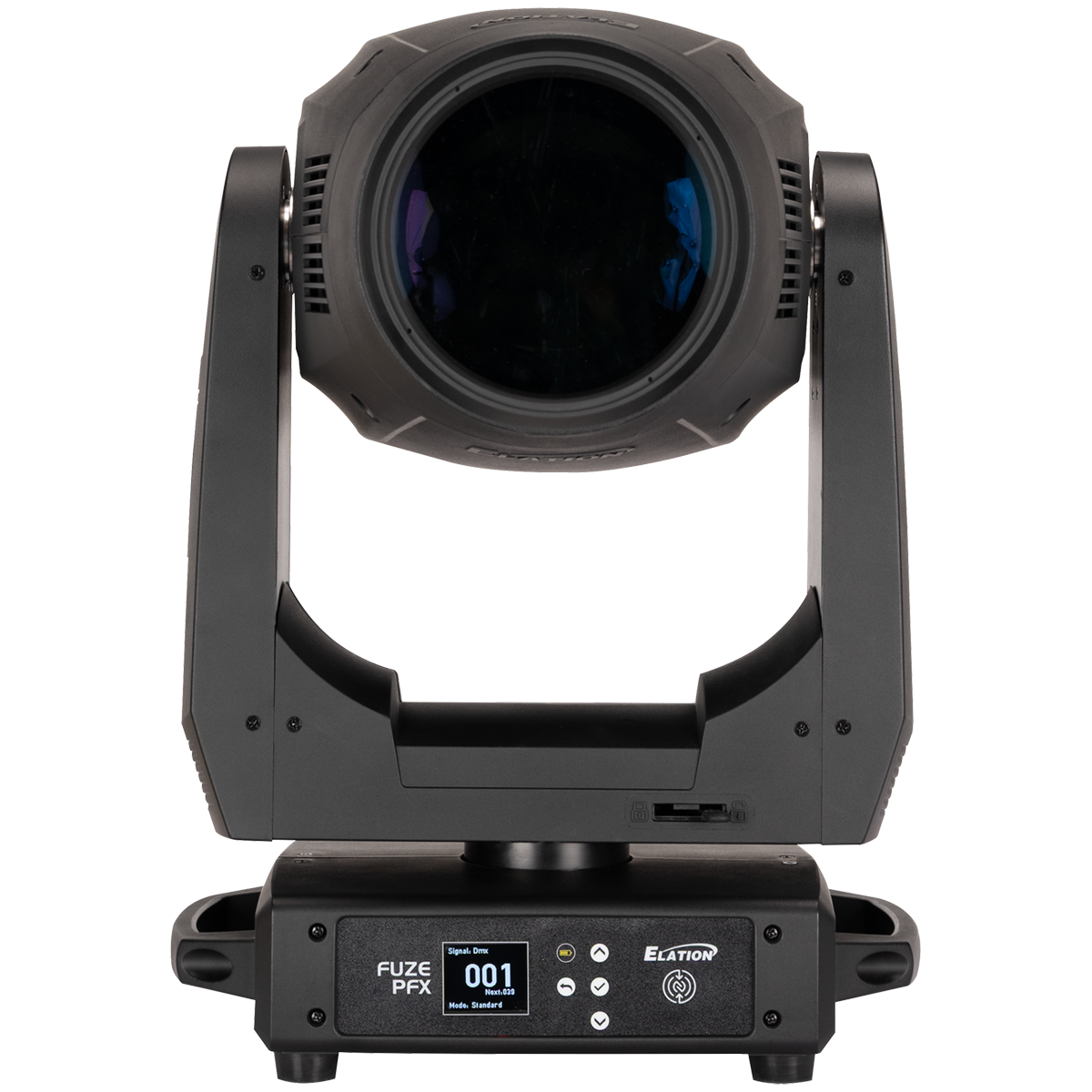

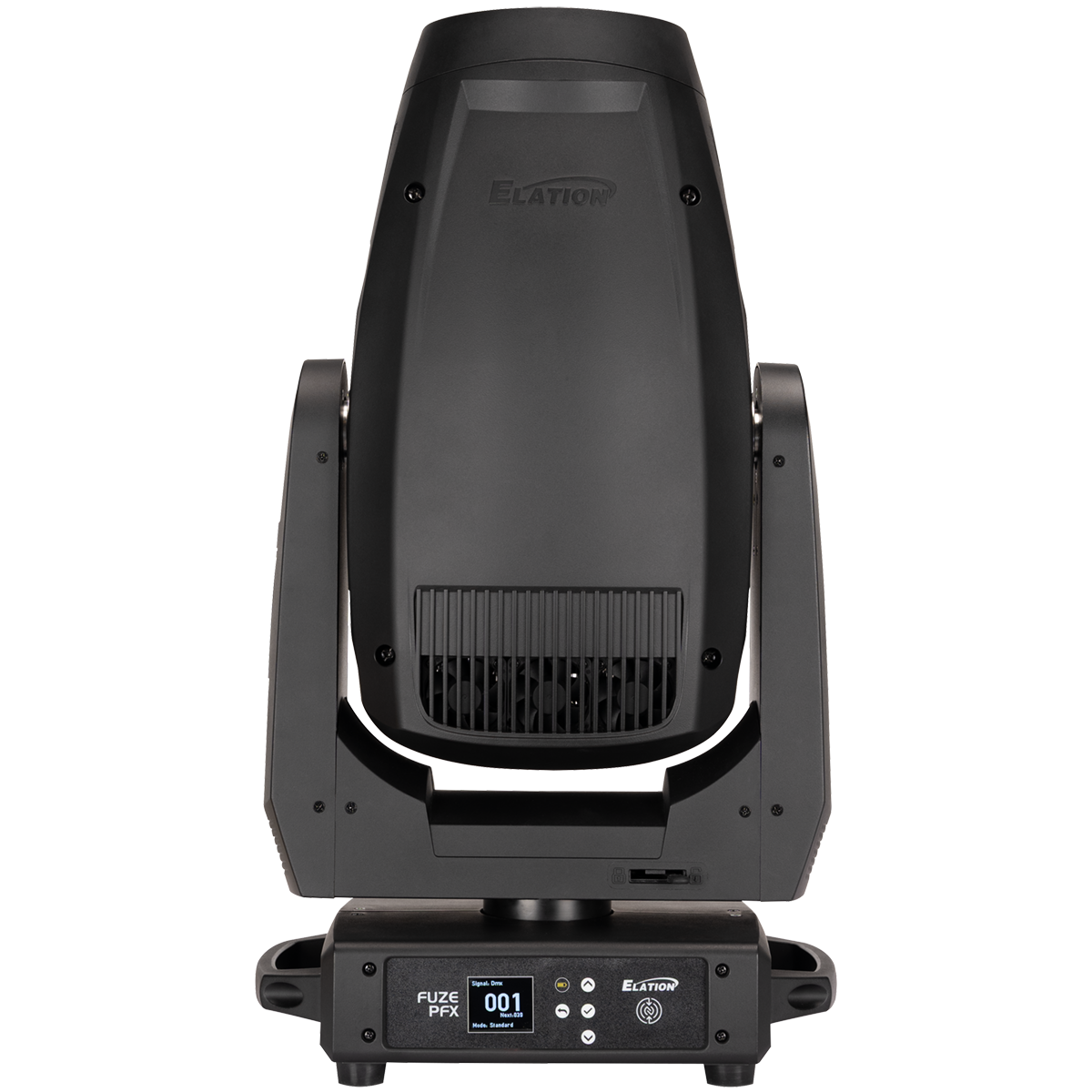

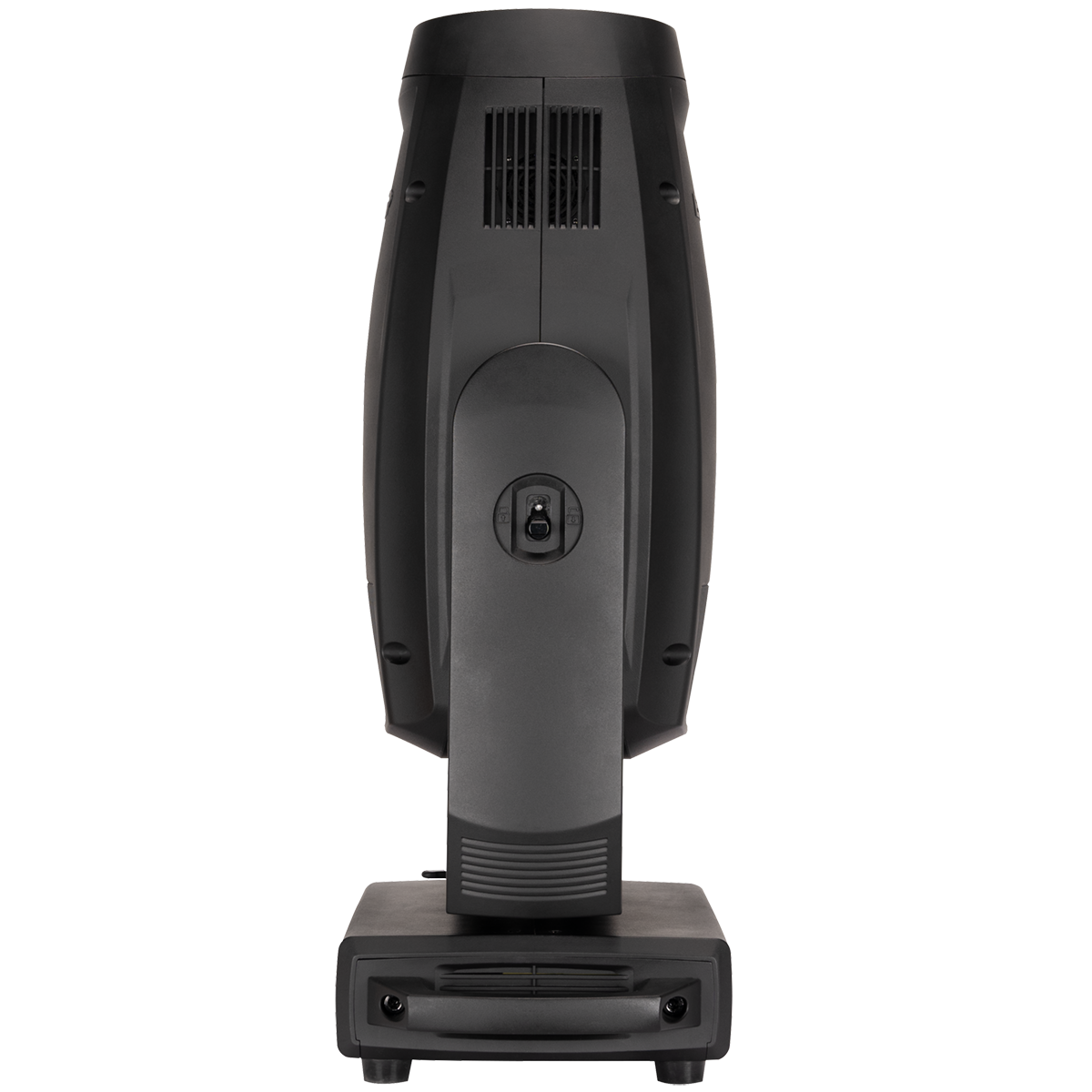

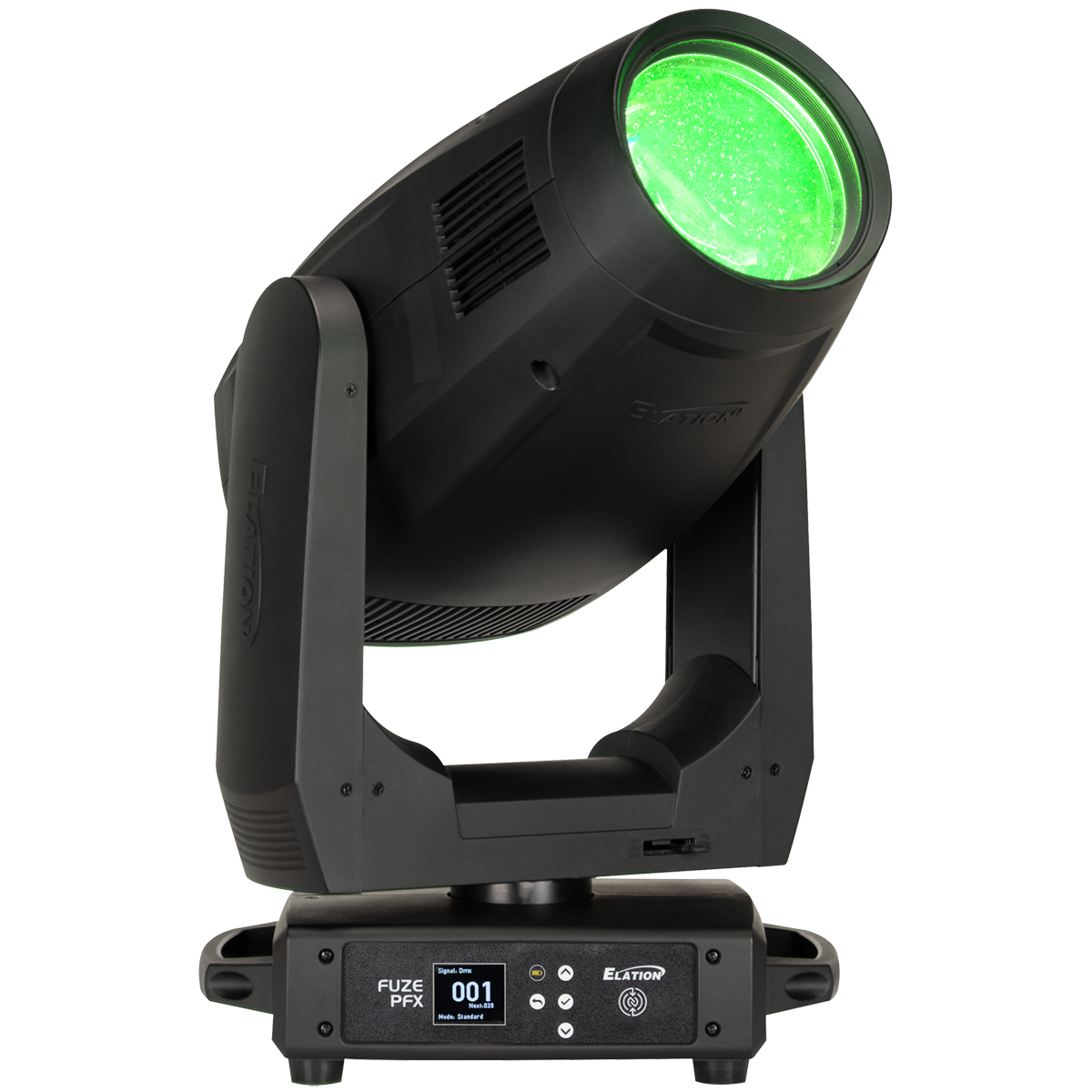

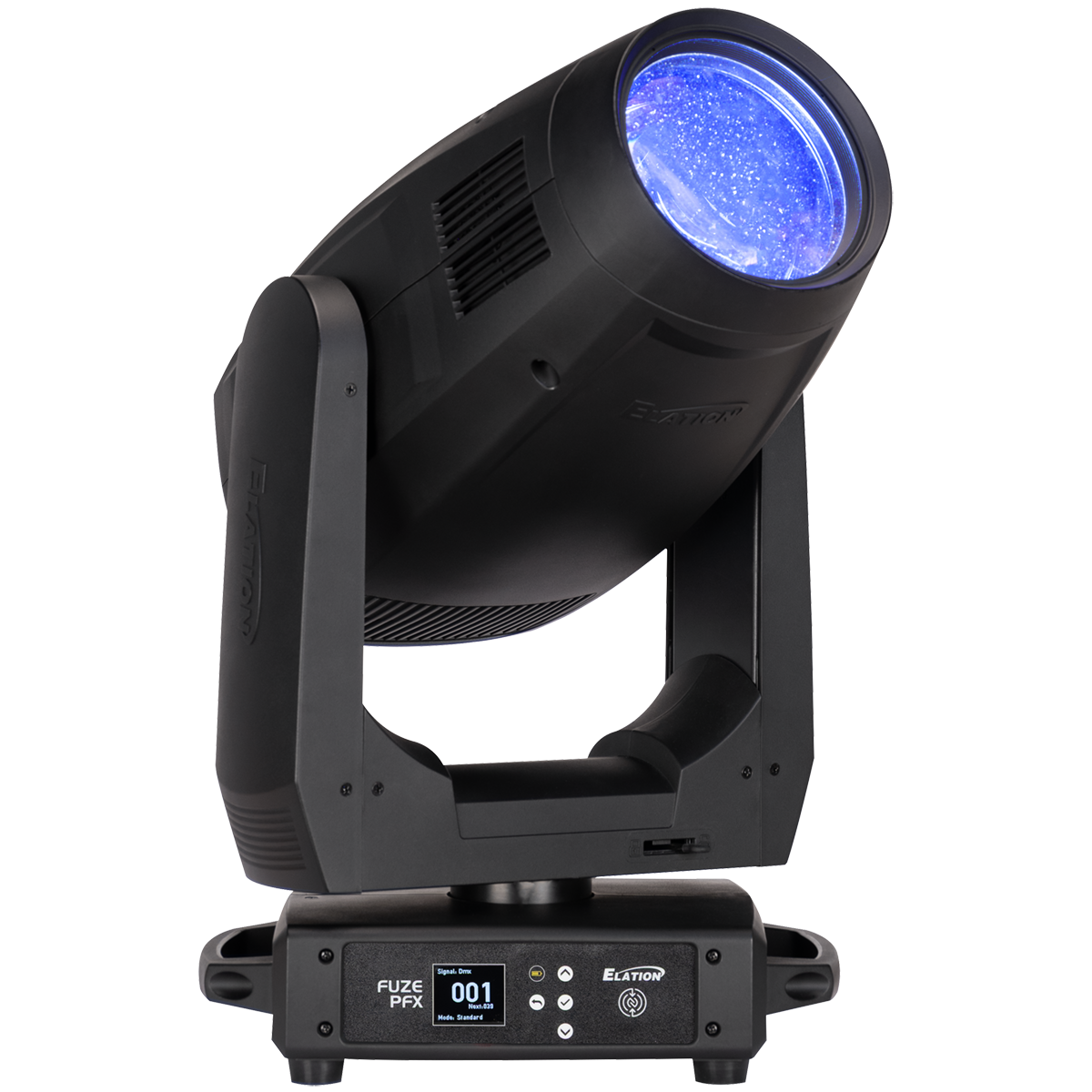

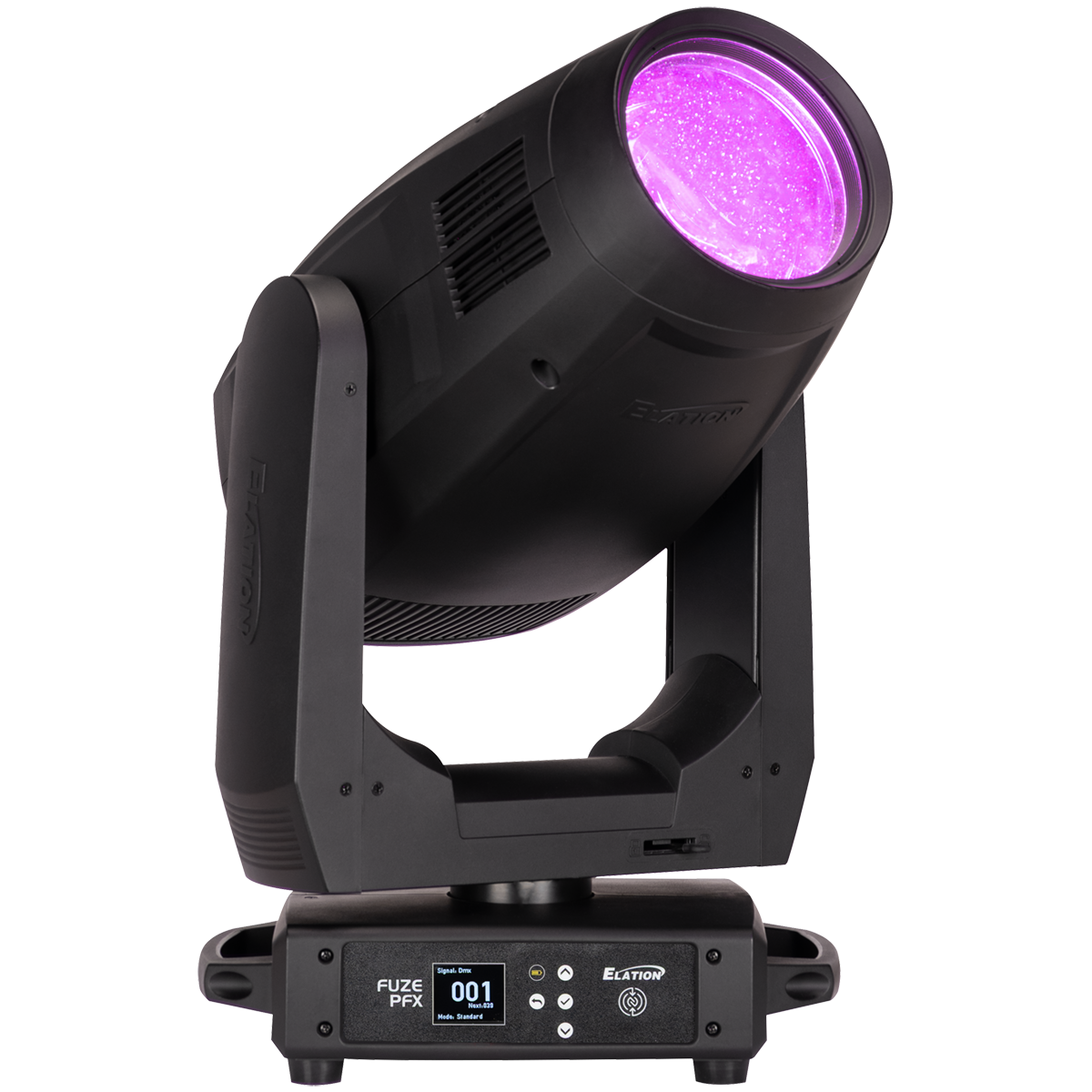

FUZE PFX
400W LED Profile FX Fixture with CMY
FUZE PFX is a professional-grade lighting solution. The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid air effect as well.
FUZE PFX
The FUZE PFX™ is a unique LED Framing FX fixture designed for a variety of applications requiring a compact and powerful multi-purpose luminaire. The PFX is capable of projecting tight beams, precise framing and wide washes using a highly efficient optical design while providing over 15000 lumens of output from its 400W white LED engine.
Housing 19 carefully designed gobos and a 3° to 53° zoom, the FUZE PFX can create stunning mid-air FX as easily as precise image projections. The PFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus color wheel. Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid air effect as well. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set.
A truly remarkable compact powerhouse for any application, the FUZE PFX is sure to create amazing effects, outstanding projections and beautiful bright washes on any stage.
- 400W LED 6,600K White LED Engine
- 15000 Total Lumen Fixture Output
- Framing and Effects Fixture
- Zoom Range from 3° to 53°
- Variable CMY, CTO and 8-Position Color Wheel
- Dual High CRI Filters
- 7 Rotating and 11 Fixed Gobos
- Dual Independent Prisms for Layering
- Motorized Iris
- Soft and Wash Frost Filters
Specifications
SOURCE
400W 6,600K Bright White LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
15000 Total Lumen Output
CRI 72 (Filter CRI 80, CRI 90)
Zoom Range 3° - 53°
Beam Angle
Field Angle
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/- 60° Framing Index
2 Variable Frost Filters (Light and Wash)
Dual Independent Prisms (6 Facet linear 6 Facet round)
Motorized Iris
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
Pan Angle: 540°
Tilt Angle: 270°
COLOR

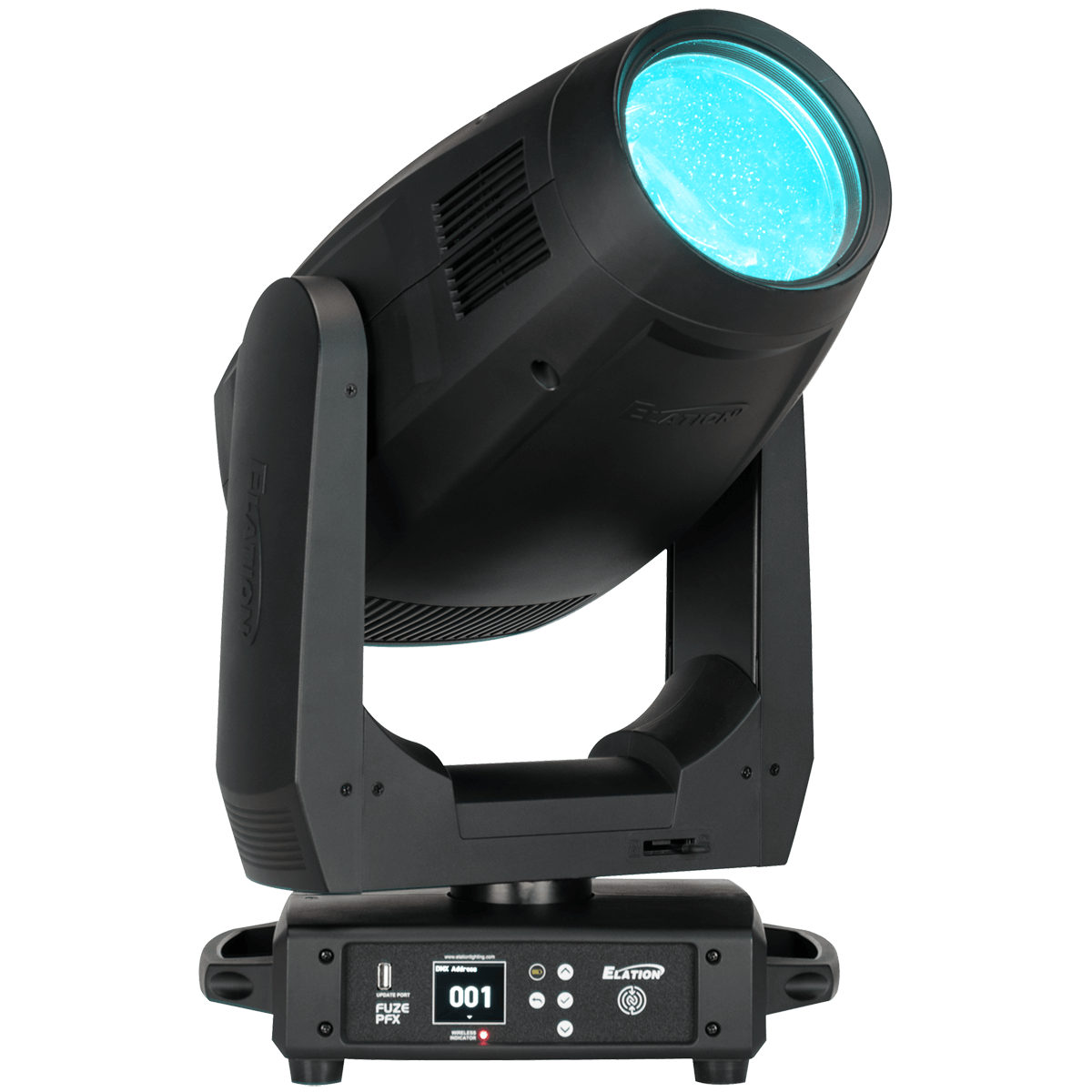

CMY Color Mixing
Linear CTO Color Correction
7 Dichroic Colors including UV Filter
High CRI Filter 80+90
GOBOS
7 Rotating / Indexing Interchangeable Glass Gobos
11 Static Metal Gobos
CONTROL / CONNECTIONS
DMX Channels
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, Art-Net, sACN Protocol Support
RDM (Remote Device Management)
Aria x2 Wireless Device Management

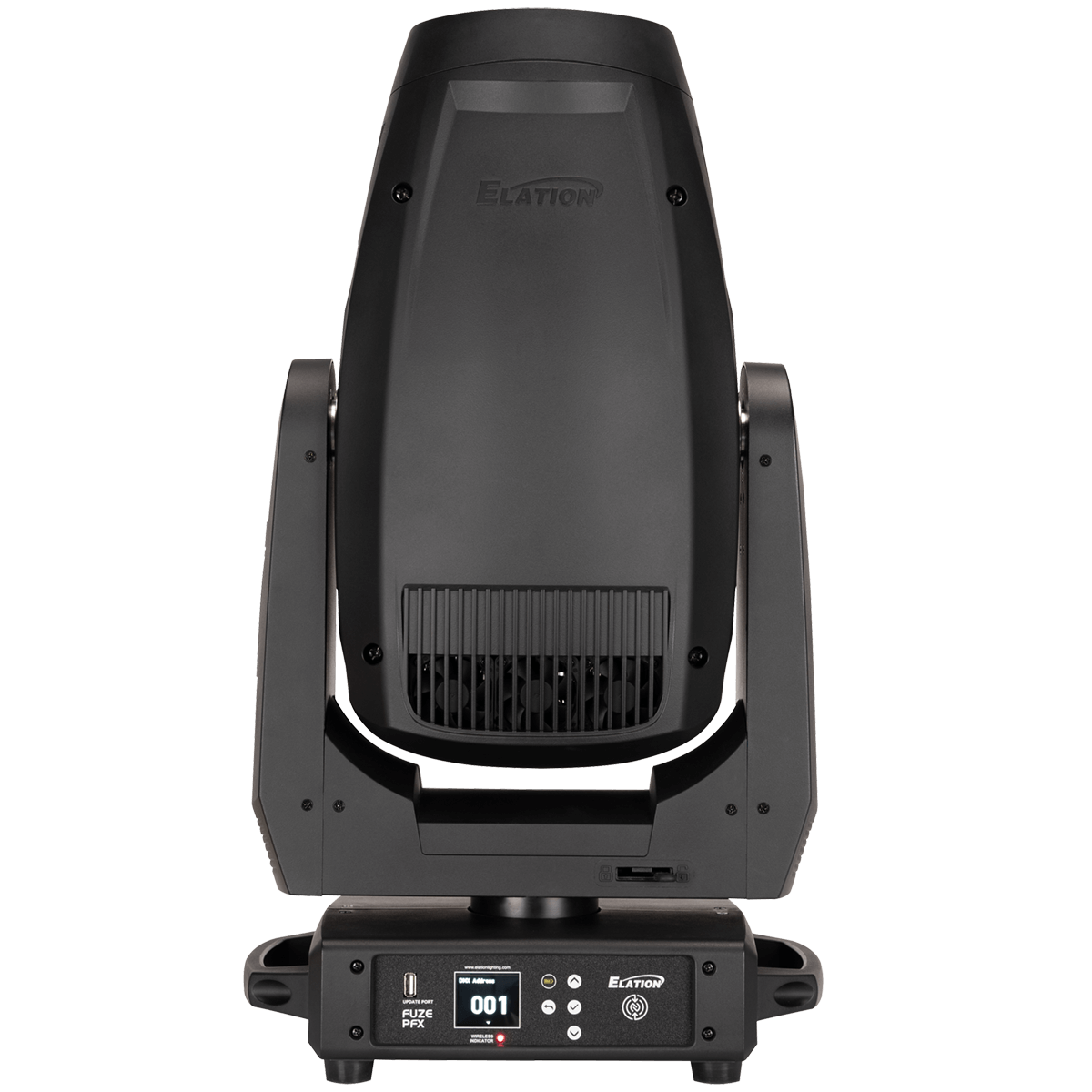

4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

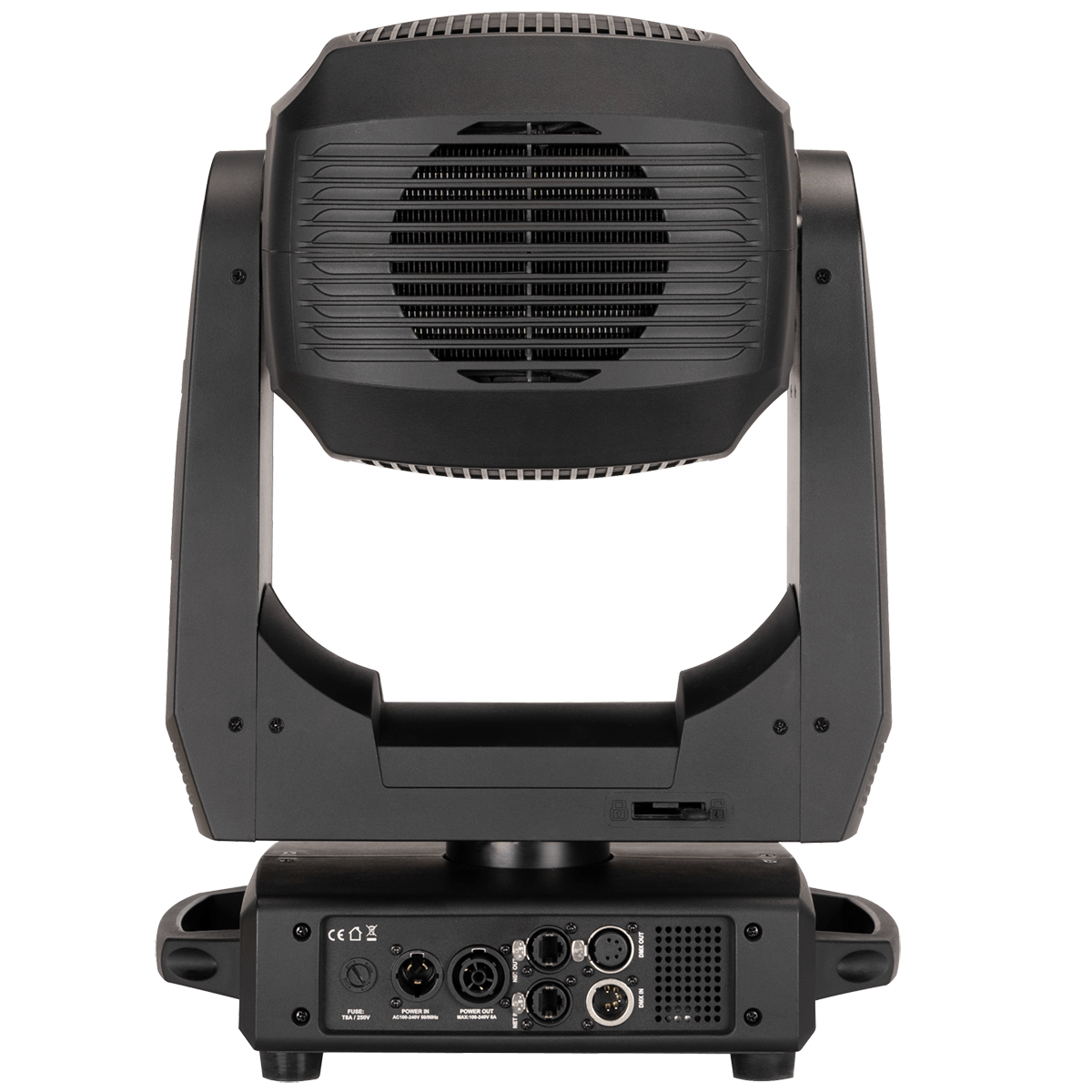

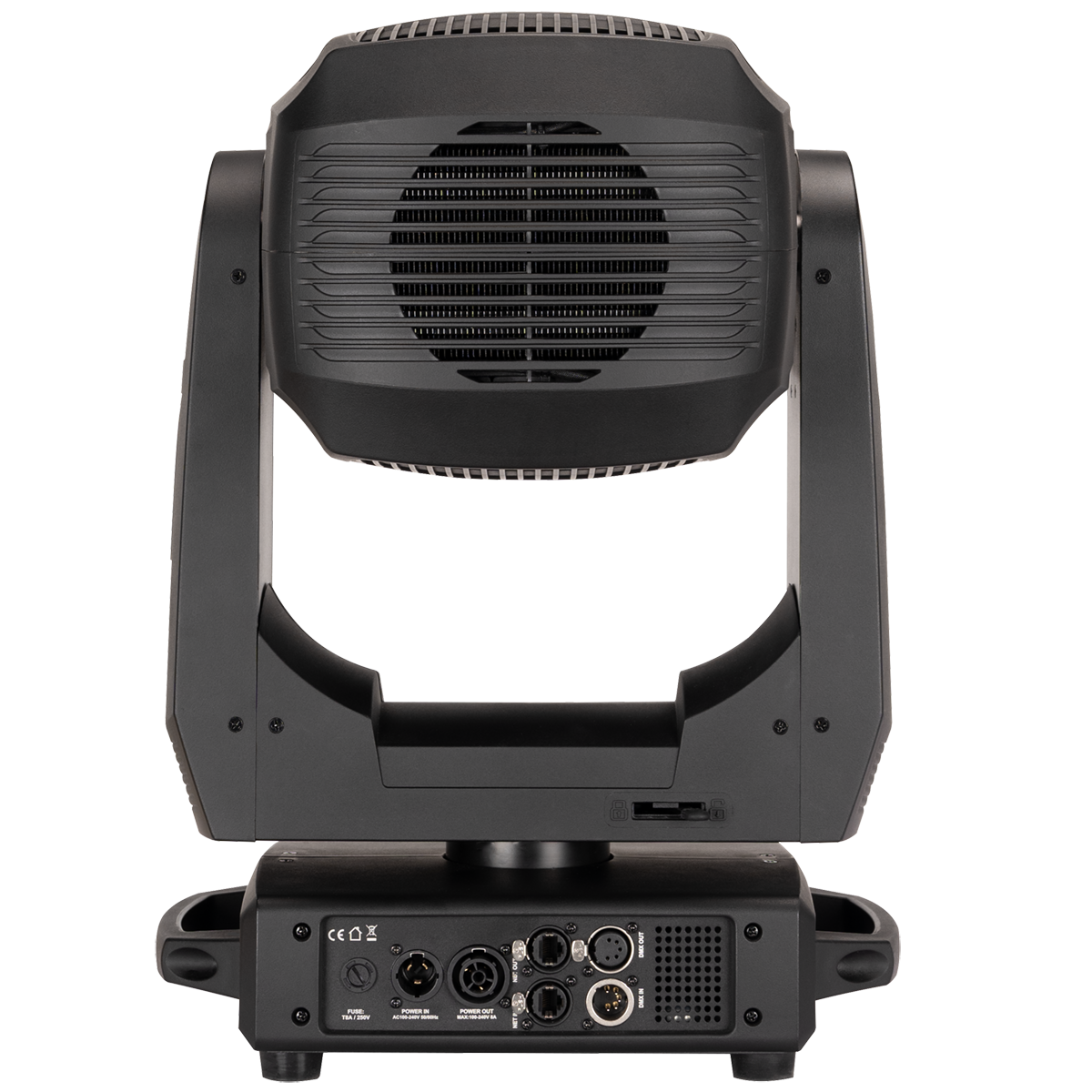

Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In/Out
USB Connection (Firmware Updates)
SIZE / WEIGHT
Length: 14.3” (362mm)
Width: 9.2" (233mm)
Vertical Height: 25.14" (637mm)
Weight: 50 lbs. (22.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
600W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2047
APPROVALS / RATINGS
CE | cETLus | FCC | UKCA | IP20
Specifications and documentation subject to change without notice.
