Discontinued

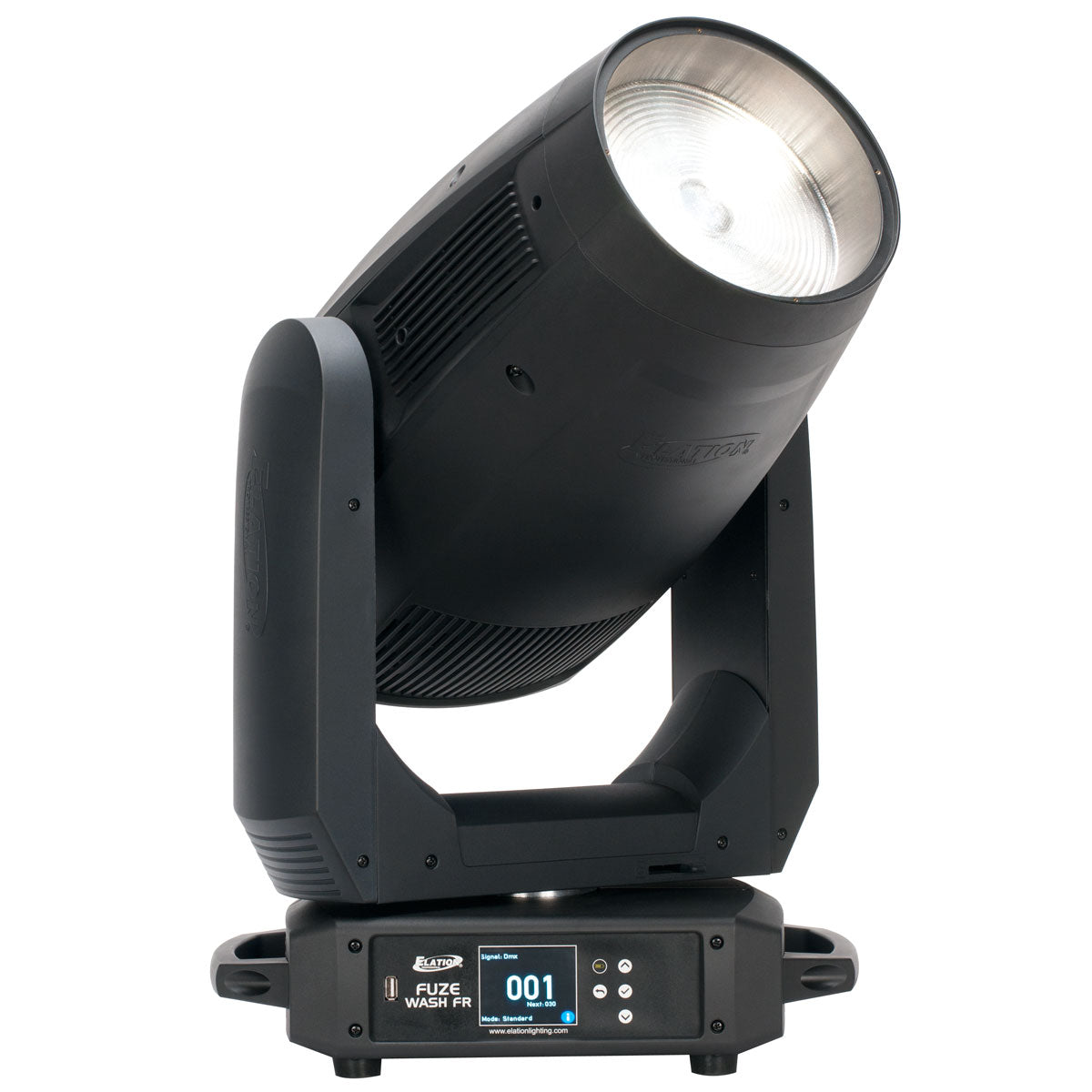

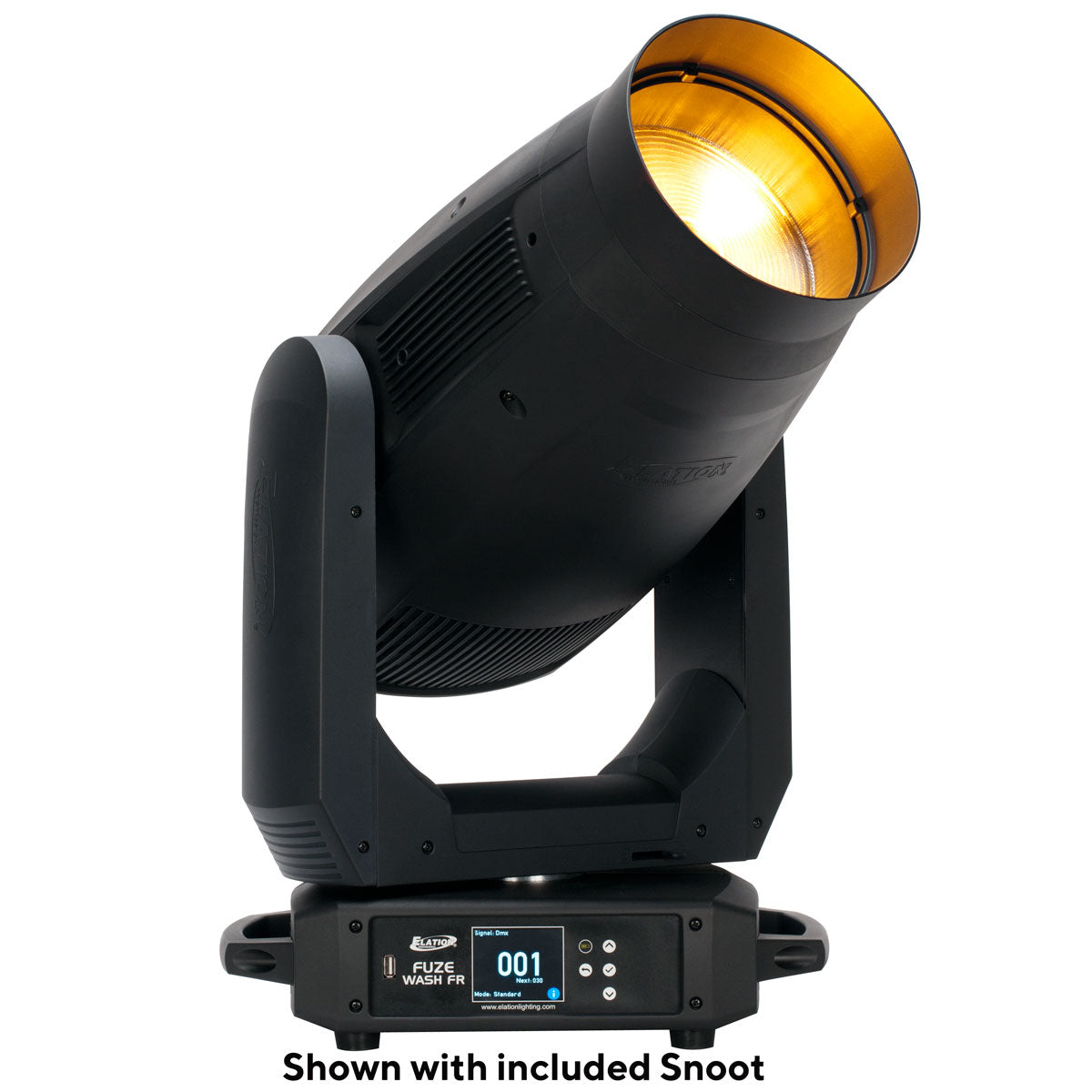

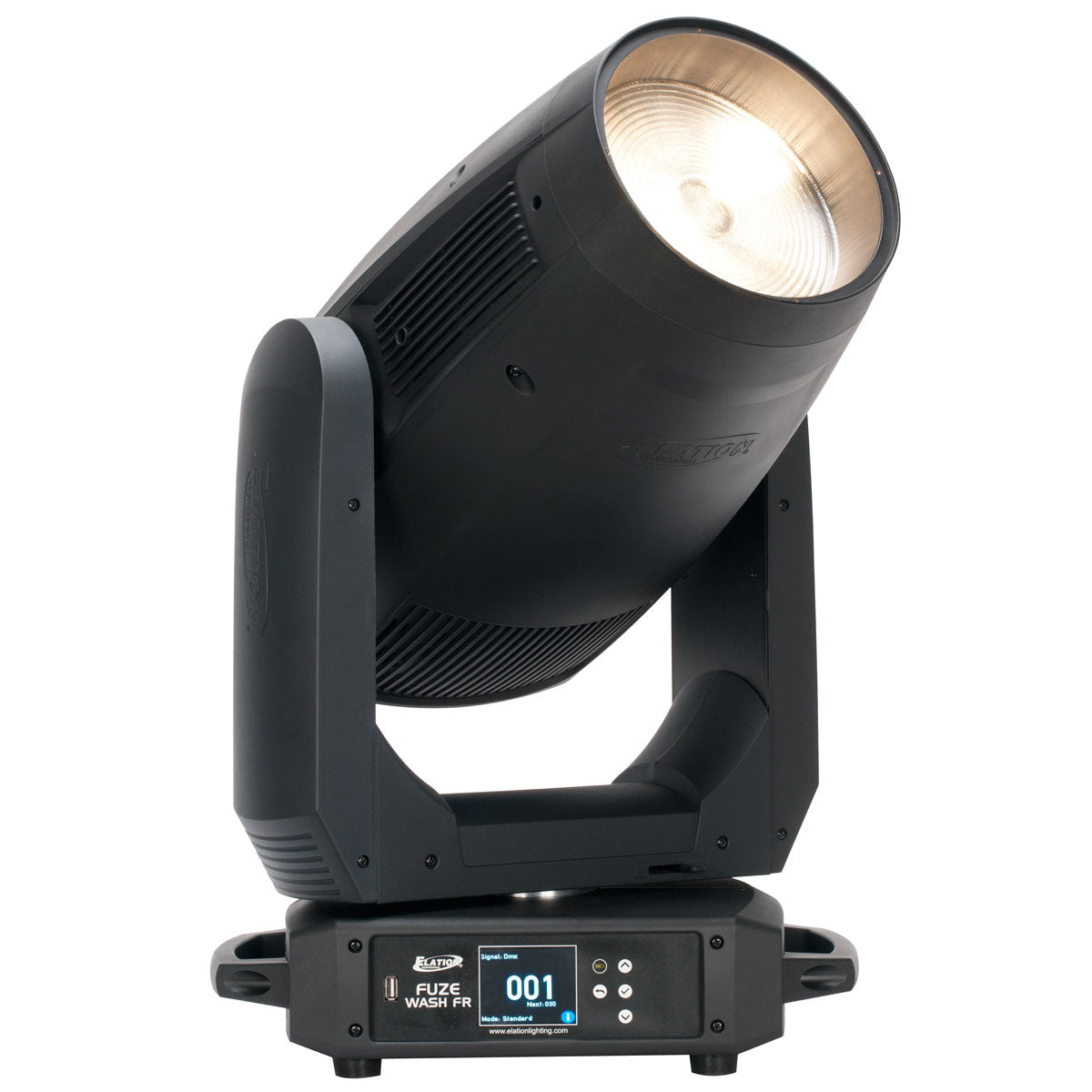

480W Full Spectrum RGBMA LED Framing Wash Fixture

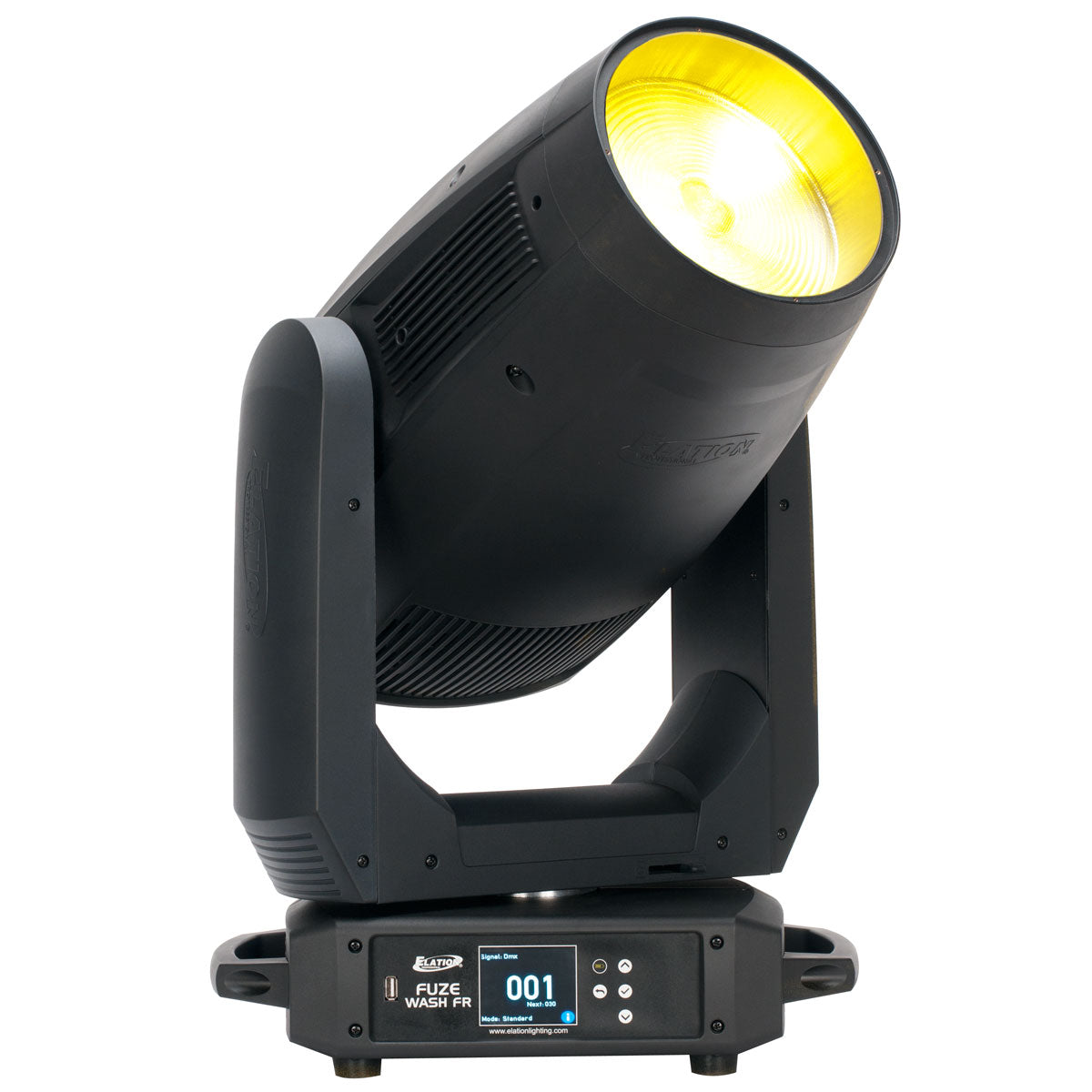

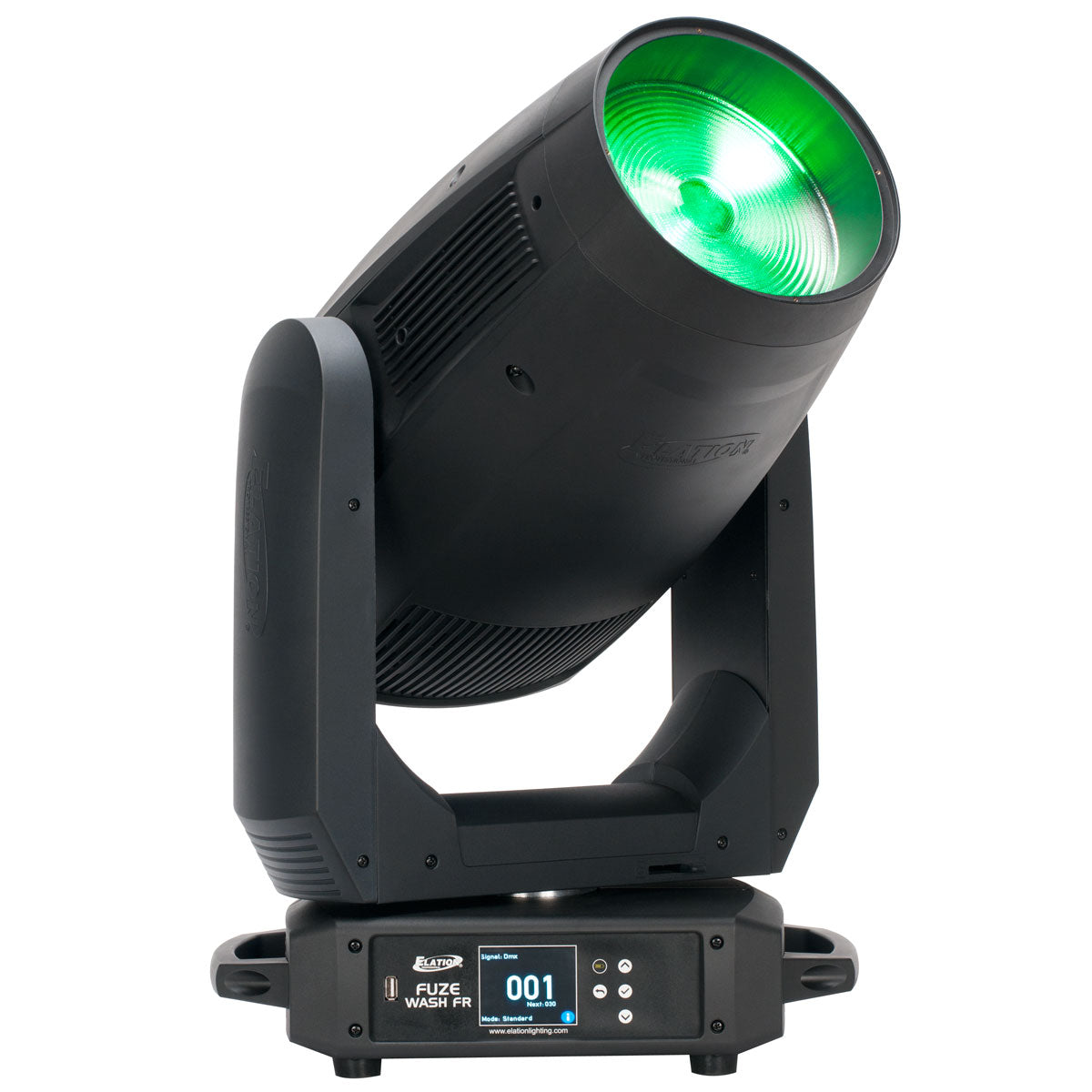

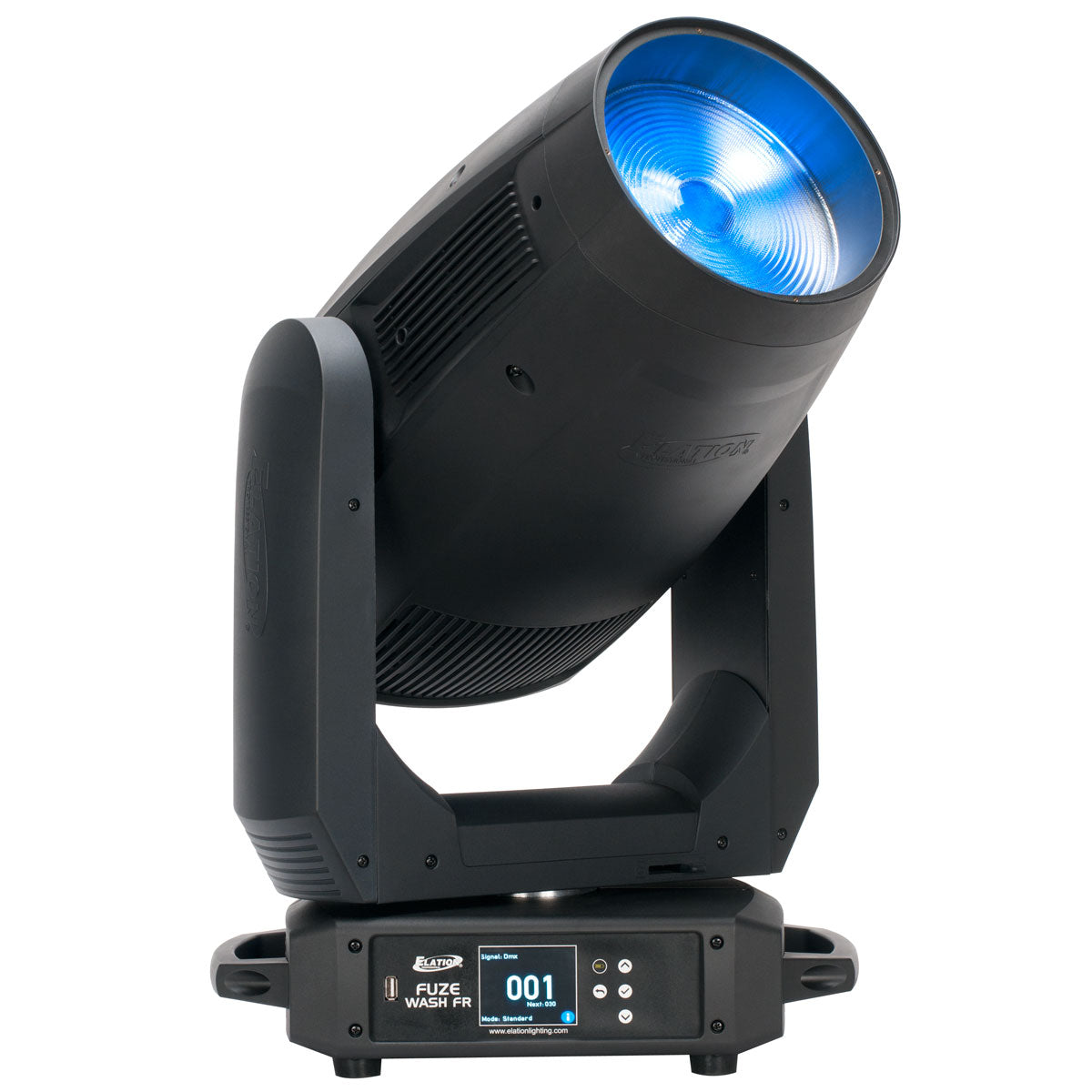

FUZE WASH FR is a professional-grade lighting solution. The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required.

UPC: 810008261477SKU: FUZ501

Related Products

FUZE SPOTFUZE SPOT
FUZE SPOT
FUZE PROFILEFUZE PROFILE
FUZE PROFILE

FUZE WASH FR

The FUZE WASH FR™ is an automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 15,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array. The FUZE WASH FR is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and framing beam control with a soft field is required. 480W Full Spectrum RGBMA LED Engine Up to 15,000 Total Lumen Fixture Output @ 6500K CRI up to 92 Internal 4-Blade Framing Module Variable Frost and Iris for advanced beam control Wide Zoom Range from 9° to 60° Variable 16-bit Dimming Curve Modes CMY Emulation Virtual Color Correction Green/Magenta Shift Virtual Gel Swatch Book.

Specifications

SOURCE

480W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine

30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

15,000 Total Lumen Fixture Output

CRI 92

Zoom Range 9° - 60°

Beam Angle 8.2° - 50.3°

Field Angle 13° - 62.4°


EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades, +/- 60 Index

Variable Frost Filter

Iris

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

Pan Angle: 540° / 630°

Tilt Angle: 270°


COLOR

RGBMA Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book


CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 29 / 47) (CMY 27 / 43)

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency

DMX, RDM Protocol Support

4 Button Touch Control Panel

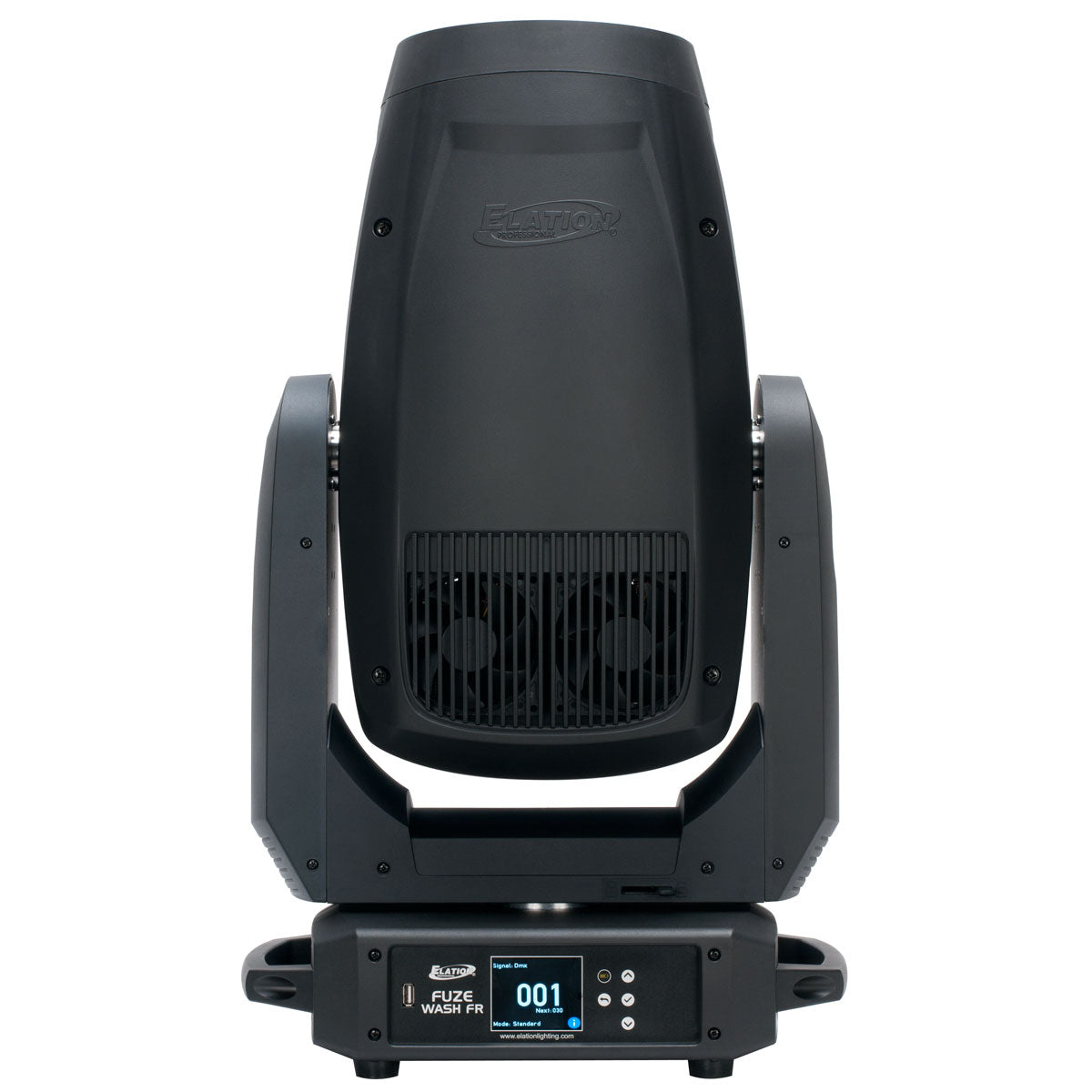

Full Color 180° Reversible LCD Menu Display

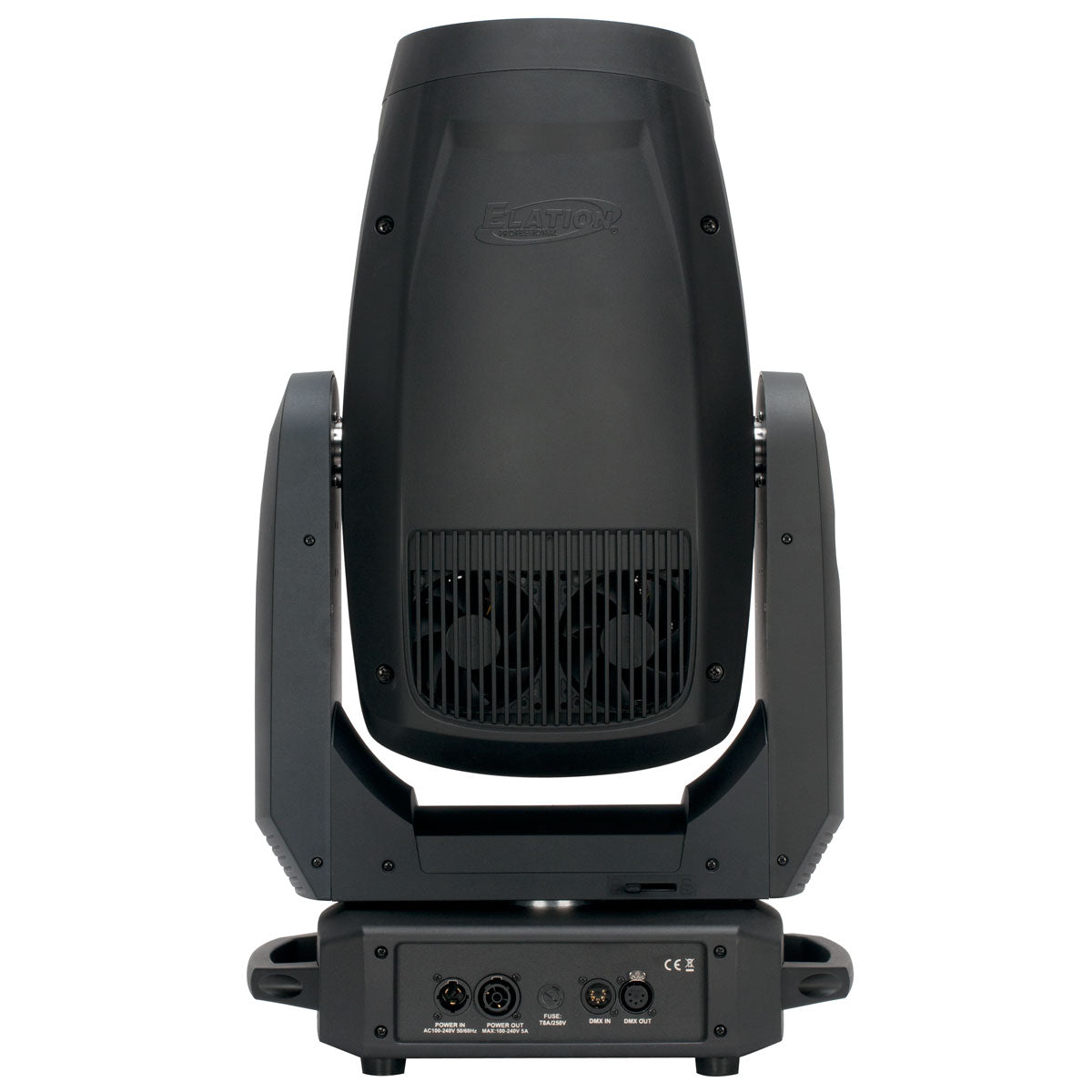

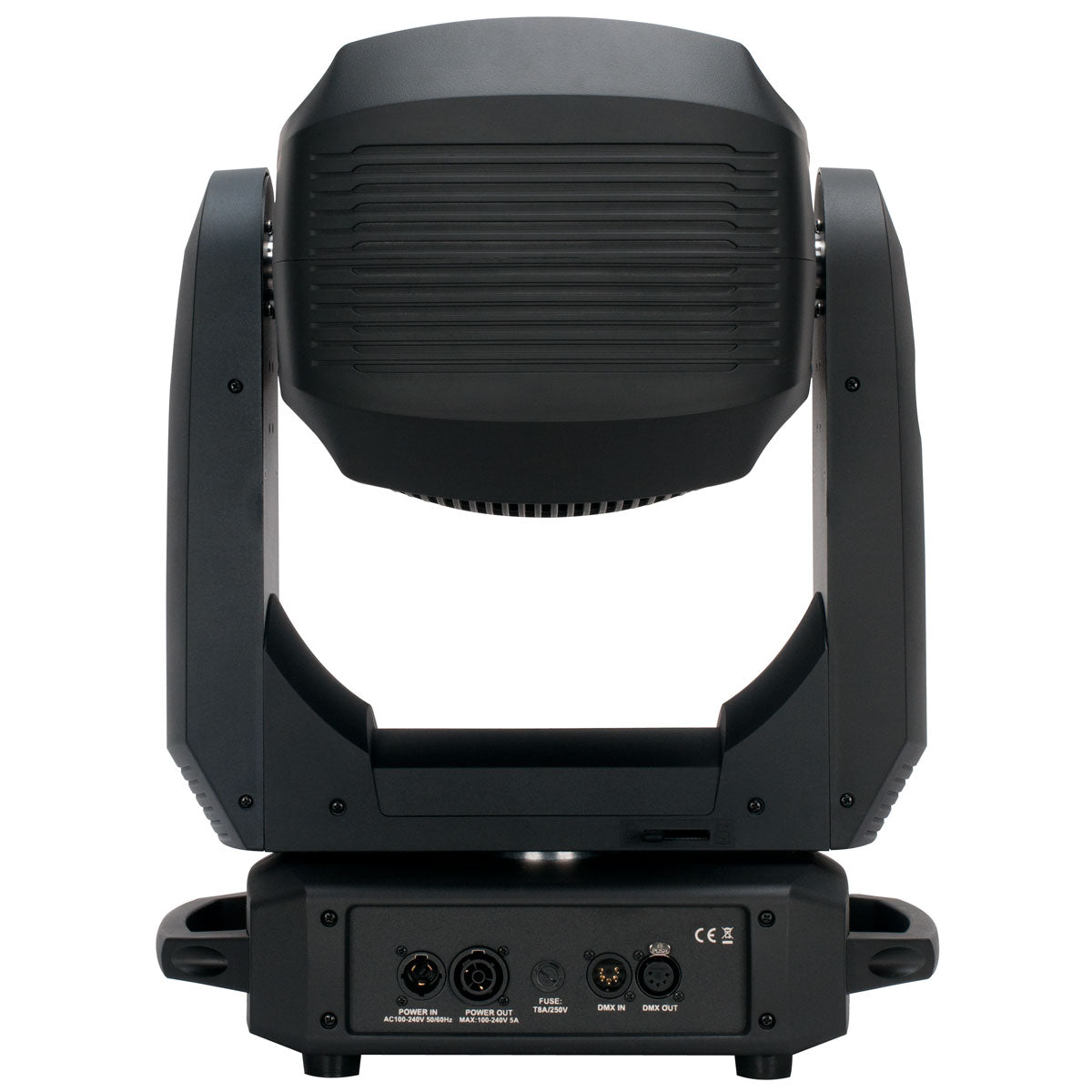

Locking 5pin XLR Connector In/Out

Locking IP65 Power Connector Power In/Out

USB Connection (Firmware Updates)

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 16.06" (408mm)

Width: 10.08" (256mm)

Vertical Height: 26.74" (679mm)

Center-to-Center: 25.0" (635.3mm)

Weight: 62 lbs. (28.1kg)


ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

Max Power Consumption 631W

14°F to 113°F (-10°C to 45°C)

BTU/hr (+/- 10%) 2151.71


APPROVALS / RATINGS

CE | cETLus | IP20


FIRMWARE UPDATES

Current Version: V1.0.9

Click HERE for software update



Specifications and documentation subject to change without notice.
