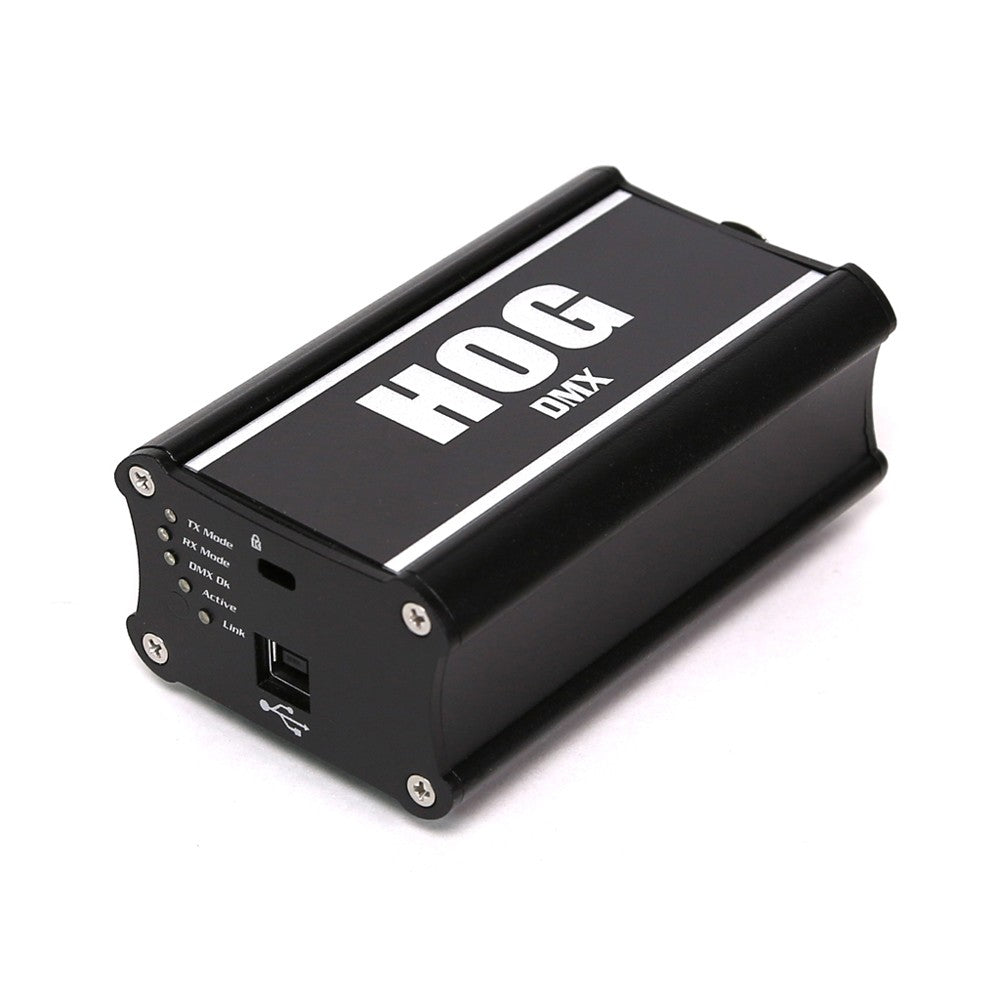

HOG 4 WIDGET

The Hog 4 Widget provides a single universe of DMX 512 output from any Hog 4 OS consoles and any Hog 4 PC. Packaged in a sleek, black metal package, up to 8 DMX Widgets may be connected at once via a USB Hub to provide 8 full universes of DMX 512 to the Hog 4, Full Boar 4 and Hog 4 PC, up to 4 DMX Widgets can be connected to the Road Hog 4 and HedgeHog 4X, and up to 2 can be connected to HedgeHog 4, 4S, and 4N. A USB cable is included. This configuration provides an excellent solution for backup and playback only applications. By adding Nano Hog 4, Playback Wing 4 and Master Wing 4, users can configure powerful control solutions that precisely suit their needs and budgets. For Hog 4 PC users, attaching 1 DMX Widget also unlocks 1 universe of DMX over Art-Net and E1.3.1 (sACN). Users can connect up to 8 total DMX Widgets to Hog 4 PC to unlock a total of 8 Art-Net and sACN universes.

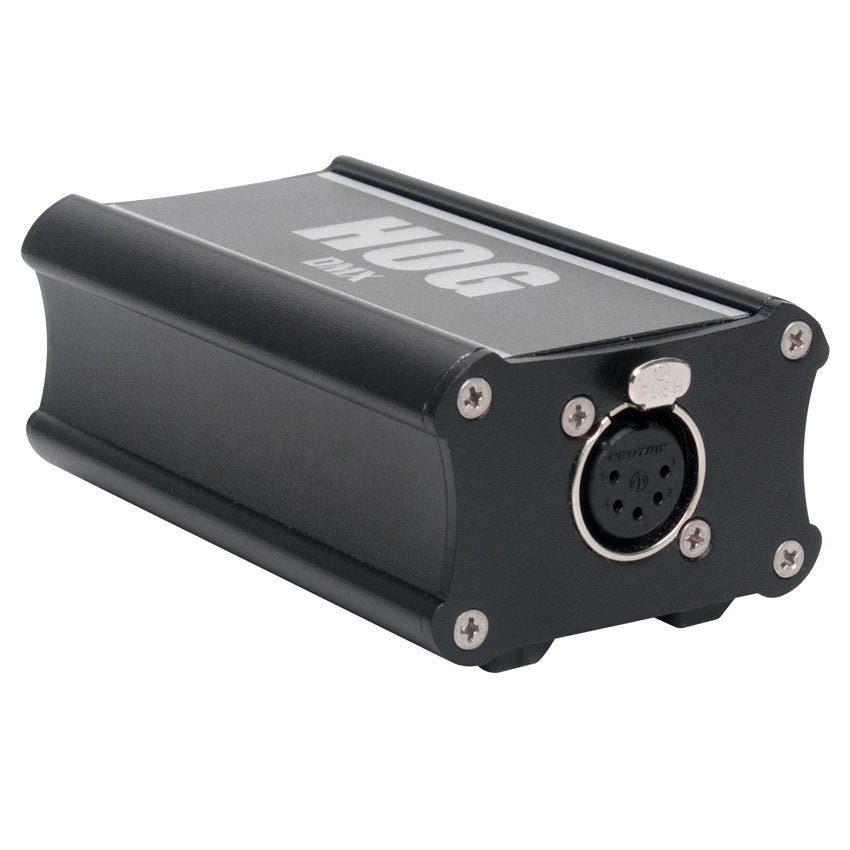

• Single DMX 512 Output On 5-pin XLR Connector
• 512 Channels Total Output Capacity

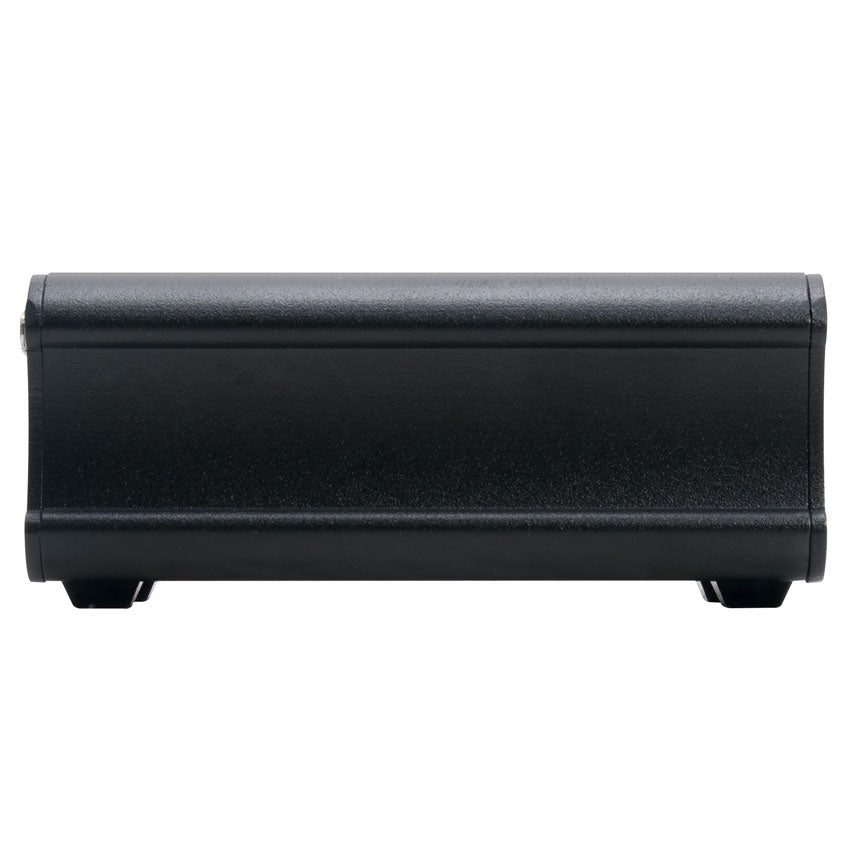

• Rugged, Sleek, Stackable Metal Package
• (5) Status LEDs (TX and RX Modes, DMX, Active, and Link)
• Kensington Security Slot
• USB-B Input | 5pin XLR Output

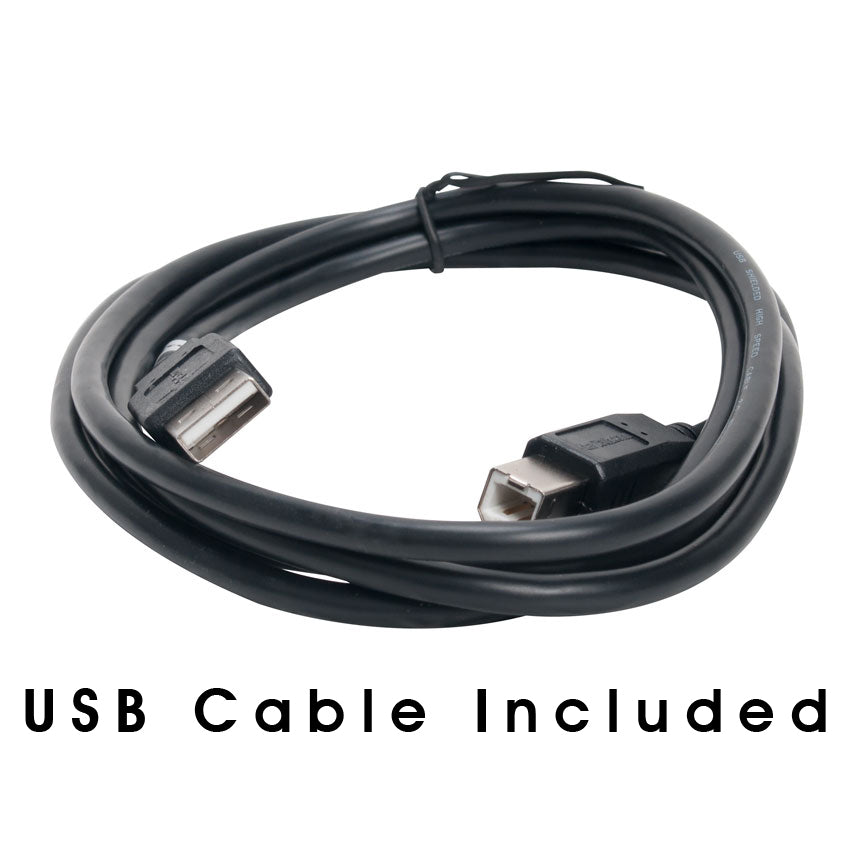

• USB Powered and USB Cable Included
