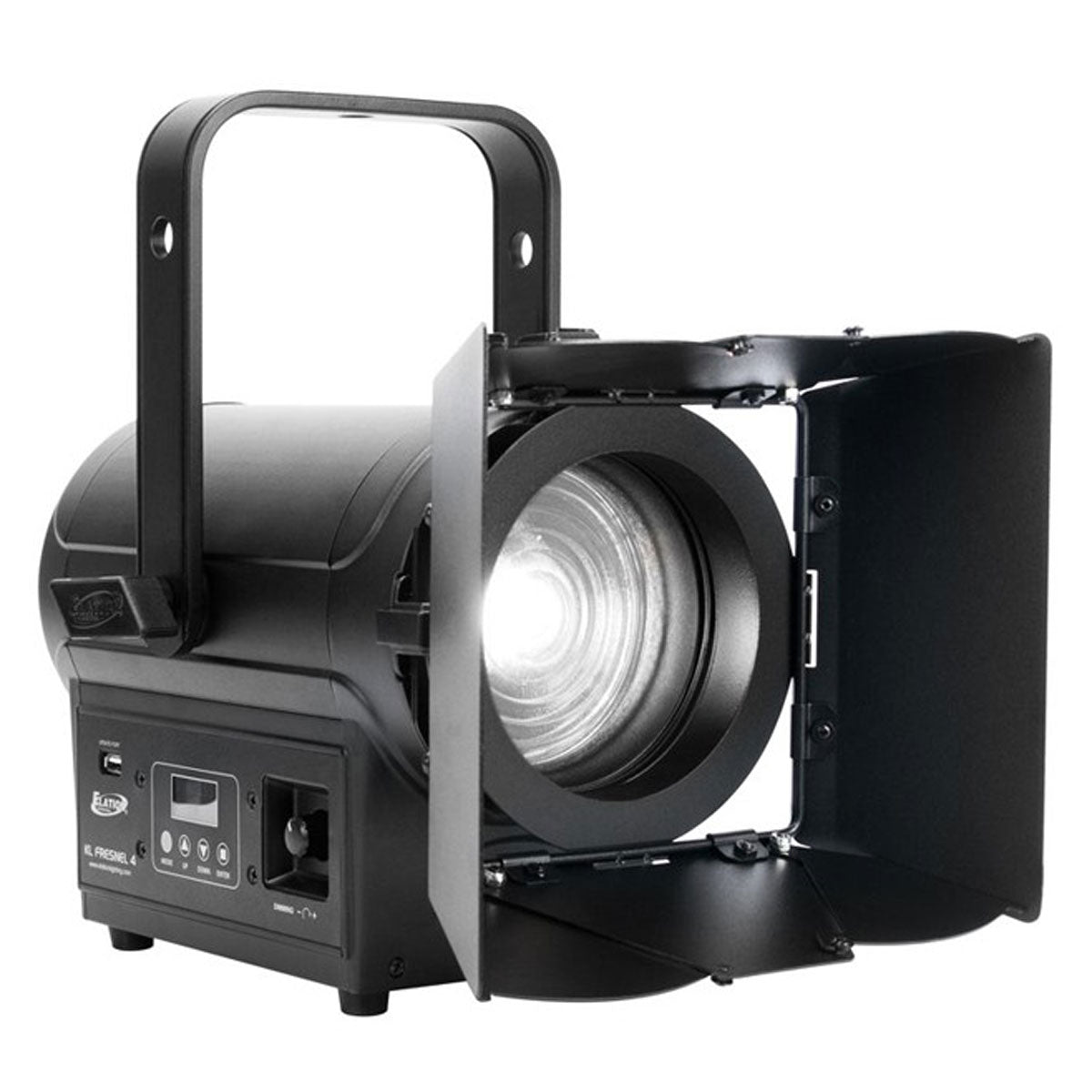

KL FRESNEL 4
50W Warm White LED 4" Fresnel with Zoom
KL FRESNEL 4 is a professional-grade lighting solution.
Related Products
KL FRESNEL 4

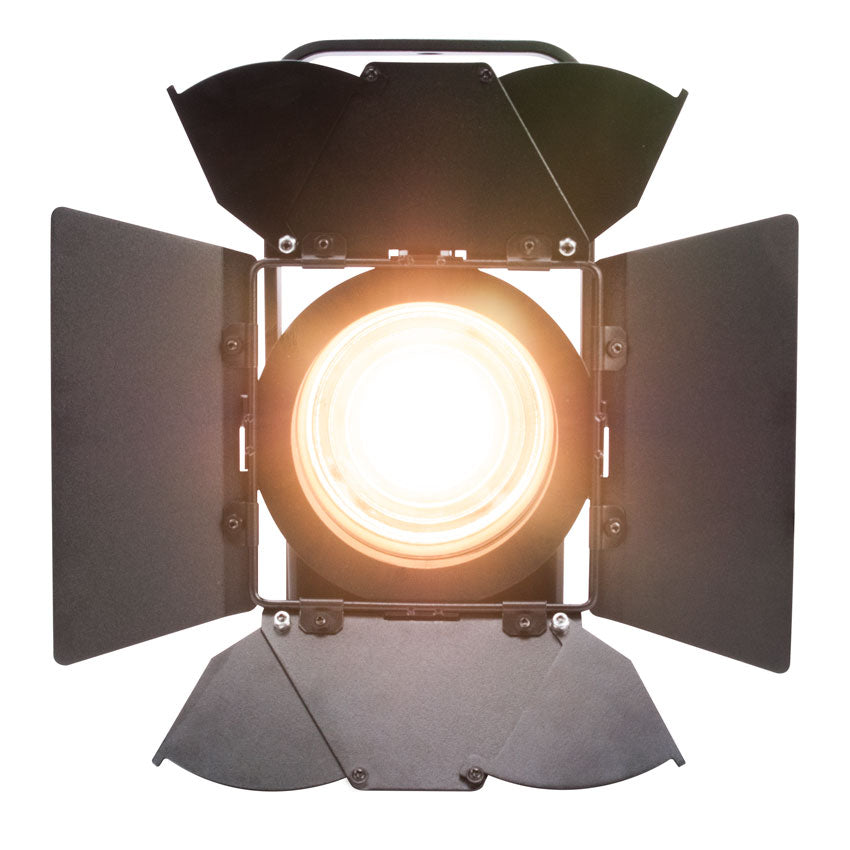

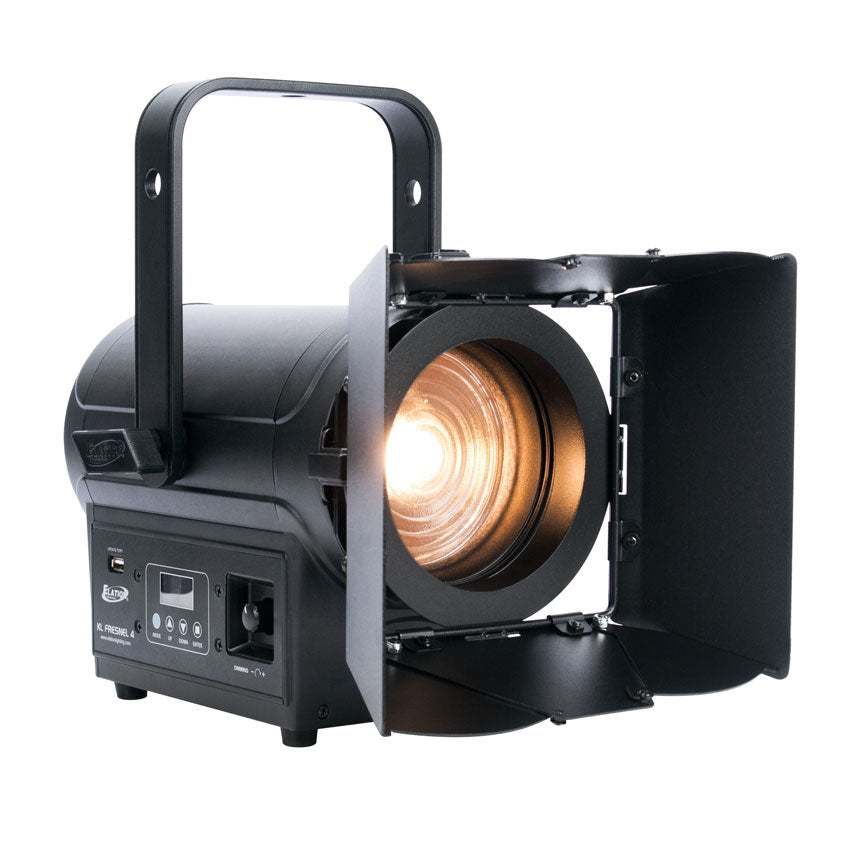

KL FRESNEL 4™ is a 50W 3,000K >97CRI Warm White LED fresnel, producing over 1,900 total lumen output, on par with compatible tungsten halogen models. Features include 14° to 30° wide manual zoom, manual and DMX controlled dimmer and shutter, rotary dimmer and zoom dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, RDM (remote device management) protocol support, 5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating barn doors (included), and a 3 clamp position adjustable mounting yoke.

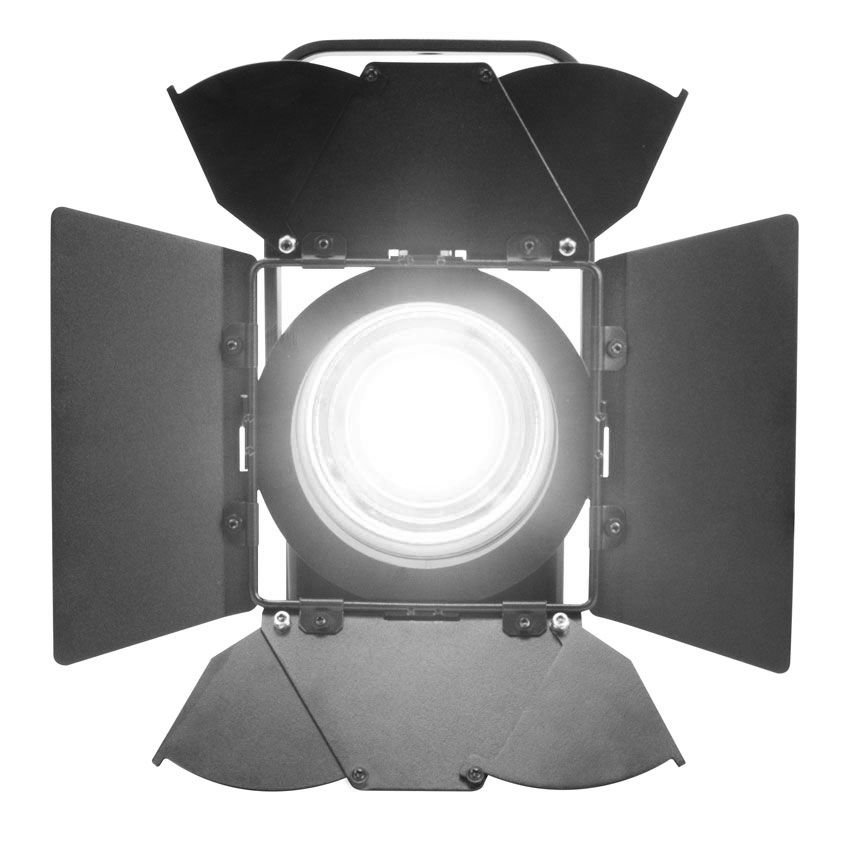

"Daylight Cool White LED version and pole operation version are available (4,6,8), ask your sales representative for details."
https://www.elationlighting.eu/kl-fresnel-4-cw
- 50W 3,000K >97CRI Warm White LED Engine
- 1,900+ Total Lumen Output
- On Par with Tungsten Halogen Models
- 14° to 30° Wide Manual Zoom
- Manual and DMX Control
- Rotary Dimmer Dial
- Smooth 16-bit Selectable Dimming Modes and Curves
- LED Refresh Rate Adjustment
- Flicker Free Operation for TV and FILM
- RDM (Remote Device Management)
- Gel Frame and Rotating Barn Doors (included)
- 3 Clamp Position Adjustable Mounting Yoke
Specifications
SOURCE
50W 97CRI 3,000K Warm White LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
1,900+ Total Lumen Output
6,837 LUX 635 FC @6.6’ (2m) (Min Zoom / Full ON)
1,791 LUX 166 FC @6.6’ (2m) (Max Zoom / Full ON)
Zoom Range 14° - 30°
Beam Angle 14.2° - 29.7°
Field Angle 23.2° - 48°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
Warm White 3,000K
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer Rotary Dial
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)

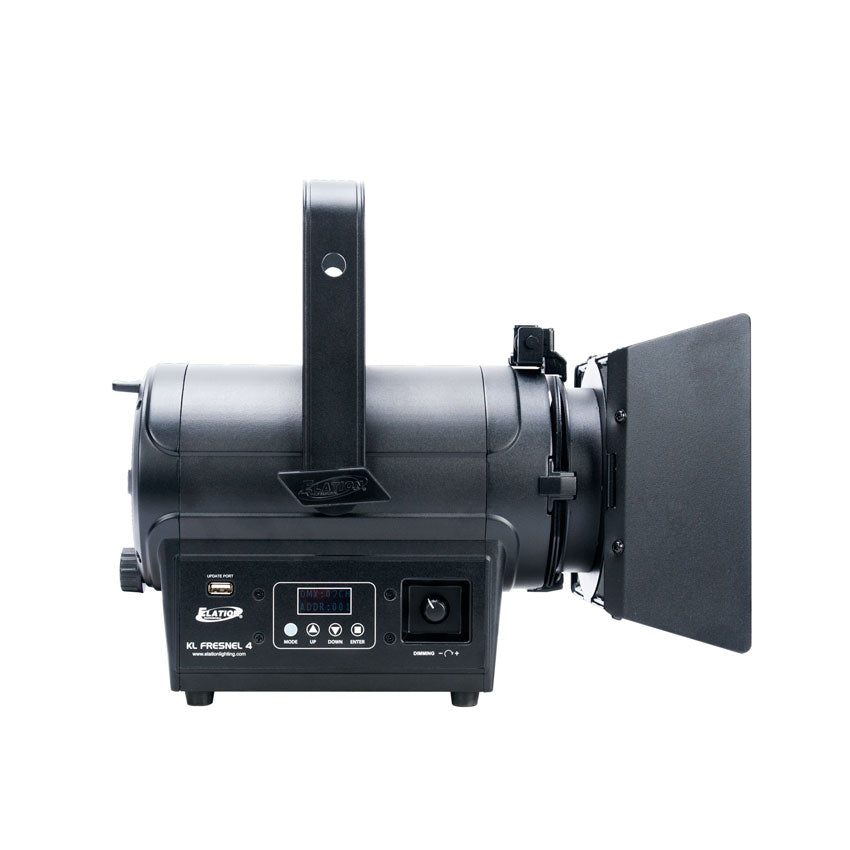

4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

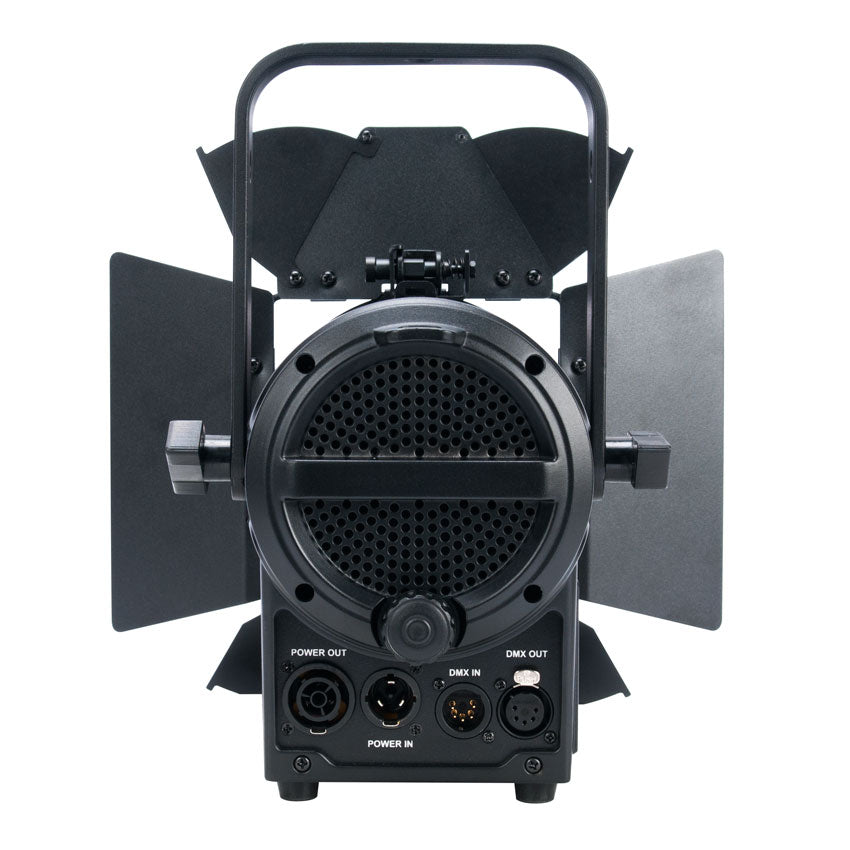

5pin DMX and IP65 Locking Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.6” (345mm)
Width: 7.9” (201mm)
Vertical Height: 11.4” (289mm)
Weight: 9.0 lbs. (4.08 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
50W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
Power Linking: 12Pcs @ 110V / 27Pcs @240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
IP65 Locking Power Cable
Barn Doors
APPROVALS / RATINGS
CE | cETLus | IP30
FIRMWARE UPDATES
Current Version: V1.09
Click HERE for software updates.
Specifications and documentation subject to change without notice.
