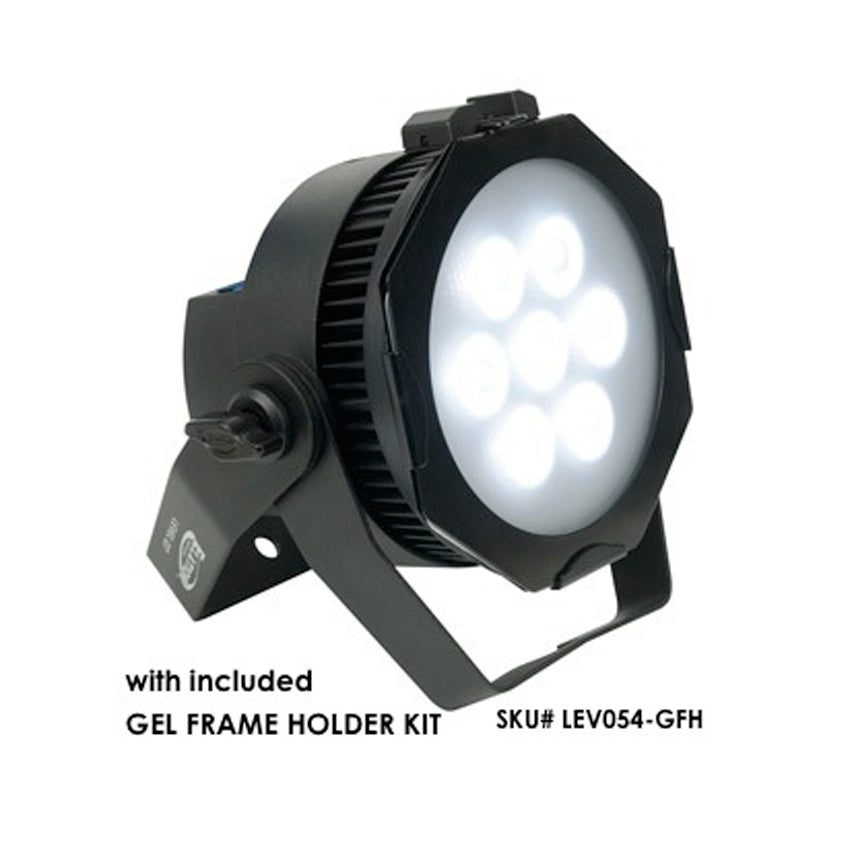

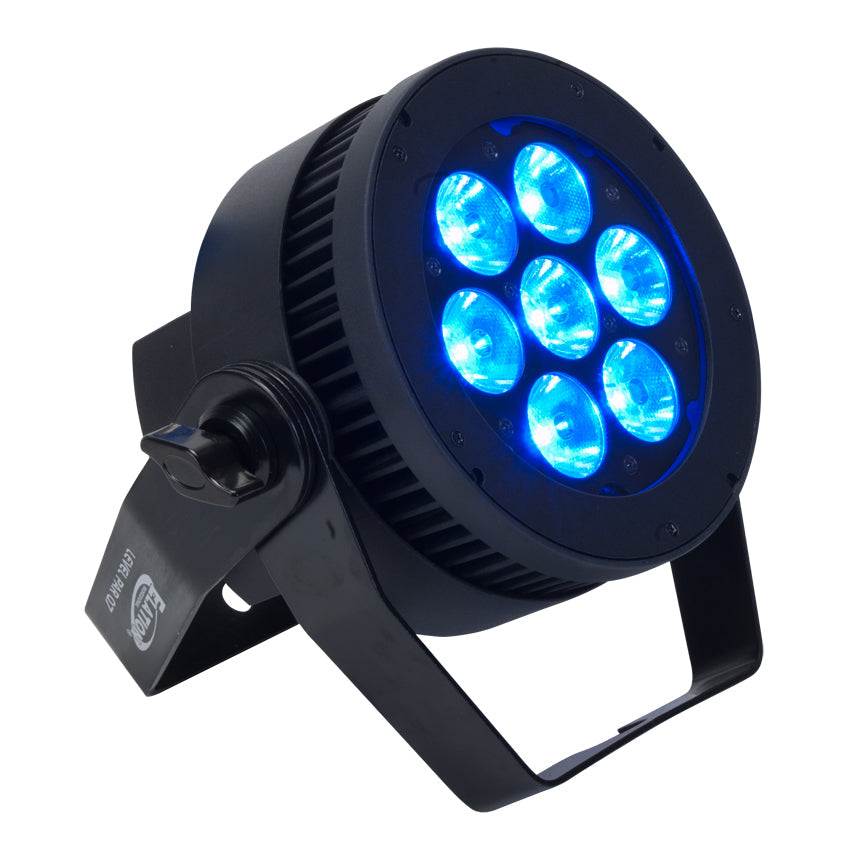

LEVEL Q7
Level Q7 is a professional-grade lighting solution. The Level Q7™ features (7) 15W QUAD color RGBW LEDs, 7° beam, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, a multi-voltage universal auto switching power supply (120-240v), and gel frame, gel frame holder, and filter gel included.
LEVEL Q7
The Level Q7™ features (7) 15W QUAD color RGBW LEDs, 7° beam, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, a multi-voltage universal auto switching power supply (120-240v), and gel frame, gel frame holder, and filter gel included.
- 7° Beam
- 2,700K - 7,200K Color Correction
- Flicker Free Operation for TV and FILM
- Rugged Die-Cast Aluminum Exterior
- Rubber Padded Base with Dual Yoke / Floor Stand
- Multiple Unit Power Linking
- Gel Frame, Gel Frame Holder, and Filter Gel Included
Specifications
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3636 LUX 388 FC @16.4’ (5M)
EFFECTS
Electronic Strobe and Varying Settings
Color and Chase Macros
Electronic Dimming: 0% - 100%
CONTROL / CONNECTIONS
(5) DMX Channel Modes (4 / 5 / 7 / 12 / 17)

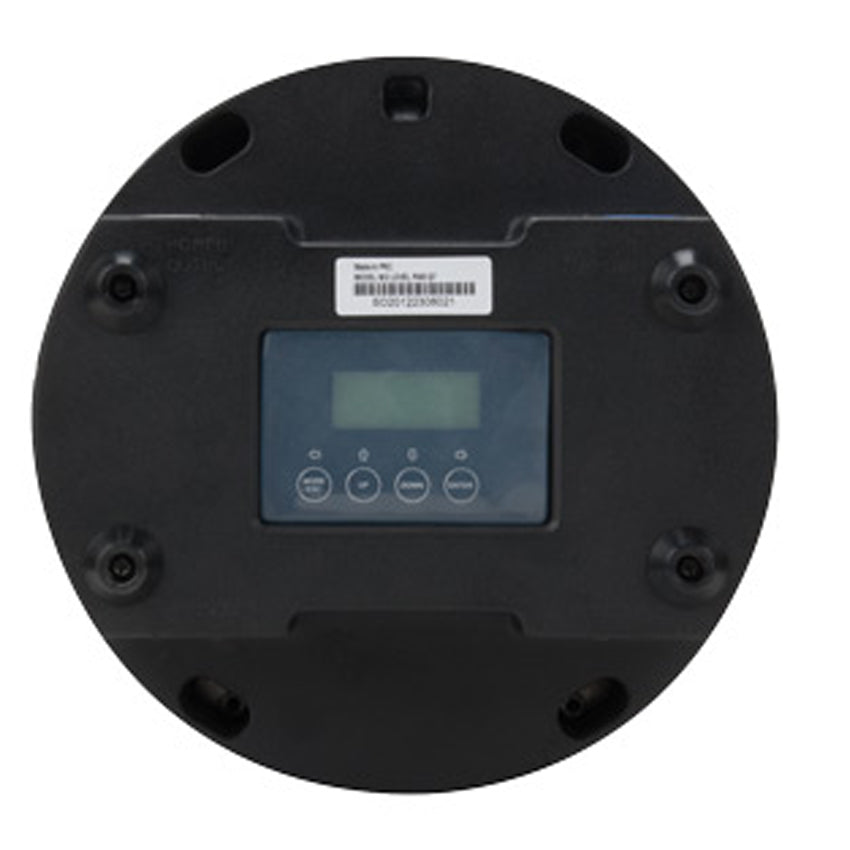

(4) Button Control Panel
LCD Menu Display

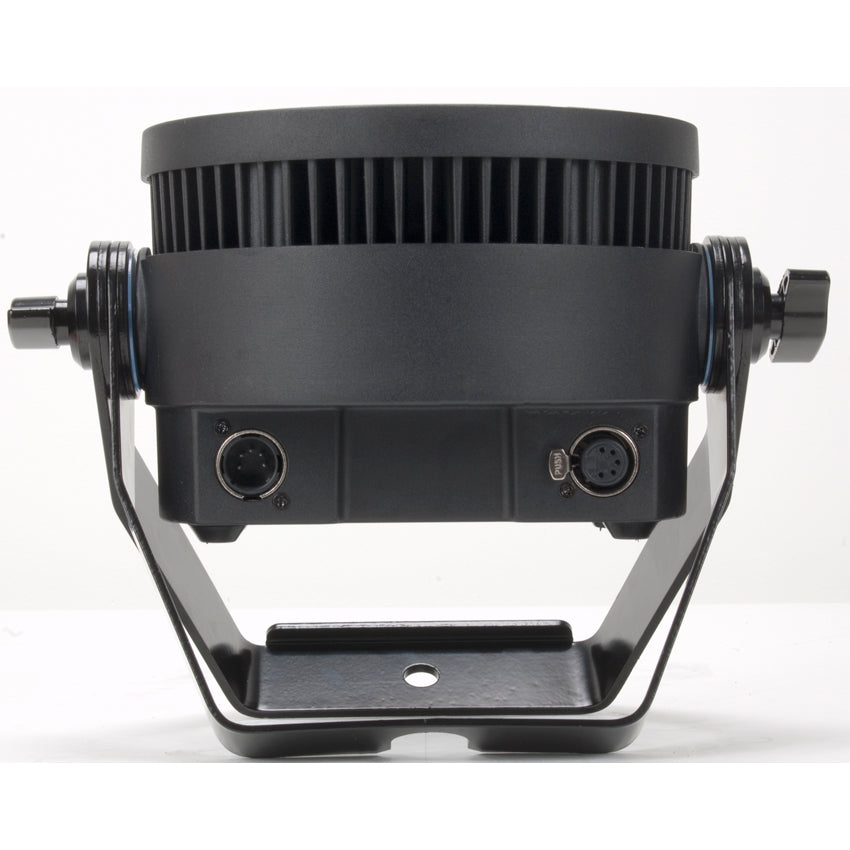

5pin DMX In/Out

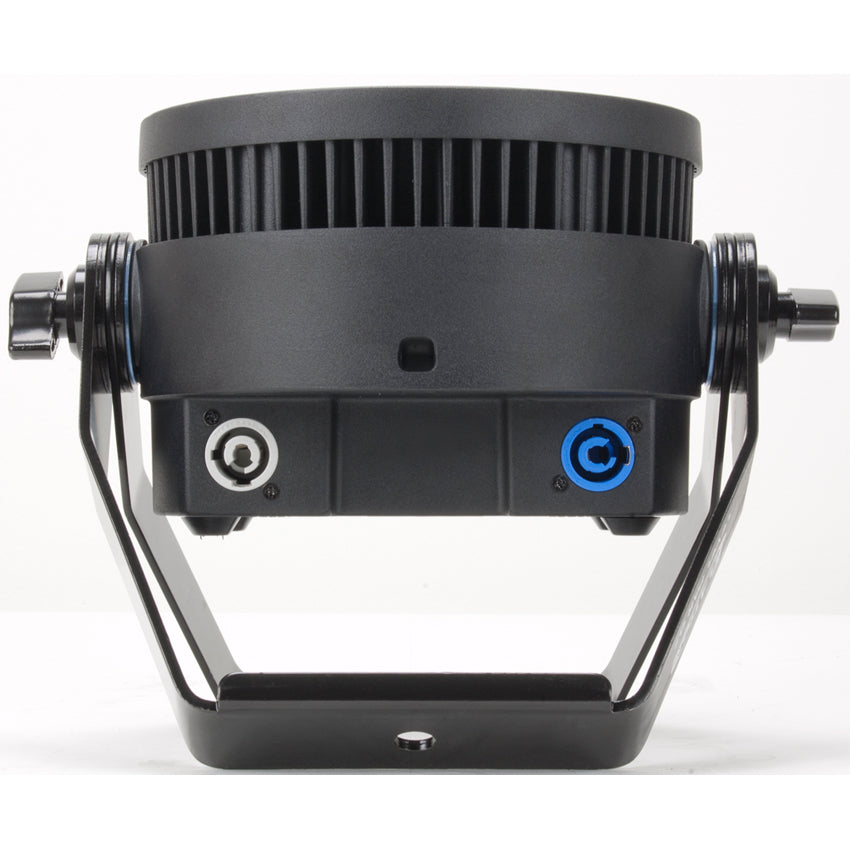

powerCON In/Out
SIZE / WEIGHT
Length: 11.0” (278.6mm)
Width: 5.5” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 9.0 lbs. (4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:
LEV054-GFH
Gel Frame Holder Kit (7.88” Slot Holder, Gel Frame, and (4) Screws)
LEV054-GFH-S4
Source 4 Accessory Holder (7.50” Slot Holder and (4) Screws)
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Dmx traits
Ies files
Photometrics
Specification sheet
User manual
Vectorworks symbol
LEVEL Q7 Parts & Service
Our LEVEL Q7 Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your LEVEL Q7. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
