LSF FILTERS

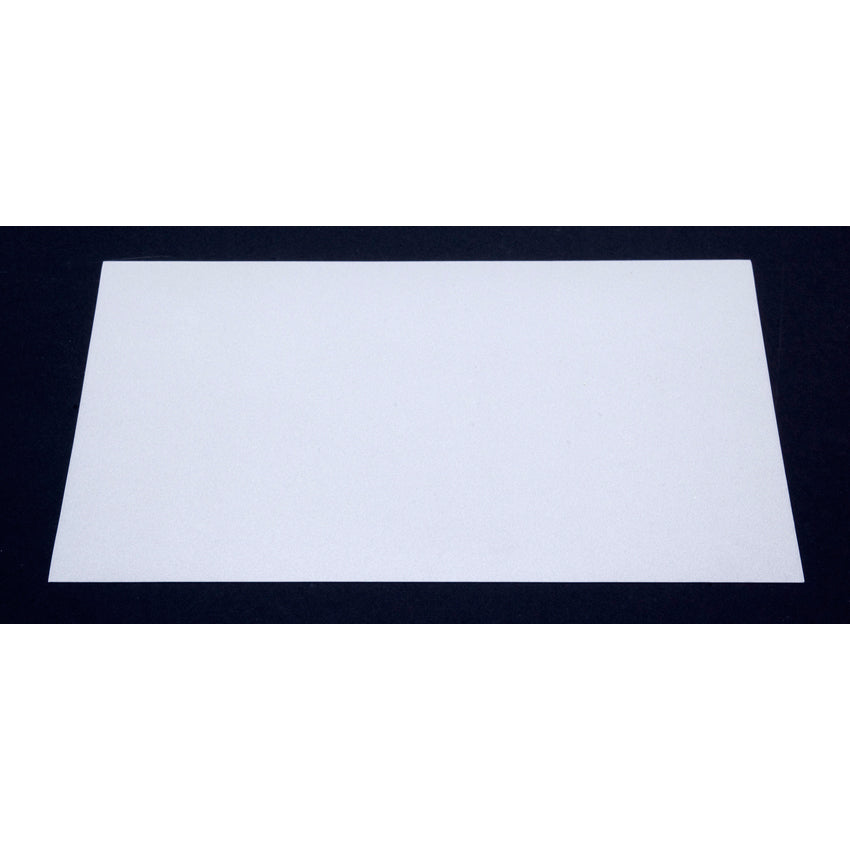

LSF Series Light Shaping Filters from Elation are easy-to-use polycarbonate sheets, which can be cut to size to fit over most LED fixtures. LSF filters transmit up to 92% of the light, shaping it to the desired effect and improving the field of color. Smooth or widen out an LED Panel or Par fixture, or transform an LED Par into a wall washer. Each LSF Filter sheets can produce multiple individual filters, making them very cost effective.

• Effective Angular Output (source angle + LSF angle)
• Temperature Range: 30°C to 100°C @240 hrs or -40°C to 500°C
• Humidity: >95% ±5% RH @24 hrs
• Transmission Efficiency Circular:
• 0.2° to 20° = 90%, 20° to 80° = 85% / Elliptical: = 85%
• Transmission 400nm to 1600nm
• Spectral Range or 200nm to 1500nm
• Brightness Uniformity = 85%
