Lumina Strip
Discontinued
Lumina Strip is a professional-grade lighting solution.
Lumina Strip
Sale price$0.00
Lumina Strip

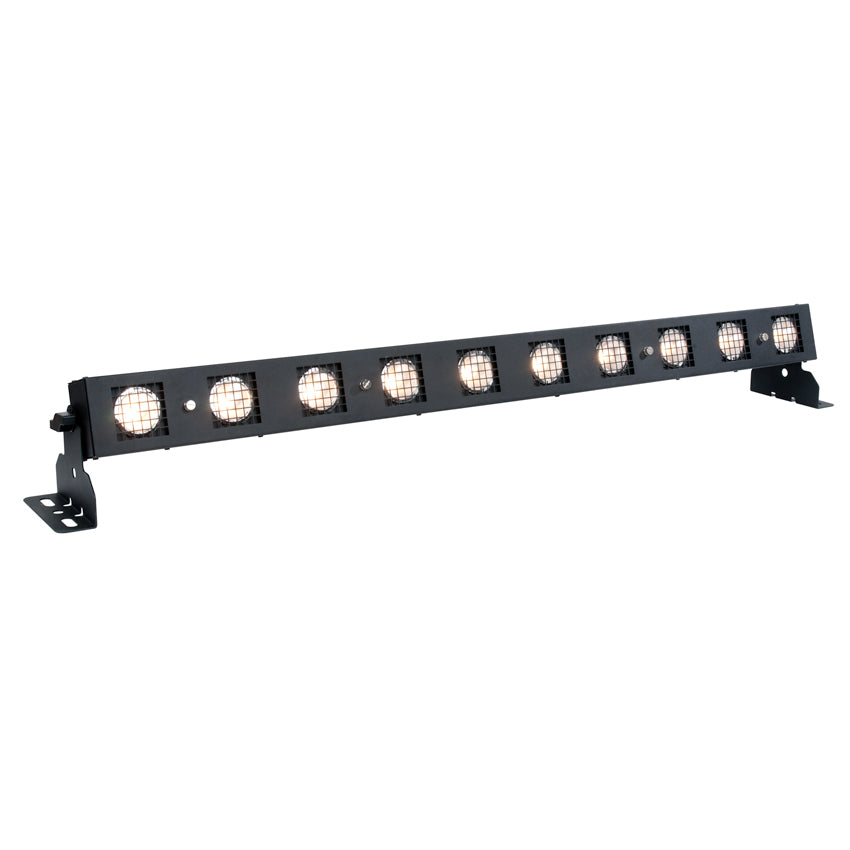

The Lumina Strip™ features (10) 7W Warm White (2,700K) <80 CRI LEDs packaged in perfectly aligned halogen looking reflectors, 15° beam producing a smooth wash or blinder effect, electronic 16bit dimming (0-100%), variable dimming curves, individual pixel control (1-10), chase macros with variable speed and fade control, flicker free operation for TV and FILM, integrated dual yoke / floor stand, multiple unit power linking, 90W max power consumption, remote device management protocol support, and a multi-voltage universal auto switching power supply (120-240v).
15° Beam Producing a Smooth Wash or Blinder Effect
Electronic 16bit Dimming (0-100%)
Variable Dimming Curves
Individual Pixel Control (1-10)
Flicker Free Operation for TV and FILM
Integrated Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM (Remote Device Management)
15° Beam Producing a Smooth Wash or Blinder Effect
Electronic 16bit Dimming (0-100%)
Variable Dimming Curves
Individual Pixel Control (1-10)
Flicker Free Operation for TV and FILM
Integrated Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM (Remote Device Management)
Specifications
SOURCE
(10) 7W Warm White (2,700K) <80 CRI LEDs
PHOTOMETRIC DATA
20,334 LUX (1,889 FC) @ 3.3’ (1m) (FULL ON)
5,084 LUX (472 FC) @ 6.6’ (2m) (FULL ON)
2,259 LUX (210 FC) @ 9.8’ (3m) (FULL ON)
1,271 LUX (118 FC) @ 13.1’ (4m) (FULL ON)
813 LUX (76 FC) @ 16.4’ (5m) (FULL ON)
EFFECTS
Electronic 16bit Dimming: 0% - 100%
Variable Dimming Curves
(Stage, TV, Architectural, Theatre)
Chase Macros with Variable Speed and Fade Control
CONTROL / CONNECTIONS
(9) DMX Channel Modes
(8-Bit: 7 / 8 / 10 / 11 / 16) (16-Bit: 8 / 10 / 16 / 26)
Remote Device Management Protocol Support

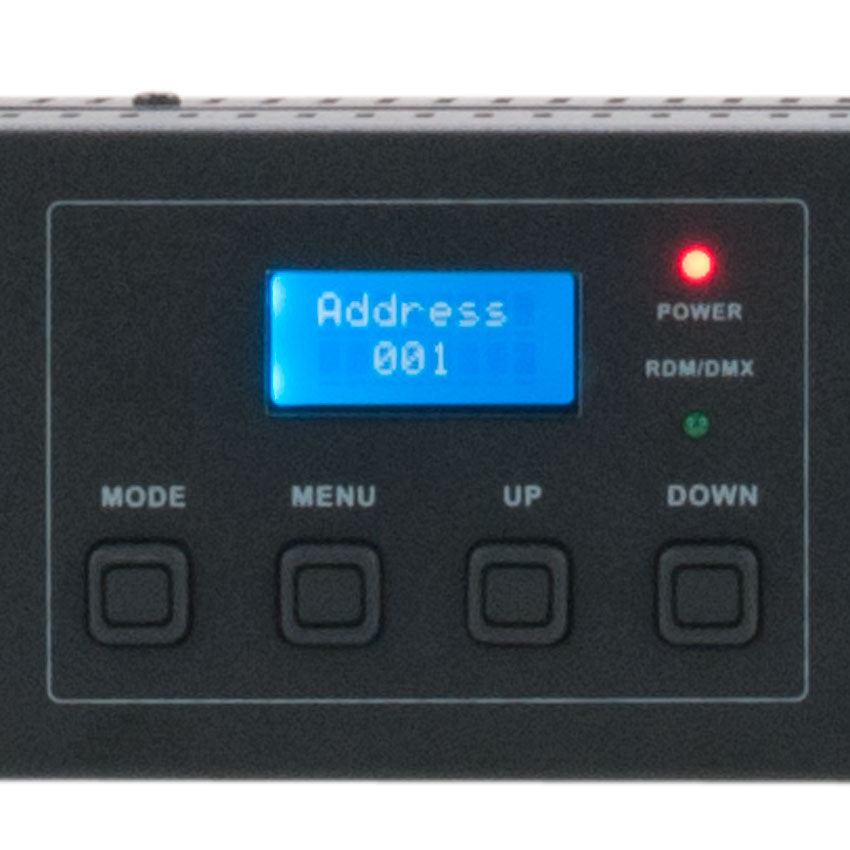

(4) Button Control Panel
LCD Menu Display

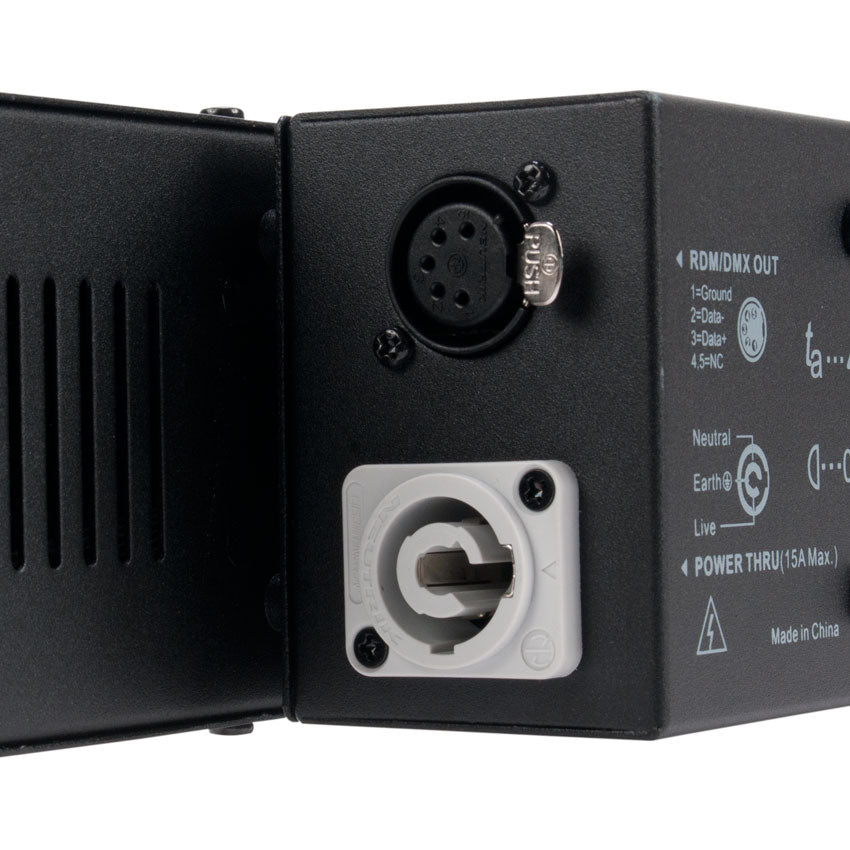

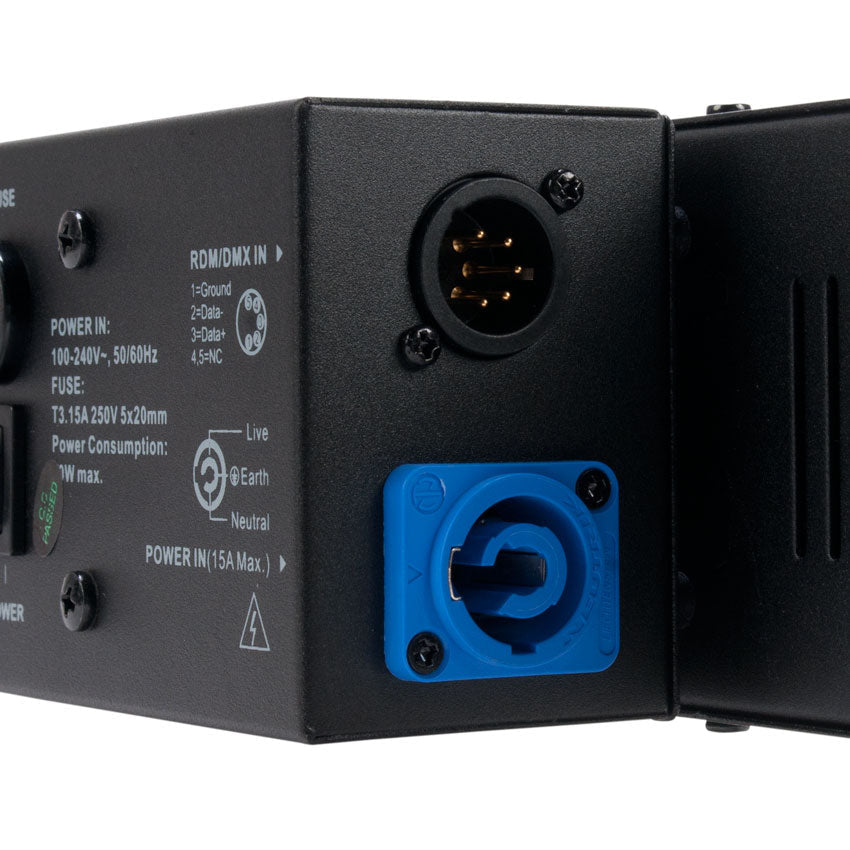

5pin DMX In/Out
powerCON In/Out
SIZE / WEIGHT
Length: 41.0&" (1042mm)
Width: 5.1&" (128.5mm)
Vertical Height: 5.7&" (146mm)
Weight: 13.9 lbs. (6.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
90W Max Power Consumption
Multiple Unit Power Linking:
MAX 16pcs (AC100-120V) or MAX 32pcs (220-240V)
APPROVALS / RATINGS
CE | IP20
INSTALLATION
Rigging: Integrated Dual Yoke / Floor Stand
Working Position: Any (360°)
INCLUDED ITEMS
(1) powerCON Cable
(2) Mounting Brackets and Screws
Specifications and documentation subject to change without notice.
