M7X

Discontinued

M7X is a professional-grade lighting solution. Great fit for Stage purpose ? Generate fog at any orientation Improved Heater Faster Fog Bursts Higher Output Volume 32 ft (10m) 3W LED Array (5 Red, 6 Green, 6 Blue, 5 Amber) Easy Fluid Tank Access and Transportation Versatile Rigging Options DMX and Manual Control Wireless Remote Included Optional Wireless DMX WTR-90 Kit Available.

UPC: 810008260395SKU: ANF710

M7X

The M-7X is the upgraded version of M-7 RGBA LED fog machine. With the improved heater, it can deliver more powerful, higher volume, and much quicker fog bursts.

Feature

● Neutrik TRUE 1 Connector

● RGBA LEDs on board.

● Optional Wireless DMX available.

● New structure design for multiple angle rigging

● Auto-sensing frequency

● Fluid tank compartment for ease of transportation

● Huge output volume with high pigments LED colors

● Great fit for Stage purpose

● Generate fog at any orientation


  • Improved Heater
  • Faster Fog Bursts
  • Higher Output Volume 32 ft (10m)
  • 3W LED Array (5 Red, 6 Green, 6 Blue, 5 Amber)
  • Easy Fluid Tank Access and Transportation

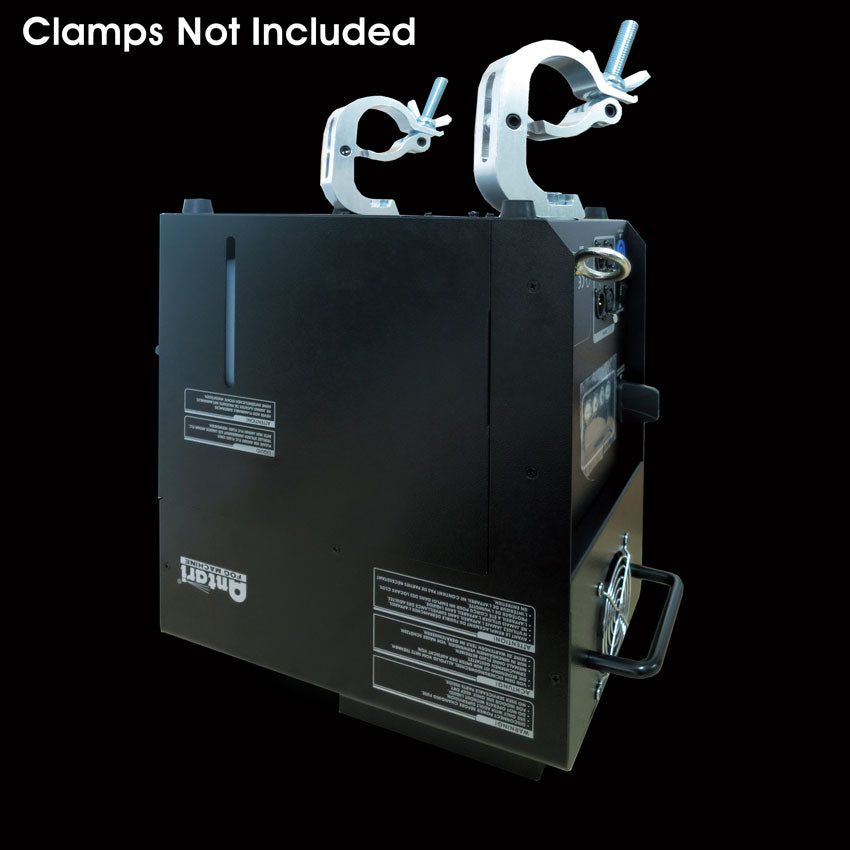

  • Versatile Rigging Options
  • DMX and Manual Control
  • Wireless Remote Included
  • Optional Wireless DMX WTR-90 Kit Available

Specifications

Input voltage - AC 100-120V, 50 / 60Hz 13A, EU model : AC 220-240V, 50 / 60Hz 6.5A
Rated power - 1516W
Light source - 22 x 3W LED (5 Red, 6 Green, 6 Blue, 5 Amber)
Warm-up time - 7 minutes (approx.)
Fluid consumption - 200 ml/min
Fluid tank capacity - 2.4 Liter (0.63 gallon)
Compatible fluid - Antari FLC Super Light Fog Fluid
Ambient temp. range - 0°C - 40 °C (32 °F-104 °F)
Output - 10 meters height
Control - DMX512, Timer, Manual, Wireless, Primary/Secondary
Wireless DMX (Optional)
DMX channels - 9 channels
Connection - Neutrik Powercon (Power)
XLR 3-pin and 5-pin (DMX)
Optional accessories - WTR-90 Wireless DMX
Dimension - L344 W193 H381 mm, (L13.54 W7.60 H15 inch)
WeightUS model : 14 kg (30.8 lbs)








Downloads

User manual

M7X Parts & Service

Our M7X Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your M7X. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.

M7X Parts & Service
