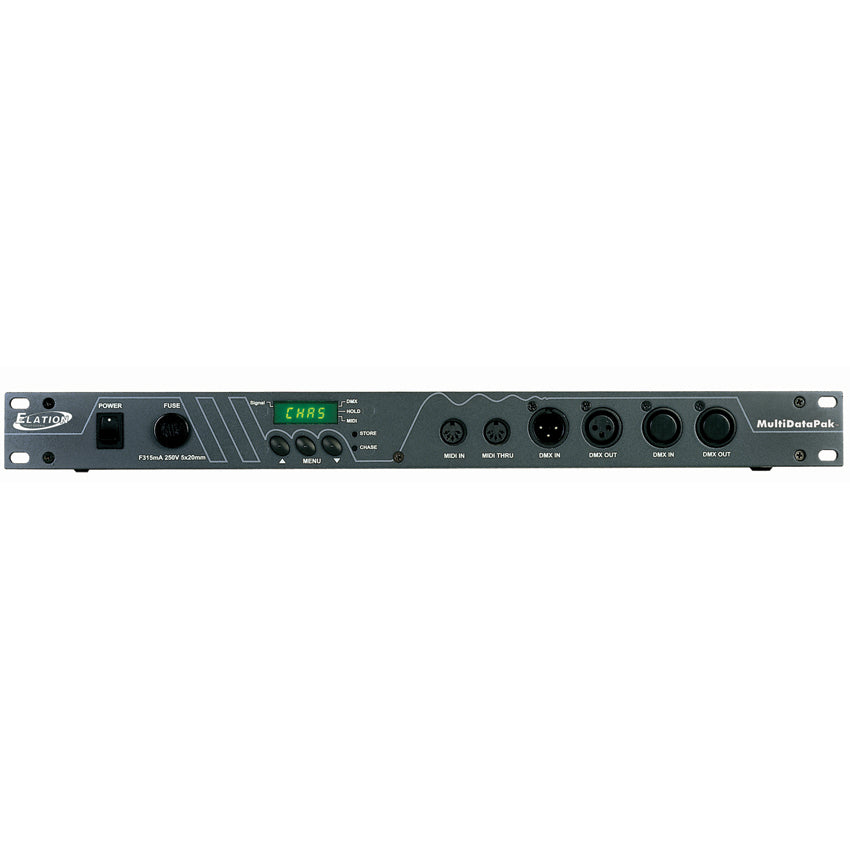

Multi-Data/Pak

• Converts DMX-512 MIDI signals to 72 Channel Analog

• Traditional input/output ports

• LCD Display with corresponding scroll buttons control DMX start address and programming options

• Memory back-up with “EPROM”

• Speed Control

• Chase 2 – 72 channels

• Select Analog output from +(-)10V, +(-)12V and +(-)15V

• MIDI on/off signal

• 3 x 25 pin outputs on rear panel

• Fuse conveniently located on front panel

• 1 rack space

• Dimensions: 19” x 5” x 1.75” (483 x 127 x 44 mm)

• Weight: 5 lbs (2.27 kgs)

• Voltage: 120V / 220V

• Fuse: .5A 250V 5x20mm

Z-MDP/C (sold separately - List: $26.95)

• For use with analog packs
