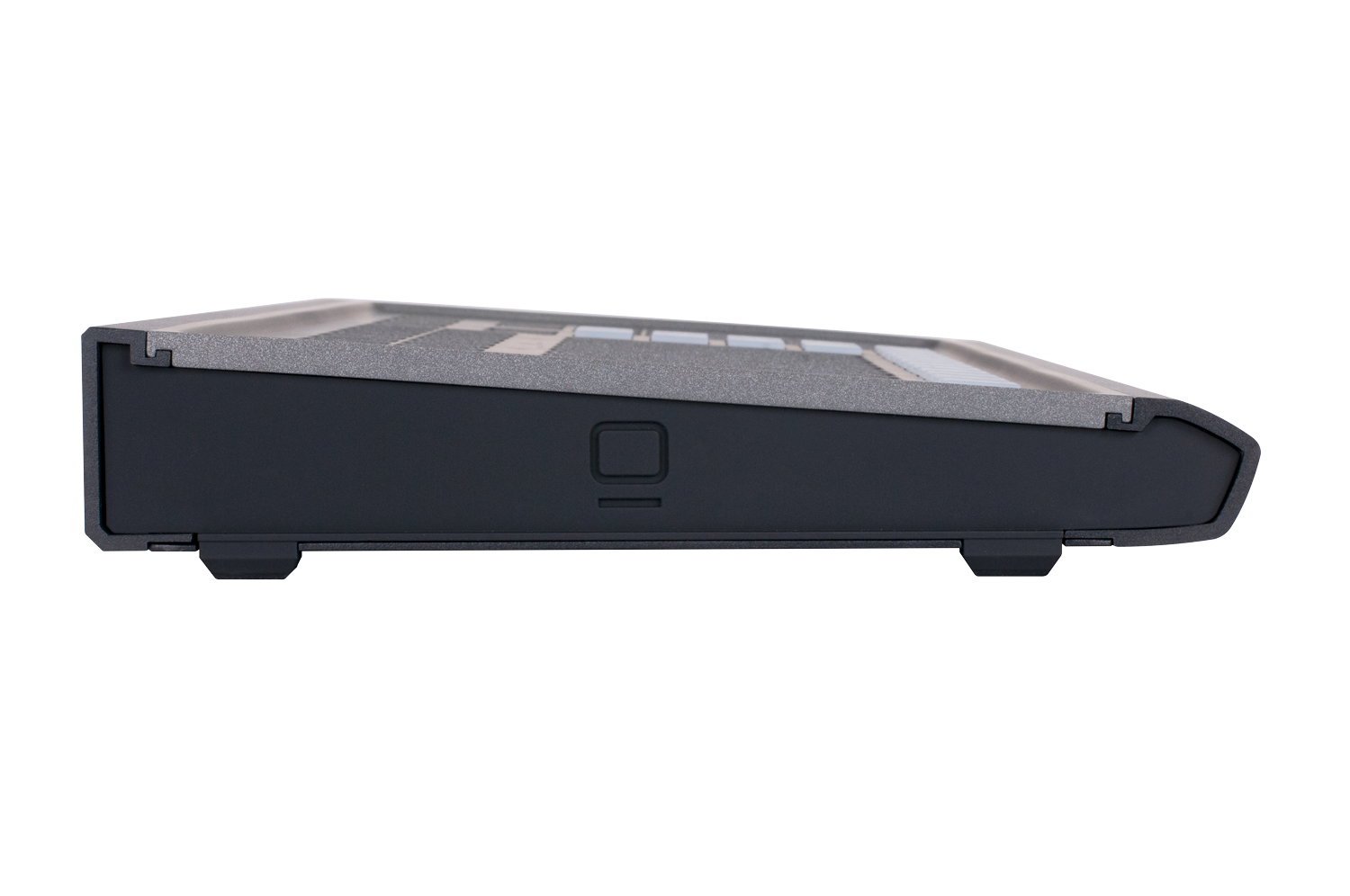

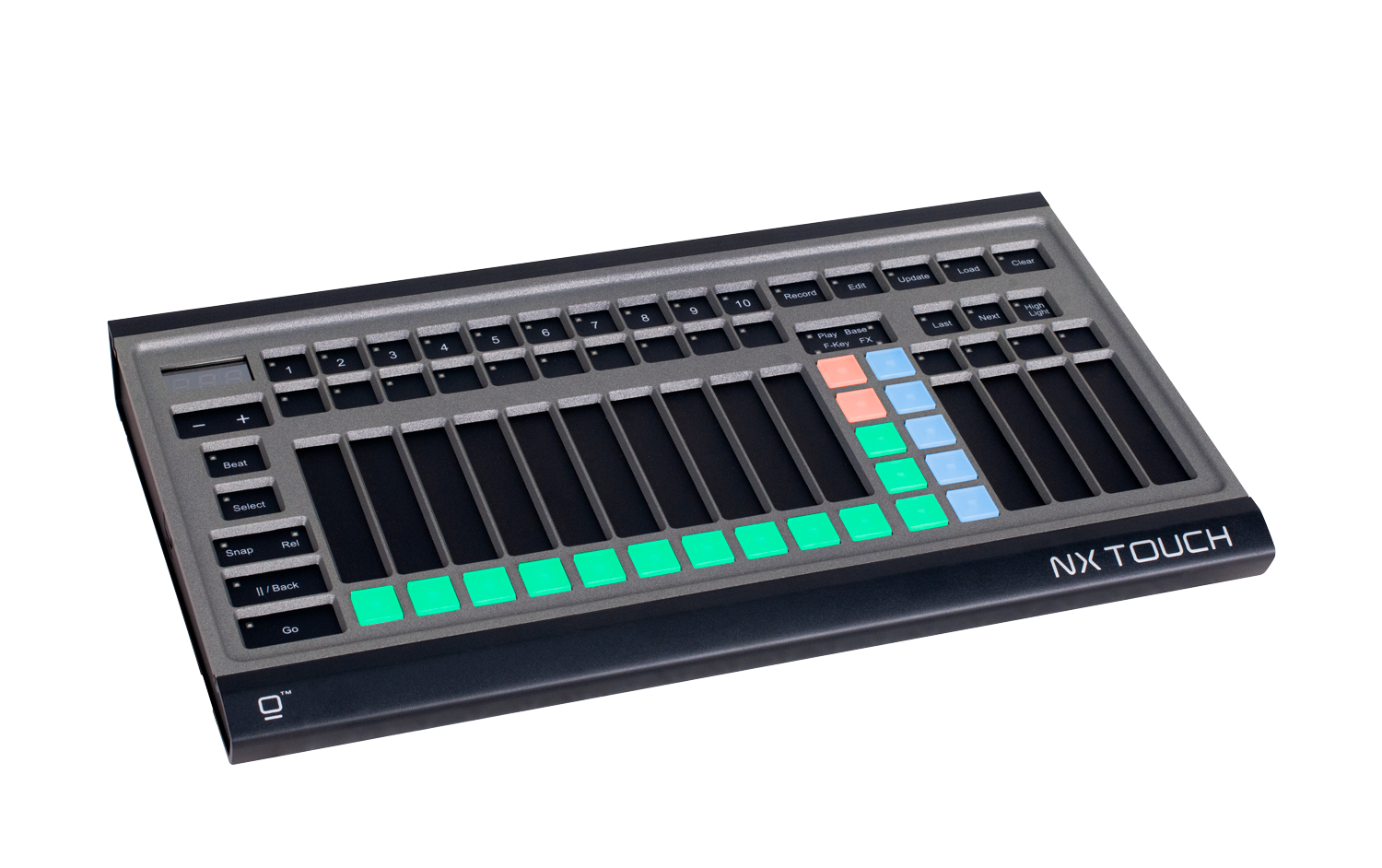

NX TOUCH
NX Touch is a professional-grade lighting solution. The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console. The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.
Replaced By

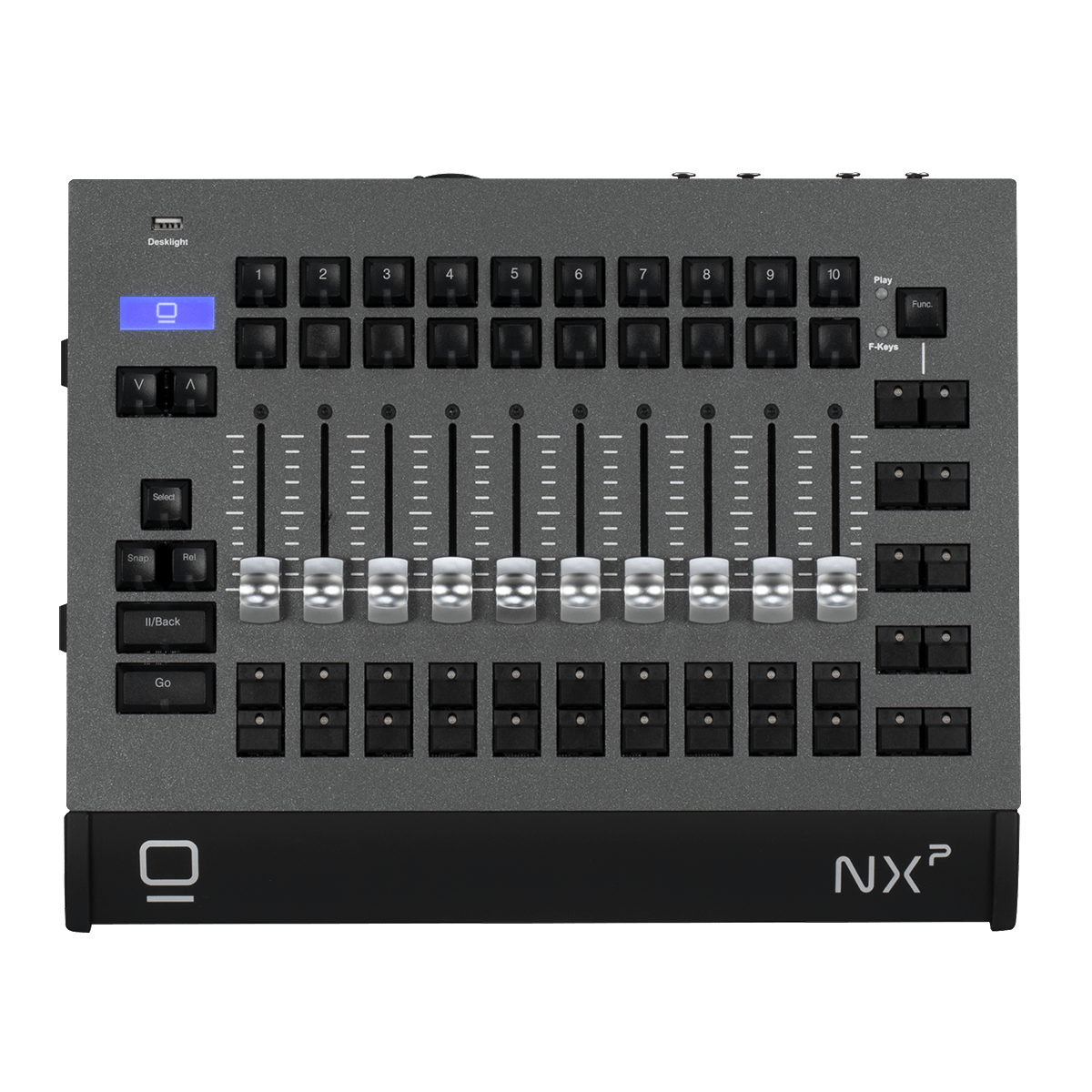

Related Products
NX TOUCH

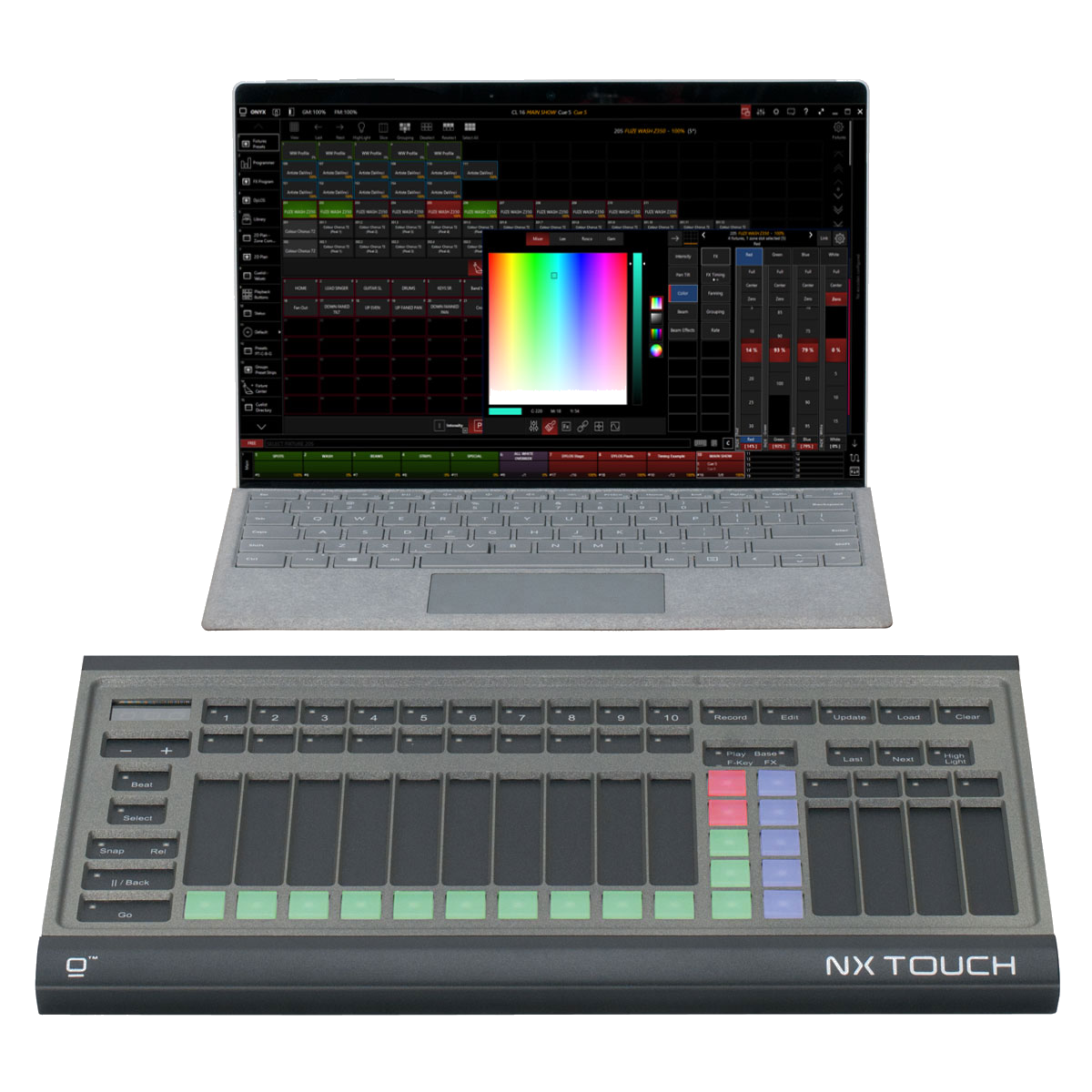

The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console.

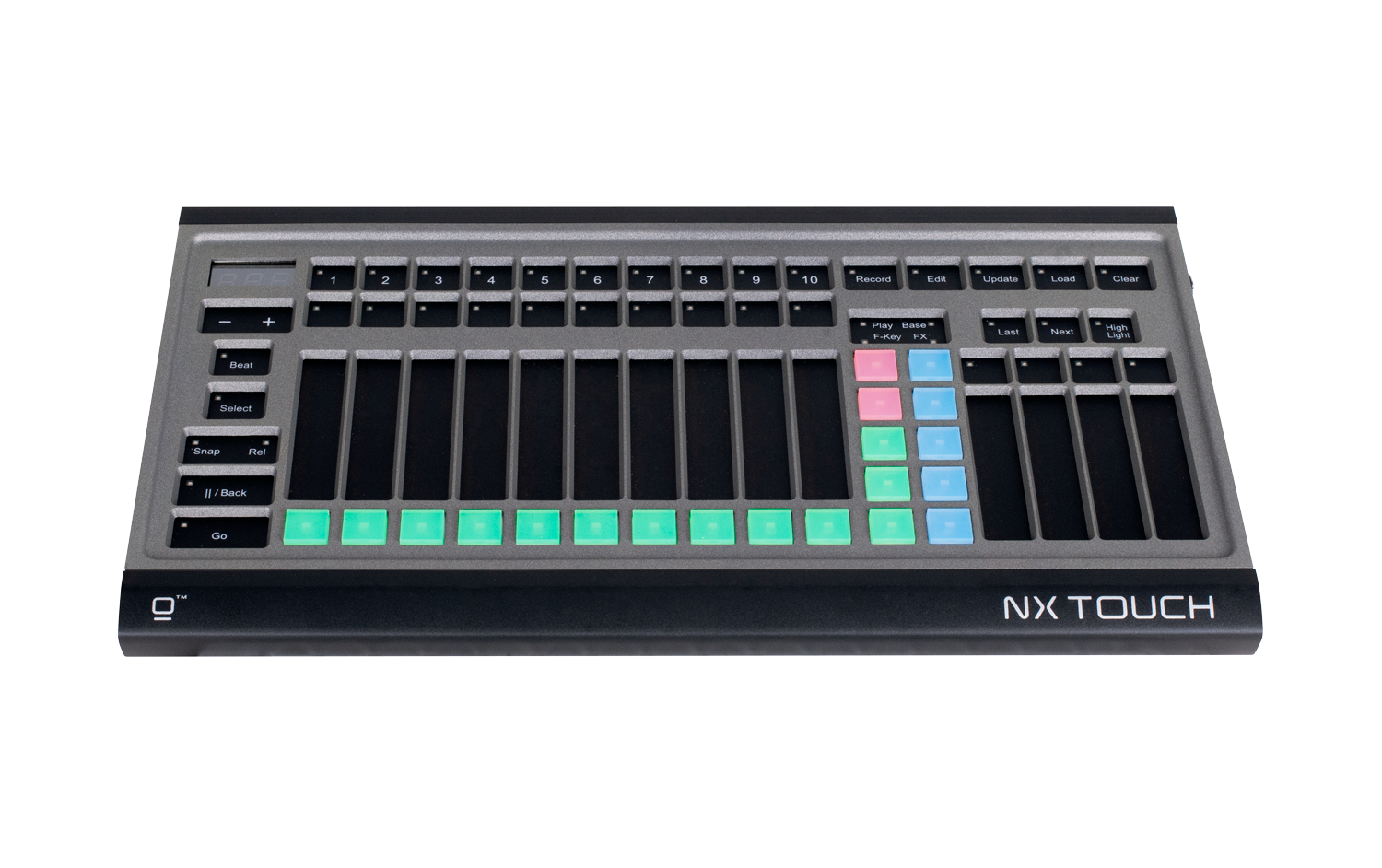

14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device.
The NX Touch is a powerful yet simple control surface for the ONYX platform, Fully compatible with all ONYX consoles and PC software, NX Touch is a plug-and-play solution with an innovative control surface like no other lighting console. 14 touch faders allow control of playbacks and fixture parameters while 20 velocity-controlled pads allow for new types of effects. Additional programming buttons such as Record, Edit, Update, Load and Clear are accessible directly from the NX Touch control panel. NX Touch includes one DMX port for direct control of any compatible DMX device.
Specifications
Main Go section: Snap, Release, Pause and Go buttons
Command Buttons: Record, Edit, Update, Load, Clear
Multifunction Mode Select button
Fixture Selection buttons: Last, Next, Highlight
4x Parameter Select buttons
4x Parameter Adjust touch faders
10x Function velocity pads
10x Playback touch faders with 3 buttons
(2x touch pad, 1x velocity pad)

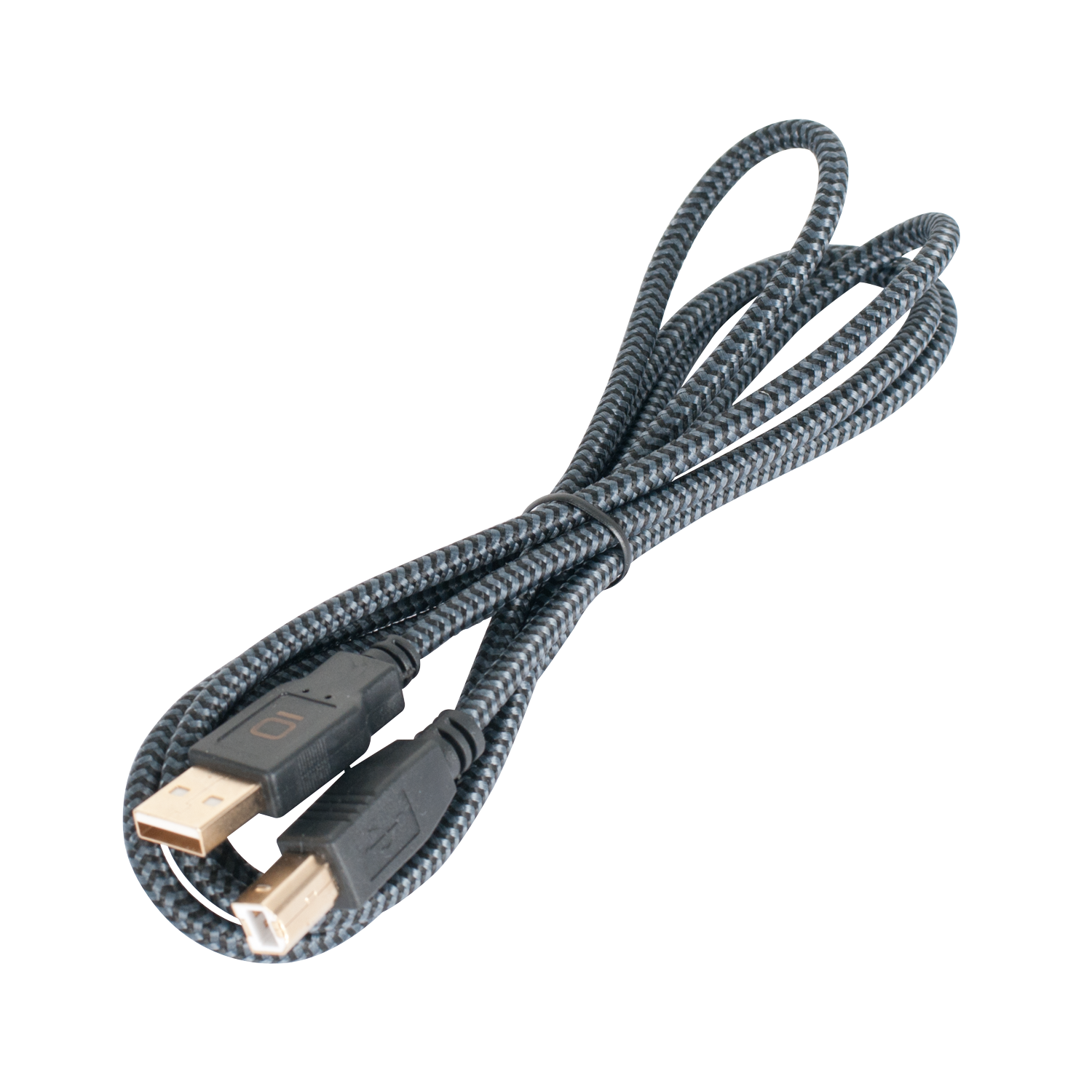

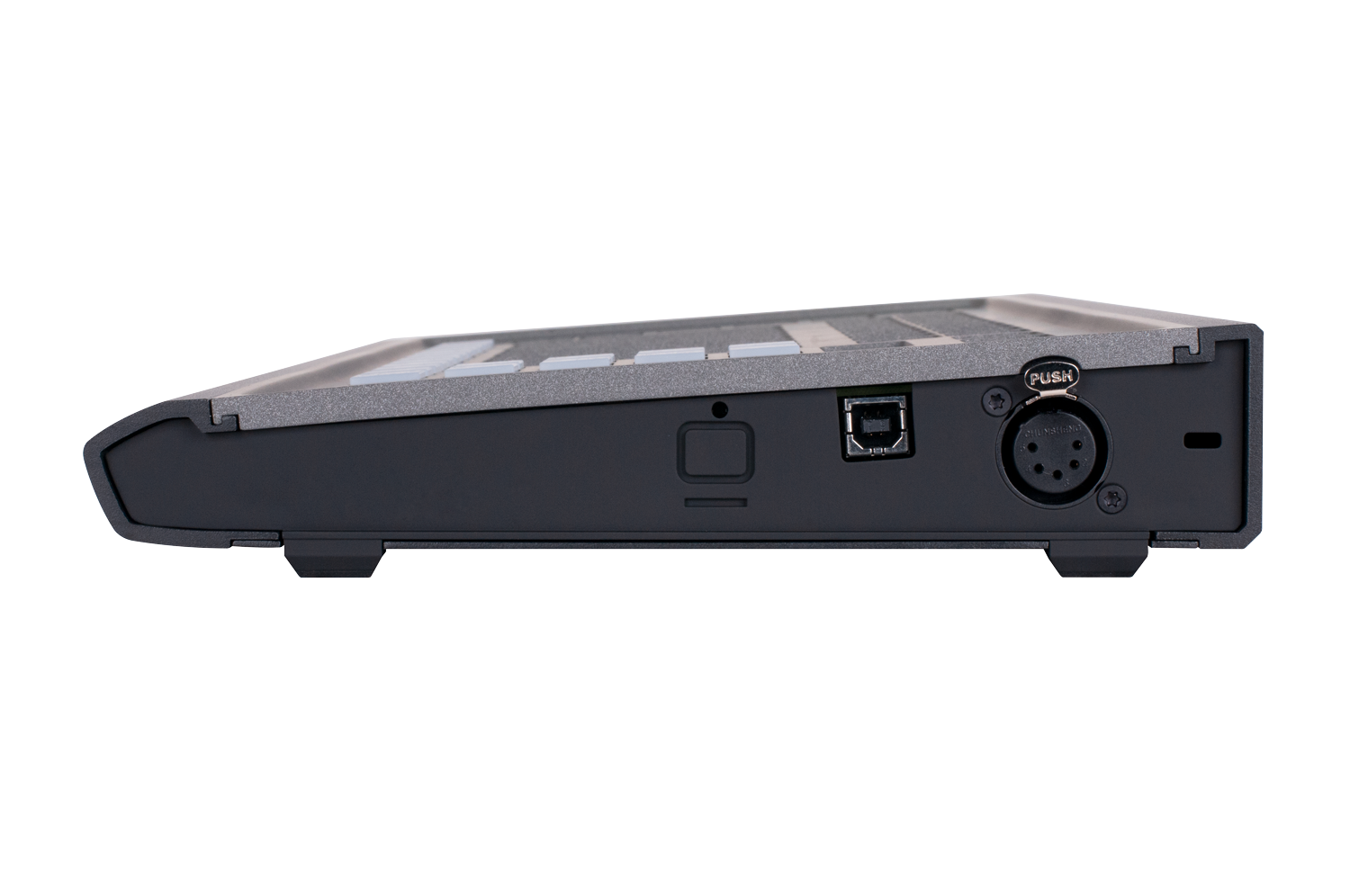

USB Input: USB B 2.0
Intel Core i3 processor 6th Generation+
8 GB RAM
SSD Drive
40 GB available disk space

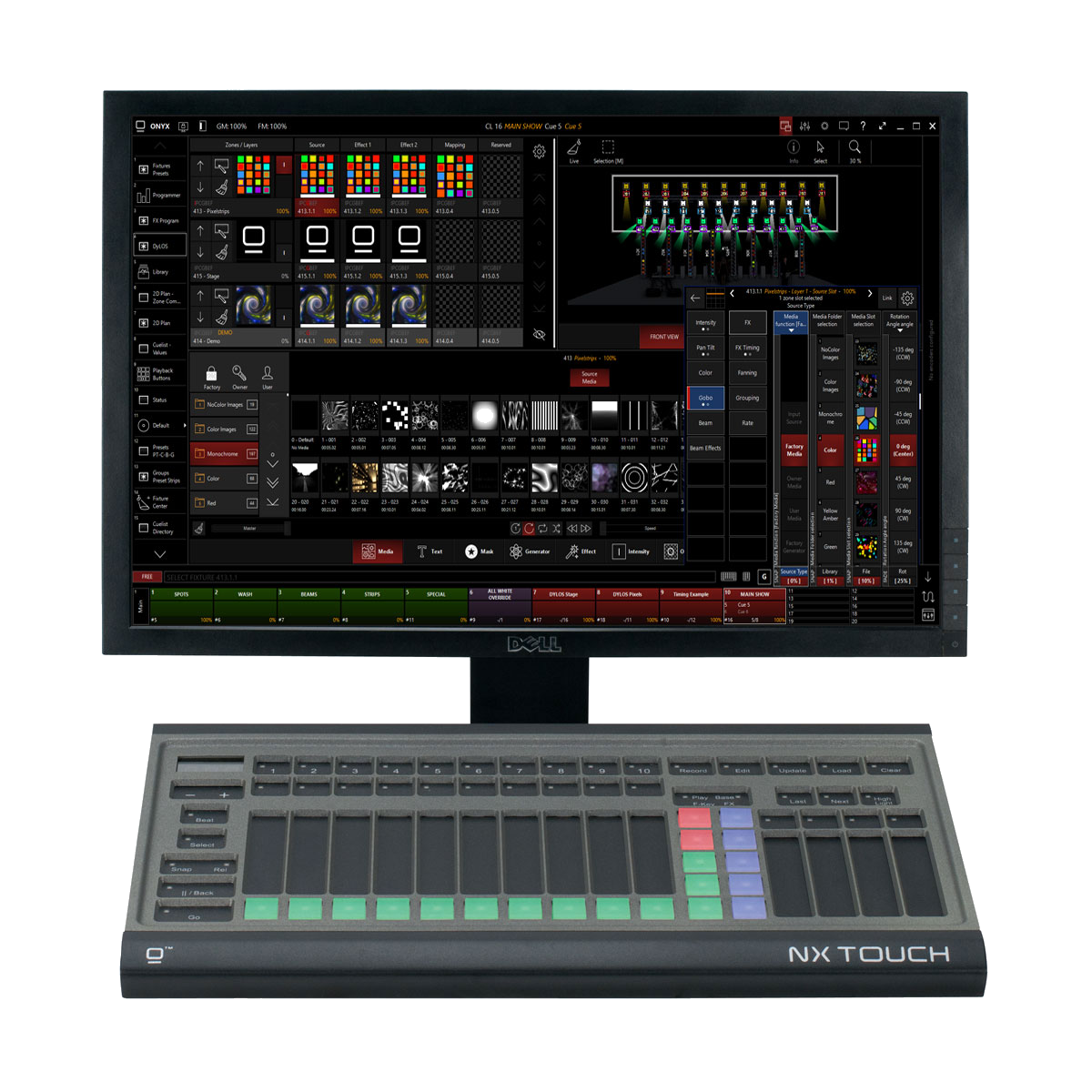

Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
USB 2.0 port
10/100 Ethernet port for Art-Net DMX output
100/1000 Ethernet port for X-Net, Remote operation and sACN
Width: 218.5 mm (8.6 in.)
Height: 46.5 mm (1.8 in.)
Weight: 1.5 kg (3.3 lbs.)
Housing: Aluminum, steel, plastic

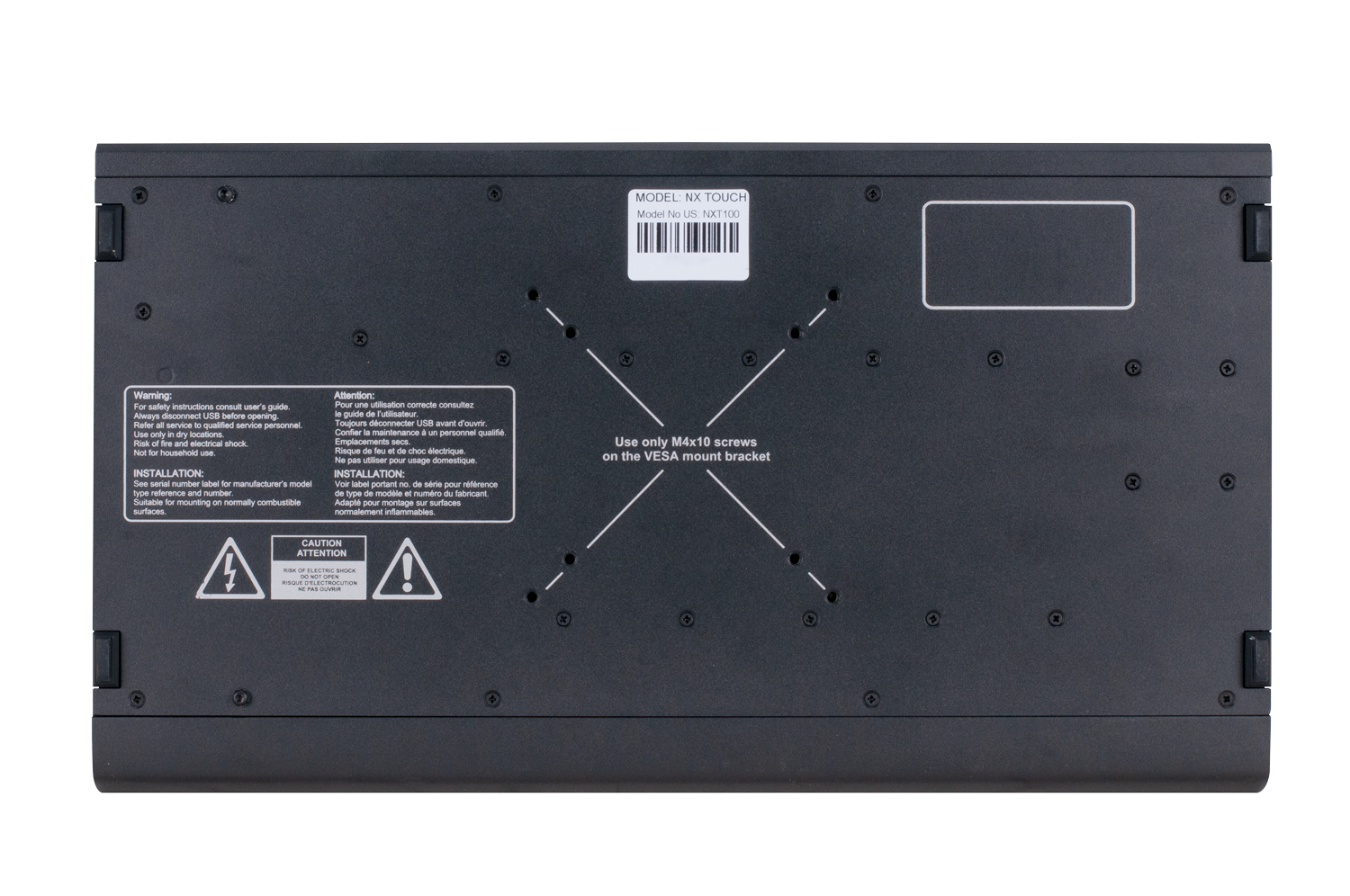

Mounting: VESA 75x75, 100x100
Security: K-Lock locking slot
IP Rating: IP20
Maximum current: 500 mA
