PIXEL DRIVE X
Discontinued
Pixel Drive X is a professional-grade lighting solution. Alkalite L.E.D Controller This Control Pack is designed to be used with the Octopod 80 and the Riva 80 LED Lighting Systems. The Control Pack comes with 9 Stand alone programs with both speed and fade control, or can be used via DMX-512. For individual control the Pixel Drive 8 allows for 6,12,24 and 48 channel mode. Allowing you to control each unit individually.
PIXEL DRIVE X
Sale price$0.00
PIXEL DRIVE X

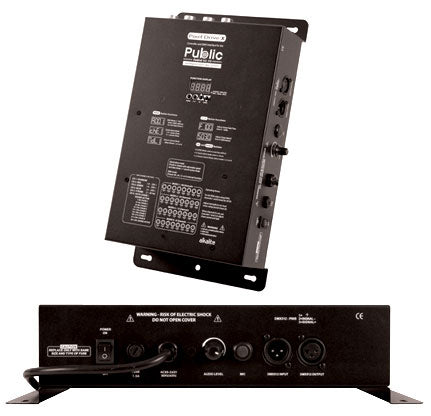

Alkalite L.E.D Controller
- This Control Pack is designed to be used with the Octopod 80 and the Riva 80 LED Lighting Systems. The Control Pack comes with 9 Stand alone programs with both speed and fade control, or can be used via DMX-512. The Controller gives you 6 DMX Channnels DMX CHANNELS
- Ch1: Color Macros / Speed
- Ch2: Red 0-100% Dimming / Fade
- Ch3: Green 0-100% Dimming
- Ch4: Blue 0-100% Dimming
- Ch5: Strobe 1-29fps
- Ch6: Pre programmed Chases In the 6 Channel DMX mode 1 each drives all 8 units at once. For individual control the Pixel Drive 8 allows for 6,12,24 and 48 channel mode. Allowing you to control each unit individually. CONTROL FEATURES
- USITT DMX-512
- 4 Channel Modes
- 6,12,24 or 48 DMX Channels
- 4 Digit Digital LED Display
- Self Test & Stand Alone settings
- 3 pin XLR serial input/output
- Sound Active mode. (Sensitivy Knob)
- PreProgrammed Chases via DMX DIMENSIONS & WEIGHT
- 14"x6"x3"
- 7.62 lbs POWER SUPPLY
- Electronic Ballast
- 90-240V 50/60Hz
- Fuse: 2 Amp
- Power Draw: 70 Watts
