PIXEL DRIVER 4000 V2
PIXEL DRIVER 4000 V2 is a professional-grade lighting solution. PIXEL DRIVER 4000 V2™ is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL PAR 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.
Related Products
PIXEL DRIVER 4000 V2

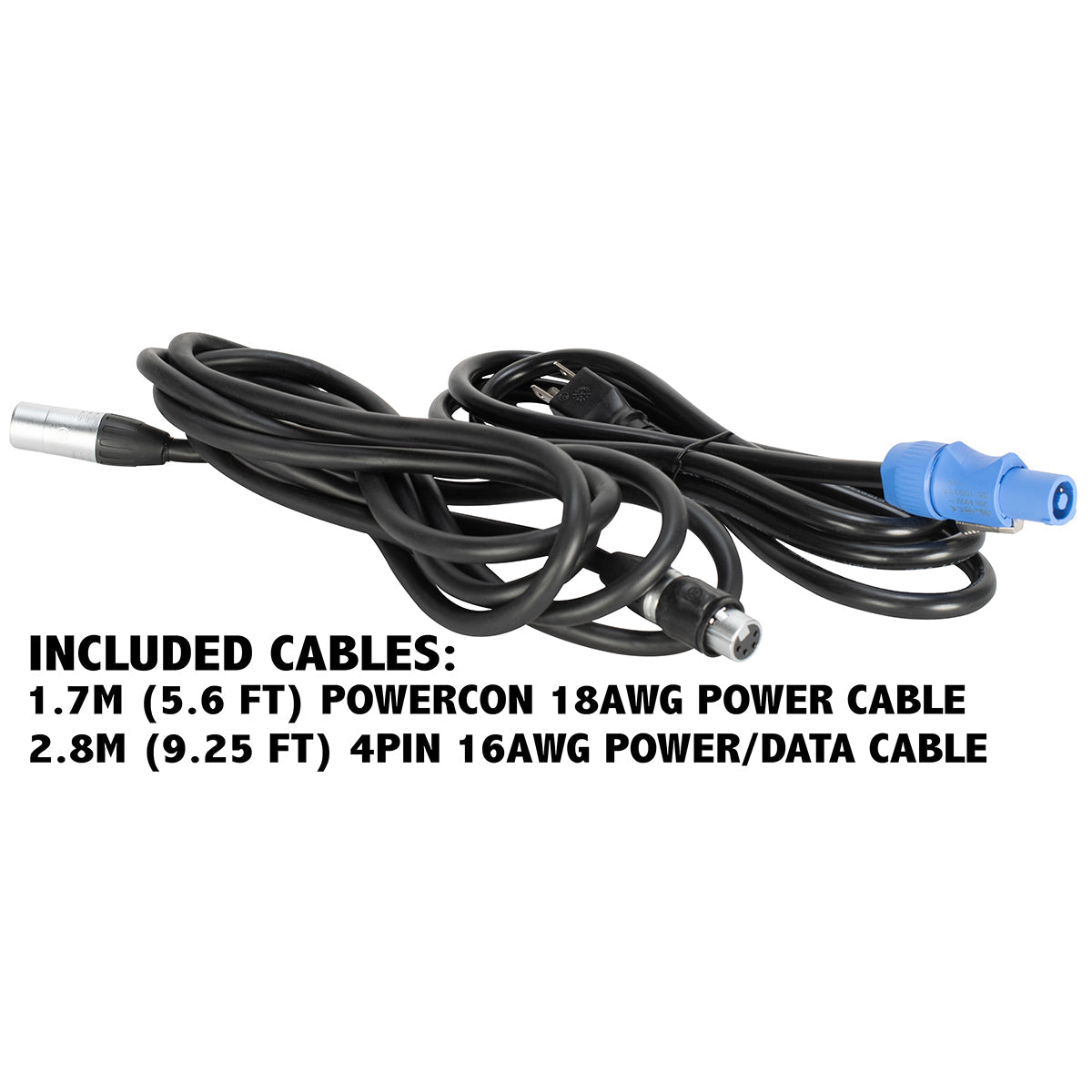

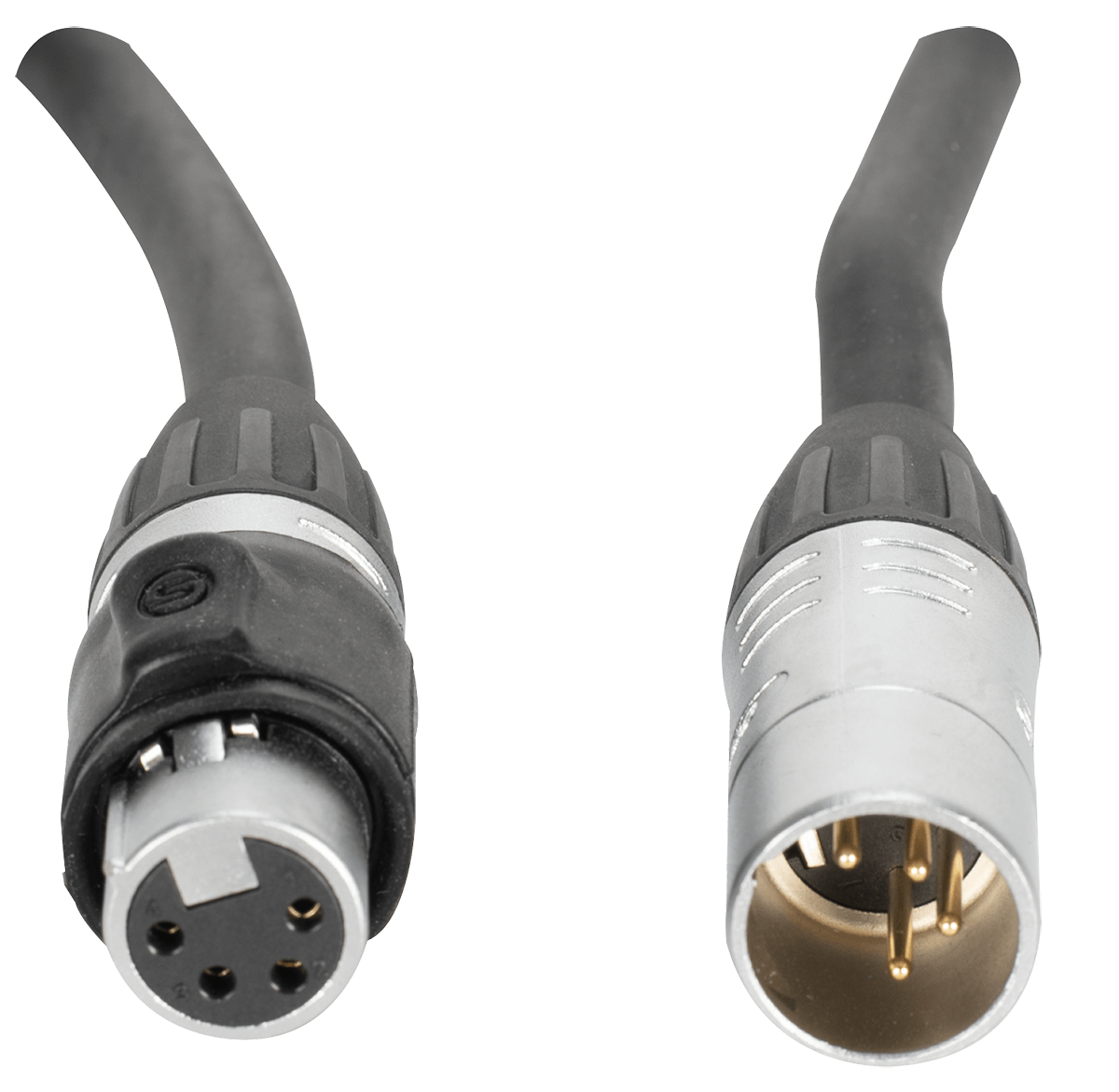

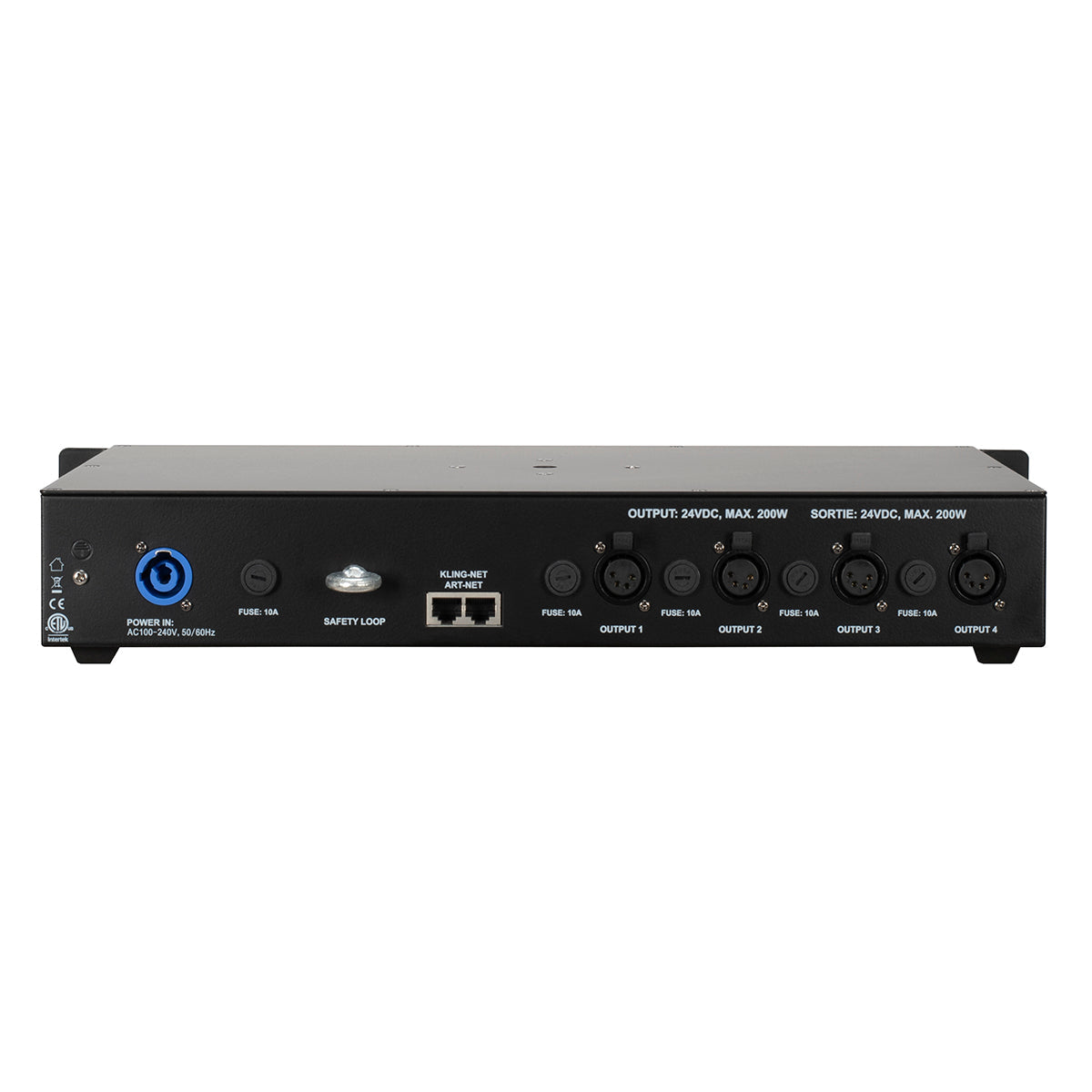

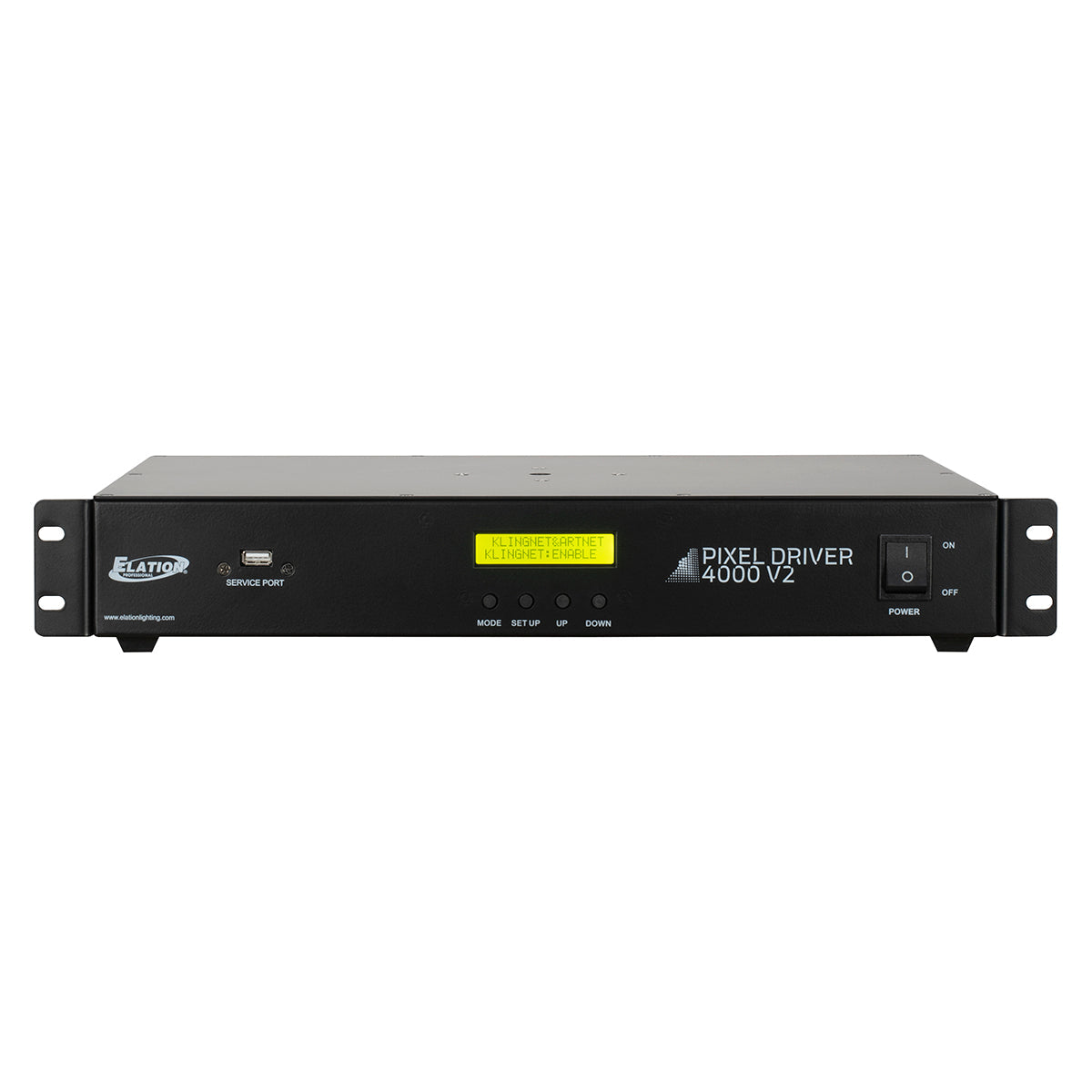

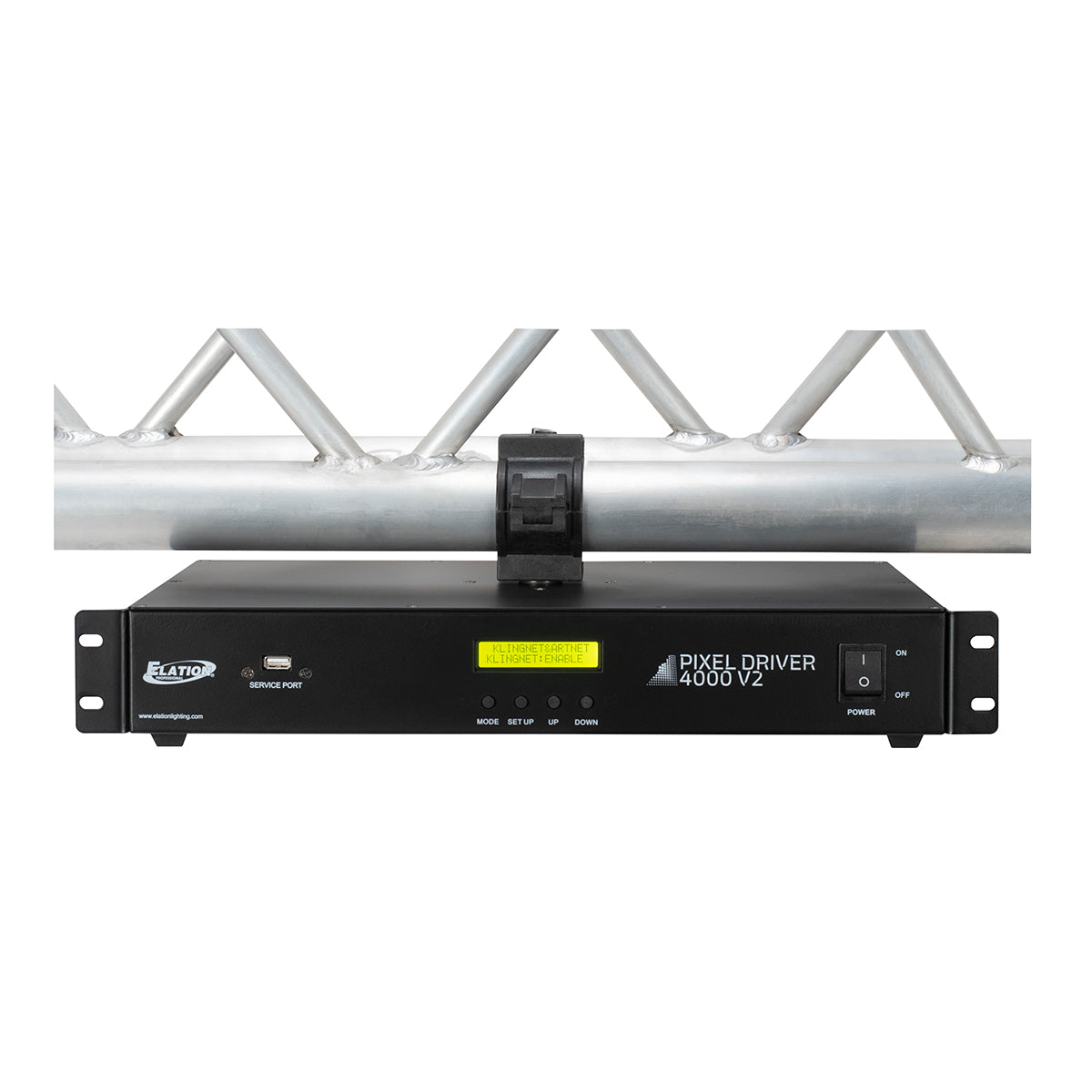

The PIXEL DRIVER 4000 V2 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Power/Data Supply for Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, and 120IP
Specifications
CONTROL / CONNECTIONS
Manual RGB Mode
Internal Programs
Art-NET | sACN | Kling-NET
2 RJ45 Ethernet Ports
4 4pin Power/Data Outputs
USB Port for Firmware Updates
SIZE / WEIGHT
Length: 16.7” (425mm)
Width: 11.8” (301mm)
Height: 2.9” (74mm)
Weight: 9.5 lbs. (4.3kg)
ELECTRICAL
AC 100-240V - 50/60HZ
800W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
APPROVALS
CE | cETLus (Pending)
Specifications and documentation subject to change without notice.
