PIXEL TOUCH PCB

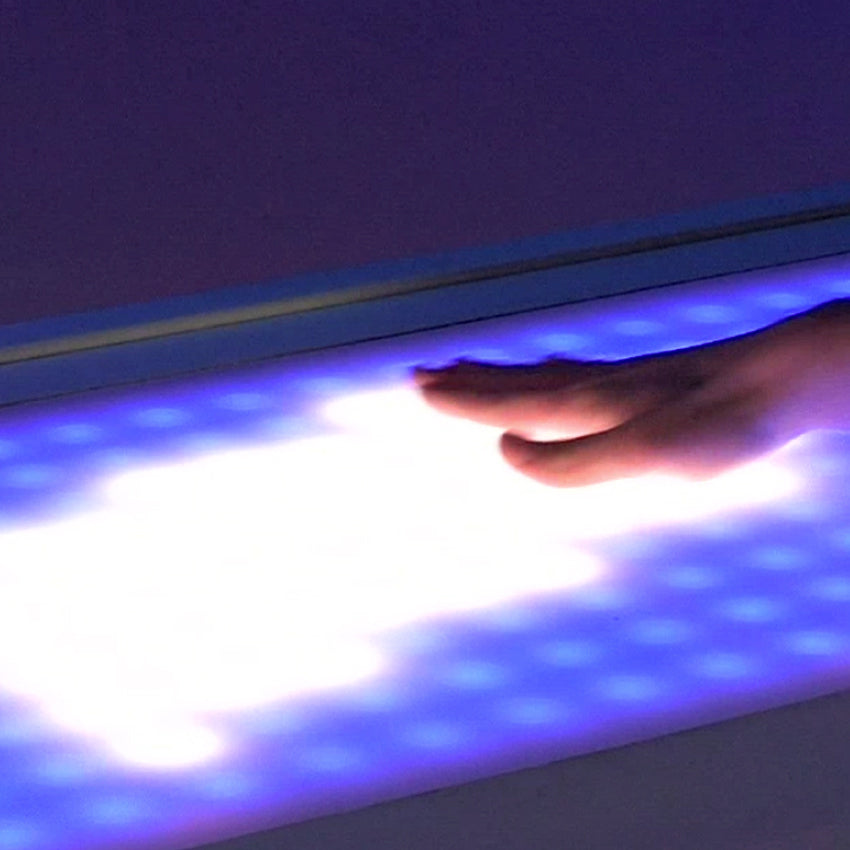

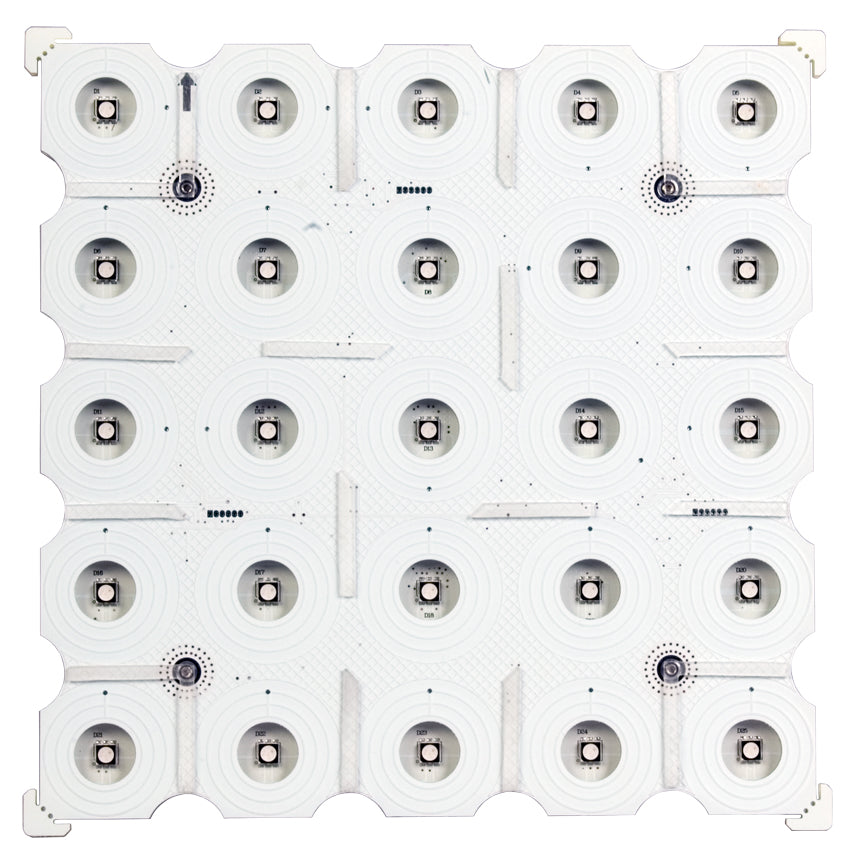

PIXEL TOUCH PCB is a touch sensitive LED display screen integral with 25 three-in-one RGB LEDs, featuring auto DMX addressing and inductive touch control which can bring a interactive element to any display, countertop or wall.

Inductive Distance: 20 mm Max.

• FEATURES
• System: 24Vdc + DMX
• Maximum cluster: 6 pcs using DMX-512 / 11 pcs using DMX-1000
• Cabling System: 2-wire DC Power-cable + 1 DMX Cable
• Control: DMX-512 or DMX-1000
• Pixels: 25
• Pixel Pitch: 40 mm
• DMX Channels: 75
• Addressing: DMX or Auto DMX Addressing
• Power requirements: 24Vdc
• Current Consumption: 450mA
• Light Source: 25 x SMD 5050
• Power Consumption: 10.8W
• Weight: .5 lbs / 225 gr
• Housing: PCB Type
• Source Life: 50.000 hours
• Operating Temperature: -10 °C ~ +50 °C
• Storage Temperature: -20 °C ~ +70 °C
• Included: Mounting tape + Link Cable 6-pin Terminal 90 mm
