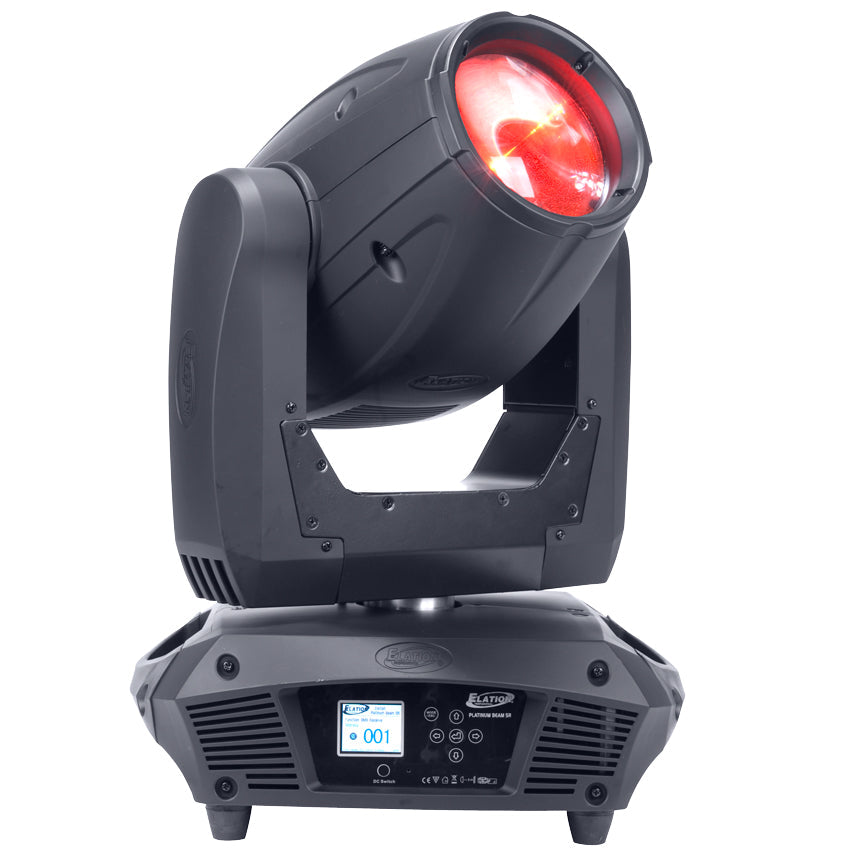

Platinum Beam 5R
Discontinued
Platinum Beam 5R is a professional-grade lighting solution.
Platinum Beam 5R
Sale price$0.00
Platinum Beam 5R
Features
. Extreme ACL / Beam Effect
. 2.5° Beam Angle
. Rotating Gobos And 8 Facet Prism
. Frost Effect For Wash
. Featuring New Philips MSD Platinum 5R Lamp
Specifications
12 Dichroic Colors
8 Rotating Replaceable Rotating / Indexing Gobos
Gobo Size 14mm OD / 8mm ID
8 Facet Rotating Prism
Frost Filter (Hybrid Effect for Wash)
Variable speed Shutter / Strobe
Mechanical Dimmer 0-100%
Pan/Tilt: 540/630 x 265
Power: 305W MAX / 120v-240V 50/60hz
11/13/16 - 3 x DMX Channel Modes

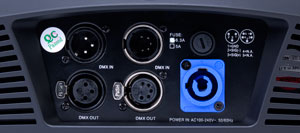

3-pin 5-pin DMX
With Wired Digital Communication Network
28,360 Lux / 2,634 fc @ 75’
34.2 lbs
14.1” x 13.2” x 18.5” Size
Lamp: Philips MSD 189W Platinum 5R Lamp
3,000 Hour Average Life*
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
CE | cETLus
Platinum Beam 5R Pro model available special order w/ EWDMX Receiver and wider frost SKU# EPB832 (cETLus approved)
