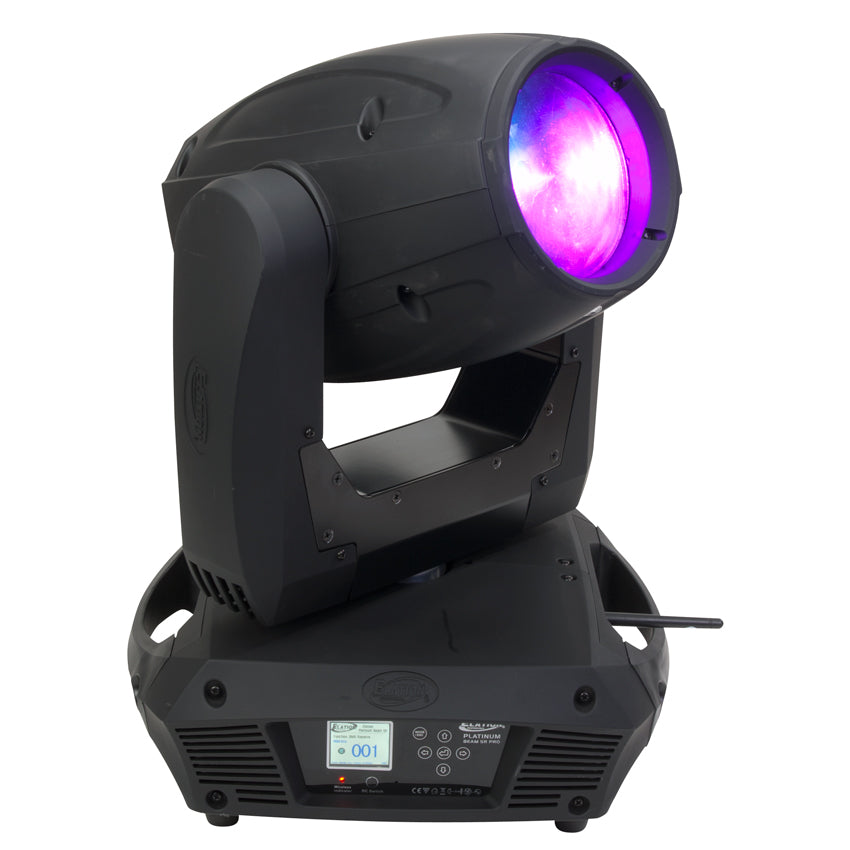

PLATINUM BEAM 5R PRO

• Philips MSD Platinum 5R Lamp - 3,000 Hour Average Life*
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.


• 56230 Lux @ 2.5m @2.5°

• 2.5° beam angle

• Built in EWDMX receiver for wireless DMX (Not compatible with E-FLY)

• No need for cleaning or adjustment of reflector or lamp

• All lenses are anti-reflection coated

• 1 color wheel with total 12 colors + white

• Variable speed color scrolling both directions (rainbow)

• 1 gobo wheels with 8 interchangeable (quickout)

• Gobo wheel: 8 indexable, rotating gobos plus open

• Variable speed gobo scrolling in both directions

• Gobo Size: 14.0mm outside, 6mm image diameter

• Rotating, indexing prism: 8-facet

• Macro-function for rotating gobo/prism combinations

• Variable Frost Filter (Hybrid effect for Wash)

• Dual flag mechanical dimming system

• Variable speed strobe effect

• Preset variable/random strobe and dimming pulse effects

• Automatic Pan / Tilt position correction

• Maximum Pan-movement 630° or 540°/ 16 bit

• Maximum Tilt-movement 265° / 16 bit

• 3 Phase motors for fast, accurate Pan / Tilt positioning

• Vector Mode with blackout MIB function

• Battery powered and colored LCD Display

• 16 DMX channels USITT DMX-512 (16-bit resolution)

• Customizable DMX channel assignment

• DMX, stand-alone, Primary/Secondary, sound activated mode

• DMX recorder and edit function integrated

• Software update via DMX, using optional E-Loader

• 3-pin and 5-Pin XLR serial input/output

•With Wired Digital Communication Network

• Fan cooled - fans regulated automatic or DMX

• Constant temperature readout / management function

• DB rating @ 1M = 55.73db

• 2 x 1/4 turn fastening Omega Clamps

• Electronic ballast and power supply

• Power consumption: 338W max.

• Voltage: AC 100V ~ 240V 50/60Hz

• Dimensions (LxWxH): 360x330x470 mm

• Weight: 14.5 kg
