PLATINUM SBX

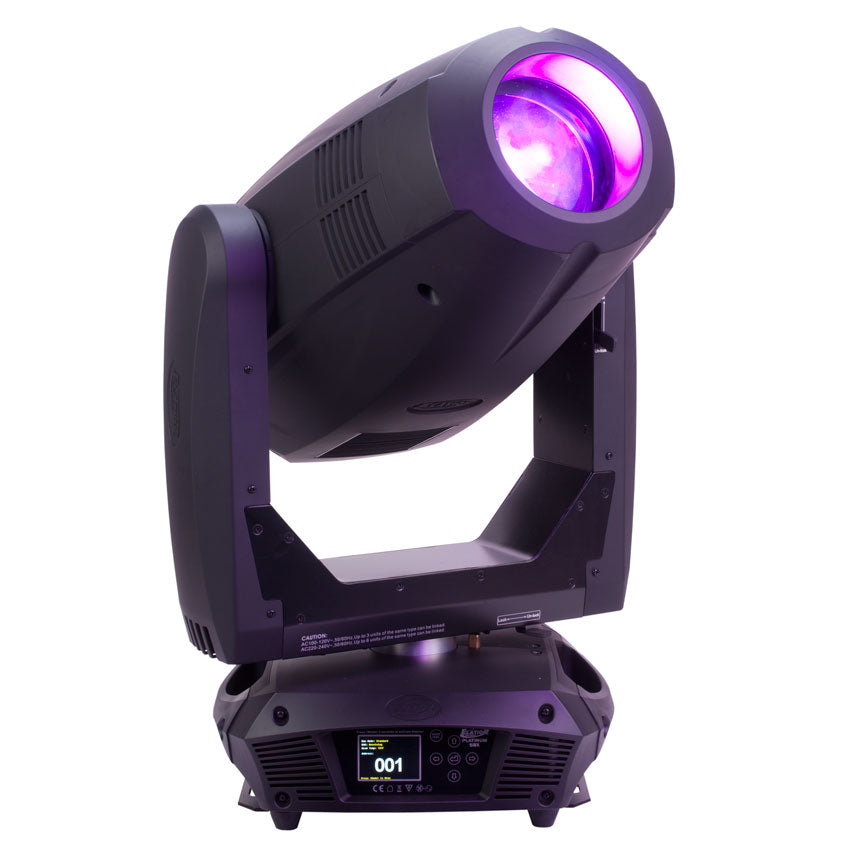

The new Platinum SBX™ is an innovative full featured patent pending design 3-in-1 illuminare which can be utilized as a beam, spot, or wash fixture, featuring the brand new Phillips™MSD Platinum 17 RA 350W, 6,900K, 85CRI lamp, 15,000 total lumens delivering comparable output to 700W fixtures, 3° to 18° zoom in beam mode and 5° to 30° zoom in spot mode, 10 dichroic colors including UV, CTO, CTB, plus white (open), 8 rotating-interchangeable and 12 static-stamped gobos, rotating 8-facet prism, frost filter, Art-NET (DMX Over Ethernet) support, 5pin DMX in/out, RJ45 Ethernet in/out, and power cable in/out connections, (6) button control full color 180° reversible menu display, 550W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
- Patent Pending 3-in-1 Fixture - Beam, Spot, and Wash Illuminare
- Comparable Output To 700W Fixtures With NO LUX Loss
- CTO & CTB Color Correction
- 3° - 18° Beam and 5° - 30° Spot Zoom
- Rotating 8-Facet Prism
Specifications
Phillips™ MSD Platinum 17 RA 350W Lamp
15,000 Total Lamp Lumens, 6,900K, 85CRI
1,500 Hour Average Lamp Life
PHOTOMETRIC DATA
14,324 Lumens Beam Mode / 7,281 Lumens Spot Mode
107.000 LUX 9,940 FC @49.2’ (15m) (3° Beam Full ON)
5,133 LUX 477 FC @49.2’ (15m) (5° Spot Full ON)
EFFECTS
8-Facet Prism and (16) Macros
Frost Filter
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
(10) Dichroic Colors Including UV, CTB, CTO, + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(12) Static-Stamped / Indexing Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (16 / 18 / 25)
RDM (Remote Device Management)

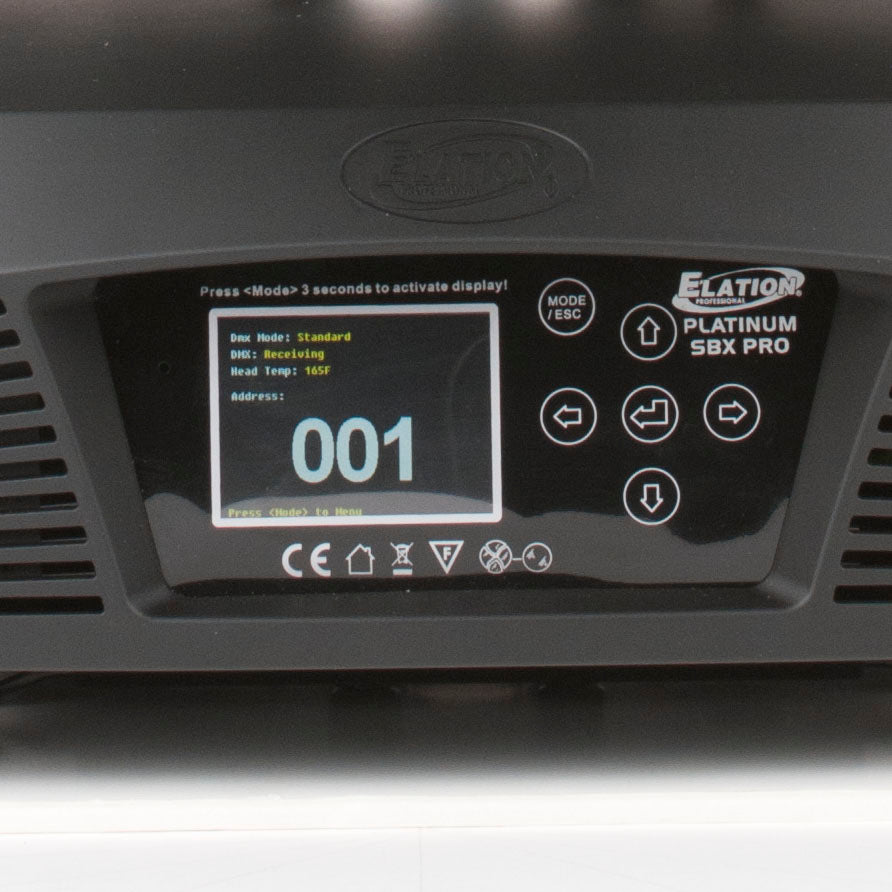

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

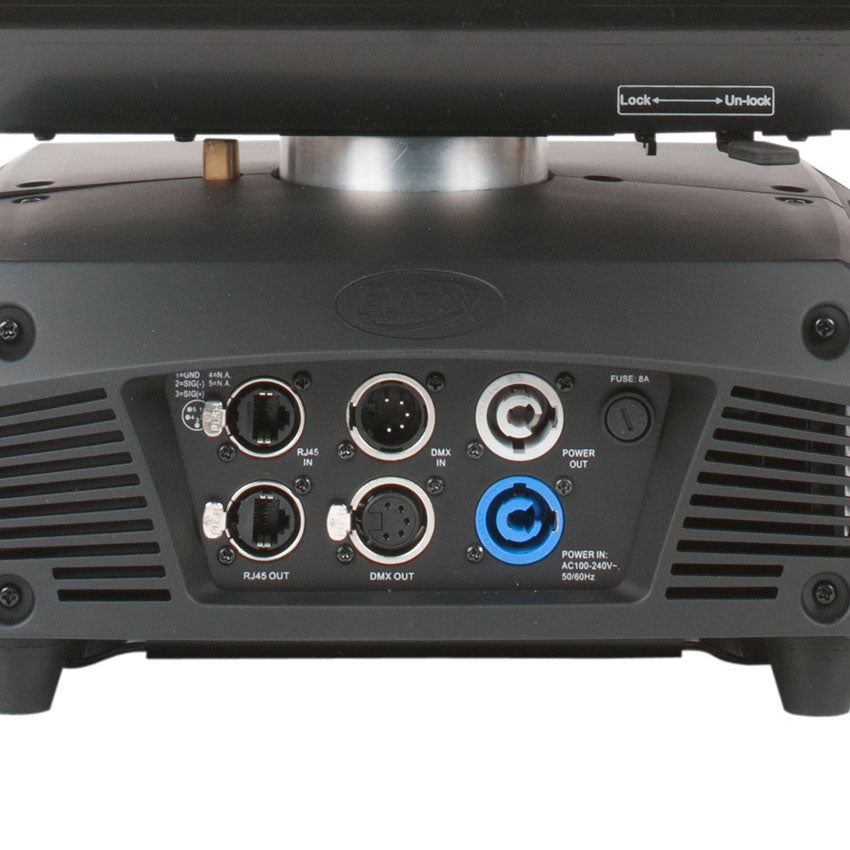

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Power Cable In/Out
SIZE / WEIGHT
Length: 14.1” (359mm)
Width: 19.7” (502mm)
Vertical Height: 28.7” (730mm)
Weight: 73.0 lbs. (33.1 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
550W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | RoHs | IP20
INSTALLATION

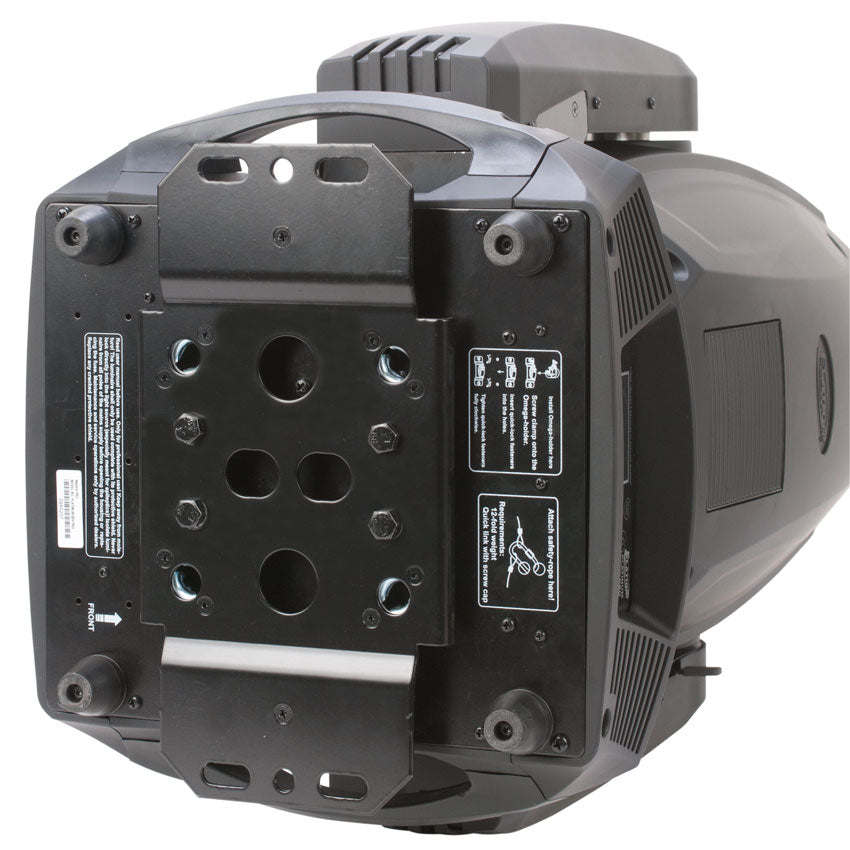

Rigging: Clamps (Not Included)
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(2) Omega Brackets
(1) 5pin DMX
(1) Safety Cable
(1) powerCON Cable
OPTIONAL ACCESSORIES:
SBX TOUR ROAD CASE(click for more info)
CLAMPS(click for more info)
PRO CABLES(click for more info)
DMX SOLUTIONS(click for more info)
Specifications and documentation subject to change without notice.
