Platinum Spot LED II
Discontinued
Platinum Spot LED II is a professional-grade lighting solution.
Platinum Spot LED II
Sale price$0.00
Platinum Spot LED II

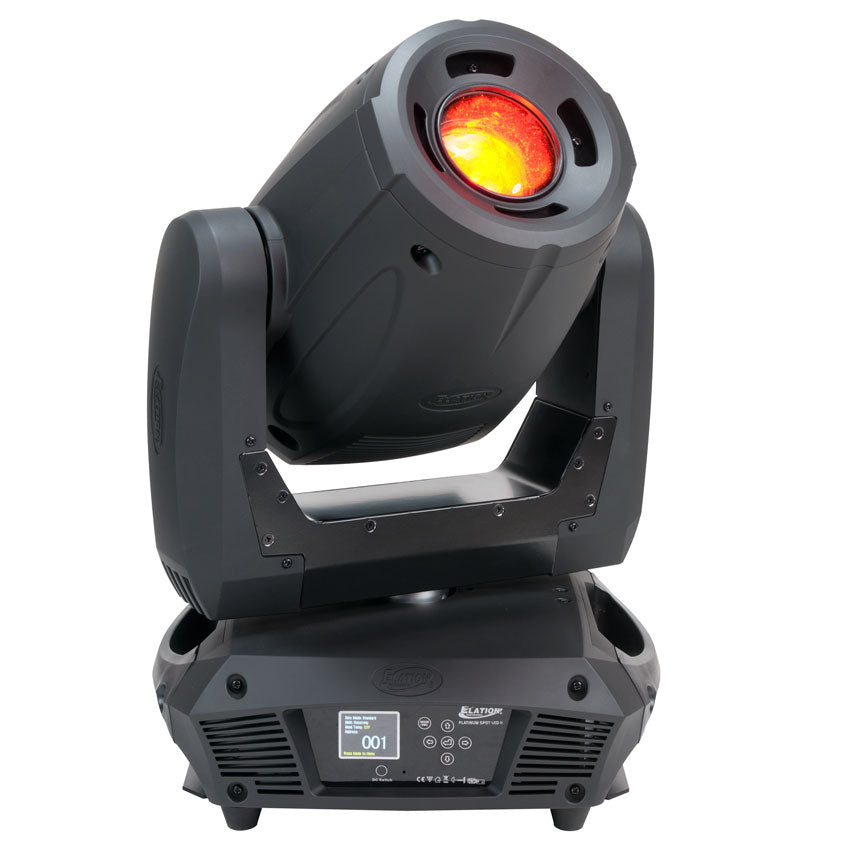

The Platinum Spot LED II™ features a 135W Cool White LED engine, 17° beam, 8 dichroic colors plus white, 7 rotating, interchangeable, glass and 7 static metal gobos, frost filter hybrid wash effect, 3-facet rotating prism with 16 prism macros, motorized iris, focus, and dimming, high speed mechanical shutter and strobe, hibernation mode, 3 and 5pin DMX in/out connections, RDM (Remote Device Management), full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, a multi-voltage universal auto switching power supply (100-240v), and flicker free operation for TV and FILM.
FEATURES
Cool White 17° Beam LED Spot Illuminare
Low Heat, Quiet Operation, and Hibernation Mode
Frost Filter Hybrid Wash + Infinity Prism Effects
Flicker Free Operation For Broadcast TV and FILM
FEATURES
Cool White 17° Beam LED Spot Illuminare
Low Heat, Quiet Operation, and Hibernation Mode
Frost Filter Hybrid Wash + Infinity Prism Effects
Flicker Free Operation For Broadcast TV and FILM
Specifications
SOURCE
135W Cool White LED Engine
60,000 Hour Average LED Life
PHOTOMETRIC DATA
6,500K, >85CRI
11,220 LUX 1,042 FC @8.2’ (2.5m) (17° Full ON)
EFFECTS
Frost Filter Hybrid Wash Effect
3-Facet + Infinity Rotating Prisms and Macros
Motorized Focus
Iris: 5% - 100%
Strobe: 1-18fps
Dimming 0% - 100%

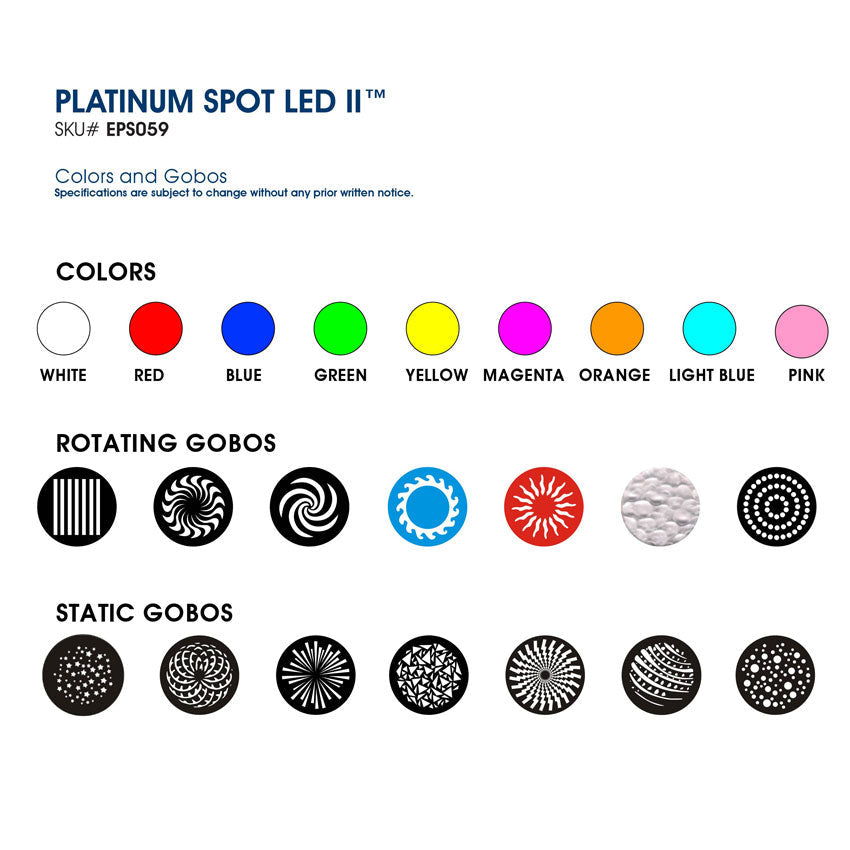

COLOR
8 Dichroic Colors + White (Open)
GOBOS
7 Interchangeable / Rotating / Indexing Glass Gobos
Gobo Size: OD 1.06” (27mm) / ID 0.86” (22mm)
7 Static / Indexing Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (16 / 14 / 22)
RDM (Remote Device Management)

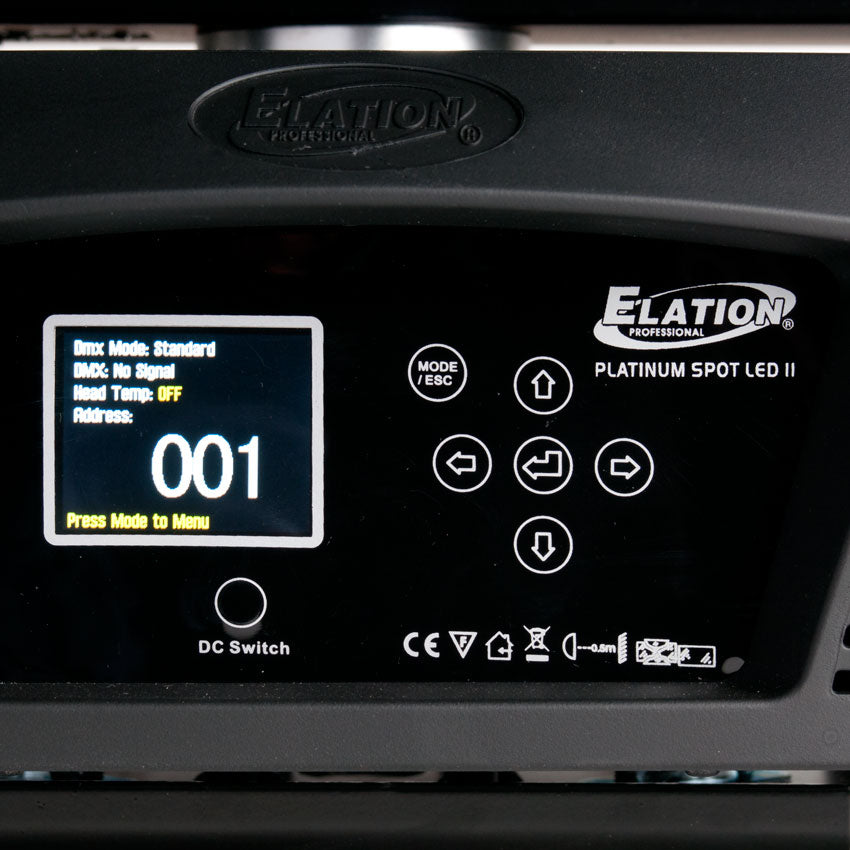

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

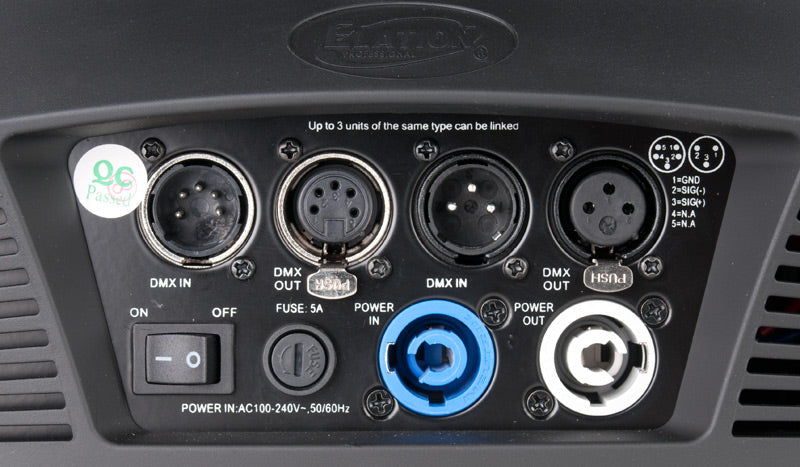

3pin 5pin DMX In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 14.1” (357mm)
Width: 13.2” (335mm)
Vertical Height: 20.7” (526mm)
Weight: 35.3 lbs. (16 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
230W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
