PLATINUM WASH ZFX PRO XL
Discontinued
Platinum Wash ZFX PRO XL is a professional-grade lighting solution.
PLATINUM WASH ZFX PRO XL
Sale price$0.00
PLATINUM WASH ZFX PRO XL

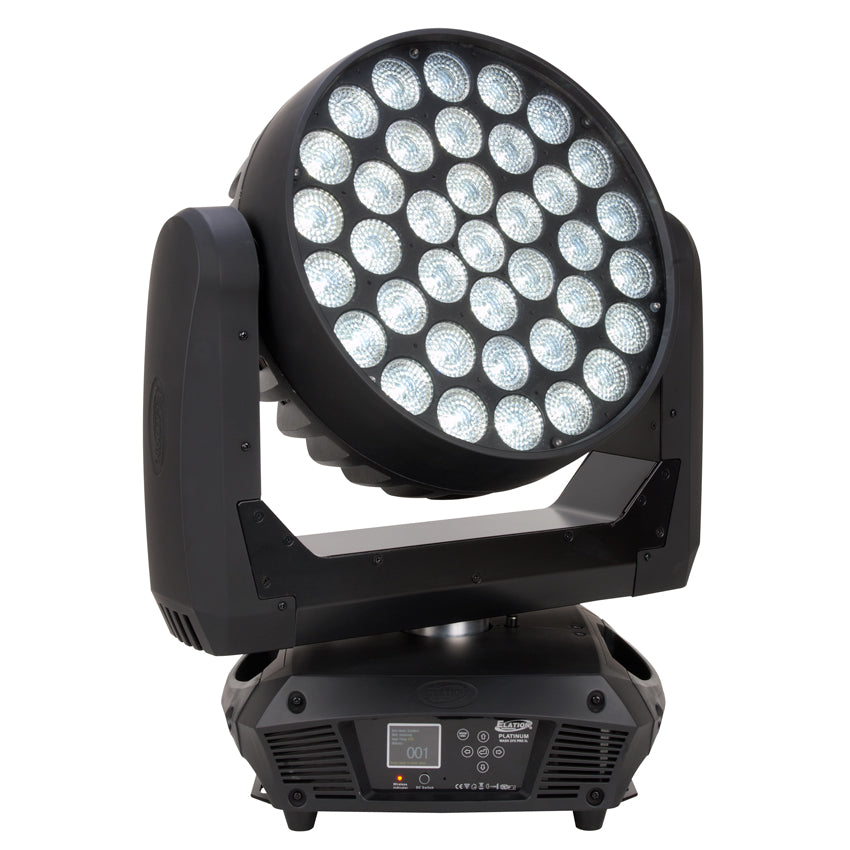

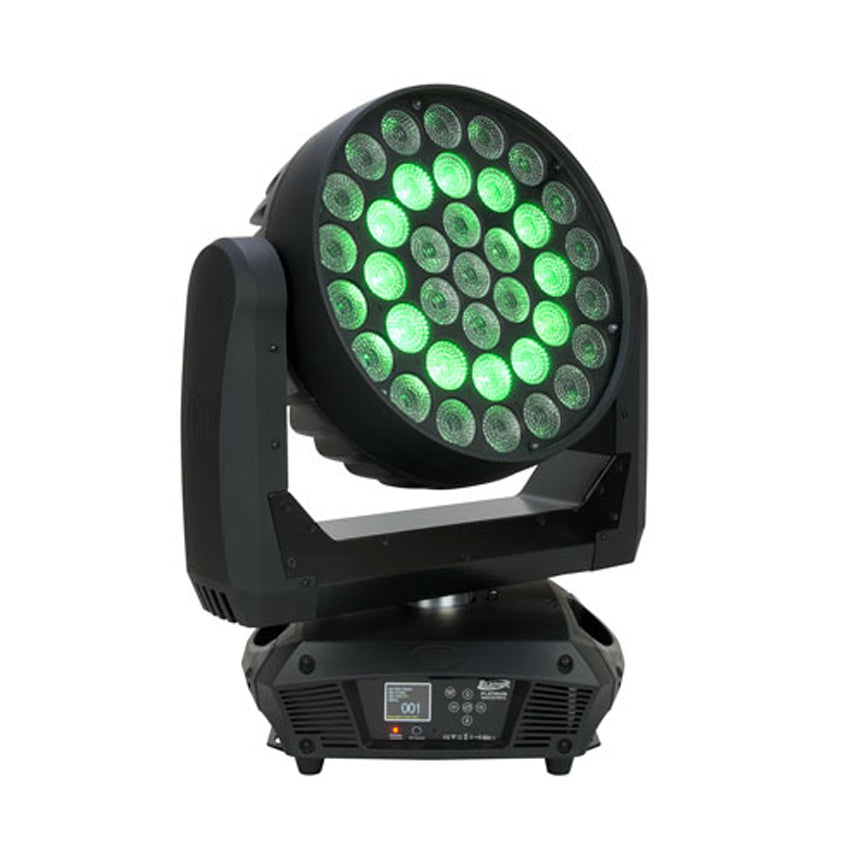

The Platinum Wash ZFX PRO XL™ features (37) 15W OSRAM HO RGBW LEDs producing comparable output of a 1200W wash fixture, motorized zoom (15° - 28°), variable color temperature (2700K - 8000K), multiple zone and individual pixel control, built-in EWDMX receiver, electronic strobe (1-13 fps) and dimming (0-100%0, flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in connections, (6) button touch control panel, 700W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
- Comparable Output of 1200W Wash Fixture
- Quad Color RGBW Mixing
- Motorized 15° - 28° Zoom
- Variable Color Temperature (2700K - 8000K)
- Multiple Zone and Individual Pixel Control
- EWDMX Internal Wireless DMX Receiver
- Flicker Free Operation for TV and FILM
Specifications
SOURCE
(37) 15W OSRAM HO RGBW LEDs
100,000 Hour Average Life
PHOTOMETRIC DATA
8,160 LUX 758 FC @4M 15° Beam Full ON
3,157 LUX 293 FC @4M 15° Beam WHITE LEDs Full ON
5,260 LUX 489 FC @4M 28° Beam Full ON
1,620 LUX 150 FC @4M 28° Beam WHITE LEDs Full ON
EFFECTS
Variable Strobe Settings (1-13fps)
Electronic Dimming (0% - 100%)
Chase Zone and Individual Pixel Macros
COLOR
Quad Color RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 30 / 160)
Pan Movement: 630° / Tilt Movement: 265°

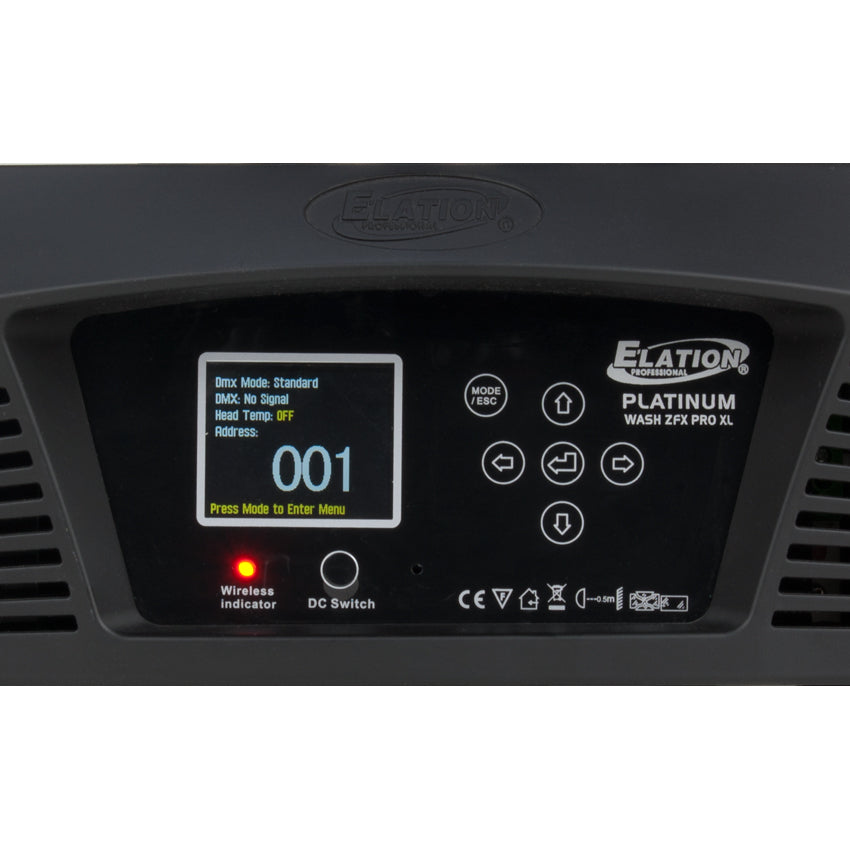

6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

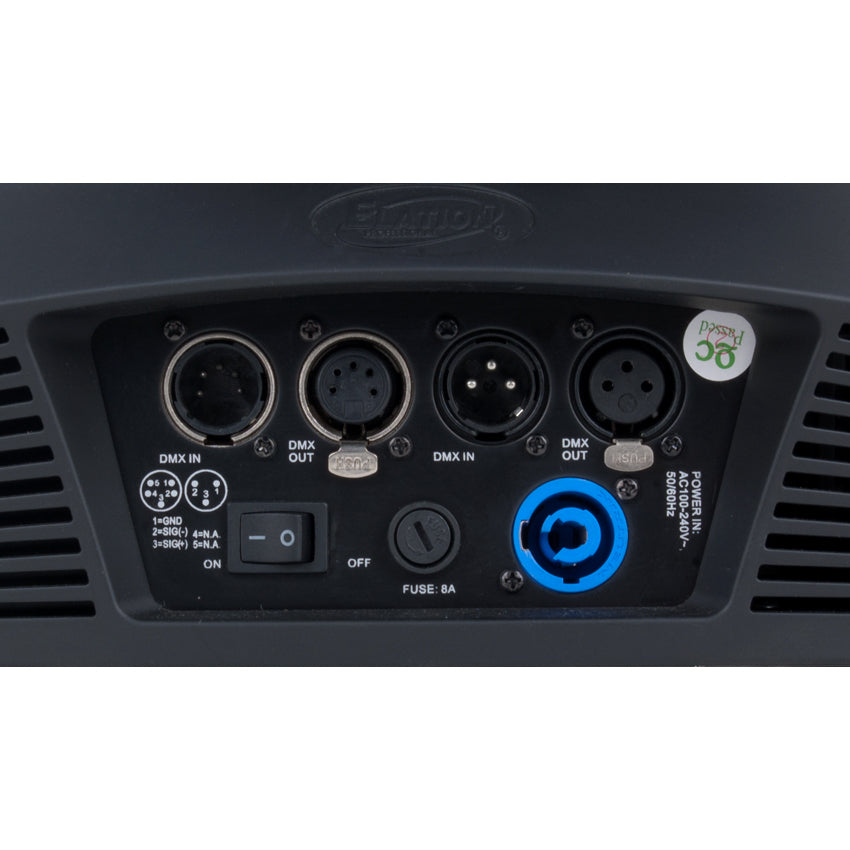

3pin 5pin DMX In/Out
powerCON In
SIZE / WEIGHT
Length: 19.4” (493mm)
Width: 13.2” (335mm)
Vertical Height: 23.4” (594mm)
Weight: 54.0 lbs. (24.5kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
113°F (45°C) Max Ambient Temp
APPROVALS / RATINGS
CE Approved
cETLus Approved
IP20 Rated
INSTALLATION
Rigging: Omega Brackets
Working Position: Flat Surface / Inverted (180°)
INCLUDED ITEMS
(2) Omega Brackets
(1) 3pin XLR Cable
(1) Safety Cable
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
