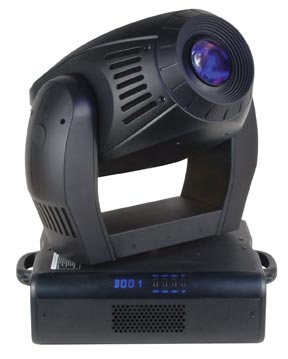

POWER SPOT 700 CMY-II
Discontinued
Power Spot 700 CMY-II is a professional-grade lighting solution. 700 CMY Color Mixing Moving Head w/Animation Wheel #160; CONTROL FEATURES #160; • USITT DMX-512 (16-bit resolution) #160; • 24 DMX Channels #160; • 4 Digit L.E.D. Display #160; • On Board Menu Settings #160; • 3-pin XLR Serial Input/Output #160; • Sound Active Mode - Built-in Mic#160; #160; • Lamp On/Off Power#160; #160; #160; OTHER FEATURES #160; #160; • Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement#160;.
POWER SPOT 700 CMY-II
Sale price$0.00
POWER SPOT 700 CMY-II
700 CMY Color Mixing Moving Head w/Animation Wheel
- CONTROL FEATURES
- USITT DMX-512 (16-bit resolution)
- 24 DMX Channels
- 4 Digit L.E.D. Display
- On Board Menu Settings
- 3-pin XLR Serial Input/Output
- Sound Active Mode - Built-in Mic
- Lamp On/Off Power
- OTHER FEATURES
- Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement
Specifications
OPTICAL SYSTEM
• High Output Luminous- Dichroic Glass Reflector
• 14 - 32 Degree Linear Zoom
• All Lenses Are Anti-Reflection Coated
• 4900 lux @ 10M
COLORS
• Full Color Mixing with CMY Flag System
• Interchangeable Color Filters, 8 Dichroic Color Filters CTC, CTB + White, Split Colors
• Continuous, Variable Speed, Color Scrolling in Both Directions (Rainbow Effect)
• More Color Combinations Possible By Overlaying the Multi-Color Dichroic Gobo and the Colors on the Color Wheel
GOBOS
• Gobo-Wheel 1: 7 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo-Wheel 2: 9 Fixed Exchangeable Standard Gobos Plus "Open"
• Gobo Outside Diameter 26.9 mm, Image Size 23 mm
• Gobo Thickness: Glass = 1.1 - 3.0 mm, steel = 0.3 mm
• Gobo Overlay (Gobo Morphing)
ANIMATION

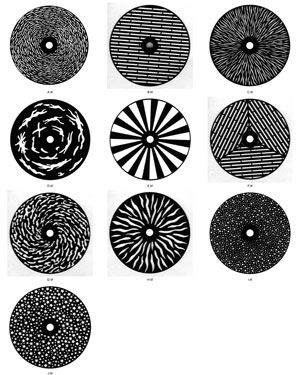

• 1 Variable Speed Replaceable Rotating Animation Wheel
• 4 Extra Animation Wheels Included
• 8 Optional Animation Wheels Available
SHUTTER/DIMMER
• Variable Speed Strobe Effect (1-10) Flashes Per Second
• Pre-set Variable/Random Strobe and Dimming Pulse Effect
• Dual Flag Mechanical Dimming System 0%-100%
IRIS
• Beam Narrow to Wide (4% - 100%)
• Variable Speed Iris Macros
• Small to Large and Large to Small Iris Pulse Effect
FROST
• Variable Frost Control
• Hard Edge to Soft Edge
PRISM
• 3-facet Rotating/Indexing Prism
• Both Directions At Variable Speeds
• Macro-Function For Rotating Gobos/Rotating Prism Combinations
FOCUS
• Motor Driven Focus From Near to Far
ZOOM
• 14 - 32 degree Linear Zoom
LAMP
• Phillips MSR 700/2 (700W, 72V, 7500°K, 1000 HRS) 55000 lumens, base: G22 (Medium Bi-Post)
PAN/TILT
• Automatic Pan / Tilt Position Correction
• Maximum PAN-Movement 540° 16-bit Resolution Maximum TILT-Movement 280° 16-bit Resolution
DIMENSIONS WEIGHT
• (LxWxH) 19” x 14” x 29” / 482.6 x 355.6 x 736.6 mm
• 63 lbs. / 28.5 kgs.
RIGGING
• 2 X 1/4 Turn Omega Brackets 4 X M-10 Threaded Holes for Clamps
POWER SUPPLY
• Electronic Ballast
• Voltage: AC 90-260V 50/60Hz
• Power Consumption: 900W (120V=7.5A)
OPTIONAL DUAL ROAD CASE
• DRC-700
• DRC-700PRO
