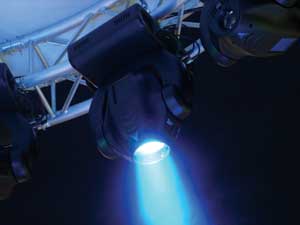

POWER WASH 575E
Power Wash 575E is a professional-grade lighting solution. 575W Moving Head Wash CONTROL FEATURES #160;USITT DMX-512 (16-bit resolution) #160;15 DMX channels #160;4 Digit Blue L.E.D.
POWER WASH 575E
575W Moving Head Wash
- CONTROL FEATURES
- USITT DMX-512 (16-bit resolution)
- 15 DMX channels
- 4 Digit Blue L.E.D. Display
- 3 pin XLR serial input/output
Specifications
SPECIAL DMX-CONTROL FEATURES
16 pan/tilt pre programed movements via DMX
Built-in Programs via DMX
Pan/Tilt/Gobo/Color amp; Prism set to Sound Active mode via DMX
STAND-ALONE FEATURES
Sound activated built in programs
Sensitivity knob
Linkable up to 16 units
Self Test amp; Stand Alone settings
Built in Microphone with sensitivity knob
OPTICAL SYSTEM
High Output Luminous-Efficiency parabolic mirror
Glass Dichroic reflector
8ordm; - 22ordm; Motorized zoom
150mm Fresnel Lens
Lamp: Philips MSR575/SA2DE 7500K, 1000hr
COLOR
CMY Gradual Color Mixing
9 Dichroic Colors + White + UV
Continuous Color Scroll
SHUTTER/DIMMER
Mechanical Dimming 0-100%
Mechanical High Speed shutter amp; Pulse Effect
PAN/TILT
Fine Pan amp; Tilt (16 bit resolution)
Automatic Pan / Tilt position correction
Maximum Pan movement 540ordm; in 2.0s / 16 bit
Maximum Tilt movement 280ordm; in 1.1s / 16 bit
EFFECTS
180ordm; Beam Shaper
Frost Filter
RIGGING
2 x 1/4 turn fastener brackets
2 x Wing Mounting plates
1 x Safety cable hole
DIMENSIONS amp; WEIGHT
26"L x 12"W x 10"H
42 lbs (Power Wash 575 E)
POWER SUPPLY
Fuse: 10A
Electronic Ballast
Voltage: 90-240V 50-60Hz
Power Consumption: 700VA
