PRO FS 15R FOLLOWSPOT
PRO FS 15R Followspot is a professional-grade lighting solution.
PRO FS 15R FOLLOWSPOT
The PRO FS 15R™ is a high output medium throw followspot featuring the Phillips™ MSD Platinum 15R lamp, 2,000 hour average lamp life, 13,500 total lumens with5° to 10° manual zoom, (5) dichroic colors including CTB plus white, (4) manual gel frame holders, 0-100% smooth dimming, manual iris, frost, and framing effects, variable color temperature settings (3,200K - 6,800K), powerCON in, (6) button (2) fader control panel, 400W max power consumption, a multi-voltage universal auto switching power supply (100-240v), and included tripod stand and road case.
- 5° - 10° Manual Zoom
- 13,500 Total Lumens

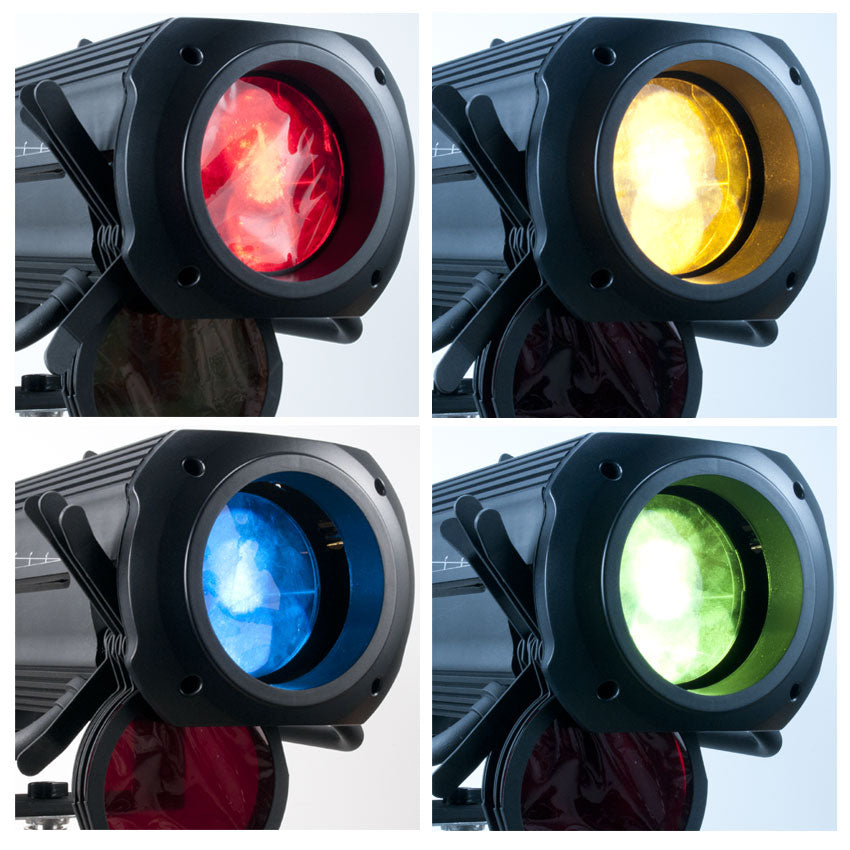

- 5 Dichroic Colors Including CTB plus White
- 4 Manual Gel Frame Holders
- Variable Color Temperature Settings (3,200K - 6,800K)
Specifications
Phillips™ MSD Platinum 15R Lamp
2,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
10,770 LUX 1,001 FC @32.8’ (10M) (6° Full On)
EFFECTS
Iris and Framing
Frost
Smooth Dimming (0-100%)

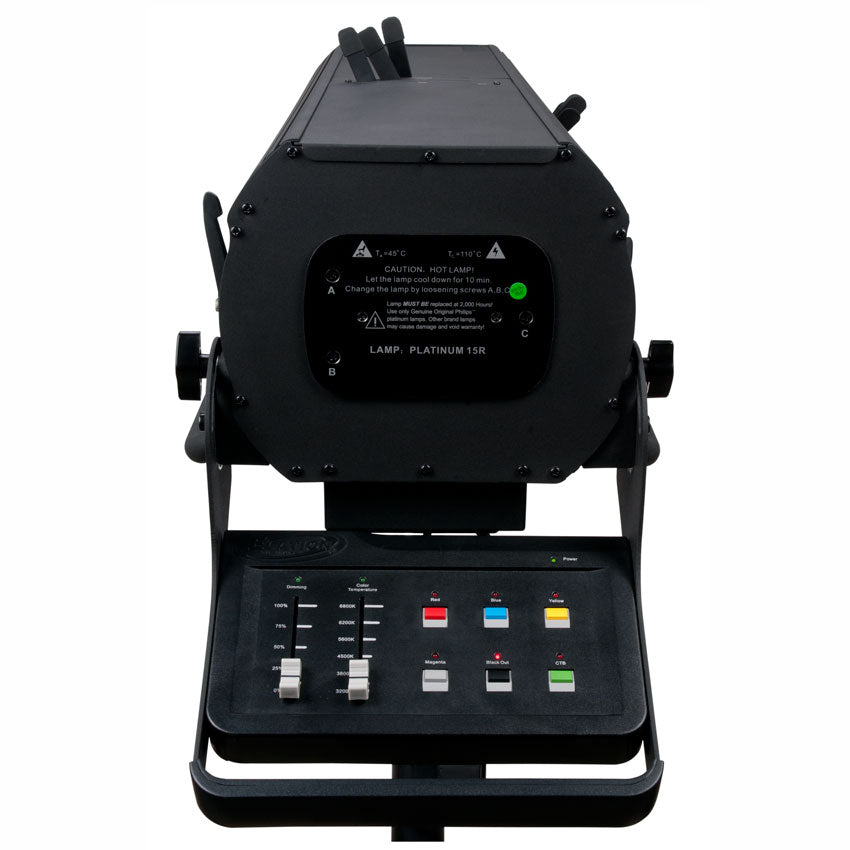

CONTROL / CONNECTIONS
(4) Push Buttons
(2) Faders (Dimming + Color Temperature)
powerCON In
SIZE / WEIGHT - Followspot
Length: 42.0” (1068mm)
Width: 14.9” (376mm)
Vertical Height: 10.0” (255mm)
Weight: 52.0 lbs. (24 kg)

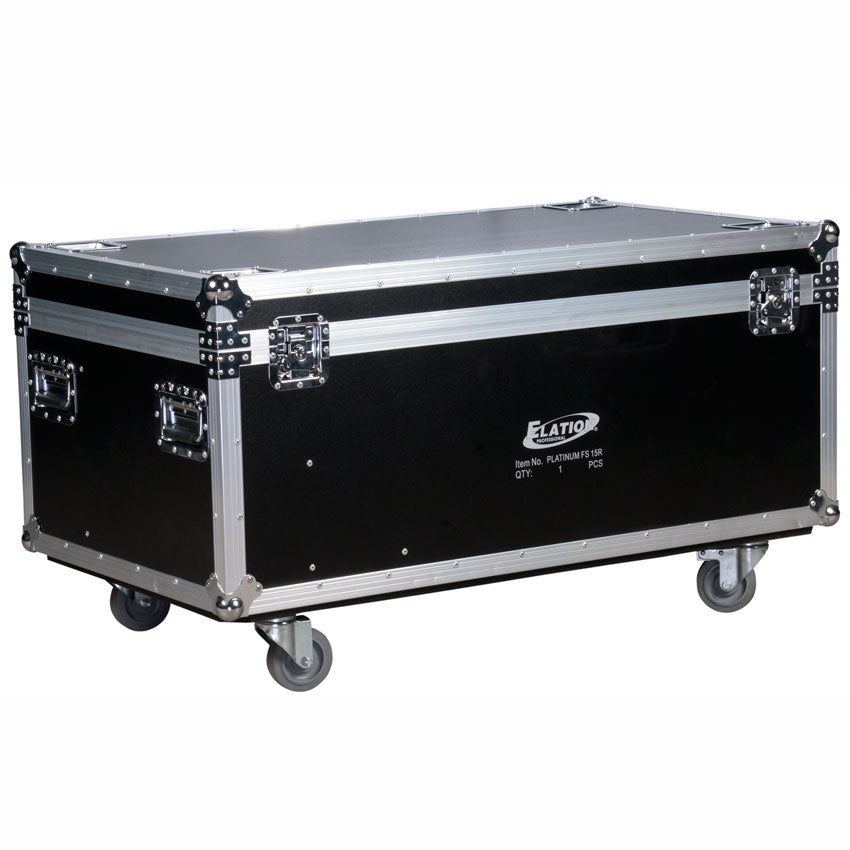

SIZE / WEIGHT - Road Case
Length: 46.0” (1170mm)
Width: 26.8” (680mm)
Vertical Height: 25.6” (650mm)
Weight: 174.0 lbs. (79 kg) (with followspot + stand)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
14° to 113°F (-10° to 45°C)
APPROVALS / RATINGS
CE | IP20
INCLUDED ITEMS
(1) powerCON Cable

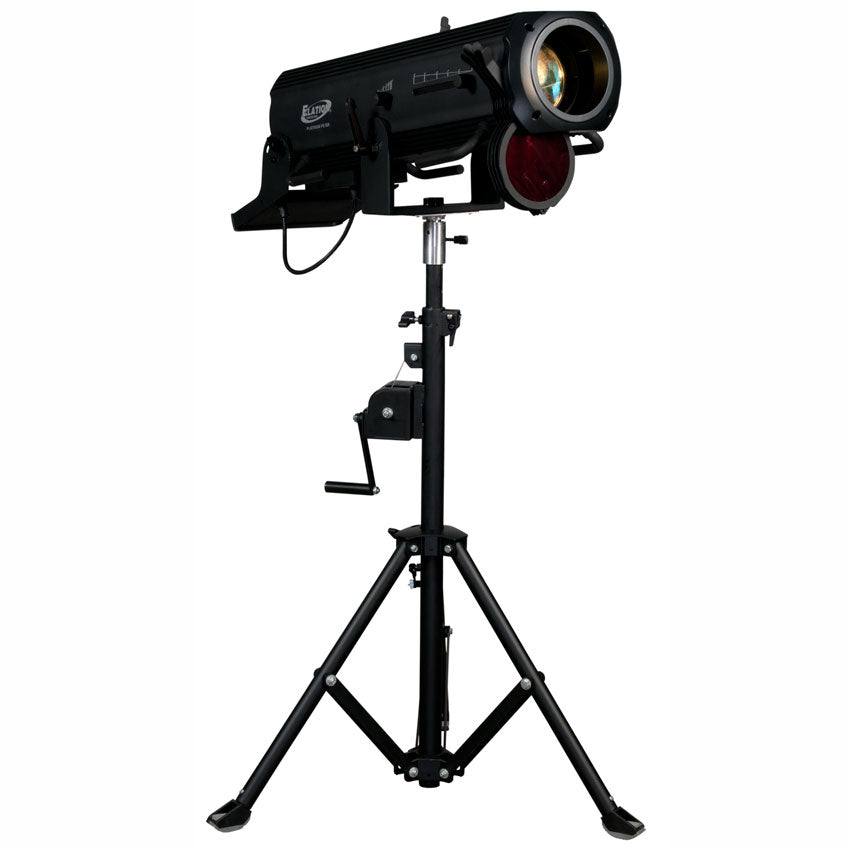

(1) Tripod Stand

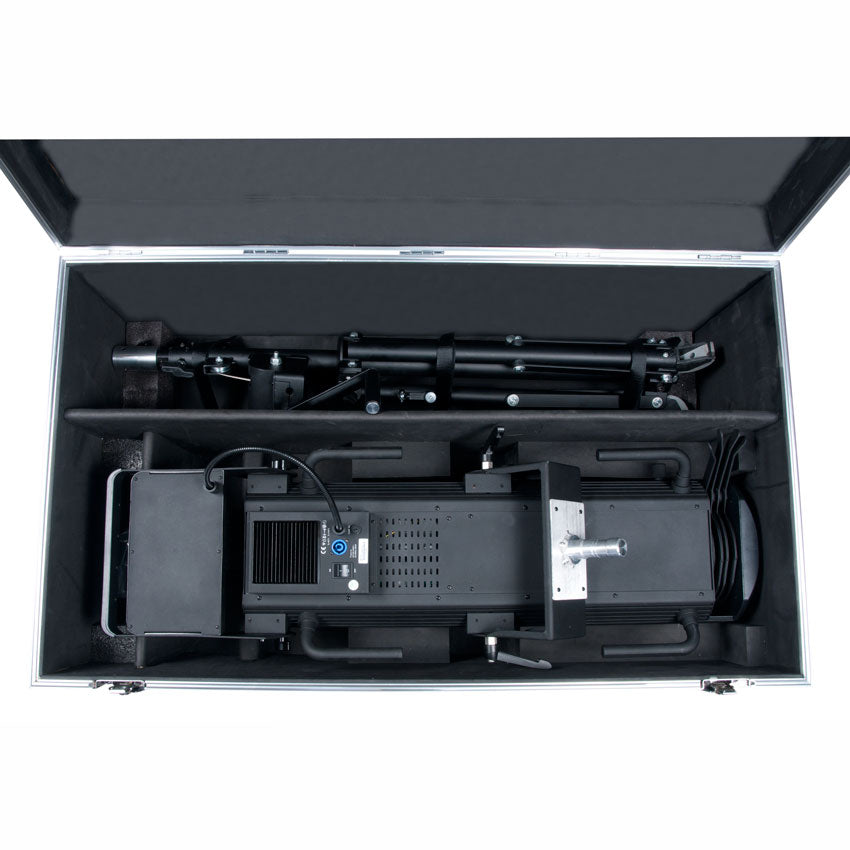

(1) Road Case
Specifications and documentation subject to change without notice.
Downloads
Cad drawing
Dimensional drawings
Photometrics
Specification sheet
User manual
Vectorworks symbol
PRO FS 15R FOLLOWSPOT Parts & Service
Our PRO FS 15R FOLLOWSPOT Parts and Support page is your hub for technical support for your product. Here you’ll find support docs, service resources, and replacement parts specifically matched to your PRO FS 15R FOLLOWSPOT. You can also use this area to plan future maintenance, extending the life of your investment and minimizing downtime.
PRO FS 15R FOLLOWSPOT Parts & Service
