PROTEUS BEAM
PROTEUS BEAM is a professional-grade lighting solution. PROTEUS BEAM™ is an IP65 rated moving head beam luminaire with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens.
PROTEUS BEAM

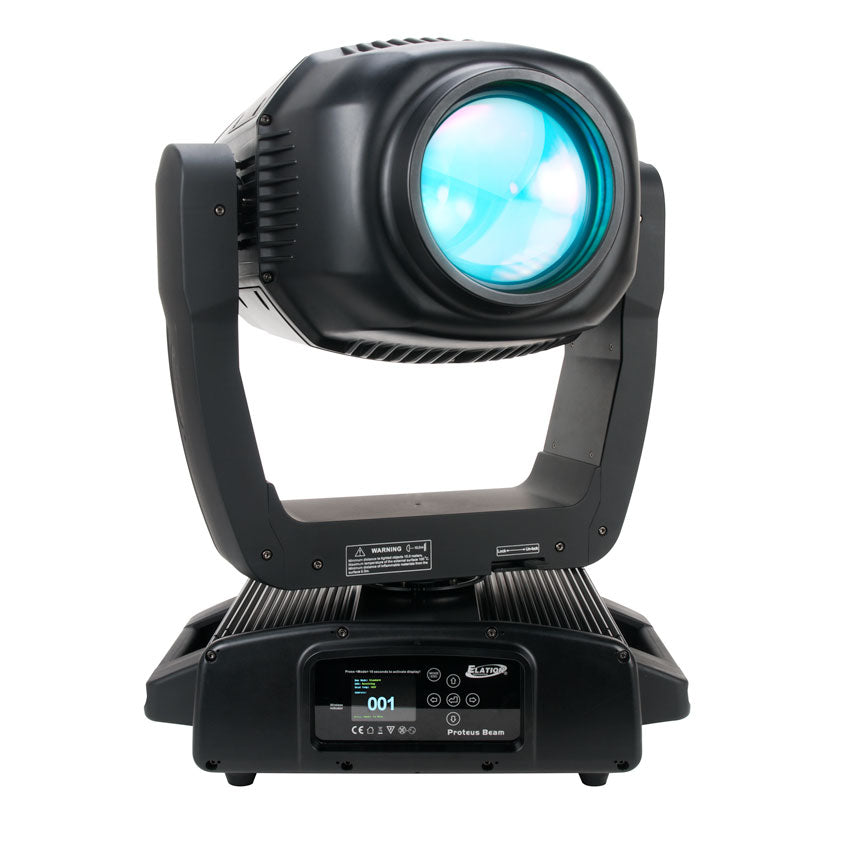

PROTEUS BEAM™ is an IP65 rated moving head beam luminaire with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens. Features include an advanced optical system producing a precise 2.5° beam aperture, a revolutionary internal thermal cooling system, full CMY color mixing, 13 dichroic colors including CTB, CTO, and UV, 8 rotating interchangeable metal and 13 static-stamped metal gobos, 5 and 32 facet rotating prisms, frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM, Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 etherCON in/out connections, IP65 Locking Power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
- IP65 Rated Moving Head Beam Luminaire
- Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
- Precise 2.5° Beam Aperture and Advanced Optics
- Revolutionary Internal Cooling System
- Full CMY Color Mixing
- 13 Dichroic Colors including CTB, CTO, and UV
- 8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
- 5 and 32 Facet Rotating Prisms and Frost Filter
- Motorized Focus and Auto-Focus
- High Speed Mechanical Shutter and Strobe
- DMX, RDM, Art-NET, and sACN Protocol Support
- Elation's E-FLY™ Internal Wireless DMX Transceiver
Specifications
Philips™ MSD Platinum 14R 280W 80CRI, 7,800K
1,500 Hour Average LAMP Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
136,800 LUX 12,709 FC @49.2 ft (15m) 2.5°
EFFECTS
5 and 32 Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 260°
COLOR
13 Dichroic Colors including CTB, CTO, and UV
Full CMY Color Mixing
GOBOS
(8) Interchangeable Rotating / Indexing Metal Gobos
(13) Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (28 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly™ Internal Wireless DMX Transceiver

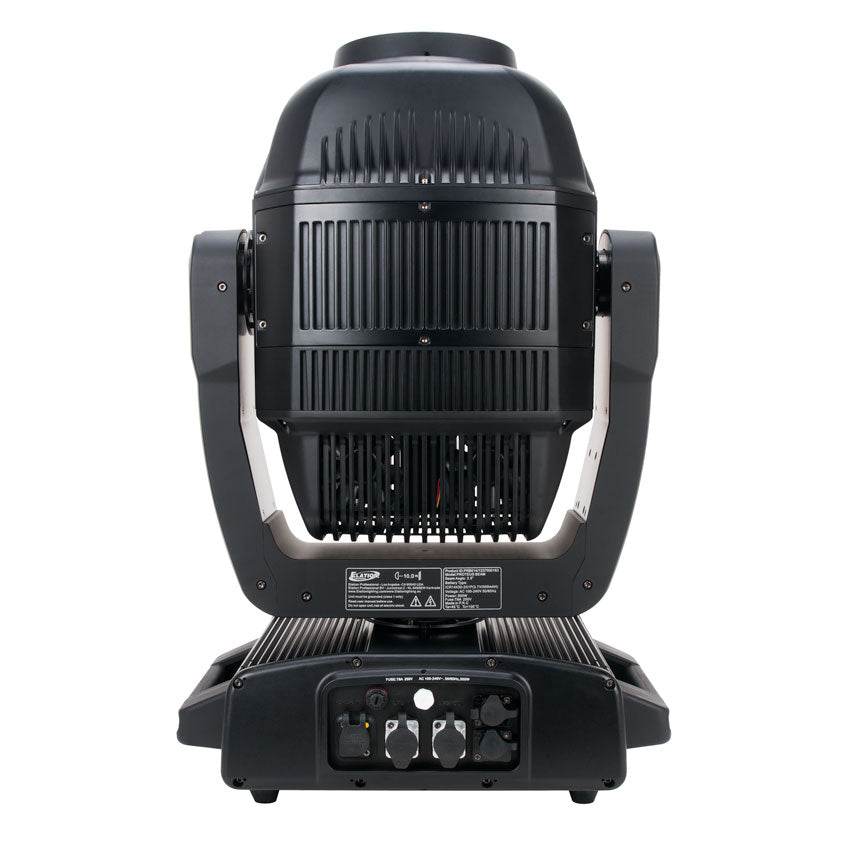

IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.1” (445mm)
Width: 17.87” (454mm)
Vertical Height: 26.77” (680mm)
Weight: 77.0 lbs. (35.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.6.0
Click HERE for software updates
Specifications and documentation subject to change without notice.
