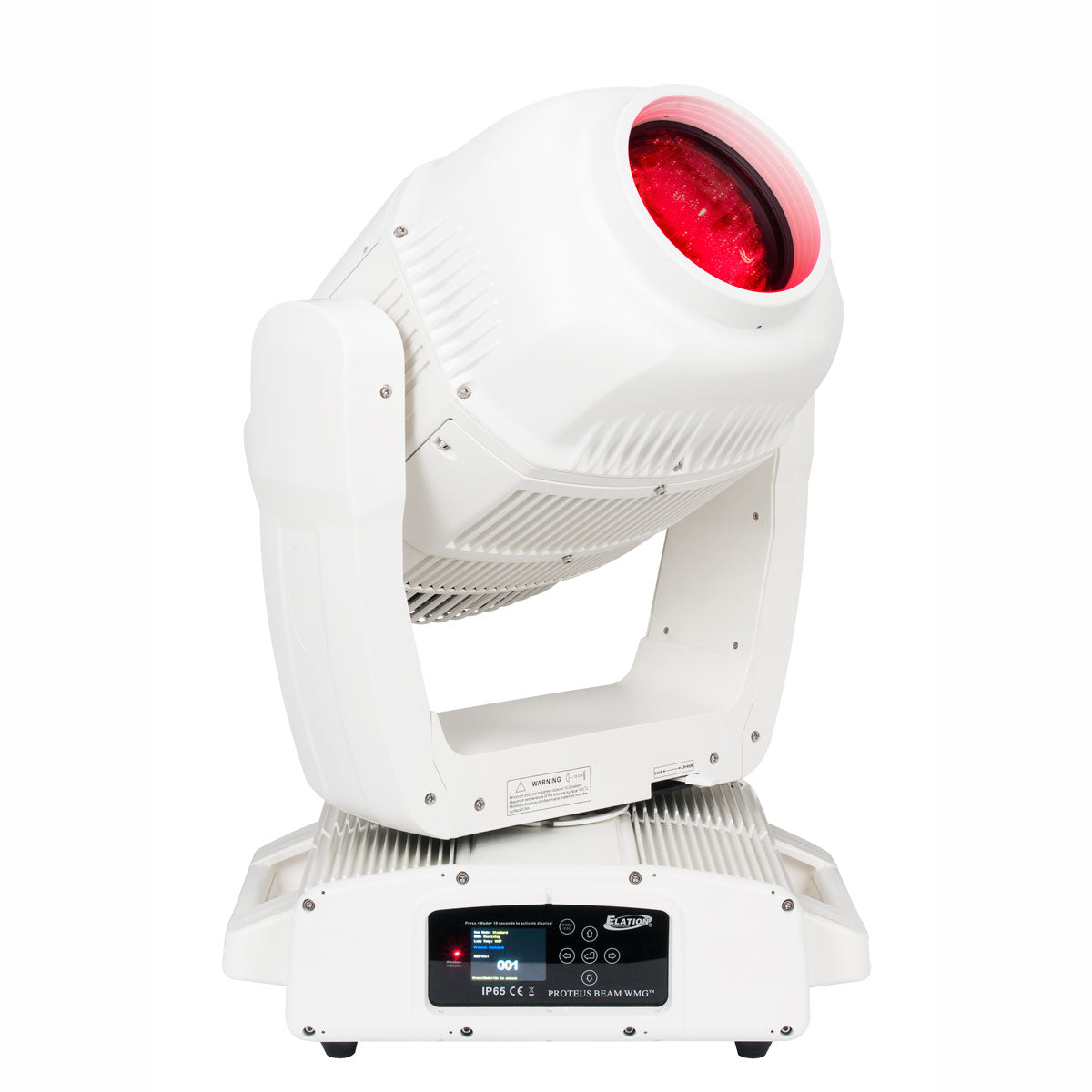

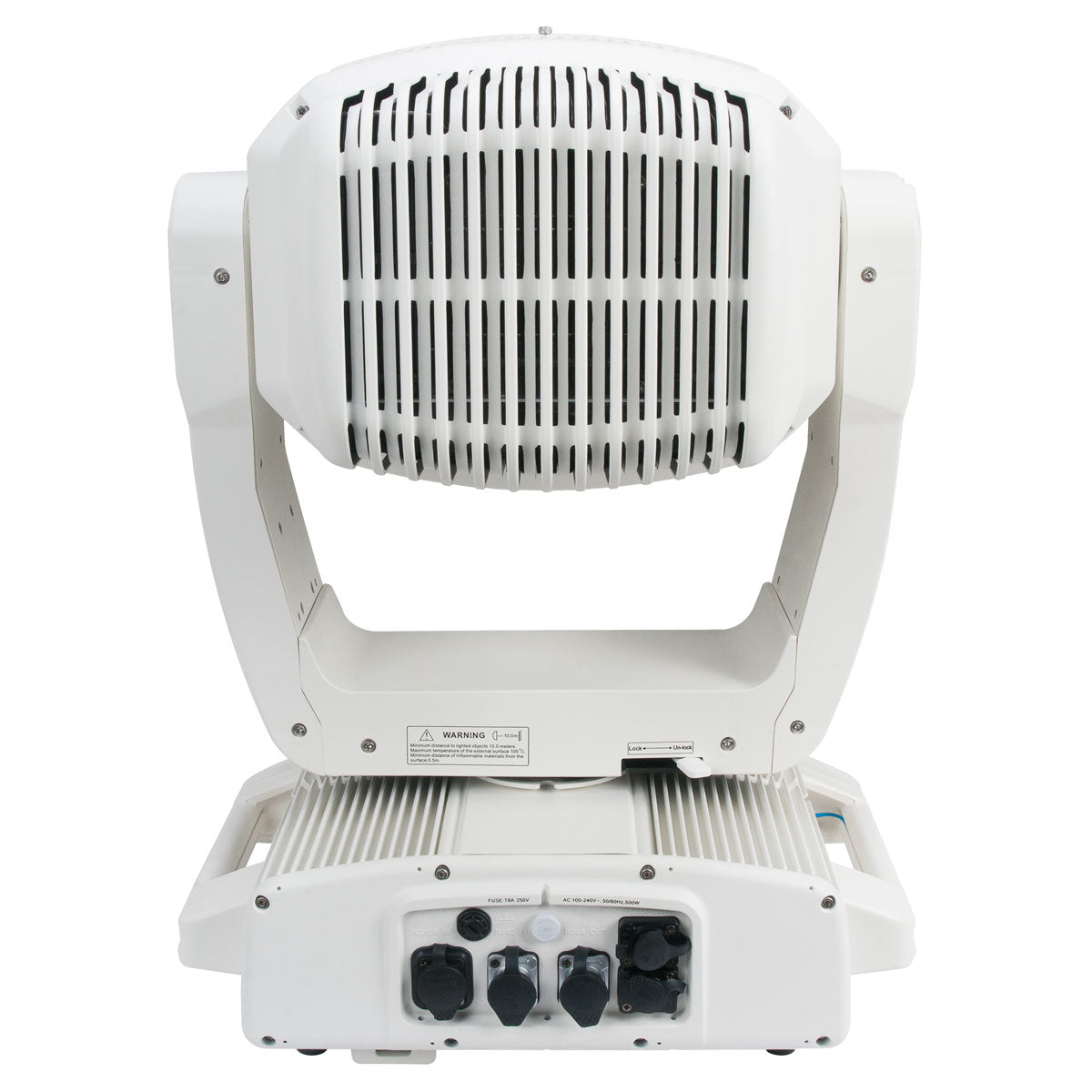

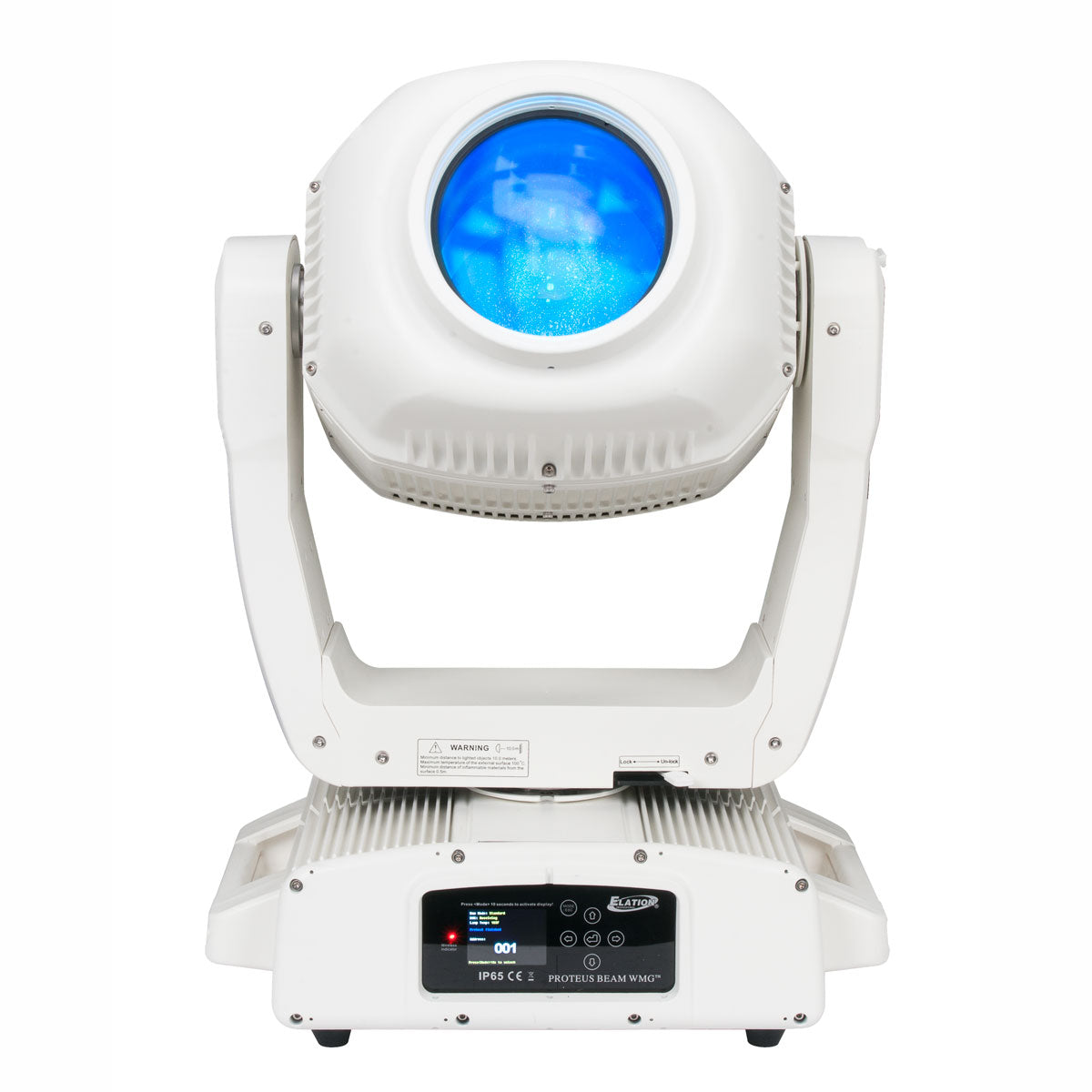

PROTEUS BEAM WMG
PROTEUS BEAM WMG is a professional-grade lighting solution. PROTEUS BEAM WMG™ is an all white exterior IP65 rated moving head beam luminaire with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens.
PROTEUS BEAM WMG
PROTEUS BEAM WMG™ is an all white exterior IP65 rated moving head beam luminaire with the Philips™ MSD Platinum 14R 80CRI 7,800K lamp producing over 12,000 total lumens. Features include an advanced optical system producing a precise 2.5° beam aperture, a revolutionary internal thermal cooling system, full CMY color mixing, 13 dichroic colors including CTB, CTO, and UV, 8 rotating interchangeable metal and 13 static-stamped metal gobos, 5 and 32 facet rotating prisms, frost filter, motorized focus and auto-focus, high speed mechanical shutter and strobe, DMX, RDM, Art-NET, and sACN protocol support, Elation's E-FLY™ internal wireless DMX transceiver, IP rated 5pin XLR and RJ45 ethernet in/out connections, IP65 Locking Power Cable in, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
- IP65 Rated Moving Head Beam Luminaire
- All White Exterior
- Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
- Precise 2.5° Beam Aperture and Advanced Optics
- Revolutionary Internal Cooling System
- Full CMY Color Mixing
- 13 Dichroic Colors including CTB, CTO, and UV
- 8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
- 5 and 32 Facet Rotating Prisms and Frost Filter
- Motorized Focus and Auto-Focus
- High Speed Mechanical Shutter and Strobe
- DMX, RDM, Art-NET, and sACN Protocol Support
- Elation's E-FLY™ Internal Wireless DMX Transceiver
Specifications
Philips™ MSD Platinum 14R 280W 80CRI, 7,800K
1,500 Hour Average LAMP Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
136,800 LUX 12,709 FC @49.2 ft (15m) 2.5°
EFFECTS
5 and 32 Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe
COLOR
13 Dichroic Colors including CTB, CTO, and UV
Full CMY Color Mixing
GOBOS
(8) Interchangeable Rotating / Indexing Metal Gobos
(13) Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (28 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly™ Internal Wireless DMX Transceiver
IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 17.1” (445mm)
Width: 17.87” (454mm)
Vertical Height: 26.77” (680mm)
Weight: 77.0 lbs. (35.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
FIRMWARE UPDATES
Current Version: V1.6.0
Click link below for software updates and technical support.
Specifications and documentation subject to change without notice.
