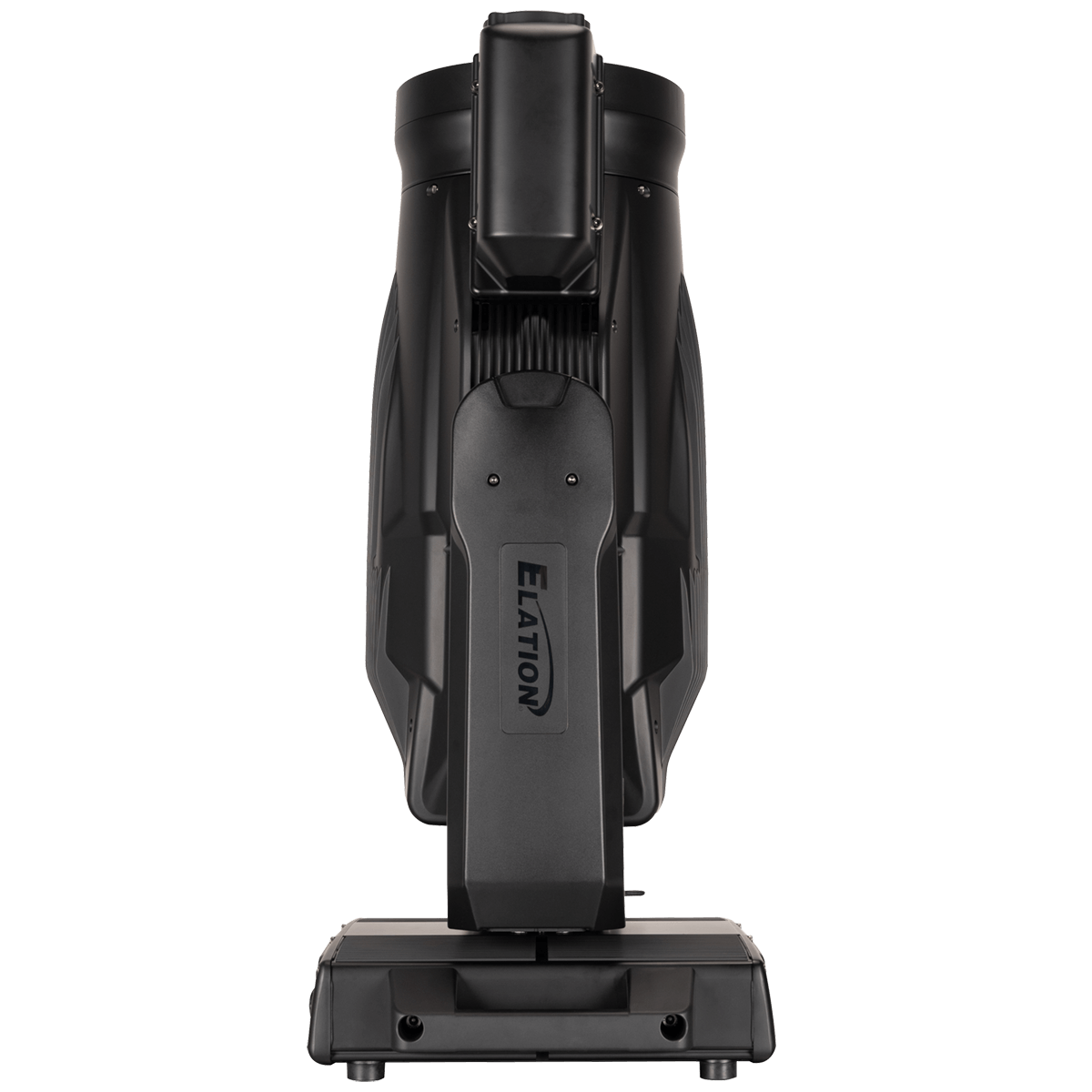

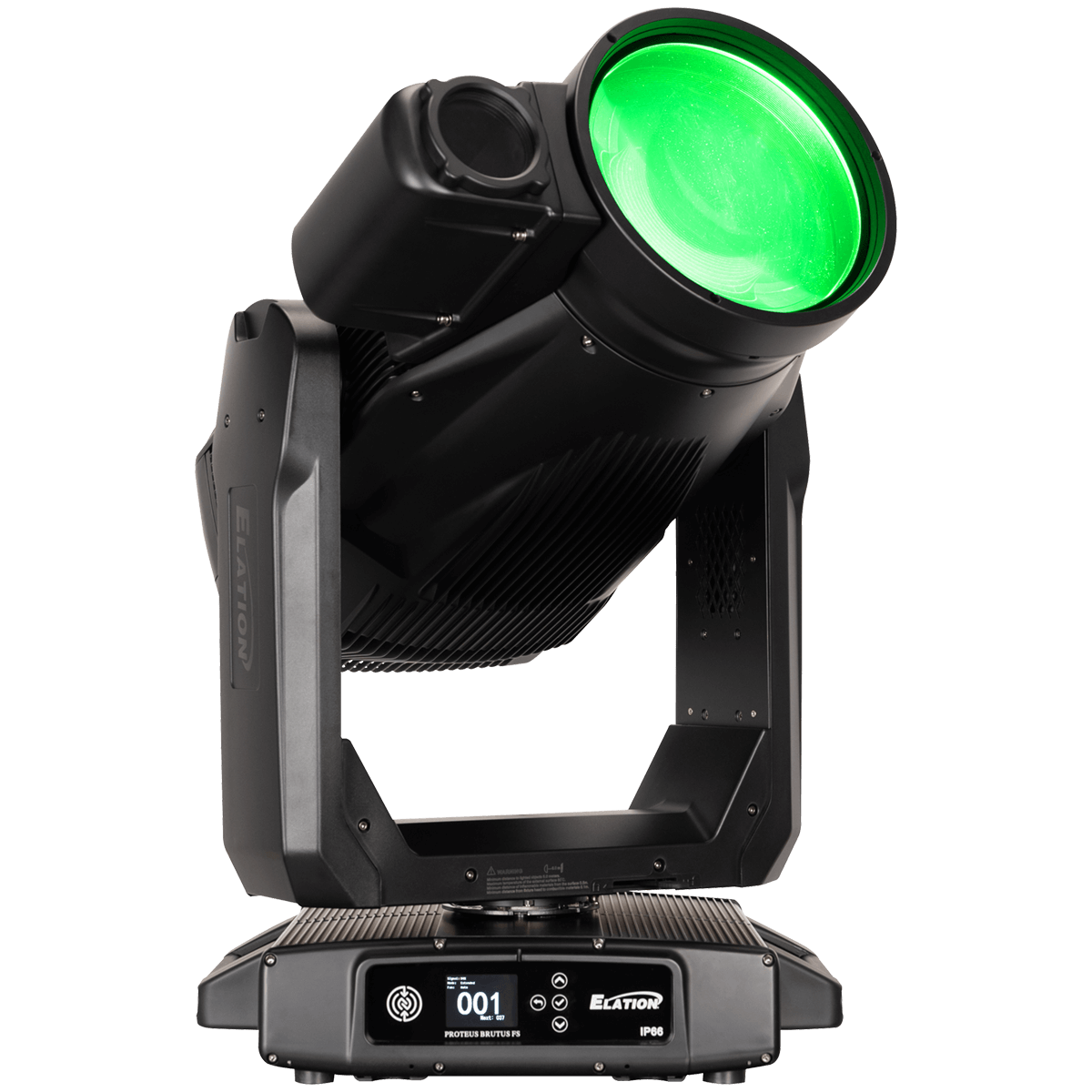

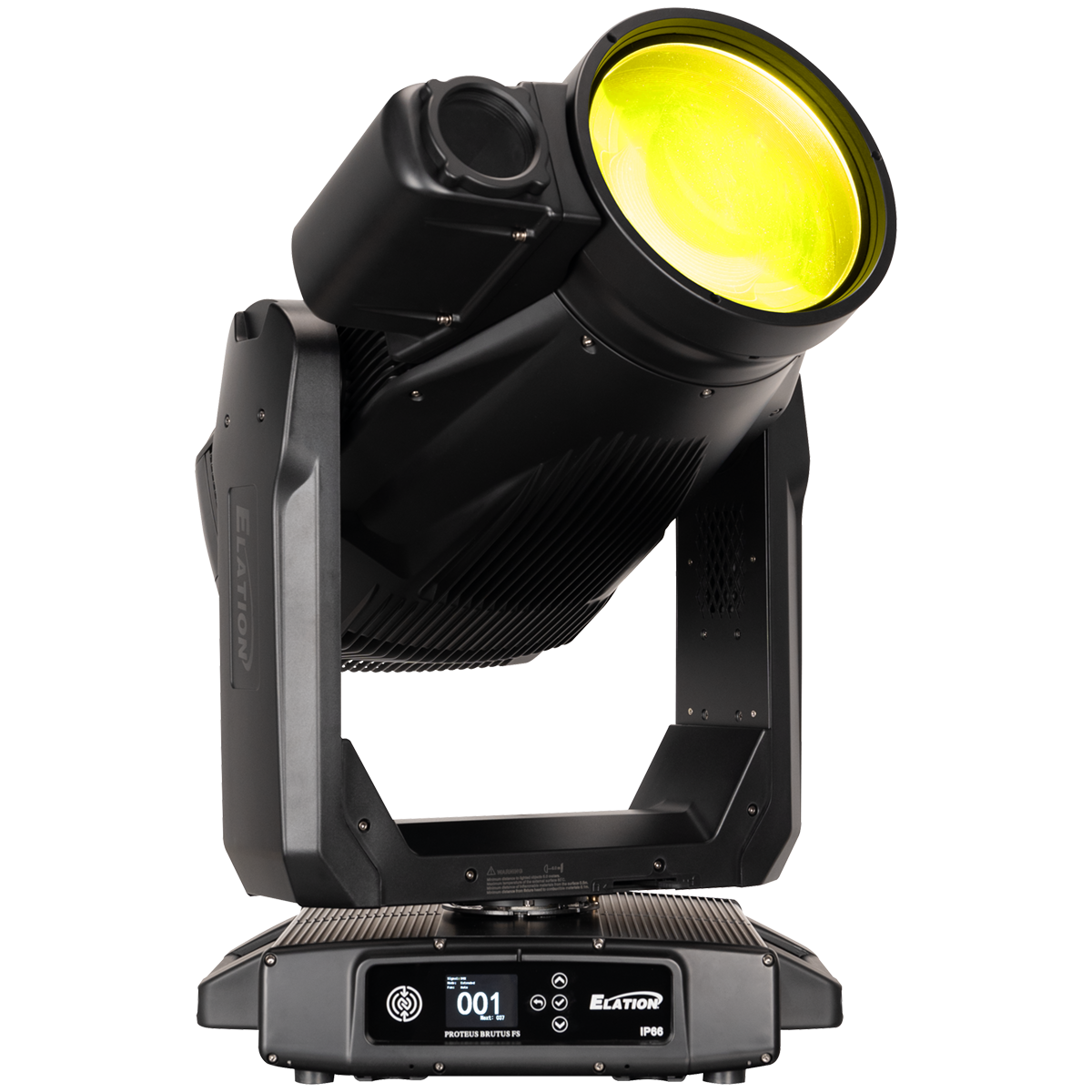

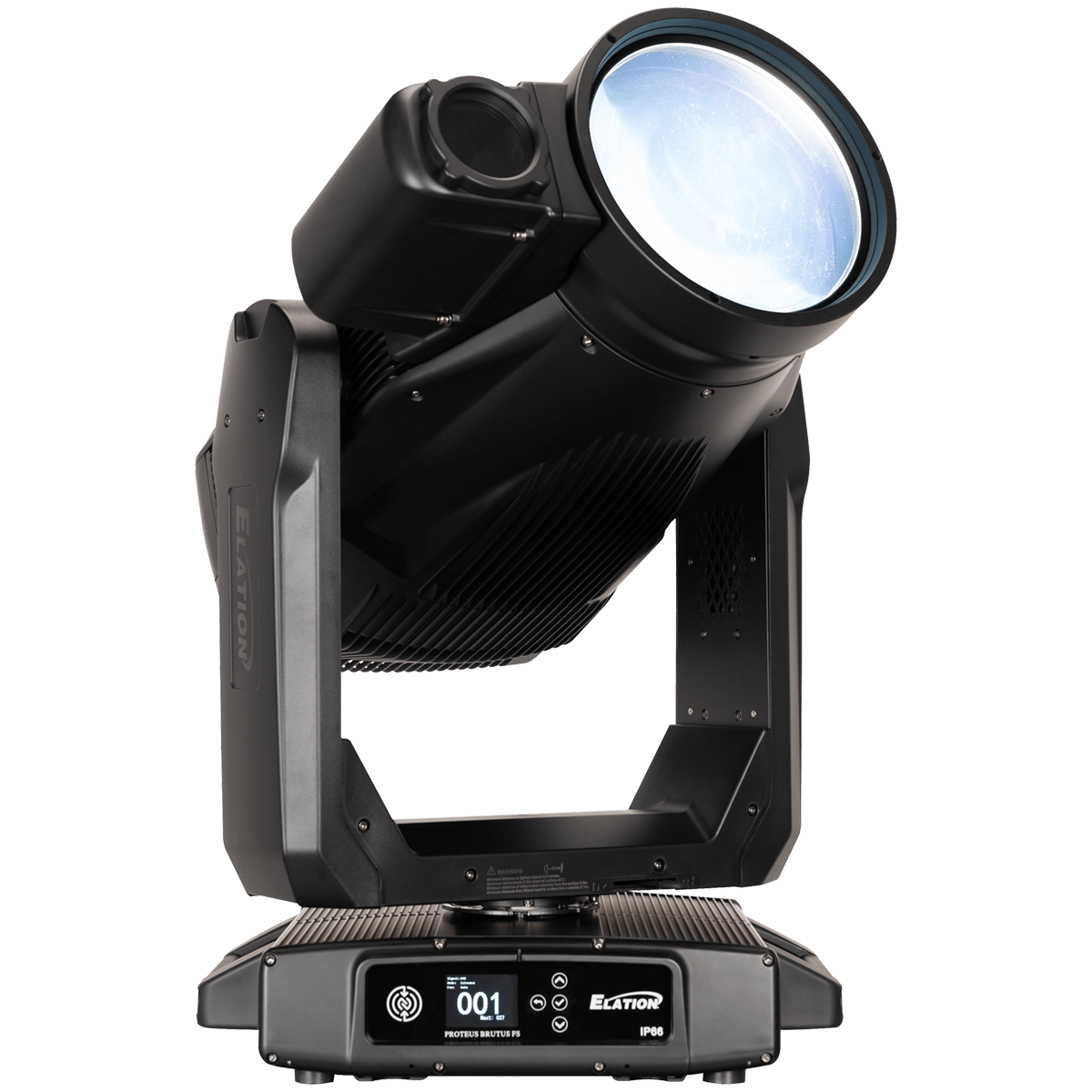

PROTEUS BRUTUS FS

Name: PROTEUS BRUTUS FS
Brand: Elation
SKU: PRB234
Availability: InStock

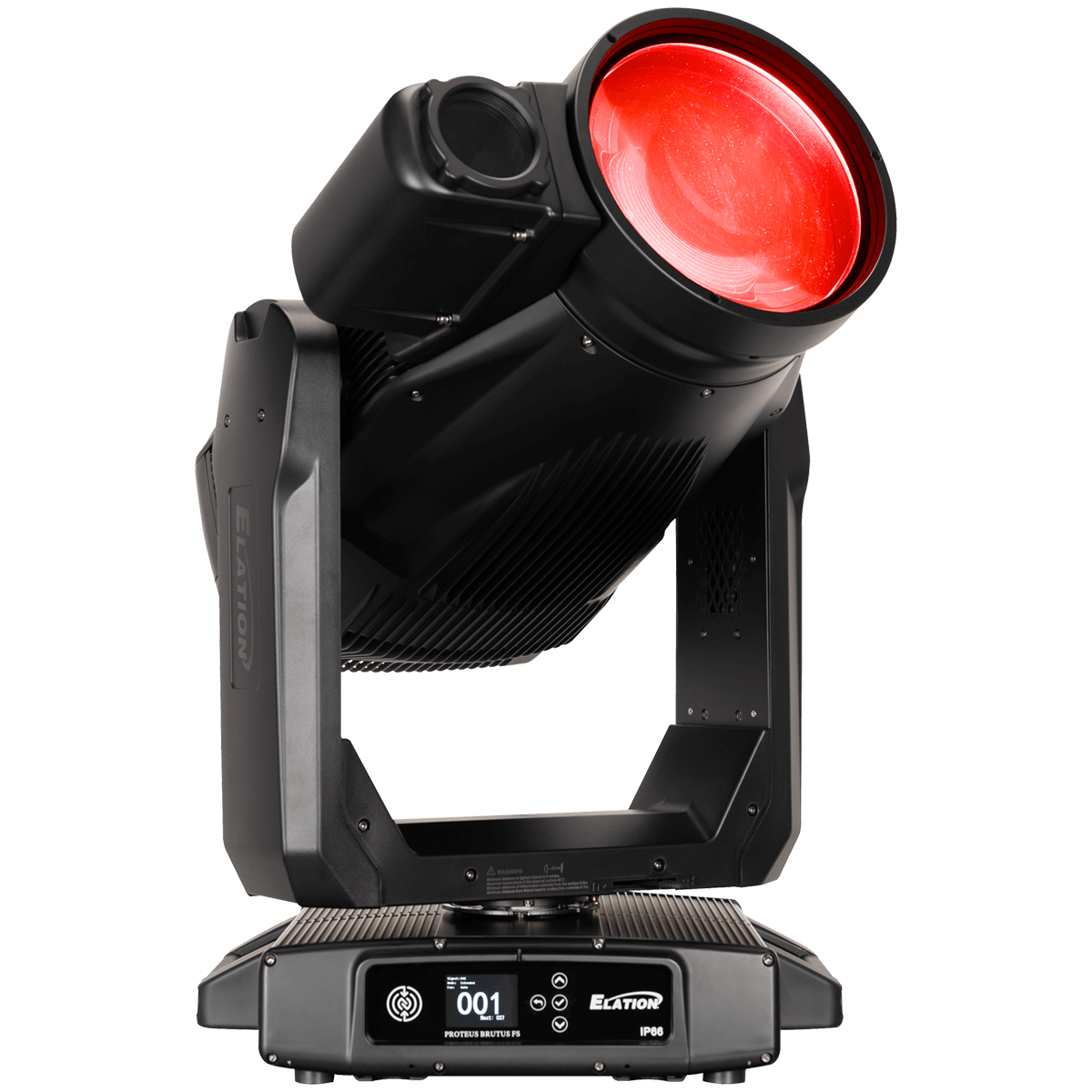

The PROTEUS BRUTUS FS is an extremely bright IP66 rated LED Follow Spot fixture offering high intensity and excellent color quality at long distances. Operated manually with removable handles or remotely through one of the many automated remote tracking systems in the market, this purpose build fixture is ideal for any indoor and outdoor application that requires precise and smooth operation, flexible color control and superior output in medium to long throw follow spot applications.

UPC: 840063546974

SKU: PRB234

PROTEUS BRUTUS FS

The PROTEUS BRUTUS FS is an extremely bright IP66 rated LED Follow Spot fixture offering high intensity and excellent color quality at long distances. Operated manually with removable handles or remotely through one of the many automated remote tracking systems in the market, this purpose build fixture is ideal for any indoor and outdoor application that requires precise and smooth operation, flexible color control and superior output in medium to long throw follow spot applications.

The PROTEUS BRUTUS FS provides a removable IP rated camera housing to attach all commonly used POE or SDI cameras. Cables and a variety of camera connections are all integrated into the chassis for easy customization. The fixture provides several ways of data and low voltage power connections for seamless integration. Camera choices vary for any of the different tracking systems, no camera is included with the fixture itself.

PROTEUS BRUTUS FS provides the user CMY color mixing, variable CTO and a variable CRI filter from CRI70 to CRI 90, allowing excellent color control essential for follow spot applications.

Zoom, Focus and Iris are all optimized for the unique requirements of follow spots, and a variable frost rounds out the beam control options. The fixture includes 5 indexable gobos, preloaded with a variety of beam shaping images.

With a narrow zoom range of 3° to 35° the PROTEUS BRUTUS FS has the power to cut through at great distances. The fully dust and waterproof design is well suited for a wide range of exterior or indoor applications.

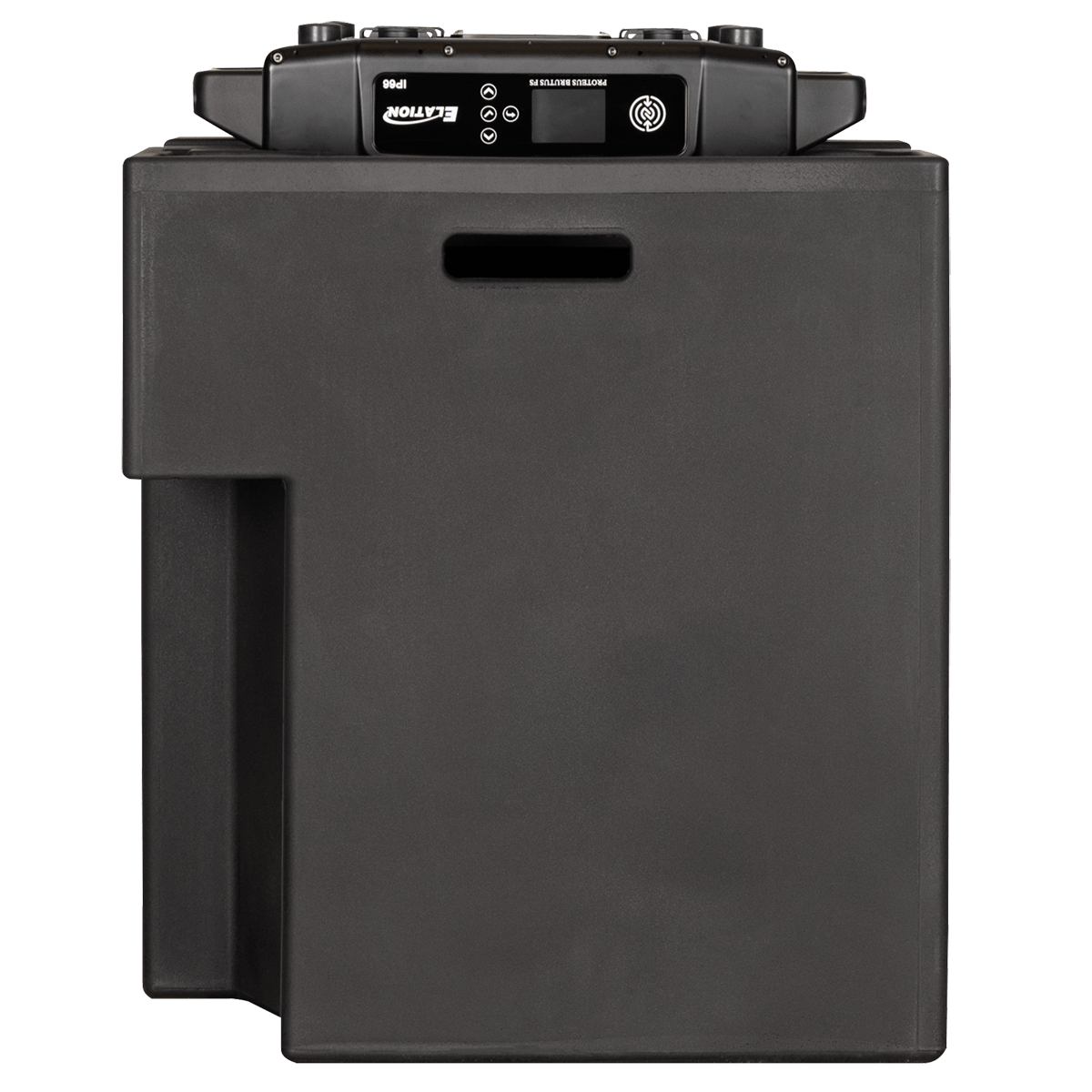

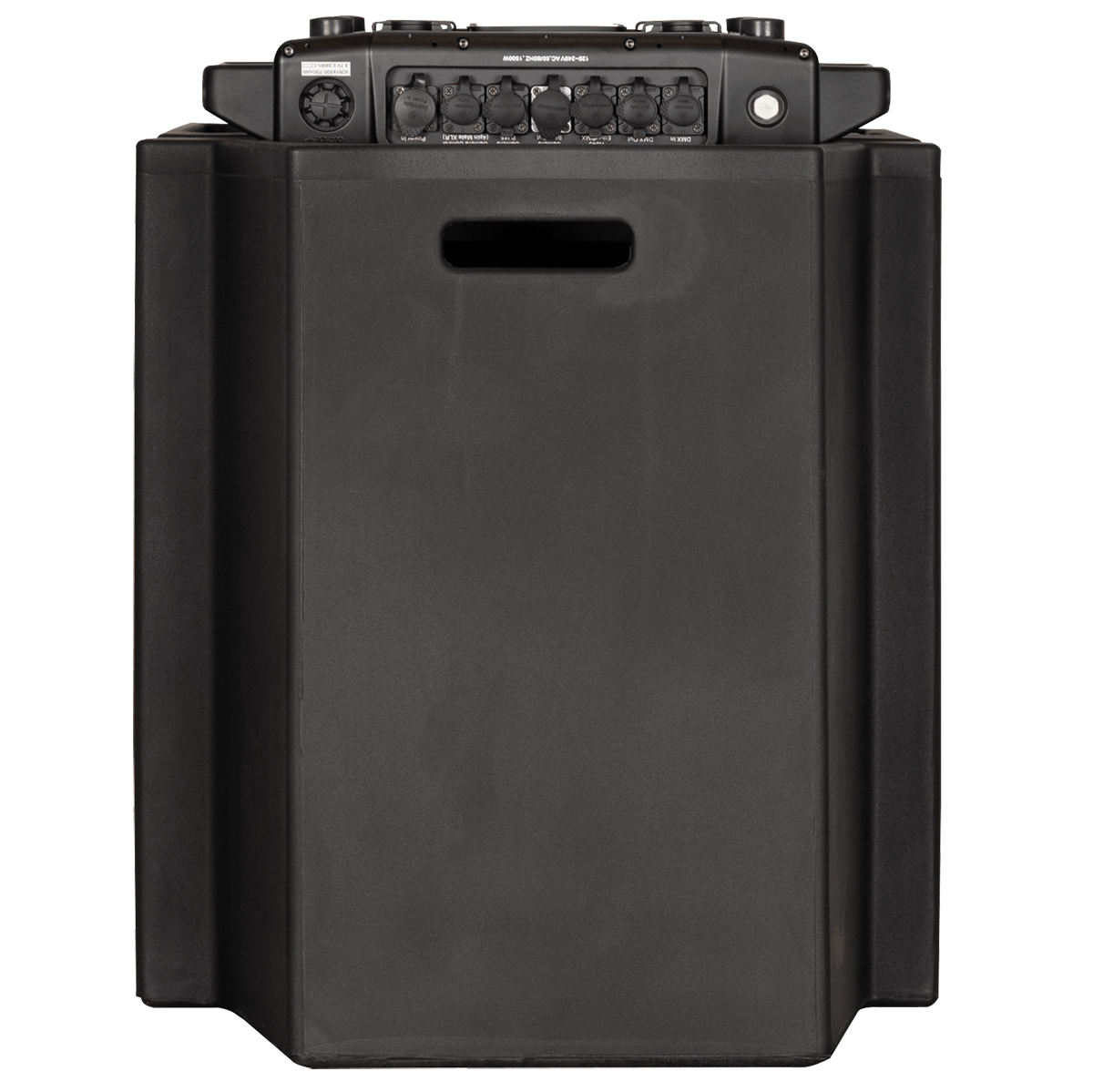

The PROTEUS BRUTUS FS ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.

High Efficiency 1200W 6,500K LED Engine
16000 lx (1470fc) center intensity @ 20m
CMY Color Mixing and Variable CTO
Variable CRI Filter
Precise Zoom, Iris and Frost control
Long Throw Zoom Range from 3° to 35°
Indexable Gobo Images for beam shaping or texture projection
Manual Follow Spot Handle attachment points
Removable IP66 Camera Chassis
NDI, POE, SDI and Camera Control pre-wired
Optional Tripod Stand

Optional Handles

Specifications

SOURCE

600W 6,500K Bright White Peak Field LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

22000 Total Lumen Fixture Output

CRI 70+ (80 or 90 with HCRI Filter)

2:1 Hotspot Ratio

Zoom Range 3.5° - 51°

Beam Angle

Field Angle

EFFECTS

Motorized Zoom

4 Rotating Full Blackout Framing Blades

+/-60° Framing Module Index

Full 360° Bi-Directional Animation Wheel

4-Facet Round and 6 Facet Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curves

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°

Tilt Angle: 270°

Continuous 360° Pan Rotation

COLOR

CMY Color Mixing

Linear CTO Color Correction (2400K)

7 Dichroic Colors, including CRI 80 and CRI90 filters

GOBOS

2 Gobo Wheels

7 Rotating Glass Gobos

8 Static Glass Gobos

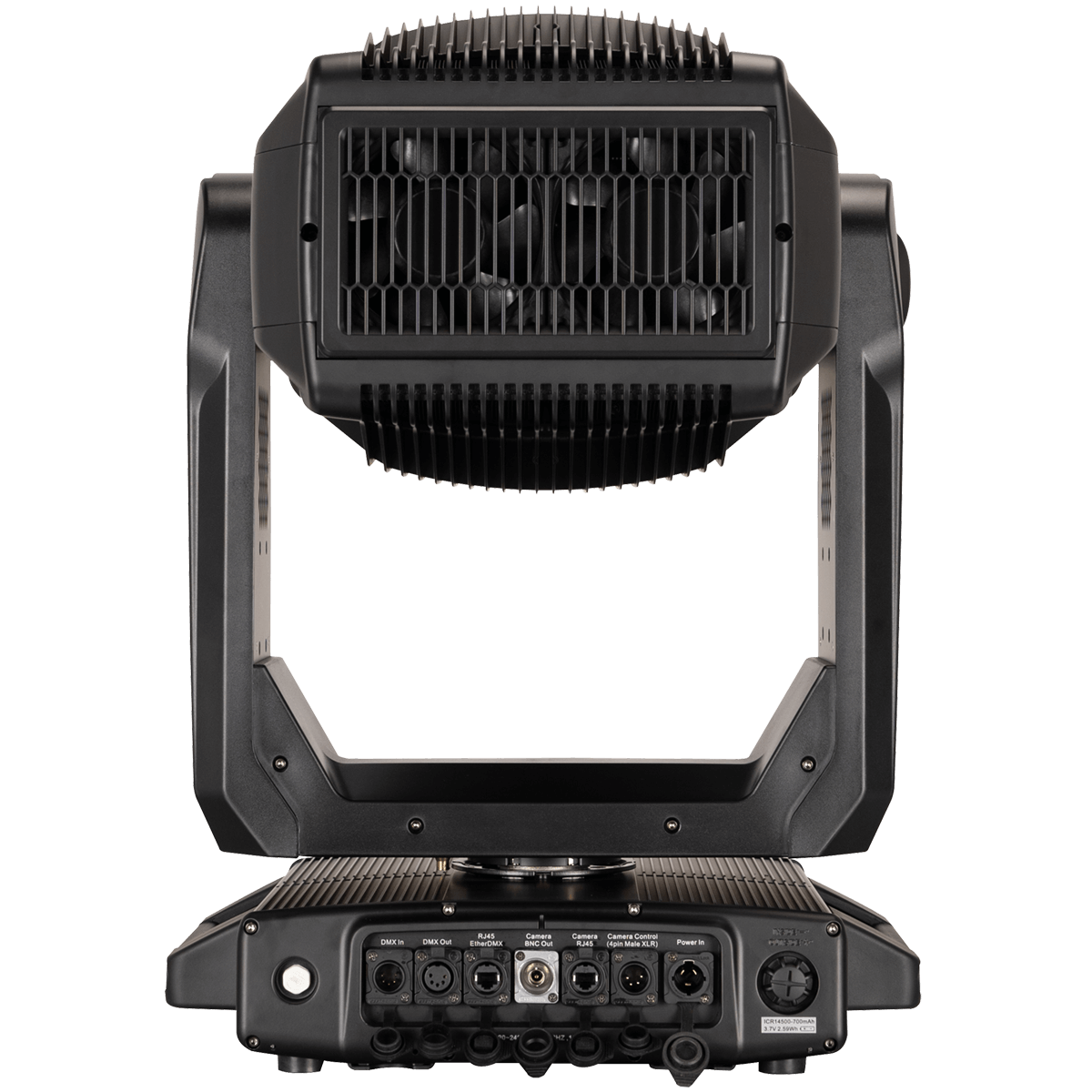

CONTROL / CONNECTIONS

2 DMX Channel Modes

(5) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

Aria x2 Wireless Device Management

NFC Configuration

IP65 Locking 5pin XLR Connector In/Out

IP65 Locking RJ45 Ethernet Connector In/Out

IP65 Locking Power Connector In

SIZE / WEIGHT

Length: 15.65 in (398mm)

Width: 11.06 in (281mm)

Height: 26.2 in (666mm)

Center-to-Center Spacing: 23.2in (589mm)

Weight: 66 lbs. (29.9 kg)

ELECTRICAL

AC 100-240V 50/60Hz

Max Power Consumption: 950W

-4° to 113°F (-20°C to 45°C)

3509 BTU/hr (+/- 10%)

INCLUDED ITEMS

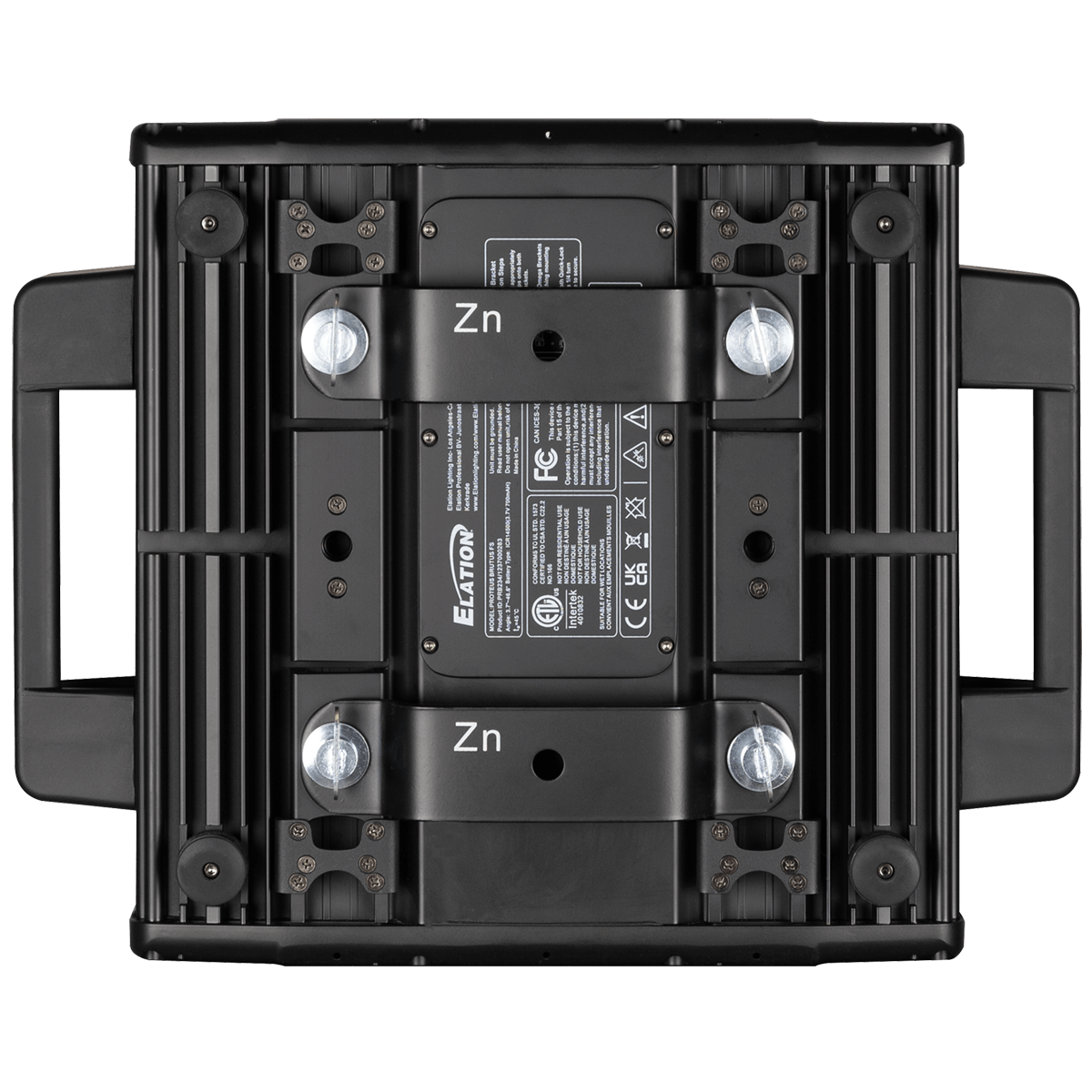

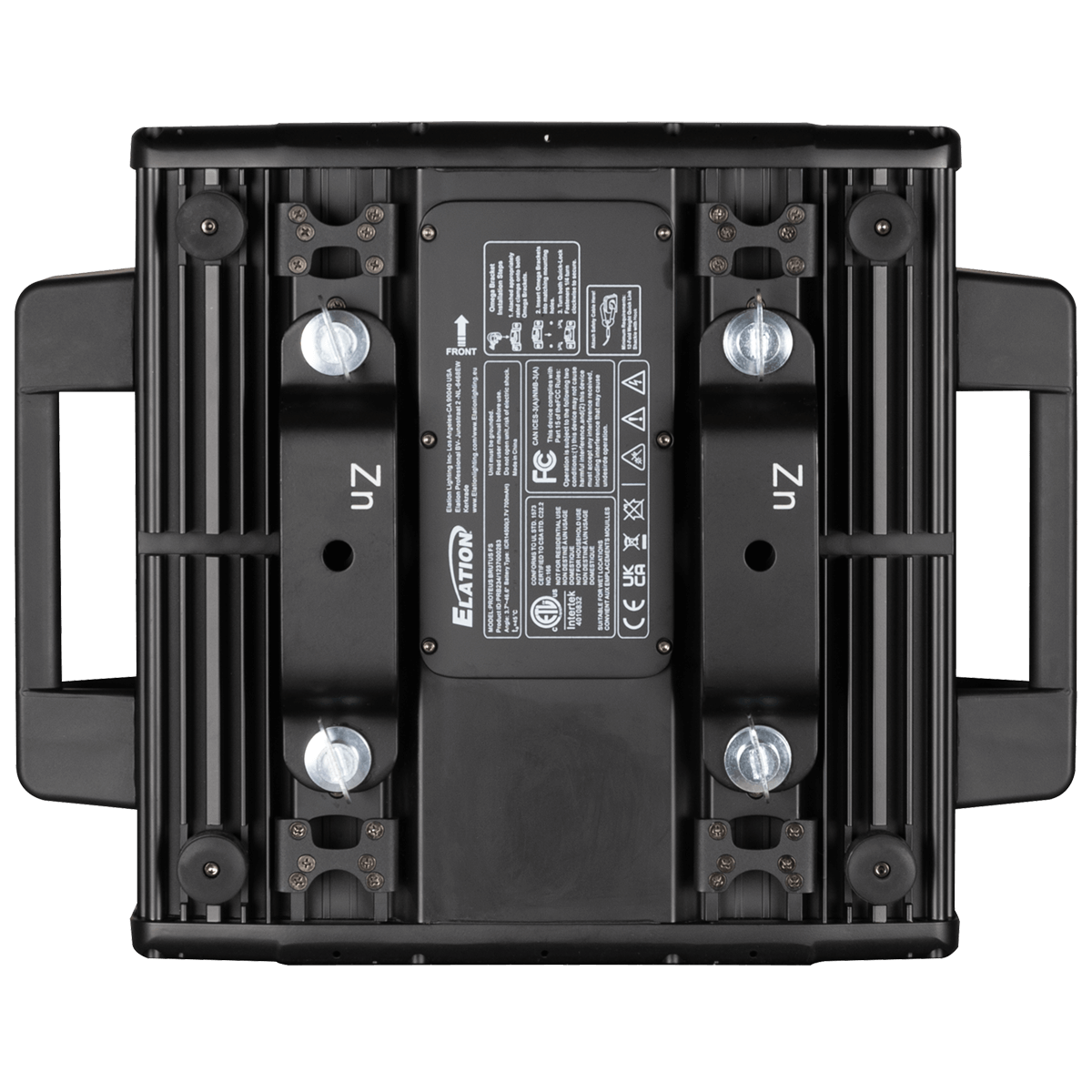

Omega Brackets (x2)

Safety Cable

IP65 Rated Locking Power Cable

APPROVALS / RATINGS

CE | cETLus | FCC | UKCA | IP65

Specifications and documentation subject to change without notice.
