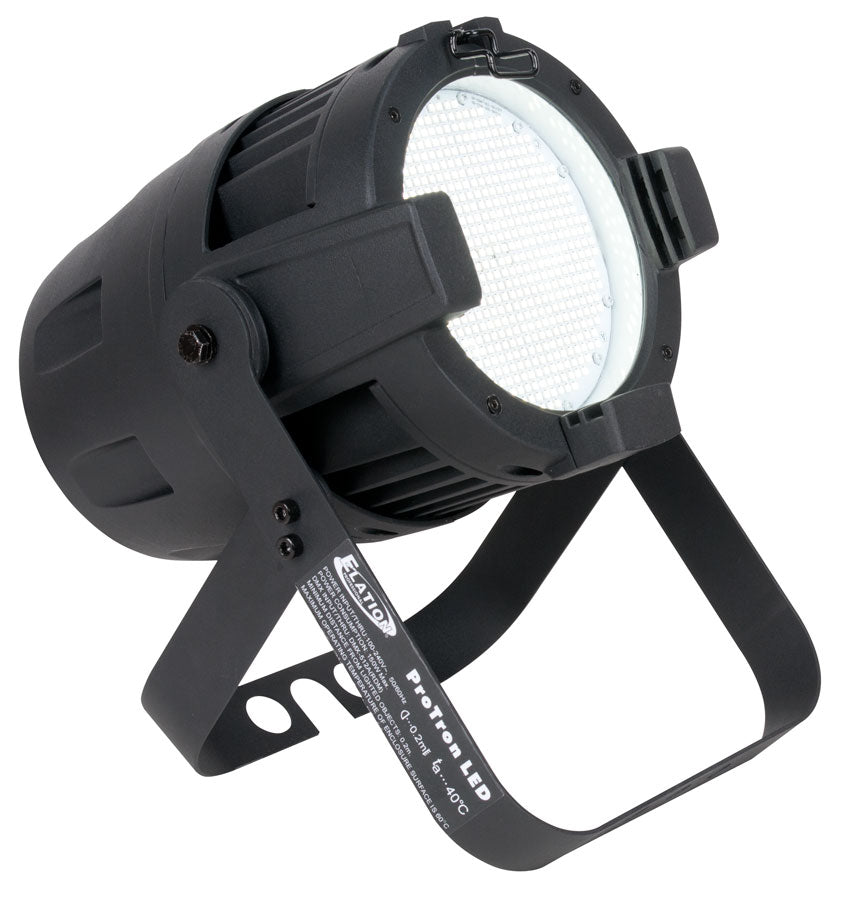

PROTRON LED STROBE
Discontinued
Protron LED Strobe is a professional-grade lighting solution.
PROTRON LED STROBE
Sale price$0.00
PROTRON LED STROBE
High Power 6,500K Surface Mount Cool White LEDs Low 150W Power Consumption IP65 Rated Rugged Die Cast Aluminum Case Selectable Dimming Curves RDM (Remote Device Management) Flicker FREE Operation for TV and FILM Integrated 6.25"Gel Frame Holder Spilt Yoke Rigging Bracket
- High Power 6,500K Surface Mount Cool White LEDs
- Low 150W Power Consumption
- IP65 Rated Rugged Die Cast Aluminum Case
- Selectable Dimming Curves
- RDM (Remote Device Management)
- Flicker FREE Operation for TV and FILM
- Integrated 6.25"Gel Frame Holder
- Spilt Yoke Rigging Bracket
Specifications
SOURCE
(576) 6,500K Cool White Surface Mount LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
120deg; Beam Angle
28,000 Total Lumens
EFFECTS
Variable Strobe Intensity, Rate, and Duration Control
Multiple Zone Chase Effects

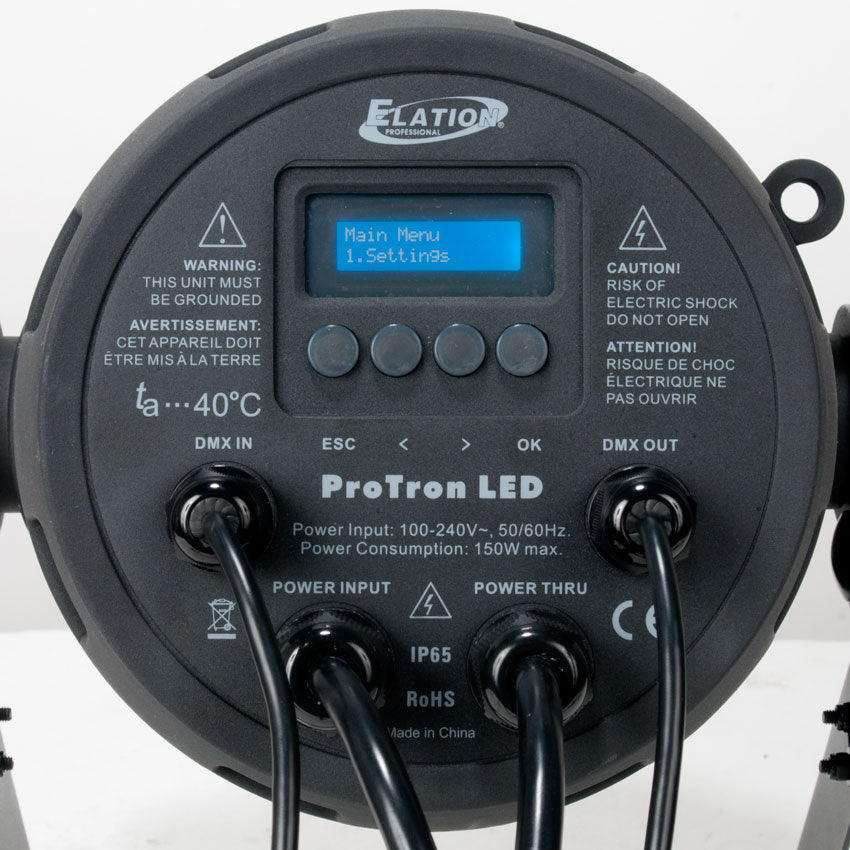

CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 4 / 6)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
3pin DMX In/Out
Power In/Out
SIZE / WEIGHT
Length: 10.8" (275.5 mm)
Width: 10.8" (273.5 mm)
Vertical Height: 13.9" (352 mm)
Weight: 11.7 lbs. (5.3 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
150W Max Power Consumption
32deg;F to 104deg;F (-0deg;C to 40deg;C)
APPROVALS / RATINGS
CE | cETLus | IP65
Specifications and documentation subject to change without notice.
